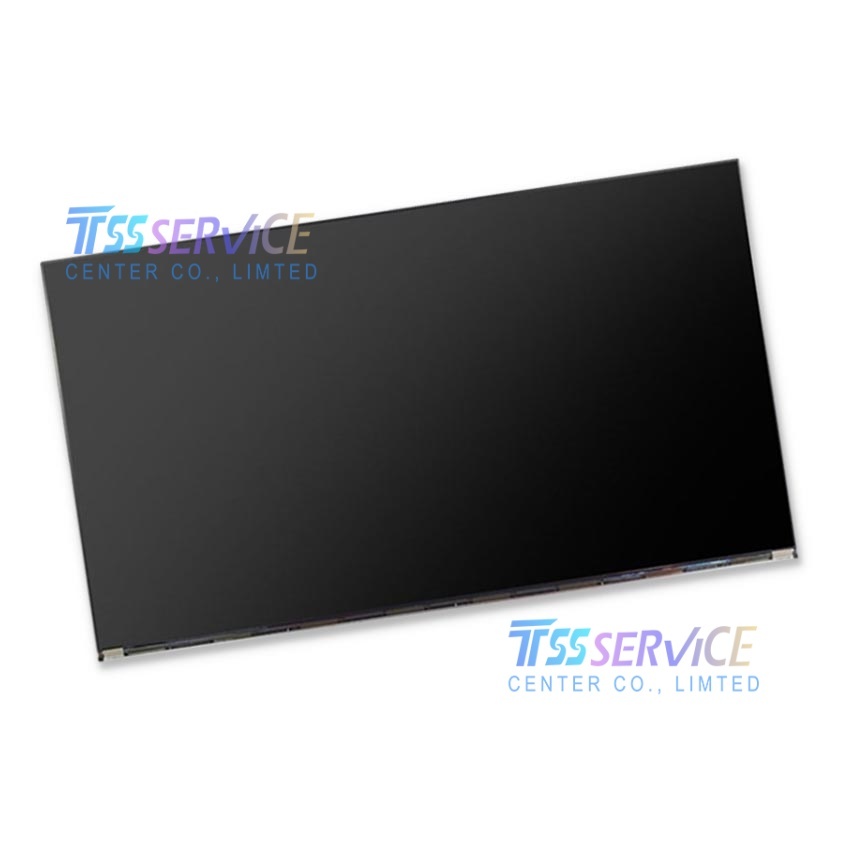

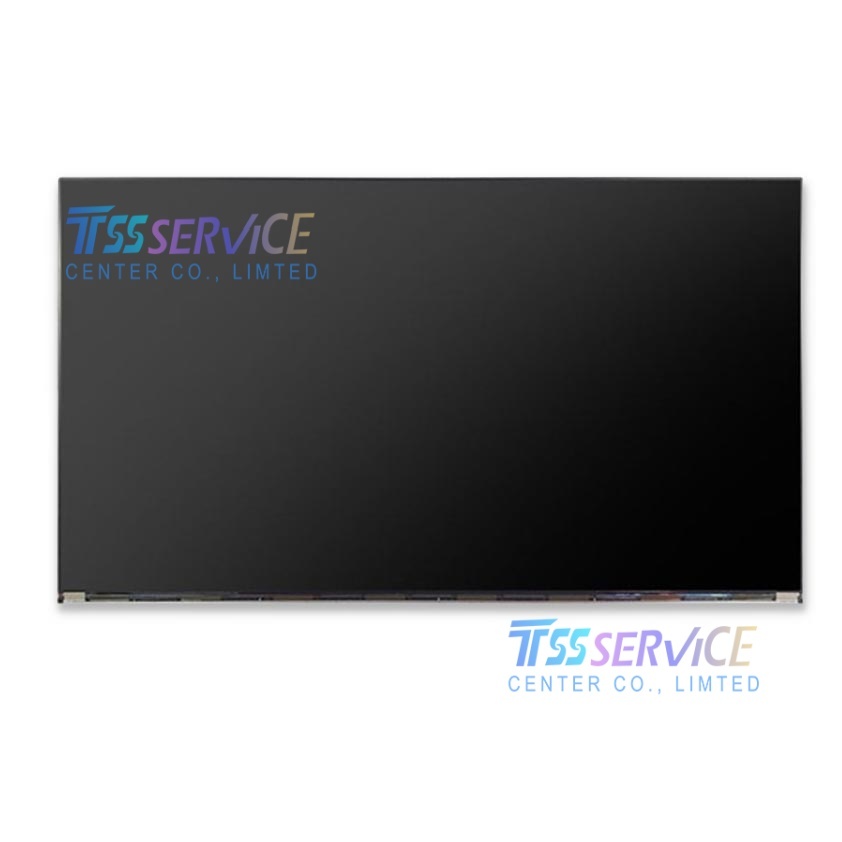

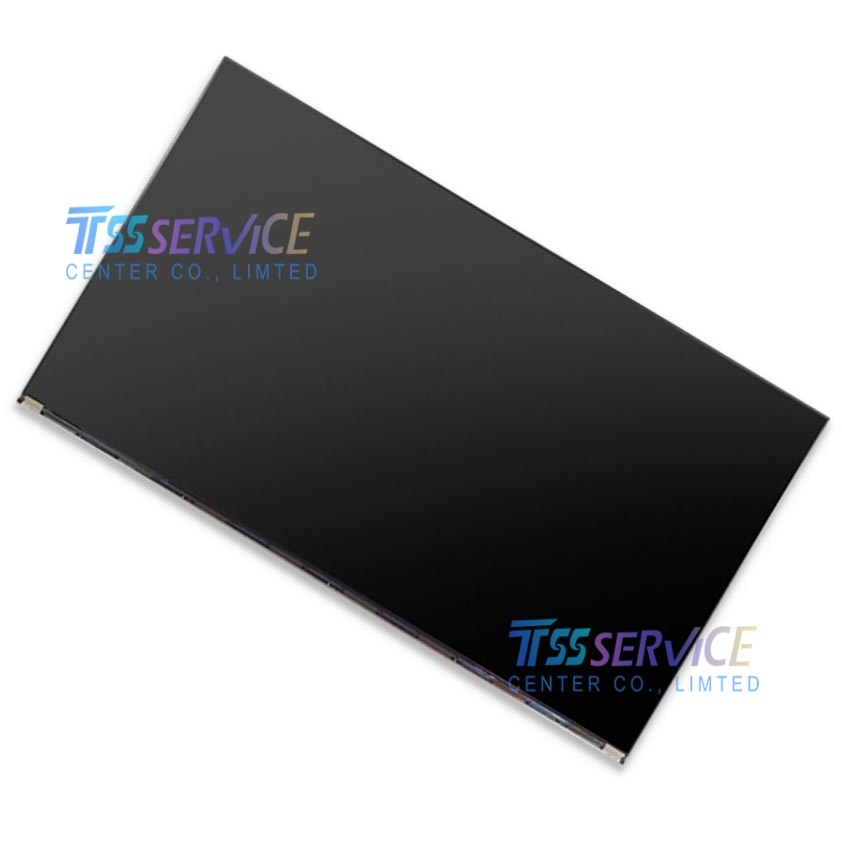

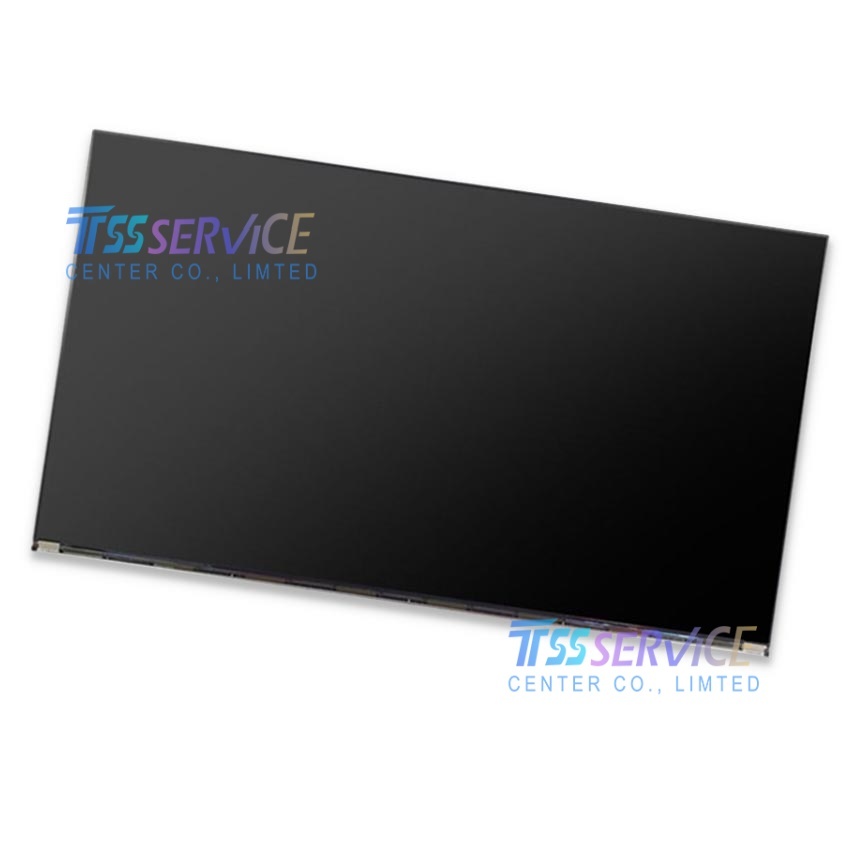

Samsung LTM240CL07 24 inch 1920×1200 LCD Screen Display Panel for Industrial

SKU: LTM240CL07
Model P/N: LTM240CL07
Diagonal Size: 24"
Panel Type: a-Si TFT-LCD, LCM
Pixel Number: 1920(RGB)×1200, 16:10, WUXGA
Pixel Format: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$255.00 $253.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • Samsung LTM240CL07 24 inch 1920×1200 LCD Screen Display Panel for Industrial
  • Samsung LTM240CL07 24 inch 1920×1200 LCD Screen Display Panel for Industrial
  • Samsung LTM240CL07 24 inch 1920×1200 LCD Screen Display Panel for Industrial
  • Samsung LTM240CL07 24 inch 1920×1200 LCD Screen Display Panel for Industrial
  • Samsung LTM240CL07 24 inch 1920×1200 LCD Screen Display Panel for Industrial
  • Samsung LTM240CL07 24 inch 1920×1200 LCD Screen Display Panel for Industrial
  • Samsung LTM240CL07 24 inch 1920×1200 LCD Screen Display Panel for Industrial
  • Samsung LTM240CL07 24 inch 1920×1200 LCD Screen Display Panel for Industrial
1/1
  • Samsung LTM240CL07 24 inch 1920×1200 LCD Screen Display Panel for Industrial
  • Samsung LTM240CL07 24 inch 1920×1200 LCD Screen Display Panel for Industrial
  • Samsung LTM240CL07 24 inch 1920×1200 LCD Screen Display Panel for Industrial
  • Samsung LTM240CL07 24 inch 1920×1200 LCD Screen Display Panel for Industrial
  • Description
Samsung LTM240CL07 24 inch 1920×1200 LCD Screen Display Panel for Industrial
Parameter Description
Model LTM240CL07
Brand Samsung
Size 24.0 inches
Display Type a-Si TFT-LCD, LCM
Resolution 1920 × 1200 (WUXGA), 94 PPI
Active Area 518.4 (W) × 324 (H) mm
Brightness 350 cd/m² (typ.)
Contrast Ratio 1000:1 (typ.)
Viewing Angle 89°/89°/89°/89° (CR ≥ 10)
Color Depth 8-bit, 16.7M colors
Interface LVDS (8-bit, 60Hz)
Backlight MG LED (edge-lit)
Operating Temp 0°C ~ 50°C
Storage Temp -20°C ~ 60°C
Weight Approx. 1.0 kg
Status Discontinued (mass production ended Q2 2014)

Typical Applications

  • Industrial HMI & Control Rooms: Factory automation, SCADA systems, CNC machinery, and test/measurement equipment requiring high resolution and wide viewing angles.
  • Medical Imaging & Devices: Diagnostic monitors, ultrasound machines, and surgical displays where accurate color reproduction and reliability are critical.
  • Professional Visualization: Financial trading terminals, graphic design workstations, and video editing suites needing WUXGA resolution and 16:10 aspect ratio.
  • Marine & Rugged Displays: Ship navigation systems, offshore control panels, and outdoor industrial monitors (with enhanced brightness and environmental protection).
  • Kiosks & Digital Signage: High-end self-service terminals, retail signage, and public information displays requiring long-term stability and consistent performance.
