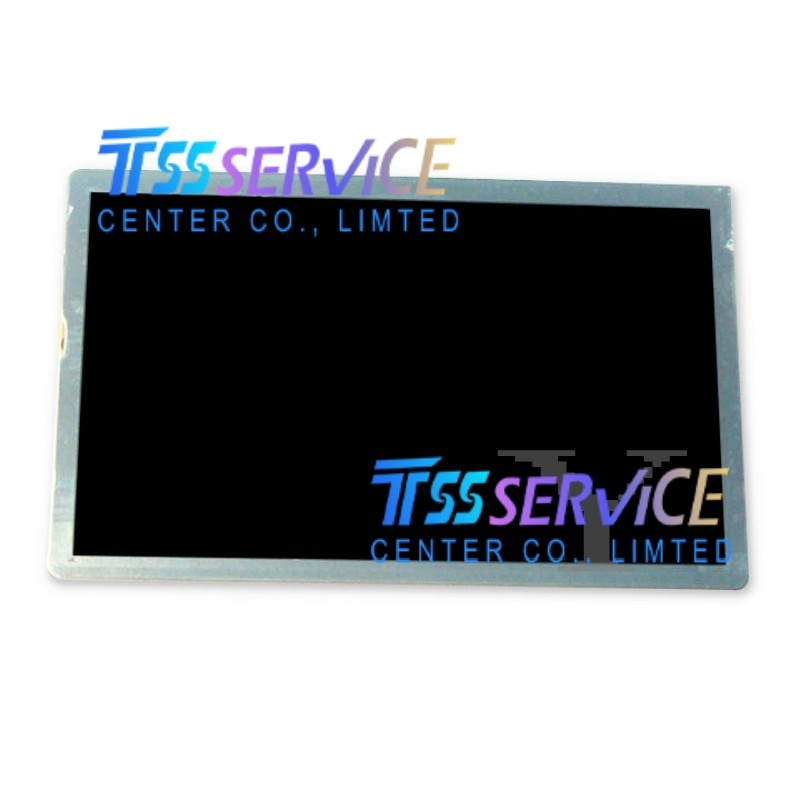

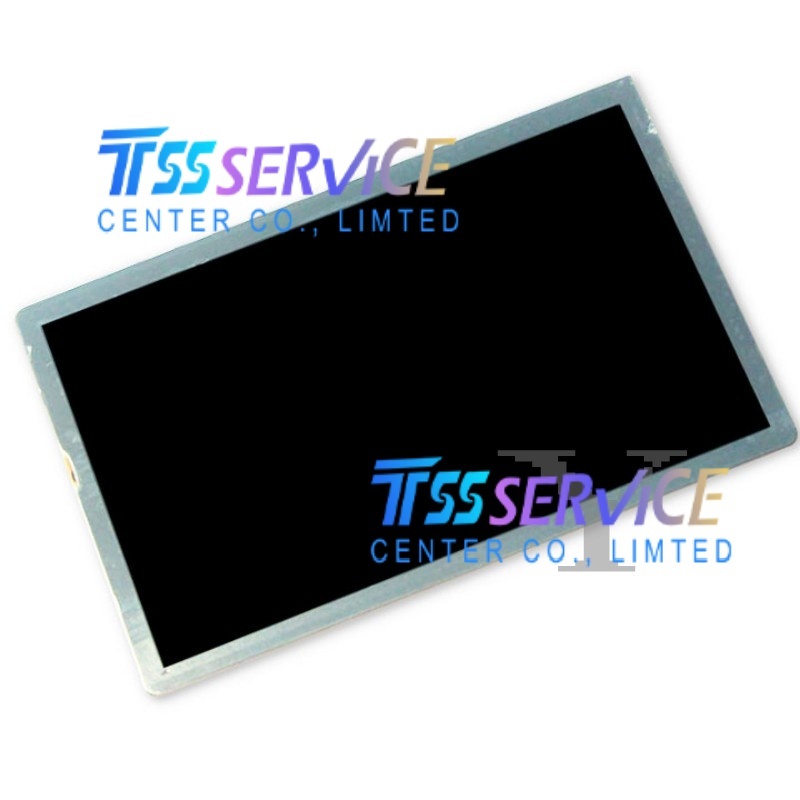

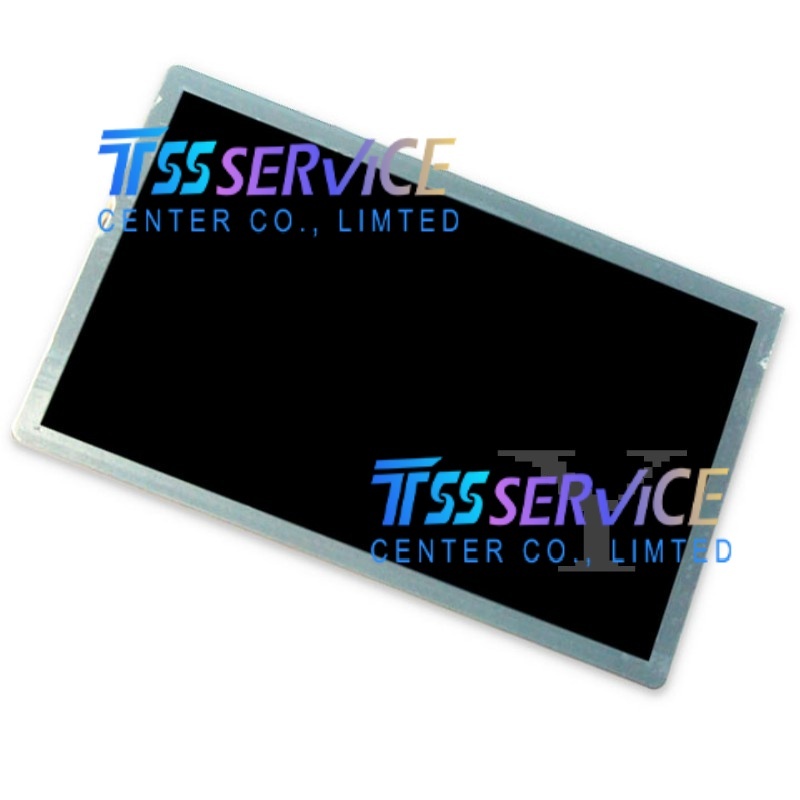

SHARP NEW 7.0 inch LCD Display Panel LQ7BW556TR for Industrial
| Parameter |
Specification Details |
| Model Number |
LQ7BW556TR (or equivalent 7" Wide Sharp Series) |
| Manufacturer |
Sharp Corporation |
| Display Size |
7.0 inches (Diagonal) |
| Active Area (AA) |
Approx. 154.08 mm (H) × 85.92 mm (V) (for 1024x600)
Or 153.6 mm (H) × 96.0 mm (V) (for 1280x800) |
| Resolution |
1024 (RGB) × 600 (WSVGA)
(Common for "556" series)
OR
1280 (RGB) × 800 (WXGA) |
| Pixel Pitch |
~0.150 mm (H) × 0.142 mm (V) (for WSVGA) |
| Aspect Ratio |
16:9 (WSVGA) or 16:10 (WXGA) |
| Pixel Arrangement |
RGB Vertical Stripe |
| Display Mode |
Transmissive, Normally White (or Black depending on specific sub-model) |
| Panel Technology |
a-Si TFT-LCD |
| Brightness |
400 ~ 800 cd/m² (Typical)
(High Brightness options available up to 1000 nits) |
| Contrast Ratio |
800:1 to 1000:1 (Typical) |
| Viewing Angle |
80°/80°/60°/60° (TN)
OR
85°/85°/85°/85° (IPS) @ CR≥10 |
| Color Depth |
16.7 Million Colors (24-bit) or 262K Colors (18-bit) |
| Interface Type |
LVDS (1-channel or 2-channel)
(Some variants may support MIPI DSI) |
| Connector Type |
FPC (Flexible Printed Circuit) with ZIF Connector (e.g., 0.5mm or 0.3mm pitch, 20-40 pins) |
| Backlight Type |
WLED (White LED) with integrated driver (or external driver depending on config) |
| Backlight Lifetime |
≥ 50,000 hours (to 50% brightness) |
| Operating Temperature |
-20°C to +70°C (Standard)
-30°C to +80°C (Wide Temp Option) |
| Storage Temperature |
-30°C to +80°C |
| Power Supply |
3.3V ±0.3V (Logic); Backlight voltage varies (typically 10-20V for LED string) |
| Surface Treatment |
Anti-Glare (AG) or Clear (Glossy) depending on application |
| Touch Panel |
None (Module only; compatible with Projected Capacitive or Resistive touch) |
| Mounting |
Metal bezel or open frame (depending on specific "T" suffix configuration) |
The LQ7BW556TR (7-inch Wide Industrial Panel) is ideally suited for applications requiring a compact yet wide display format:
-
Automotive Infotainment & Instrument Clusters:
- Used as the central display for navigation systems, rear-view camera feeds, and digital instrument clusters in cars, trucks, and agricultural machinery. The wide format fits dashboard layouts perfectly, and the LVDS interface ensures reliability against vehicle electrical noise.
-
Handheld Medical Devices:
- Integrated into patient monitors, ultrasound portable units, and diagnostic tablets. The 7-inch size offers sufficient screen area for vital signs and waveforms while remaining portable for doctors and nurses.
-
Industrial Human Machine Interface (HMI):
- Deployed on control panels for PLCs, robotic teach pendants, and factory automation terminals. The rugged design withstands vibration and temperature fluctuations in factory settings.
-
Portable Test & Measurement Equipment:
- Serves as the main display for oscilloscopes, spectrum analyzers, and field service tools, where engineers need to view complex graphs and data clearly in various lighting conditions.
-
Marine & Aviation Displays:
- Used in boat chart plotters, fish finders, and cockpit auxiliary displays. The high brightness and wide viewing angles are critical for readability under sunlight and from different seating positions.
-
Smart Home & Building Control Panels:
- Mounted as wall-mounted control hubs for smart homes, managing lighting, security, and HVAC systems. The 16:9 aspect ratio is excellent for displaying floor plans and video doorbell feeds
