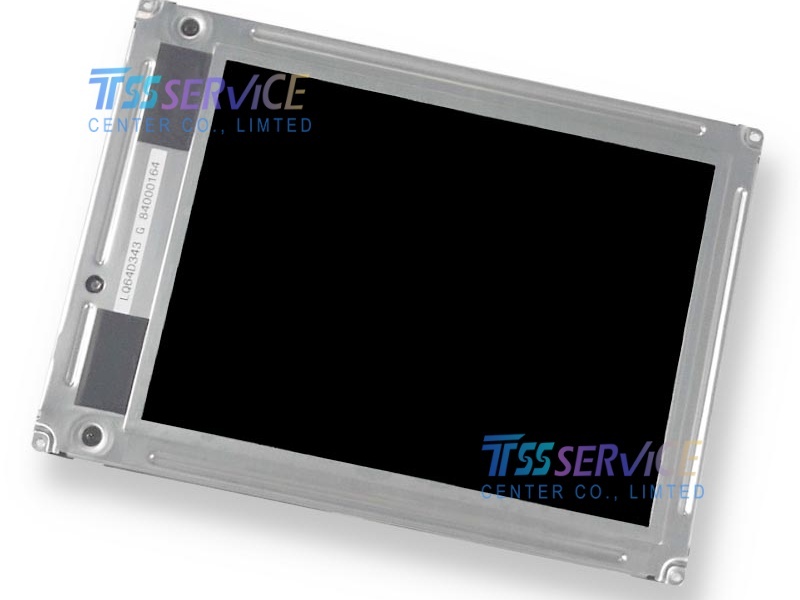

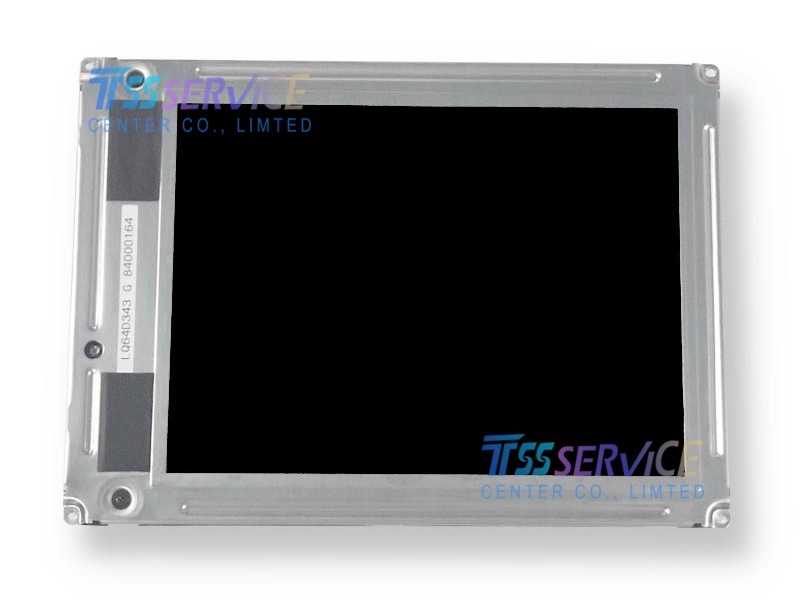

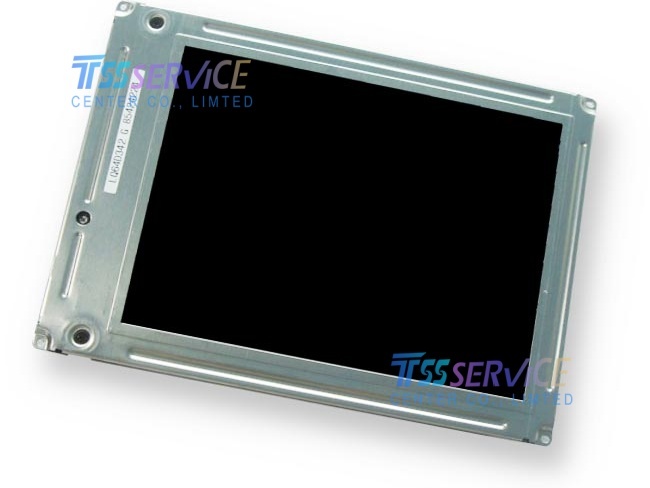

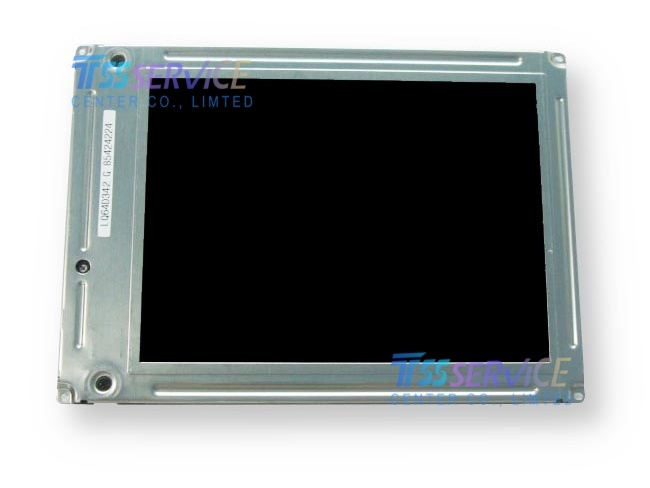

LQ64D34T | Sharp 6.4-inch VGA Industrial TFT-LCD Module
LQ64D34T is a classic 6.4-inch VGA (640×480) a-Si TN TFT color LCD module manufactured by Sharp. Equipped with dual CCFL backlight, 31-pin parallel TTL RGB interface, matte anti-glare hard coating and stable industrial optical performance, it is widely used as original and replacement screen for legacy industrial HMI, plastic molding machines, medical testing equipment, vehicle-mounted terminals and embedded control systems.
| Parameter Item |
Specification Details |
| Part Number |
LQ64D34T |
| Manufacturer |
Sharp Corporation (Japan) |
| Display Size |
6.4 inch, landscape, 4:3 aspect ratio |
| Native Resolution |
640(RGB) × 480 pixels (VGA, 124 PPI) |
| Display Technology |
a-Si TFT-LCD, TN mode, normally white, transmissive |
| Pixel Arrangement |
RGB vertical stripe |
| Active Area (AA) |
130.56 mm (W) × 96.96 mm (H) |
| Overall Outline Dimension |
175.0 × 126.5 × 12.5 mm |
| Pixel Pitch |
0.204 × 0.204 mm |
| Typical Brightness |
300 cd/m² |
| Typical Contrast Ratio |
150:1 (minimum transmission mode) |
| Viewing Angle (L/R/U/D, CR≥5) |
70° / 70° / 40° / 70° |
| Response Time (Tr/Td) |
20 ms / 40 ms (Typ.) |
| Display Color Depth |
262K colors (6-bit single channel) |
| Backlight System |
2 CCFL lamps, service life ≥ 50,000 hours, without built-in inverter |
| Signal Interface |
Parallel TTL RGB (1 channel, 6-bit), 31-pin FPC connector |
| Logic Supply Voltage |
5.0 VDC (Typ.) |
| Refresh Rate |
60 Hz |
| Operating Temperature |
0°C ~ +55°C |
| Storage Temperature |
-25°C ~ +70°C |
| Touch Function |
Without touch panel (external resistive touch customizable) |
| Surface Treatment |
Matte anti-glare polarizer, 3H scratch-resistant hard coating |
| Net Weight |
Max 280 g |
| Compliance Standard |
RoHS compliant |
| Production Status |
Discontinued legacy industrial panel, mainly for equipment maintenance replacement |
