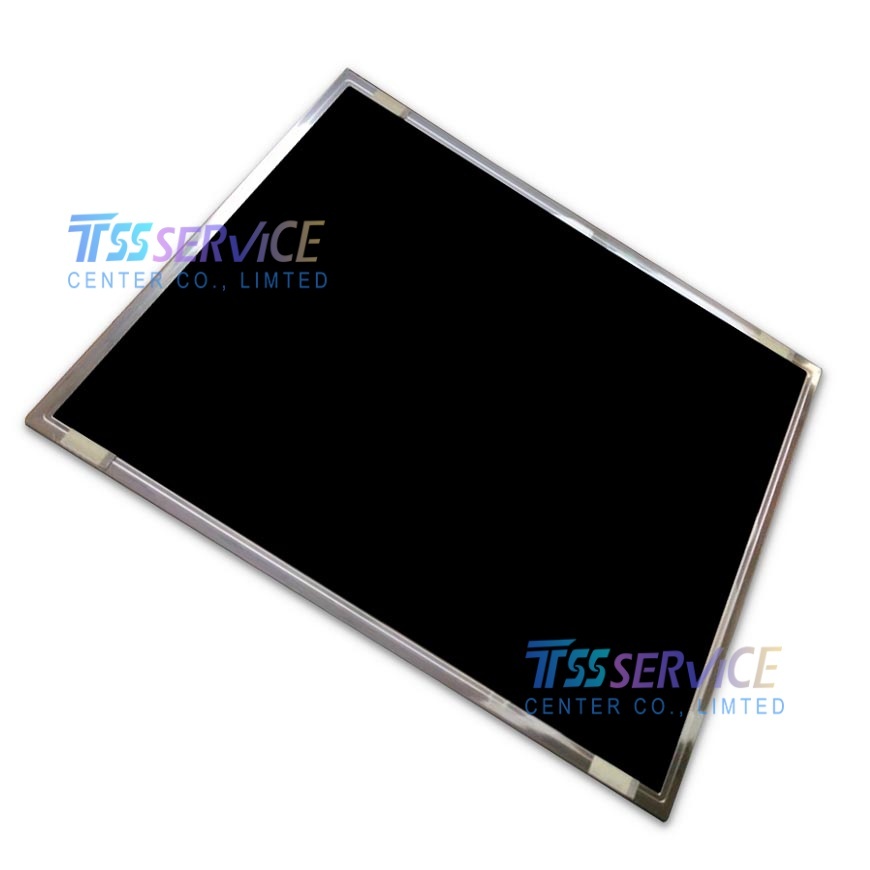

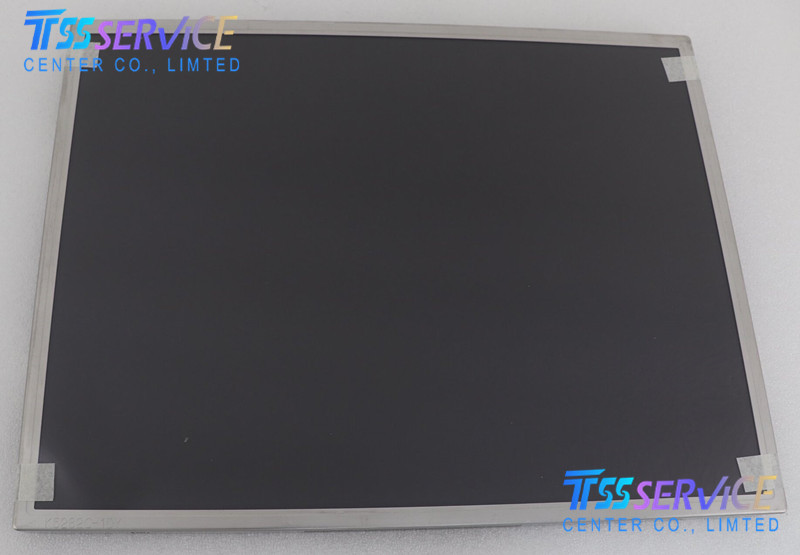

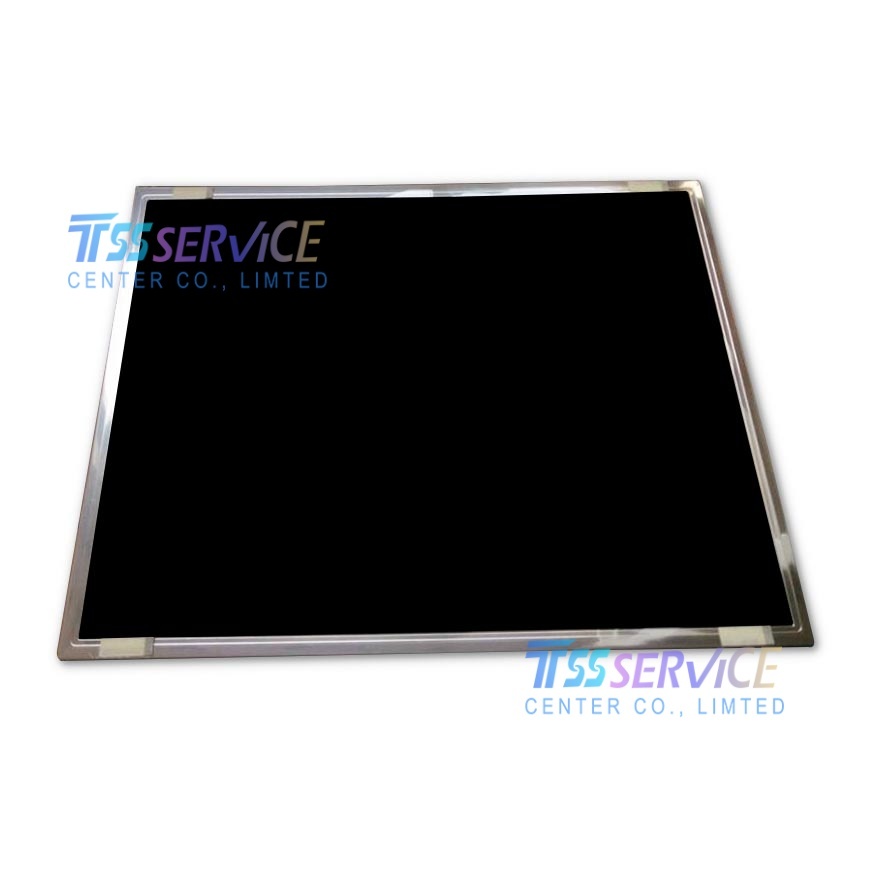

LQ201U1LW21 | Sharp 20.1” UXGA ASV 工业医疗液晶屏
LQ201U1LW21 is a 20.1-inch UXGA (1600×1200) a-Si TFT-LCD module manufactured by Sharp, adopting ASV wide viewing angle technology, six CCFL lamps backlight, dual-channel 8-bit LVDS interface, matte anti-glare 3H hard coating, and standard industrial temperature range. It delivers symmetrical ultra-wide viewing angle, rich 16.7M true colors and stable long-term operation performance, widely applied in medical auxiliary displays, industrial ATE test equipment, factory central control room monitors and legacy equipment screen replacement projects.
Specification Parameter Table
| Parameter Item |
Specification Details |
| Part Number |
LQ201U1LW21 |
| Manufacturer |
Sharp Corporation (Japan) |
| Display Size |
20.1 inch, landscape, 4:3 aspect ratio |
| Native Resolution |
1600(RGB) × 1200 pixels (UXGA, 99 PPI) |
| Display Technology |
a-Si TFT-LCD, ASV mode, Normally Black, Transmissive |
| Pixel Arrangement |
RGB vertical stripe |
| Pixel Pitch |
0.255 × 0.255 mm |
| Active Area (AA) |
408 mm (W) × 306 mm (H) |
| Overall Outline Dimension |
432 mm (W) × 331.5 mm (H) |
| Typical Brightness |
250 cd/m² |
| Typical Contrast Ratio |
500:1 (Transmissive mode) |
| Viewing Angle (L/R/U/D, CR≥10) |
88° / 88° / 88° / 88° full symmetrical wide angle |
| Response Time (Tr+Td) |
20 ms (Typical) |
| Display Color Depth |
16.7M true colors (8-bit), 69% NTSC color gamut |
| Backlight System |
6 CCFL lamps, service life ≥ 50,000 hours, without built-in driver |
| Signal Interface |
Dual-channel LVDS, 8-bit, 30-pin FPC connector |
| Logic Supply Voltage |
12.0 VDC (Typical) |
| Refresh Rate |
60 Hz |
| Operating Temperature |
0°C ~ +50°C |
| Storage Temperature |
-25°C ~ +60°C |
| Touch Function |
Without touch panel (resistive/capacitive touch can be customized externally) |
| Surface Treatment |
Matte anti-glare polarizer, 3H scratch-resistant hard coating |
| Net Weight |
3.20 kg (Typical) |
| Compliance Standard |
RoHS compliant |
| Production Status |
Discontinued legacy industrial & medical panel, mainly for maintenance replacement |
