ALPS LFSHBL601E 5.7 inch LCD Display Screen For Industrial

Name: ALPS LFSHBL601E 5.7 inch LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LFSHBL601E
Price: 304 USD
Availability: InStock

SKU: LFSHBL601E

Model: LFSHBL601E
Brand: ALPS（Japan）
Diagonal Size: 5.7 inches
Display Type: FSTN-LCD, Monochrome（Positive）
Resolution: 320 × 240 pixels（QVGA）

0.0 (0 Reviews)

0 Sold

~~$306.00~~ $304.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

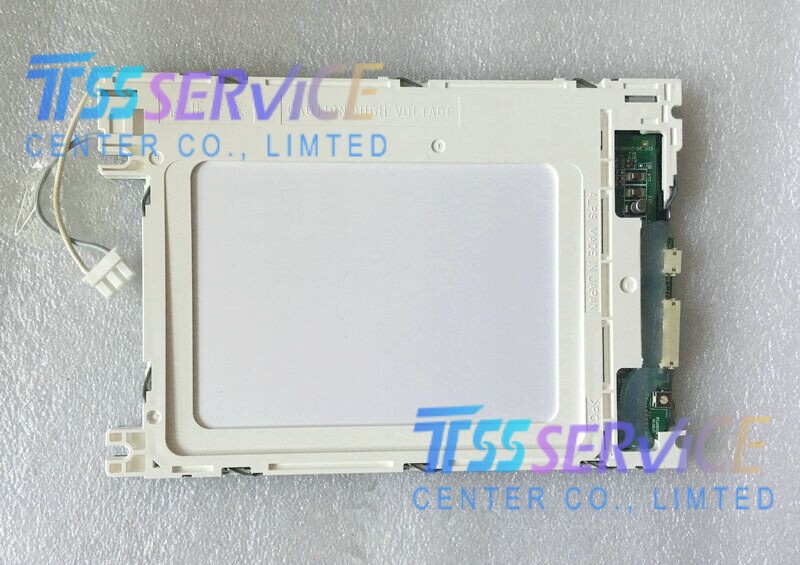

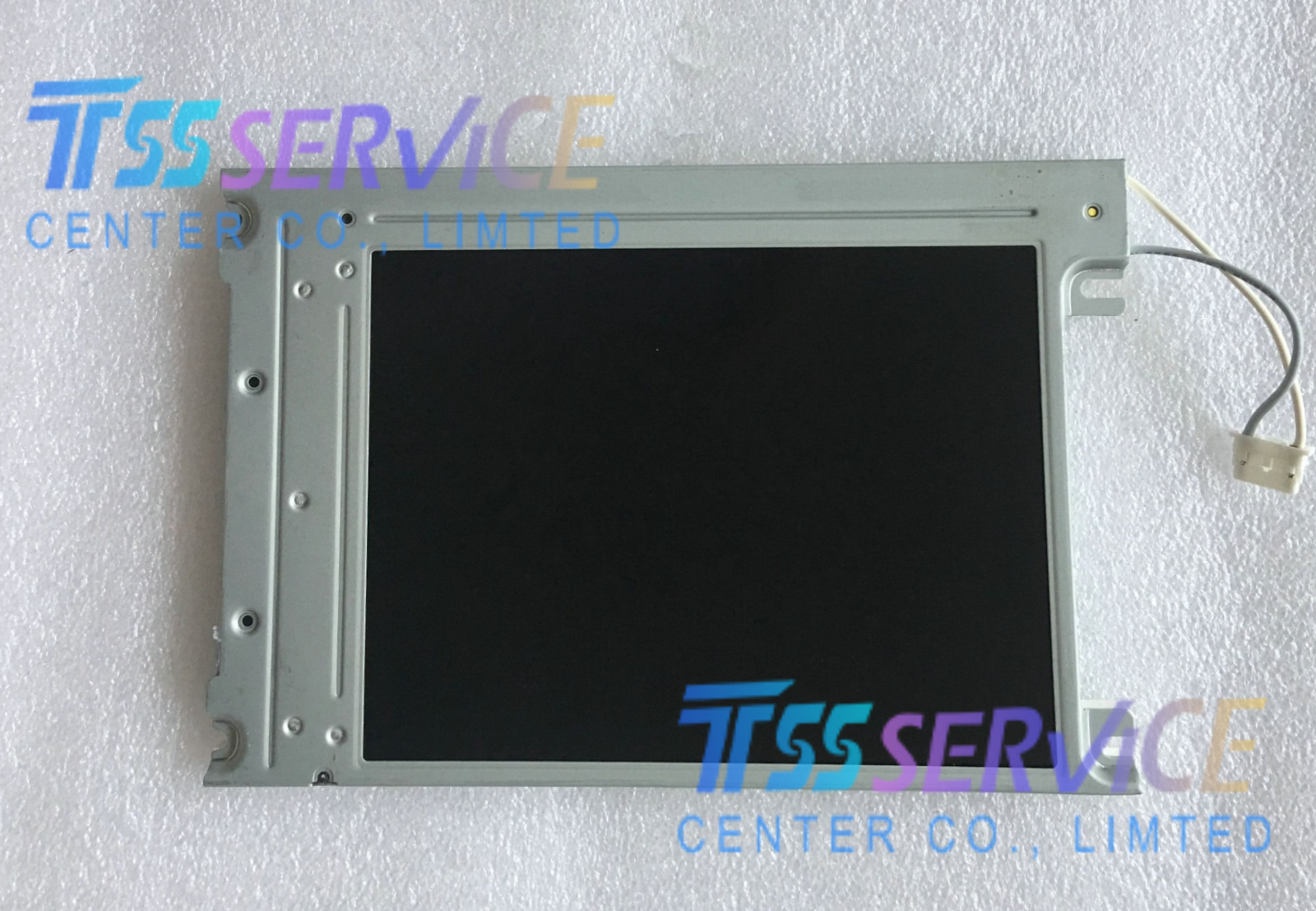

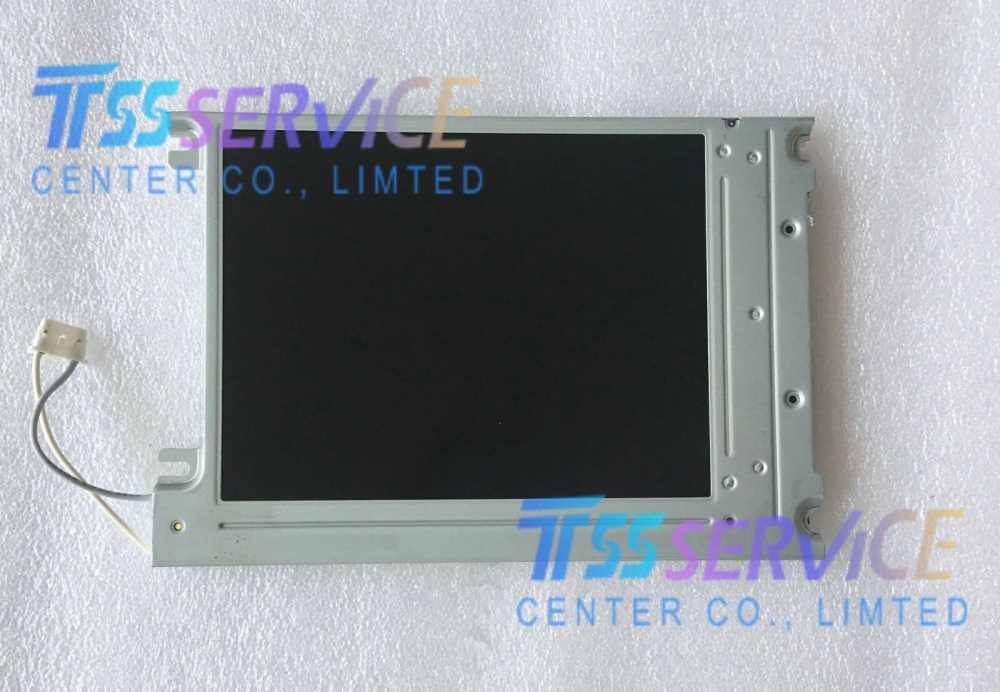

ALPS LFSHBL601E 5.7 inch LCD Display Screen For Industrial

Parameter	Specification
Model	LFSHBL601E
Brand	ALPS（Japan）
Diagonal Size	5.7 inches
Display Type	FSTN-LCD, Monochrome（Positive）
Resolution	320 × 240 pixels（QVGA）
Aspect Ratio	4:3
Brightness	250 cd/m²（typical）
Contrast Ratio	400:1（high contrast）
Viewing Angle（L/R/U/D）	60°/60°/40°/50°
Backlight	LED（white, long life）
Interface	20-pin Parallel / MCU
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
Outline Dimensions（W×H×D）	145 × 110 × 12 mm
Net Weight	Approx. 0.5 kg
Features	Wide temperature, sunlight readable, high contrast, industrial grade

Typical Applications

Industrial Control & HMI：PLC panels, factory automation terminals, CNC machine tools, robotic interfaces.
Medical Devices：Patient monitors, diagnostic equipment, portable medical instruments, ultrasound displays.
Test & Measurement：Oscilloscopes, data loggers, industrial meters, sensor display units.
Transportation & Vehicles：Industrial vehicle dashboards, onboard diagnostics, marine navigation displays.
Outdoor & Harsh Environments：Agriculture machinery, construction equipment, outdoor monitoring systems.
