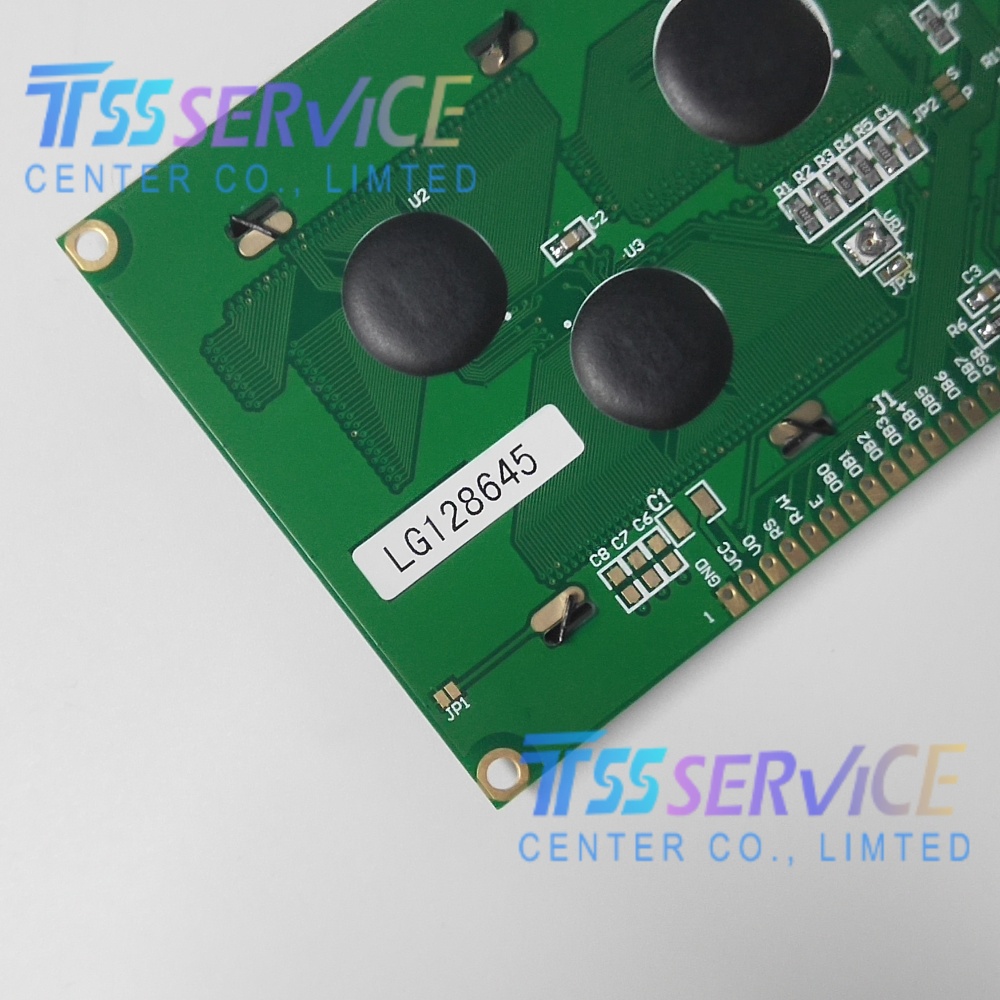

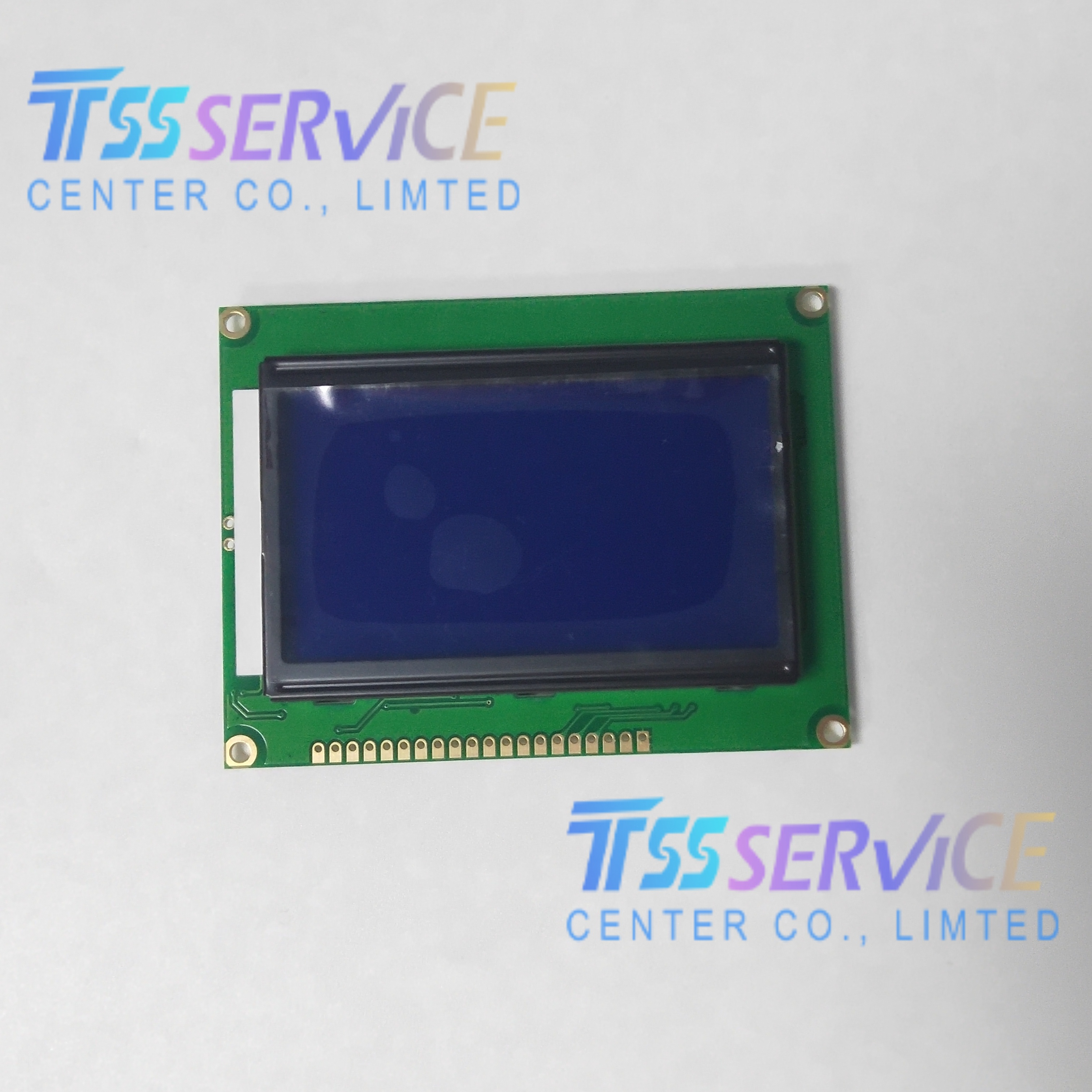

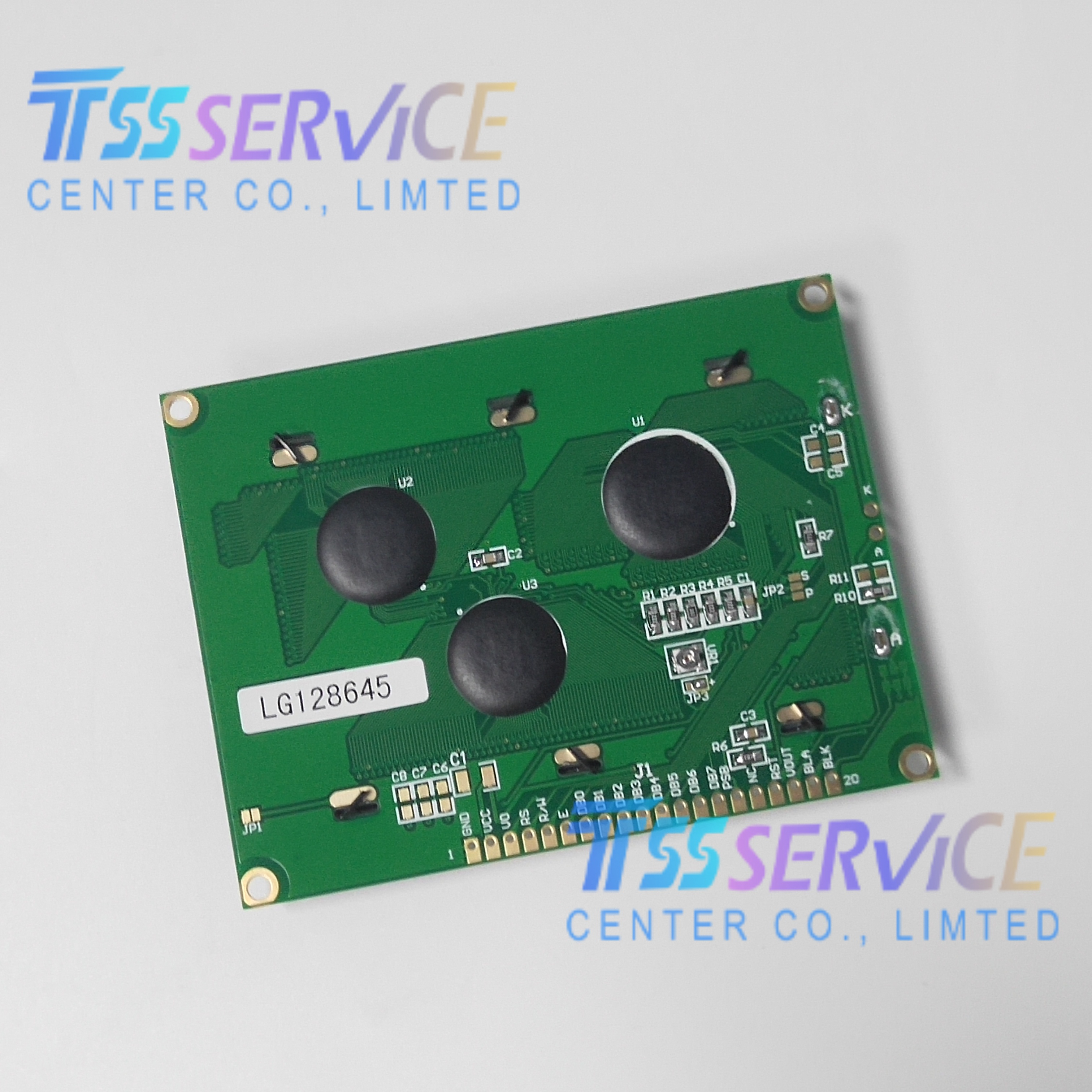

LG128645 Display Panel Screen 128×64 LCD Module For Industrial

Name: LG128645 Display Panel Screen 128×64 LCD Module For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LG128645
Price: 44 USD
Availability: InStock

SKU: LG128645

LG128645 is 128×64 graphic LCD module preloaded with 8192 built-in Chinese fonts, support 8-bit parallel and serial SPI dual interface. Equipped with LED backlight and FSTN yellow-green display, widely used for industrial controller, portable test meter, medical device and embedded DIY replacement screen

0.0 (0 Reviews)

0 Sold

~~$46.00~~ $44.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

LG128645 Display Panel Screen 128×64 LCD Module For Industrial

Item	Parameter
Model	LG128645 / LG128645-DW Graphic LCD Module
Resolution	128×64 Dot Matrix, ST7920 Controller, Built-in 8192 Chinese Fonts
Module Overall Size	93.0×70.0×13.5mm（3.66×2.76×0.53inch）
View Active Area	72.0×39.0mm（2.83×1.54inch）
Display Type	FSTN Positive, Transmissive, Yellow-Green Screen
Backlight	White LED Side Backlight
Interface	8-bit Parallel / 3-Wire Serial SPI（Dual Interface）
Logic Voltage	5V DC（3.3V optional）
Operating Temp	-20℃~+70℃（-4℉~158℉）
Storage Temp	-30℃~+80℃（-22℉~176℉）
Weight	≈75g / 0.165lb

Application

Industrial Control Panel
PLC control box, frequency converter display, injection molding machine small controller, automation equipment local display screen
Portable Measuring Instruments
Handheld multimeter, pressure calibrator, environmental gas detector, field test equipment display
Medical Portable Device
Portable blood tester, infusion pump controller, small vital sign monitoring equipment spare LCD
Smart Household & Automation Controller
Water treatment controller, intelligent boiler panel, access control mainboard display terminal
Embedded Development & DIY Project
MCU experimental board, Arduino/Raspberry Pi development, industrial equipment maintenance replacement screen
