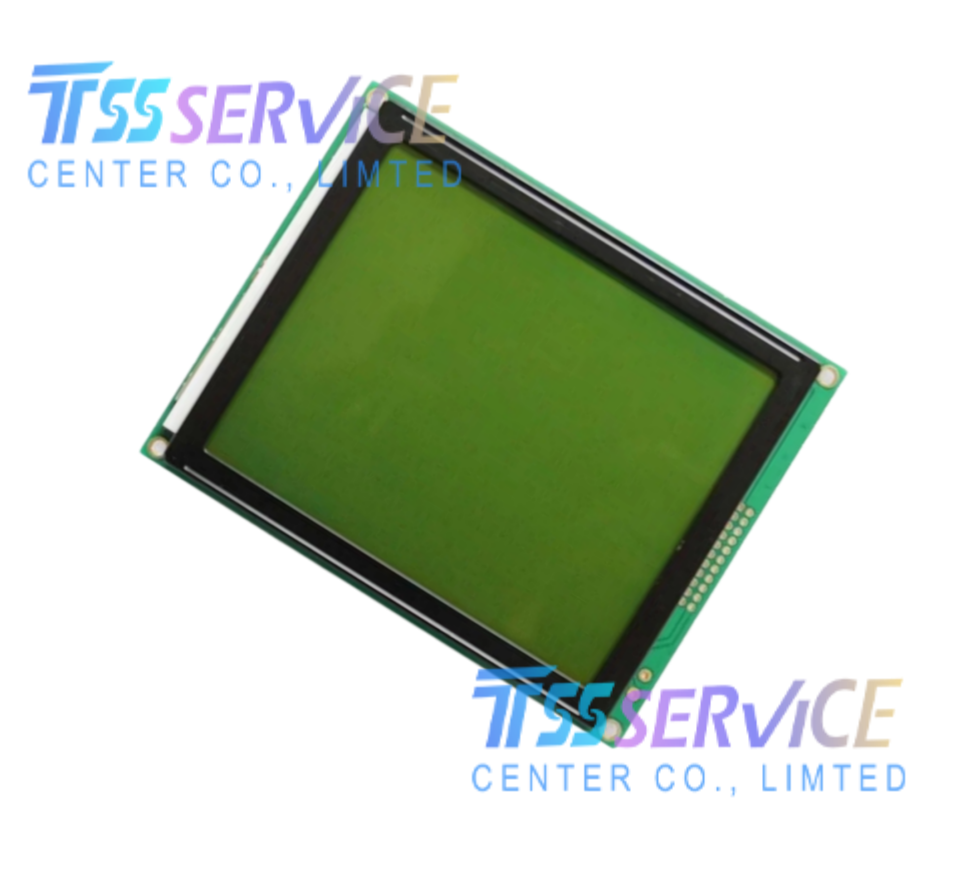

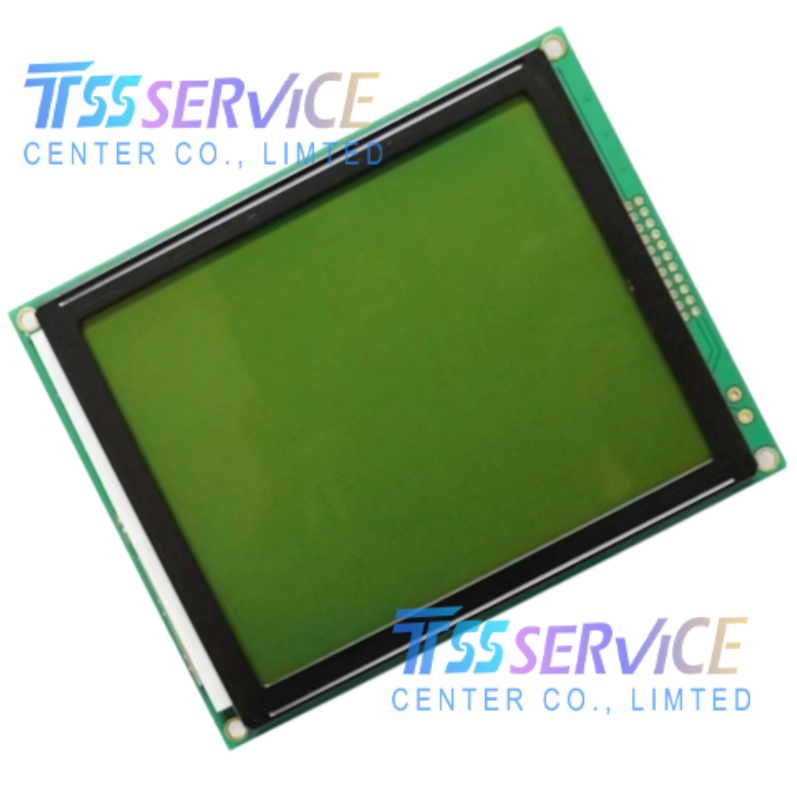

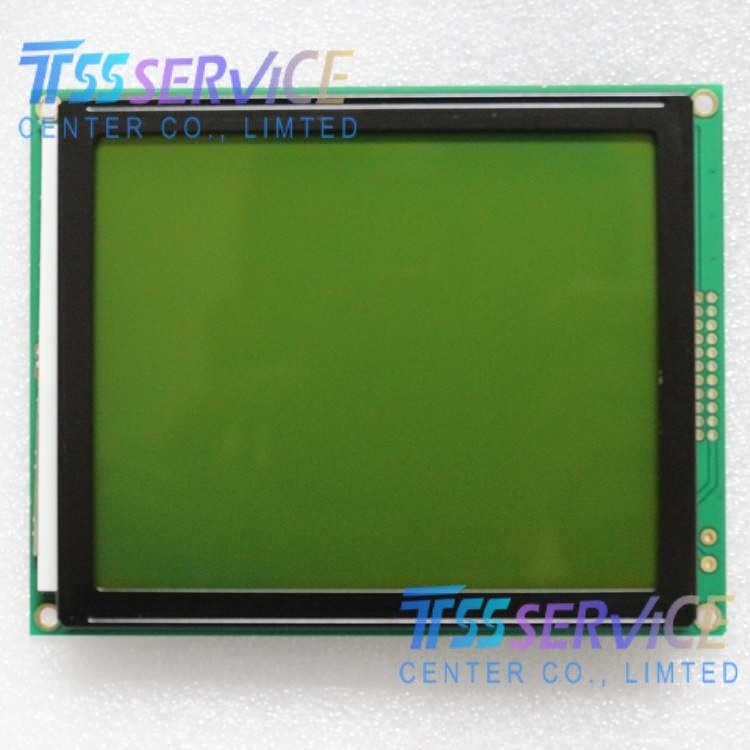

LG1601281 160×128 FSTN Industrial Graphic LCD Screen

Name: LG1601281 160×128 FSTN Industrial Graphic LCD Screen
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LG1601281
Price: 100 USD
Availability: InStock

SKU: LG1601281

LG1601281 is standard industrial 160×128 graphic LCD driven by classic T6963C controller, adopt FSTN positive display with built-in white LED backlight and onboard negative voltage circuit. Standard 8-bit parallel 8080 interface, 5V working voltage, wide operating temperature, widely used for industrial control, portable measuring meter, medical device and equipment replacement screen

0.0 (0 Reviews)

0 Sold

~~$105.00~~ $100.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

LG1601281 160×128 FSTN Industrial Graphic LCD Screen

Item	Specification
Model	LG1601281 Graphic LCD Module
Resolution	160×128 Dots Matrix，T6963C(RA6963) Controller
Overall Module Size	129.0×102.0×12.0mm（5.08×4.02×0.47inch）
Active View Area(AA)	101.0×82.0mm（3.98×3.23inch）
Dot Pitch	0.58×0.58mm / Dot Size：0.54×0.54mm
Display Type	FSTN Positive / Transmissive，Yellow-Green/Grey Option
Backlight	Side White LED Backlight
Interface	8-bit 8080 Parallel MCU Bus（Standard T6963 Interface）
Logic Voltage	DC 5.0V(Onboard built-in negative voltage circuit)
Operating Temp	-20℃～+70℃（-4℉~158℉）
Storage Temp	-30℃～+80℃（-22℉~176℉）
Weight	≈170g / 0.375lb

Application

Industrial Automation Controller
Inverter, PLC panel, injection molding machine control, environmental monitoring equipment display screen
Portable Test & Measuring Instrument
Handheld gas detector, pressure calibrator, field data logger, industrial multimeter spare display
Medical Portable Equipment
Infusion pump controller, portable diagnostic monitor, small lab analytical instrument LCD replacement
Intelligent Control & Access System
Water treatment controller, boiler control panel, industrial access control mainboard display
Embedded Development & DIY Project
MCU development board, Arduino industrial project, old equipment maintenance replacement screen
