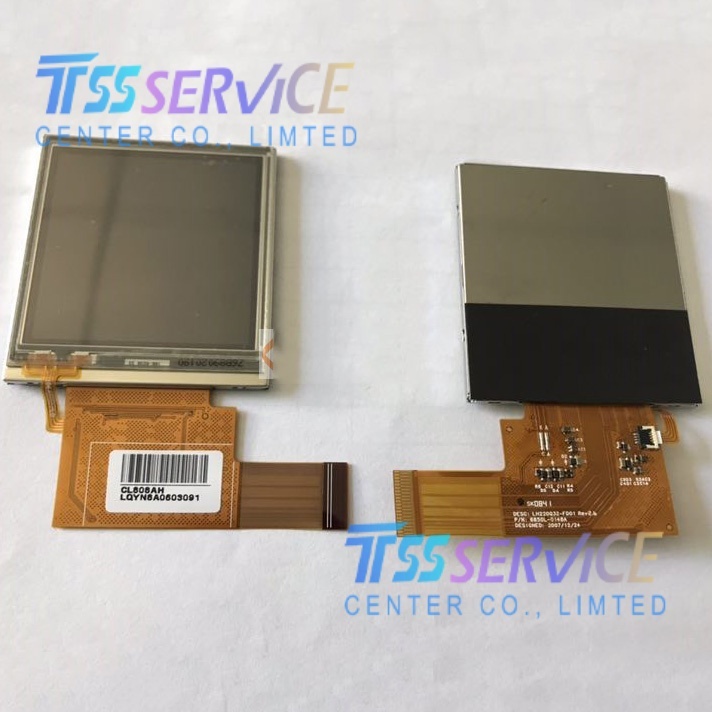

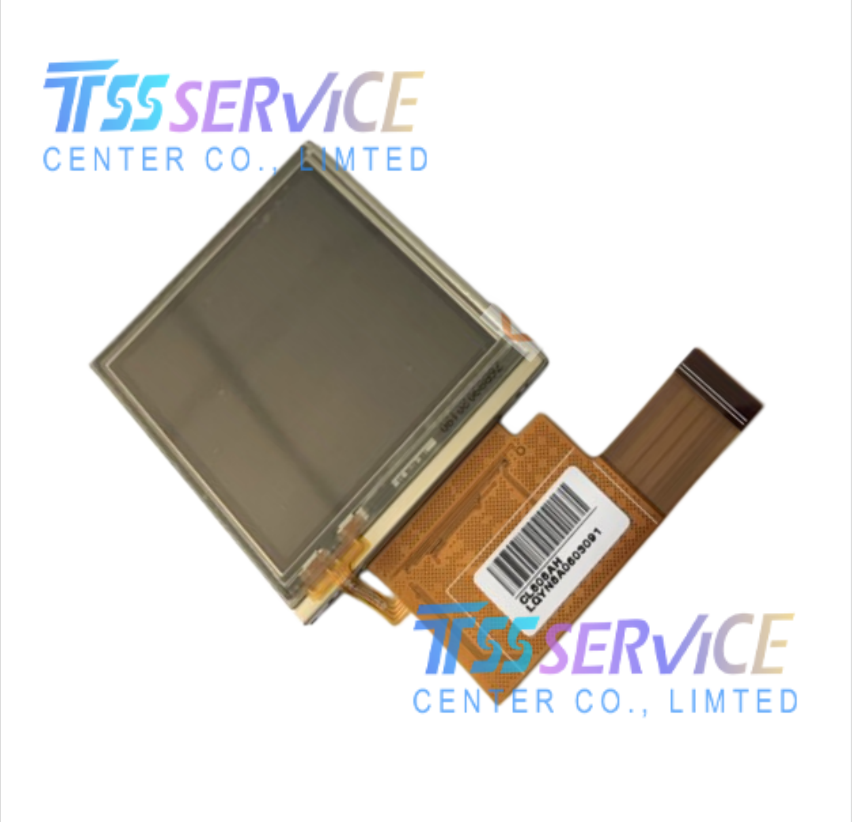

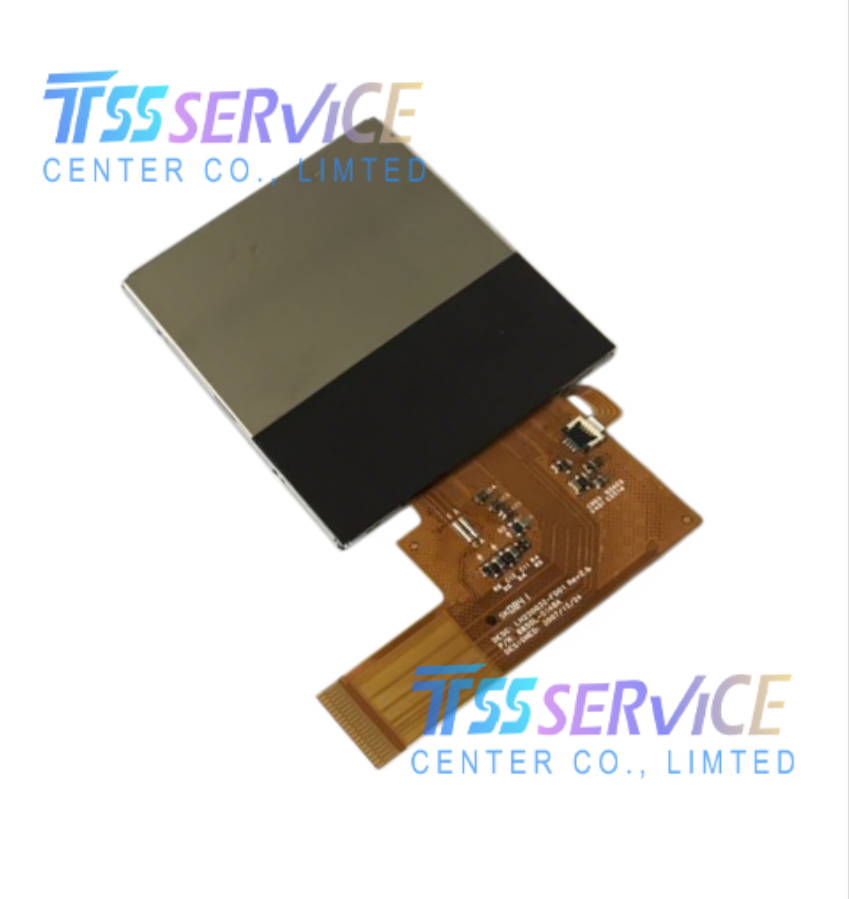

LH220Q32-FD01 LG Display 2.2" 320×320 Transflective TFT LCD Display Screen

Name: LH220Q32-FD01 LG Display 2.2" 320×320 Transflective TFT LCD Display Screen
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LH220Q32-FD01
Price: 23 USD
Availability: InStock

SKU: LH220Q32-FD01

Model: LH220Q32-FD01, LG Display a-Si TFT-LCD Module
Screen Size: 2.2 inch
Resolution:320(RGB)×320, 206PPI

0.0 (0 Reviews)

0 Sold

~~$26.00~~ $23.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

LH220Q32-FD01 LG Display 2.2" 320×320 Transflective TFT LCD Display Screen

Item	Spec(Imperial+Metric)
Model	LH220Q32-FD01, LG Display a-Si TFT-LCD Module
Screen Size	2.2 inch
Resolution	320(RGB)×320, 206PPI
Display Type	TN Normally White, Transflective
Active Area	39.36×39.36mm (1.55×1.55inch)
Brightness	160 cd/m²(Typ.)
Contrast Ratio	120:1(Typ.)
View Angle	45/45/40/50 (U/D/L/R, CR≥5)
Color Depth	65K Colors
Backlight	Built-in WLED backlight
Interface	39Pin Parallel RGB FPC connector
Surface	3H Hard Coating anti-scratch
Operating Temp	-20℃ ~ +70℃ (-4℉~158℉)
Storage Temp	-30℃ ~ +80℃ (-22℉~176℉)
Feature	Transflective design works under sunlight without backlight

Application

Handheld Industrial Instruments
Portable pressure gauge, field calibrator, handheld tester; transflective screen supports outdoor sunlight readable display。
Medical Portable Device
Finger oximeter, portable blood glucose monitor, handheld medical detector compact display panel.
Consumer Portable Electronics
Digital camera, mini portable radio, handheld game device, industrial walkie talkie screen replacement.
Small Home Appliance Control Panel
Smart kitchen equipment, portable water detector, miniature intelligent controller display.
Automotive Small Instrument
Mini vehicle tire pressure monitor TPMS, car remote control display module.
