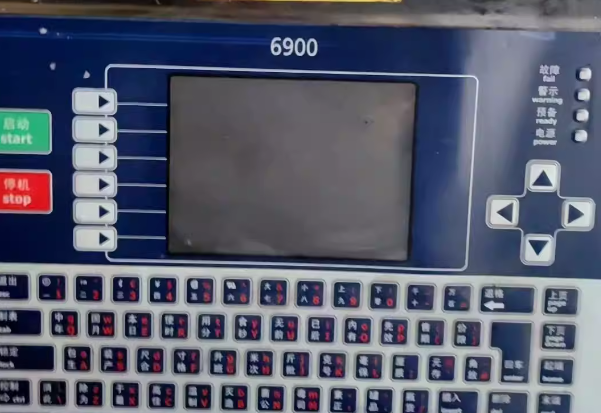

Membrane Keypad for LINX6900
1. Core Printing Performance
| Parameter | Specification | Notes |
|---|---|---|
| Print Technology | Continuous Ink Jet (CIJ) | Drop-on-demand, raster scan |
| Max. Print Speed | Up to 8.4 m/s (1,655 ft/min) per single line | Speed can vary based on number of lines, font, and dot density -1-7-8 |
| Print Lines | 1 to 5 lines of text, graphics, or barcodes | Capability depends on model and printhead -1-3-5 |
| Character Height | 1.2 mm to 25 mm | Adjustable via printhead selection (e.g., ULTIMA, MIDI) -3-5 |
| Max. Message Length | Up to 682 characters | -5 |
2. Print Capabilities
| Feature | Description |
|---|---|
| Text Fonts | Multiple fonts including 5x5, 7x5, 9x7, 12x10, 16x12, and NLQ (Near Letter Quality) fonts -3-5. |
| Barcodes | Supports a wide range of 1D barcodes: EAN 8, EAN 13, Code 39, Code 128, 2/5, ITF, UPC-A -3-5-7. |
| Graphics/Logos | Capable of printing custom graphics and company logos -3-9. |
| Dynamic Data | Real-time clock, automatic date rollover, shift codes, batch numbers, sequential counting, and counters -3-5-9. |
| Orientation | Text and images can be printed in any orientation; features left/right/up/down reversal and rotation -3. |
3. Physical & Environmental Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Enclosure Rating | IP55 (Splash-proof) / IP65 (Dust-proof) | Protects against water jets and dust ingress, suitable for washdown environments -2-3-4. |
| Operating Temp. | 5°C to 45°C | -3 |
| Humidity | Up to 90% relative humidity (non-condensing) | -3 |
| Power Supply | 115-230V AC, 50/60 Hz | Universal power supply -3. |
| Power Consumption | 200W | -3-5 |
| Weight | Approx. 24 kg to 29 kg | Varies by model and configuration -2-3. |
| Dimensions (HxWxD) | Approx. 578 x 439 x 288 mm | -2 |
| Air Requirements | No factory air required | Internal pump system -1-2-10 |
