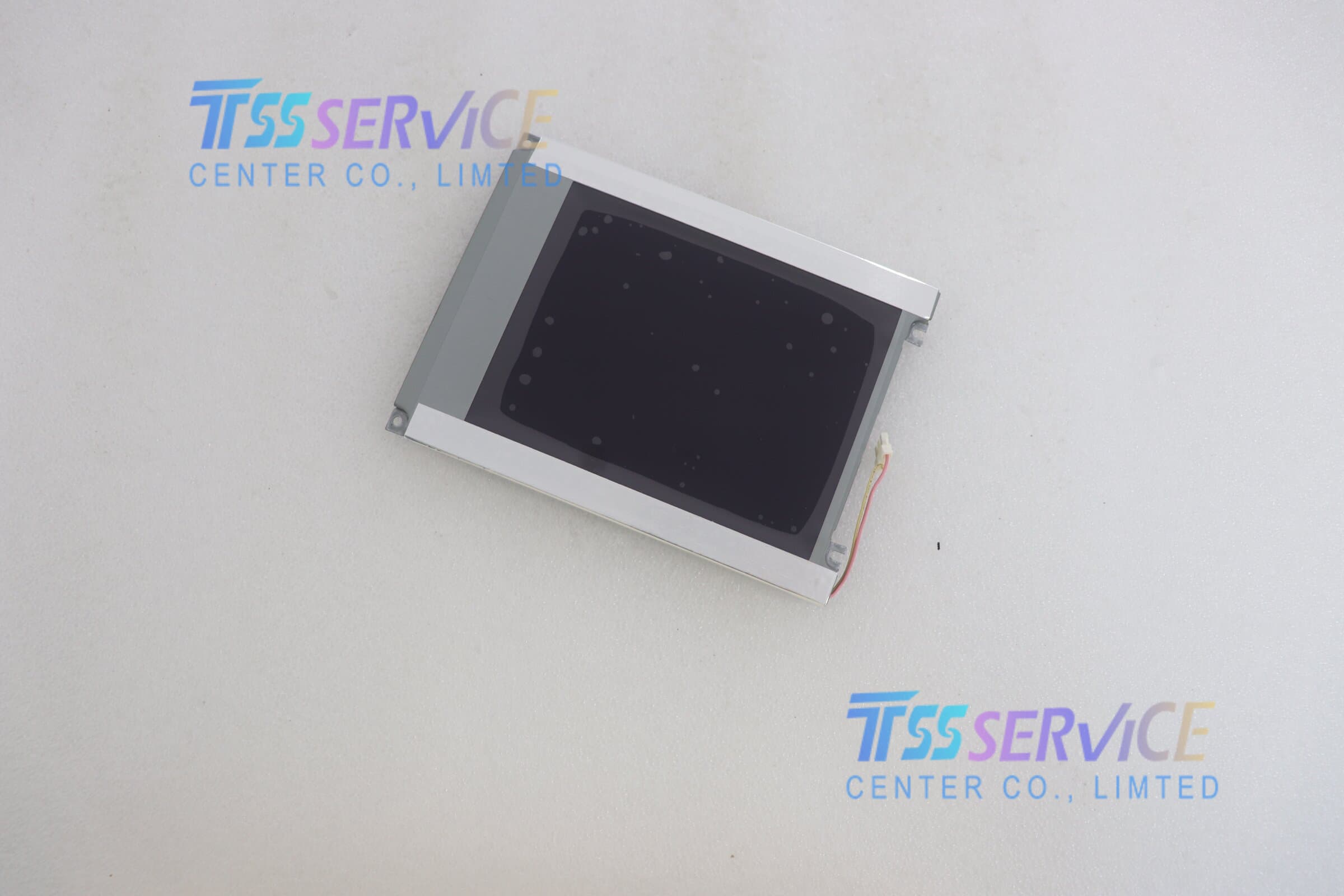

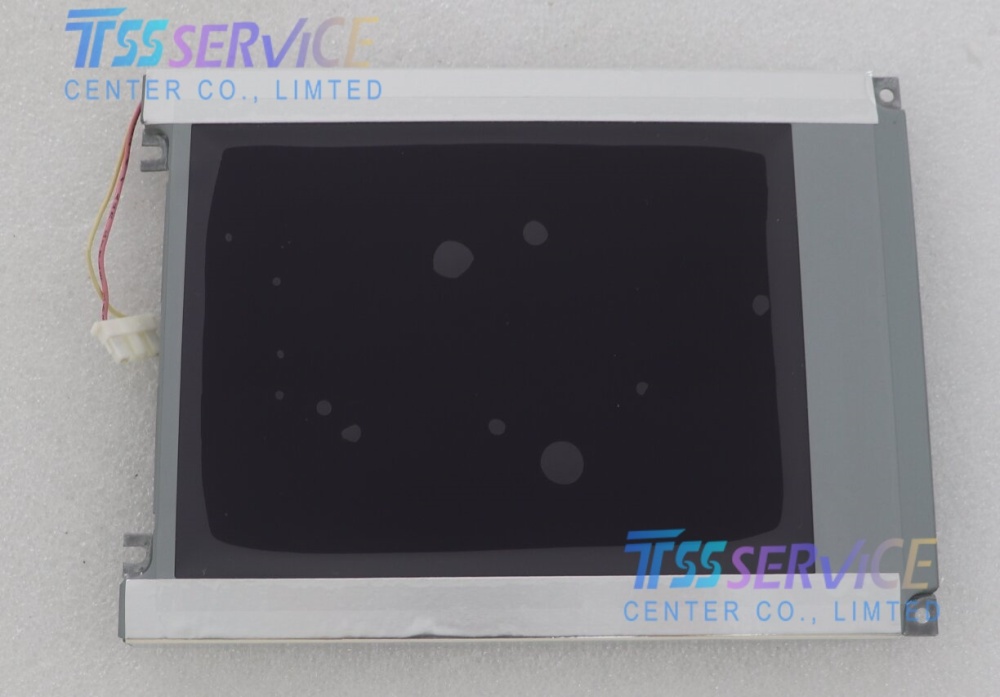

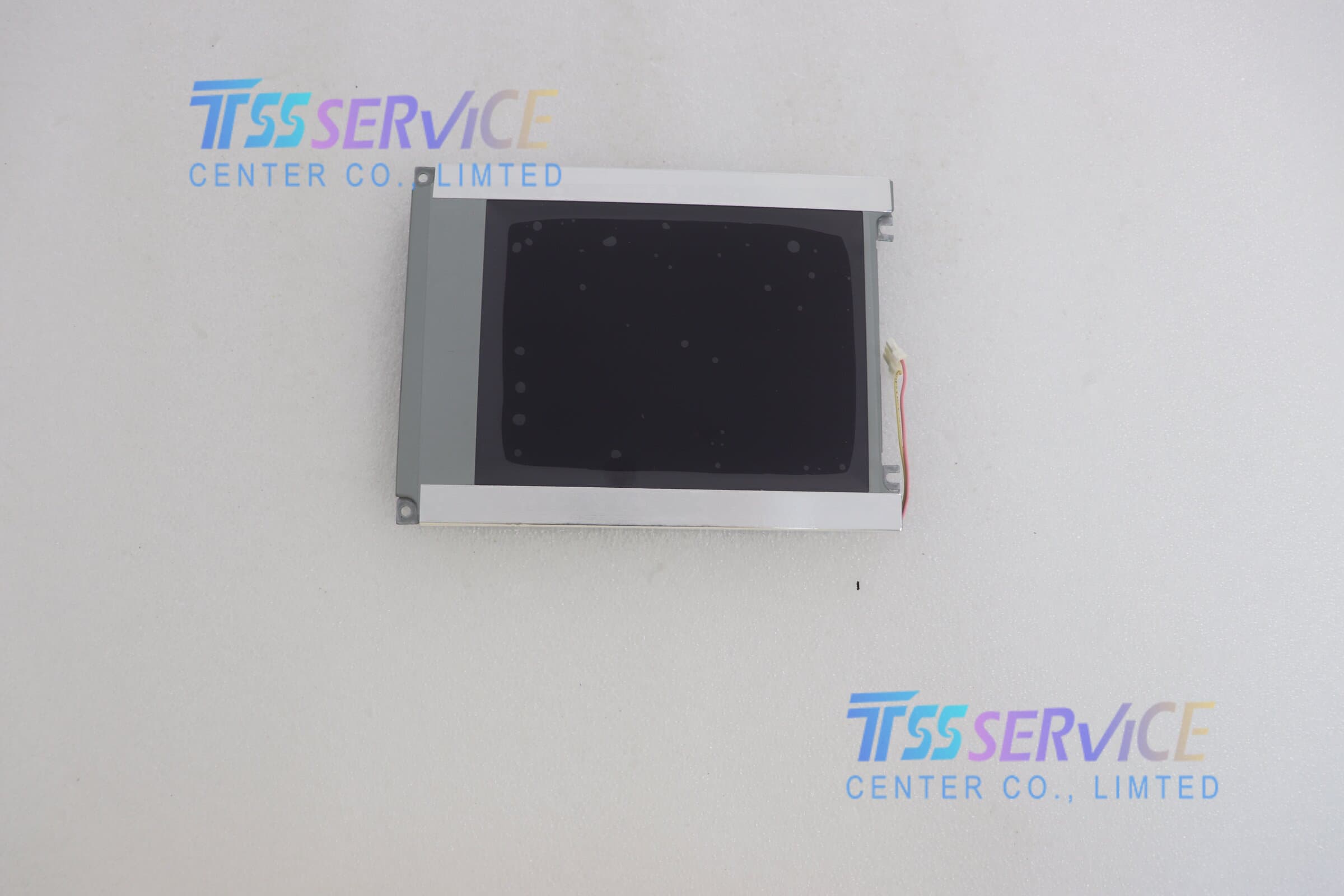

LKCFBTH61M23S Optrex 5.7 inch Industrial LCD Display

SKU: LKCFBTH61M23S
Model P/N: LKCFBTH61M23S
Diagonal Size: 5.7"
Panel Type: CSTN-LCD
Pixel Number: 320 × 240
0.0 (0 Reviews)
0 Sold
$105.00 $103.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • LKCFBTH61M23S Optrex 5.7 inch Industrial LCD Display
  • LKCFBTH61M23S Optrex 5.7 inch Industrial LCD Display
  • LKCFBTH61M23S Optrex 5.7 inch Industrial LCD Display
  • LKCFBTH61M23S Optrex 5.7 inch Industrial LCD Display
  • LKCFBTH61M23S Optrex 5.7 inch Industrial LCD Display
  • LKCFBTH61M23S Optrex 5.7 inch Industrial LCD Display
1/1
  • LKCFBTH61M23S Optrex 5.7 inch Industrial LCD Display
  • LKCFBTH61M23S Optrex 5.7 inch Industrial LCD Display
  • LKCFBTH61M23S Optrex 5.7 inch Industrial LCD Display
  • Description
LKCFBTH61M23S Optrex 5.7 inch Industrial LCD Display
Parameter Specification
Diagonal Size 5.7 inches
Resolution 320 × 240 pixels (QVGA)
Panel Type CSTN-LCD (Color, Transflective)
Display Mode Color (16-bit, 65K colors)
Contrast Ratio 20:1 (Typical)
Luminance (Brightness) 120 cd/m² (Typical)
Response Time Tr/Td = 250/150 ms (Typical)
Active Area 115.2 mm (W) × 86.4 mm (H)
Outline Dimensions 150 mm (W) × 115 mm (H) × 8.5 mm (D)
Interface Parallel Data (8-bit), 20 pins (FPC)
Backlight CCFL (Cold Cathode Fluorescent Lamp), 50,000 hours
Operating Voltage VDD = 3.3 V (Typical)
Operating Temperature 0°C ~ 50°C
Storage Temperature -20°C ~ 60°C
Weight 180 g (Typical)
Status Discontinued (End of Life)

LKCFBTH61M23S – Typical Applications (English)

  • Industrial Control & HMI
    • PLC displays, machine tools, factory automation
    • Test/measurement equipment, process monitoring
  • Medical Devices
    • Patient monitors, diagnostic equipment
    • Portable clinical devices, lab analyzers
  • Automotive & Transportation
    • Dashboard displays, vehicle control units
    • Navigation systems, industrial vehicle displays
  • Consumer & Portable Electronics
    • Handheld instruments, data loggers
    • Industrial handheld terminals, POS systems
  • General Purpose Industrial Displays
    • Instrumentation, process control, and embedded systems
    • Low-power, cost-effective color graphic displays
