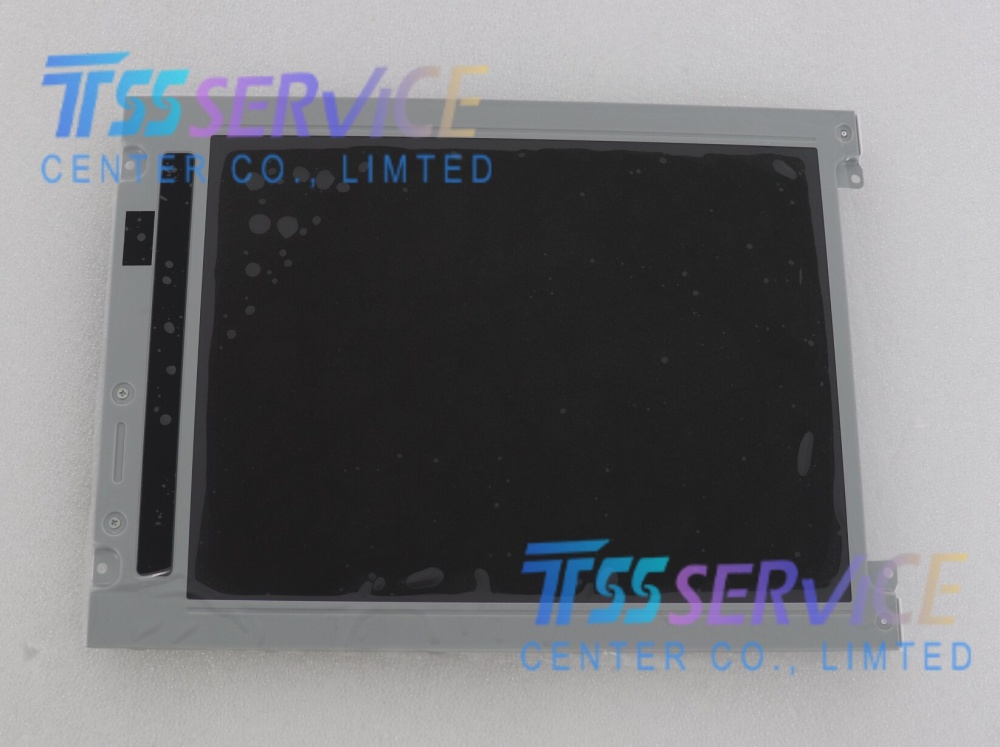

SHARP 10.4 Inch LM10V33R LCD Panel Screen For Industrial

SKU: LM10V33R
Model P/N: LM10V33R
Diagonal Size: 10.4"
Panel Type: STN-LCD (FSTN)
Resolution: 640 (RGB) × 480
0.0 (0 Reviews)
0 Sold
$170.00 $168.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • SHARP 10.4 Inch LM10V33R LCD Panel Screen For Industrial
  • SHARP 10.4 Inch LM10V33R LCD Panel Screen For Industrial
  • SHARP 10.4 Inch LM10V33R LCD Panel Screen For Industrial
  • SHARP 10.4 Inch LM10V33R LCD Panel Screen For Industrial
  • SHARP 10.4 Inch LM10V33R LCD Panel Screen For Industrial
  • SHARP 10.4 Inch LM10V33R LCD Panel Screen For Industrial
1/1
  • SHARP 10.4 Inch LM10V33R LCD Panel Screen For Industrial
  • SHARP 10.4 Inch LM10V33R LCD Panel Screen For Industrial
  • SHARP 10.4 Inch LM10V33R LCD Panel Screen For Industrial
  • Description
SHARP 10.4 Inch LM10V33R LCD Panel Screen For Industrial
Parameter Specification Unit
Manufacturer Sharp -
Model Number LM10V33R -
Panel Type Color STN-LCD (FSTN) -
Diagonal Size 10.4 inch
Resolution 640 (RGB) × 480 pixels (VGA)
Aspect Ratio 4:3 (H:V) -
Display Mode Normally Black, Transmissive -
Active Area 211.2 (W) × 158.4 (V) mm
Outline Dimensions 246.0 (W) × 193.6 (H) × 8.5 (D) mm
Brightness 70 cd/m² (Typ.)
Contrast Ratio 30:1 (Typ.)
Response Time 300 ms (Typ., Tr+Td)
Color Support Color -
Backlight CCFL -
Signal Interface Parallel Data (8-bit) -
Operating Temperature 0 ~ 40 °C
Storage Temperature -25 ~ 60 °C

Specific Applications

  • Industrial Control Systems: Injection molding machines, industrial HMIs, PLC control panels, and factory automation equipment.
  • Medical Devices: Patient monitors, diagnostic instruments, and medical imaging displays.
  • Automotive & Transportation: Vehicle navigation systems, dashboard displays, and fleet management terminals.
  • Test & Measurement: Oscilloscopes, data loggers, and precision test equipment.
  • Marine & Avionics: Shipboard and aircraft cockpit displays for rugged environments.
