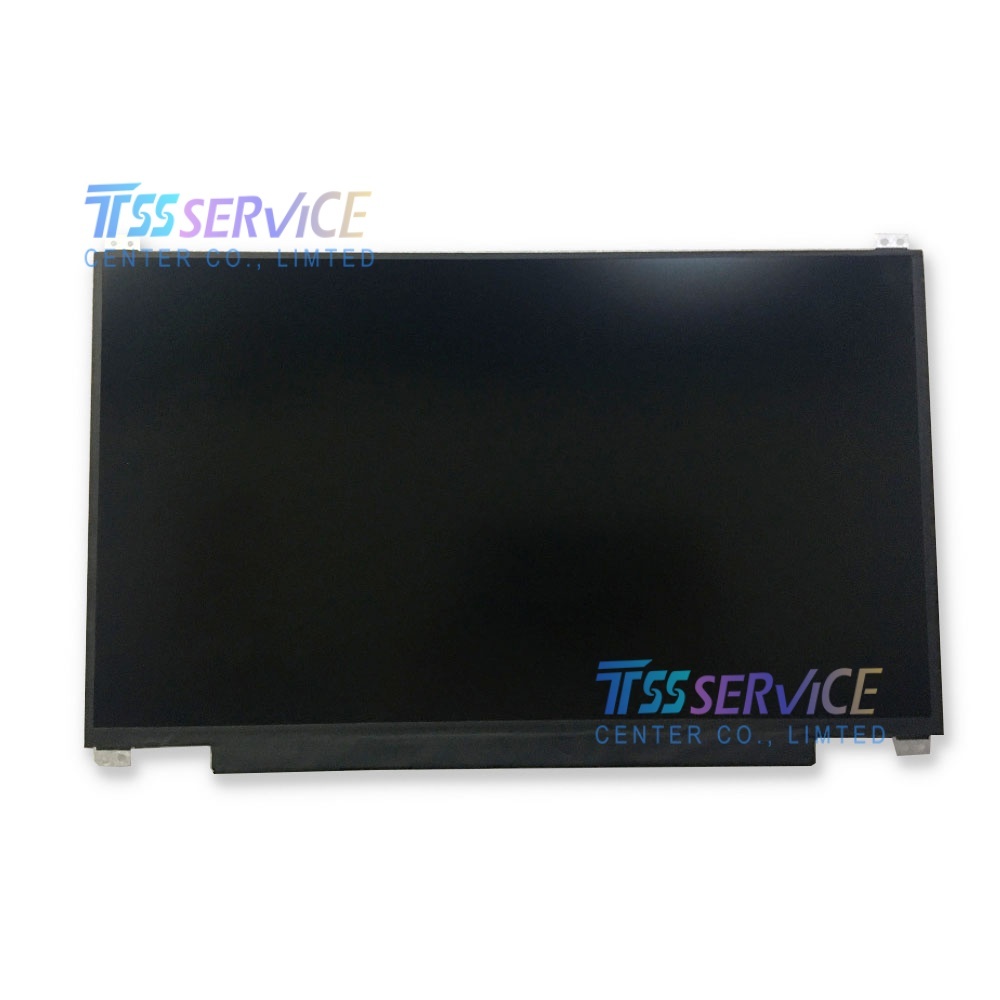

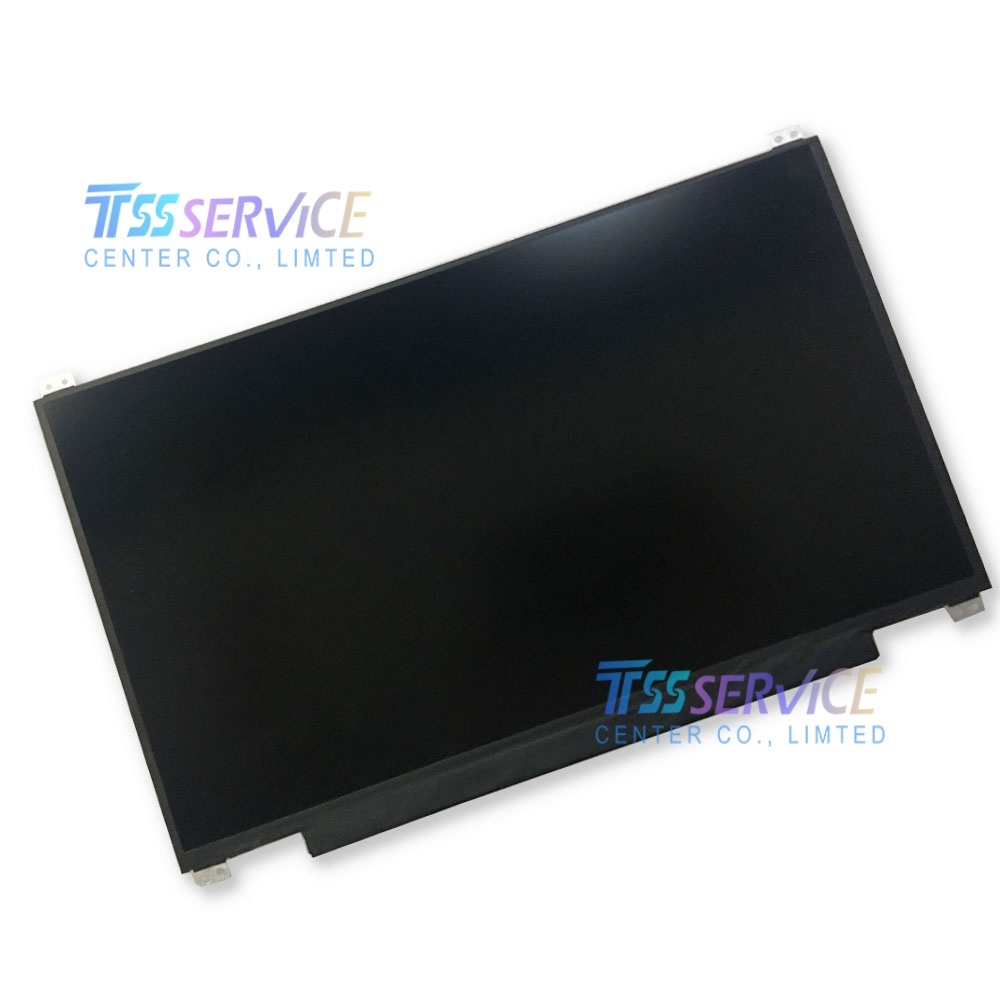

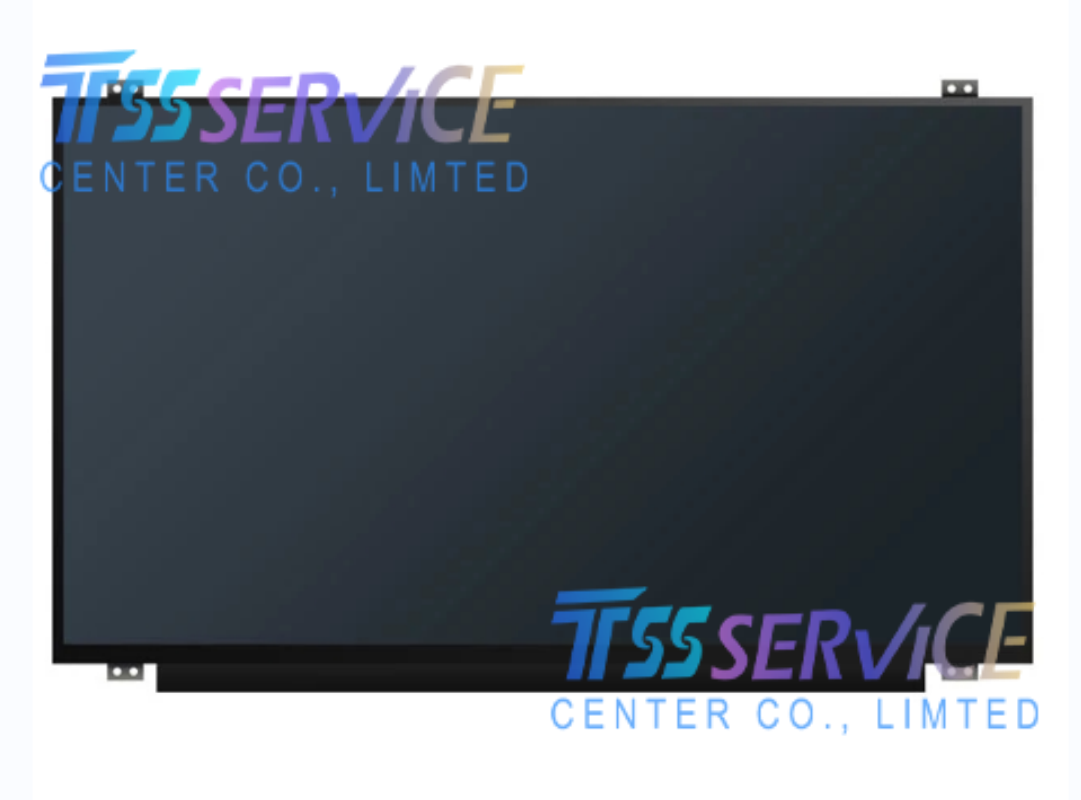

Panda 13.3 inch 1920×1080 LCD Panel LM133LF6L03 For Industrial
| Parameter |
Details |
| Brand |
PANDA |
| Model |
LM133LF6L03 |
| Diagonal Size |
13.3 inch |
| Display Type |
Oxide TFT-LCD, LCM |
| Resolution |
1920(RGB)×1080, FHD (16:9 aspect ratio) |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
293.76(H) × 165.24(V) mm (11.56 × 6.50 inch) |
| Physical Dimensions |
300.26(H) × 176.99(V) × 2.5(D) mm (11.82 × 6.97 × 0.10 inch) |
| Weight |
200/215 g (Typical/Max) (0.44/0.47 lb) |
| Surface Coating |
Hard coating |
| Luminance |
220 cd/m² (Typical) |
| Contrast Ratio |
1000:1 (Typical, TM) |
| Response Time |
25 ms (Typical, Tr+Td) |
| View Direction |
Symmetry |
| Viewing Angle |
89°/89°/89°/89° (Typical, CR≥10) |
| Display Mode |
FFC, Normally Black, Transmissive |
| Color Support |
262K colors, 45% NTSC |
| Form Factor |
Slim design (PCBA Flat, T≤3.2mm) |
| Light Source |
WLED, 15,000 hours lifespan, with integrated LED driver |
| Refresh Rate |
60 Hz |
| Touch Panel |
Without touch function |
| Interface Type |
eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane), 30-pin connector |
| Power Supply |
3.3V (Typical) |
| Operating Temperature |
0 ~ 50 °C |
| Storage Temperature |
-20 ~ 60 °C |
Typical Applications
This 13.3-inch FHD oxide TFT-LCD panel is primarily designed for:
- Thin & Light Laptops: Ideal for mainstream and budget notebooks due to its slim form factor (≤3.2mm thickness) and low power consumption.
- 2-in-1 Convertible Devices: The hard coating and symmetric viewing angles make it suitable for portable devices used in both laptop and tablet modes.
- Portable Monitors: Its compact size, low weight (≤215g), and standard eDP interface allow integration into lightweight external monitors for on-the-go use.
- Educational Devices & Student Laptops: The 45% NTSC color gamut and 1000:1 contrast ratio meet the visual requirements for document editing, web browsing, and classroom applications.
- Industrial Portable Terminals: The wide operating temperature range (0–50°C) and durable construction support use in non-extreme industrial environments requiring compact, reliable displays.
