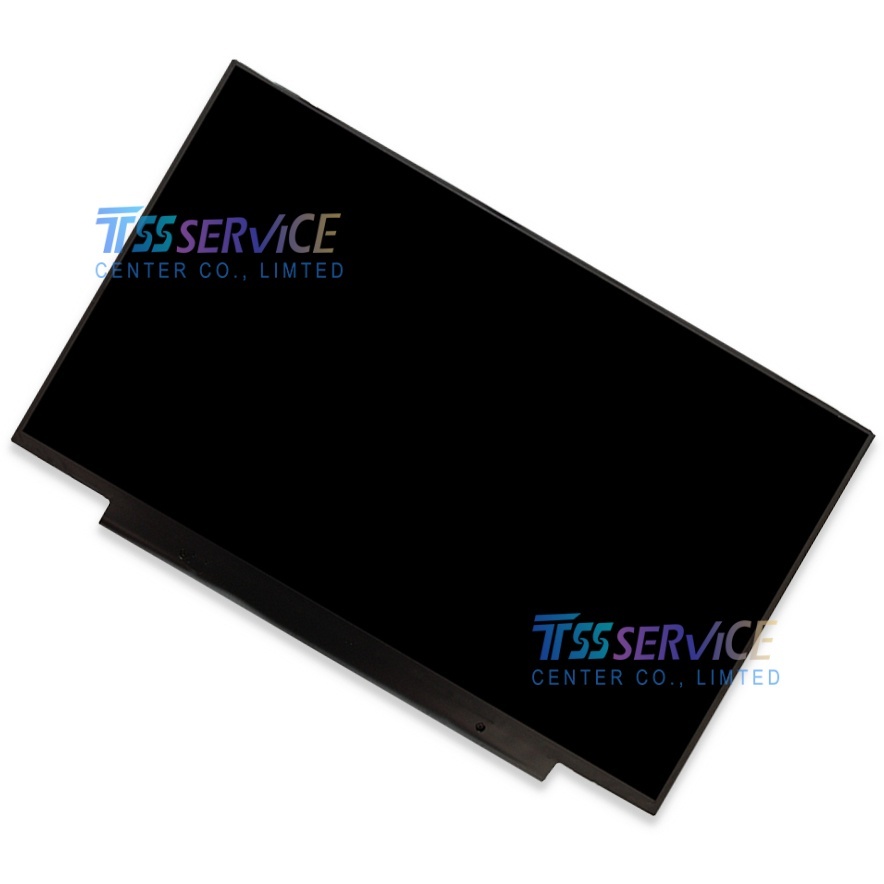

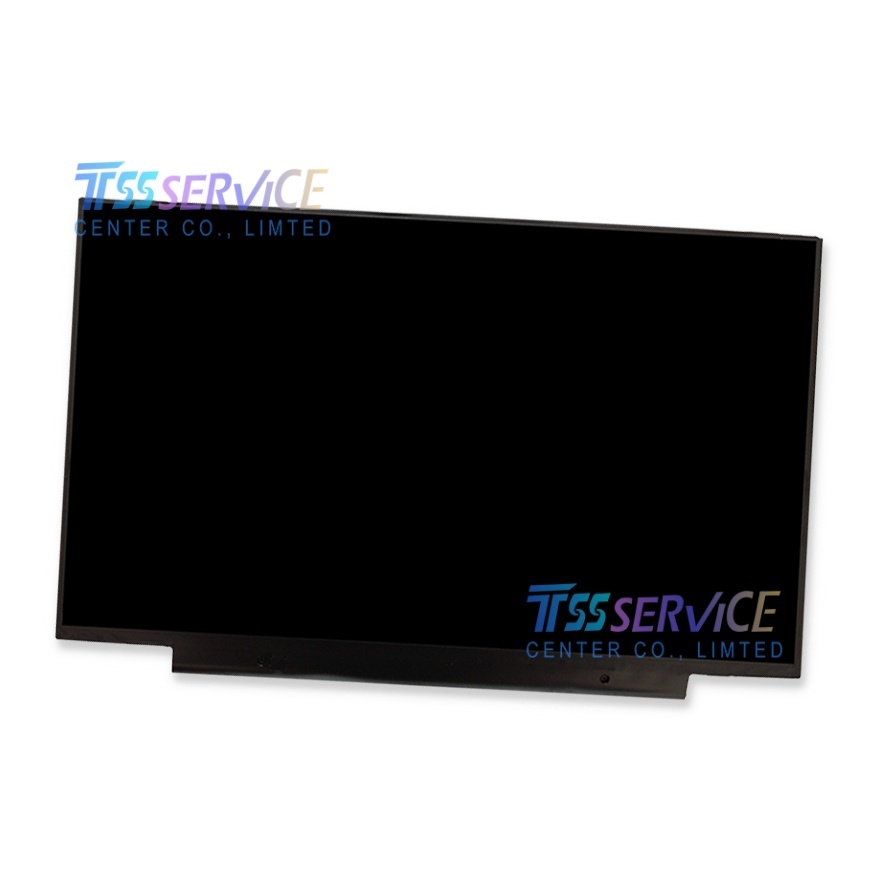

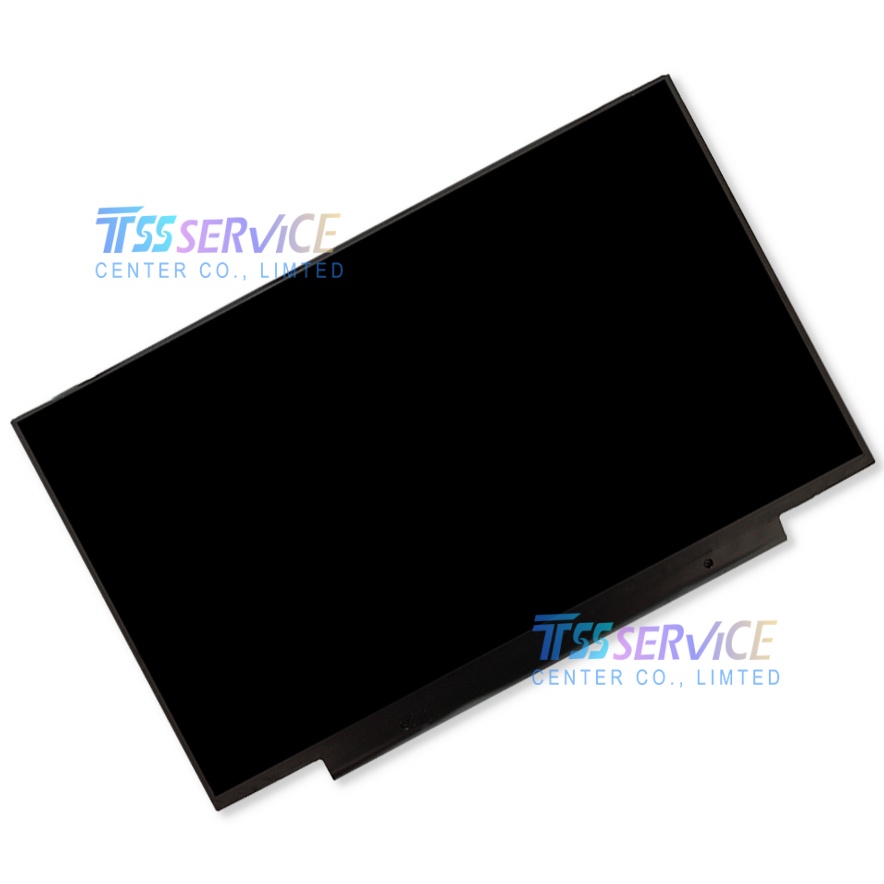

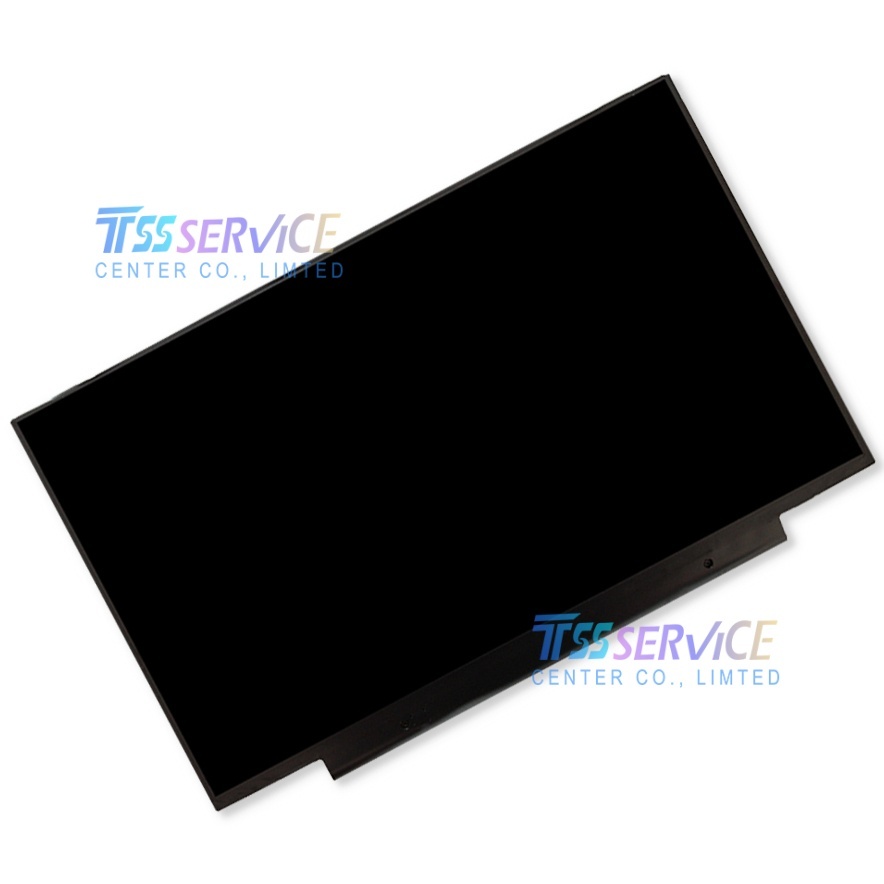

LM140LF2L02 Panda 14 inch 1920×1080 LCD Dispaly Panel For Industrial
| Parameter |
Details |
| Manufacturer |
PANDA (CEC-PANDA) |
| Model No. |
LM140LF2L02 |
| Screen Size |
14.0 inch |
| Screen Type |
Oxide TFT-LCD, LCM |
| Resolution |
1920(RGB) × 1080 (FHD, 16:9 aspect ratio) |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
309.312(W) × 173.988(H) mm |
| Outline Dimensions |
315.81(W) × 197.57(H) × 3(D) mm (Slim form factor) |
| Weight |
285 g (Max.) |
| Surface Treatment |
Antiglare (Haze 25%), Matte |
| Luminance (Brightness) |
250 cd/m² (Typical) |
| Contrast Ratio |
1000:1 (Typical, Transmissive Mode) |
| Viewing Angle |
89°/89°/89°/89° (Typical, CR≥10) |
| Response Time |
25 ms (Typical, Tr+Td) |
| Display Type |
FFS (IPS-type), Normally Black, Transmissive |
| Display Colors |
262K (6-bit), 45% NTSC |
| Outline Shape |
Slim (PCBA Flat, T ≤ 3.2 mm) |
| Backlight |
WLED, 15,000 hours lifetime, with integrated LED Driver |
| Refresh Rate |
60 Hz |
| Touchscreen |
Without touch |
| Signal Interface |
eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane), 30-pin connector |
| Input Voltage |
3.3 V (Typical) |
| Operating Temperature |
0 ~ 50 °C |
| Storage Temperature |
-20 ~ 60 °C |
Key Features & Applications
-
- Full HD 1080p Resolution: Delivers sharp text and clear images for daily office work and media consumption.
- Matte Anti-Glare Surface: Reduces reflections, improving visibility in bright environments and reducing eye strain.
- Ultra-Slim Design: 3mm thickness and flat PCBA make it ideal for thin-and-light notebook designs.
- Wide Viewing Angles: IPS-like viewing experience ensures consistent colors from almost any angle.
-
- Replacement Screens: Used as an OEM replacement for various 14-inch FHD matte laptops.
- Entry-Level Notebooks: Common in budget to mid-range business and consumer laptops.
- Industrial & Embedded Displays: Suitable for compact industrial PCs, POS terminals, and embedded systems requiring standard 14-inch panels.
