LG Display LM151X05-A3C1 15.1 inch 1024×768 LCD Display Screen For Industrial

SKU: LM151X05-A3C1
Model: LM151X05-A3C1
Size: 15.1 inch
Resolution:1024×768 (XGA)
Display Type: a-Si TFT-LCD, TN, Normally White, Transmissive
0.0 (0 Reviews)
0 Sold
$100.00 $98.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • LG Display LM151X05-A3C1 15.1 inch 1024×768 LCD Display Screen For Industrial
  • LG Display LM151X05-A3C1 15.1 inch 1024×768 LCD Display Screen For Industrial
  • LG Display LM151X05-A3C1 15.1 inch 1024×768 LCD Display Screen For Industrial
  • LG Display LM151X05-A3C1 15.1 inch 1024×768 LCD Display Screen For Industrial
  • LG Display LM151X05-A3C1 15.1 inch 1024×768 LCD Display Screen For Industrial
  • LG Display LM151X05-A3C1 15.1 inch 1024×768 LCD Display Screen For Industrial
  • LG Display LM151X05-A3C1 15.1 inch 1024×768 LCD Display Screen For Industrial
  • LG Display LM151X05-A3C1 15.1 inch 1024×768 LCD Display Screen For Industrial
1/1
  • LG Display LM151X05-A3C1 15.1 inch 1024×768 LCD Display Screen For Industrial
  • LG Display LM151X05-A3C1 15.1 inch 1024×768 LCD Display Screen For Industrial
  • LG Display LM151X05-A3C1 15.1 inch 1024×768 LCD Display Screen For Industrial
  • LG Display LM151X05-A3C1 15.1 inch 1024×768 LCD Display Screen For Industrial
  • Description
LG Display LM151X05-A3C1 15.1 inch 1024×768 LCD Display Screen For Industrial
Parameter Details
Model LM151X05-A3C1
Manufacturer LG Philips (LG Display)
Size 15.1 inch
Resolution 1024×768 (XGA)
Display Type a-Si TFT-LCD, TN, Normally White, Transmissive
Brightness 200 cd/m² (Typ.)
Contrast Ratio 300:1 (Typ.)
Viewing Angle 75°/75°/55°/60° (L/R/U/D, CR≥10)
Color Depth 262K Colors (6-bit RGB)
Response Time 7/18 ms (Typ., Tr/Td)
Backlight 2×CCFL, edge-lit (top/bottom), 30,000 hrs lifespan

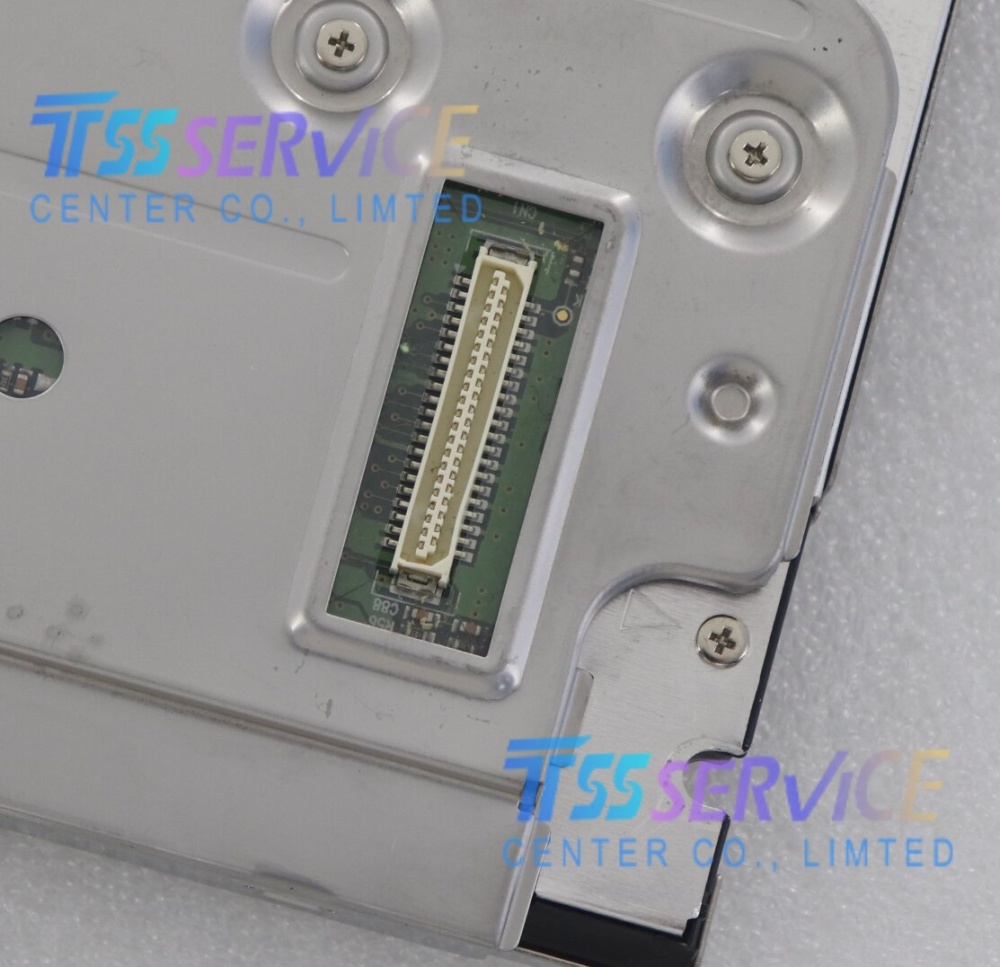

Interface TTL (1ch 6-bit), 41 pins, 3.3V
Power Consumption 10.2 W (Typ., 1.6W logic + 8.6W CCFL)
Operating Temp 0°C ~ +50°C
Storage Temp -20°C ~ +60°C
Outline Dimension 352 × 263.5 × 14 mm (W×H×D)
Active Area 307.2 × 230.4 mm
Pixel Pitch 0.30 × 0.30 mm
Surface Matte (Haze 13%), hard coating (3H)
Weight Approx. 1.15 kg

Applications

  • Industrial Control HMI: For factory automation, CNC machines, and PLC-based control panels requiring reliable 15.1-inch displays.
  • Retail & POS Systems: Specifically used in NCR 7401/7454 POS terminals, self-service kiosks, and point-of-information displays.
  • Medical Equipment: Suitable for diagnostic devices, patient monitoring systems, and laboratory instruments needing stable color reproduction.
  • Industrial Monitors: For general industrial visualization, factory floor monitoring, and legacy system replacement.
  • Marine & Rugged Displays: Used in non-critical marine consoles, industrial vehicle dashboards, and outdoor monitoring terminals (matte surface reduces glare).
