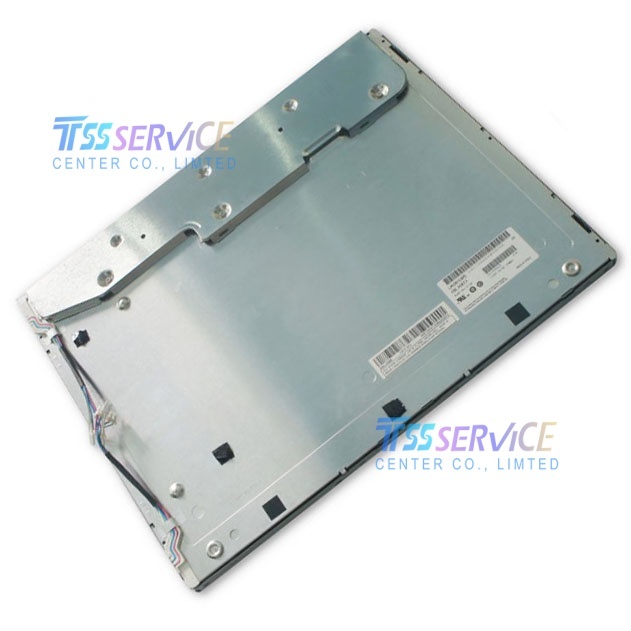

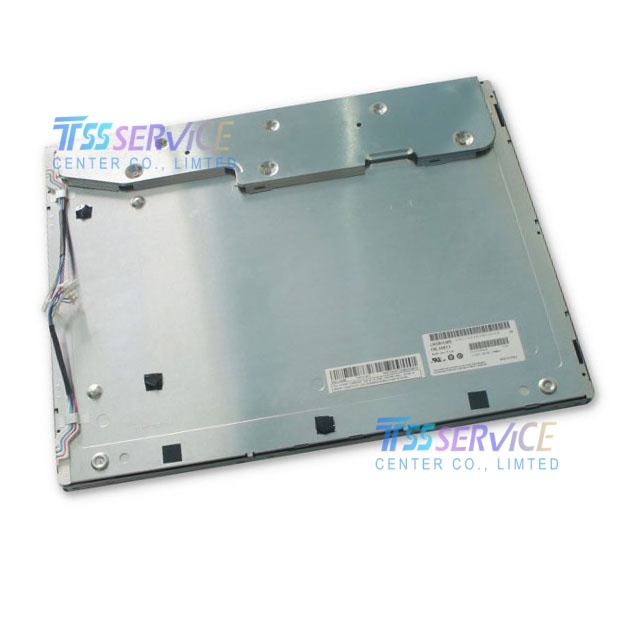

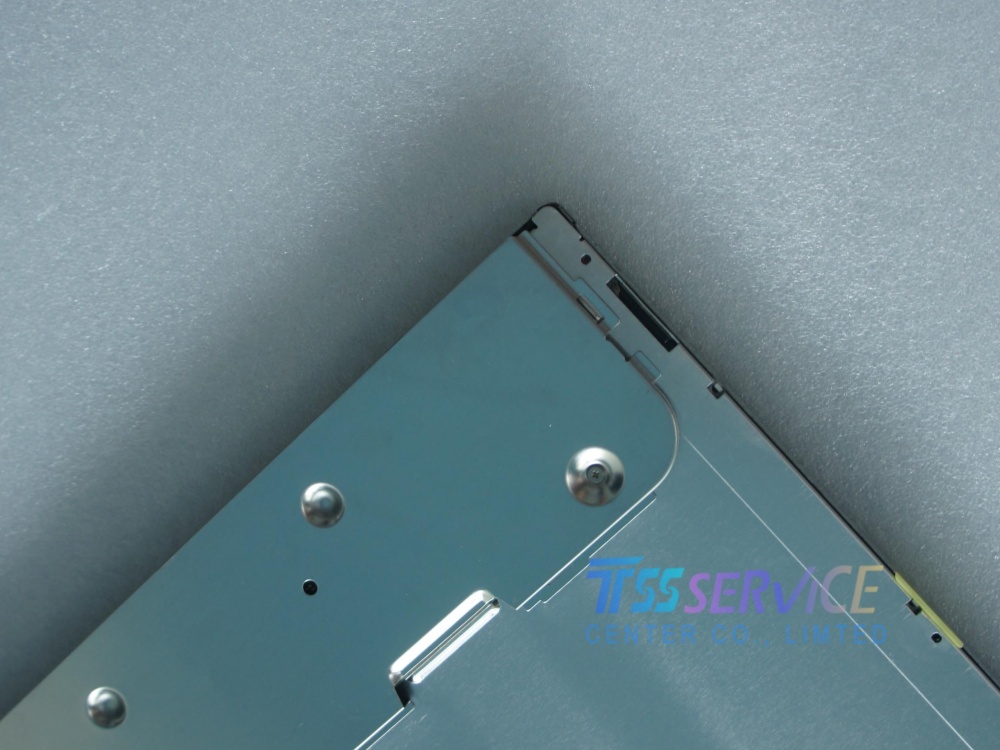

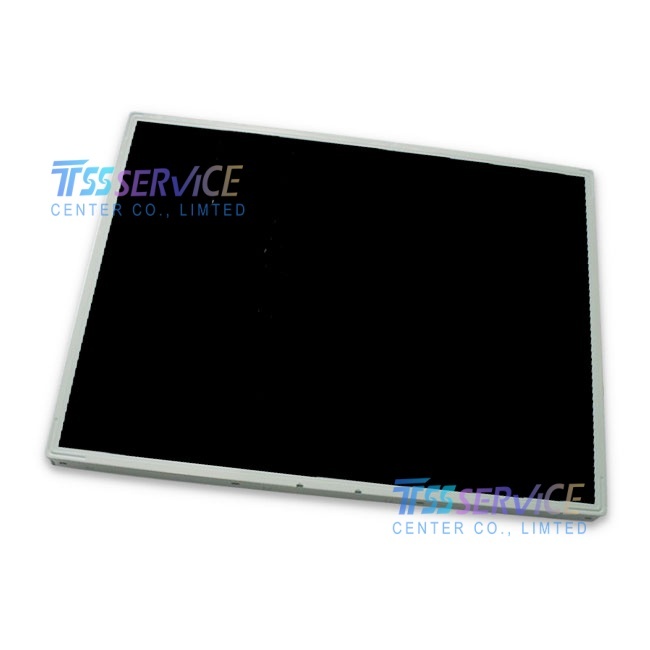

The LM201U05-SLL1 is a high-performance 20.1-inch amorphous silicon (a-Si) Thin-Film Transistor (TFT) Liquid Crystal Display (LCD) module manufactured by LG Display . Engineered for professional and industrial applications, this module combines high-resolution imagery with superior color performance and wide viewing angles.
| Parameter |
Specification |
| Brand |
LG Display |
| Model P/N |
LM201U05-SLL1 |
| Diagonal Size |
20.1" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
1600(RGB)×1200, UXGA 99PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
408(W)×306(H) mm |
| Bezel Opening |
413.0(W)×311.0(H) mm |
| Outline Dim. |
432(H)×331.5(V)×25.5(D) mm |
| Treatment |
Antiglare (Haze 25%), Hard coating (3H) |
| Luminance |
300 cd/m² (Typ.) |
| Contrast Ratio |
800:1 (Typ.) (TM) |
| View Direction |
Symmetry |
| Response Time |
6.5/7.5 (Typ.)(Tr/Td), 6 (Typ.)(G to G) |
| Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode |
IPS, Normally Black, Transmissive |
| Support Color |
16.7M 72% NTSC |
| Light Source |
CCFL [6 pcs], 45K hours, W/O Driver |
| Weight |
3.20/3.25Kgs (Typ./Max.) |
| Frame Rate |
60Hz |
| Touch Panel |
Without |
| Interface Type |
LVDS (2 ch, 8-bit), 30 pins Connector |
| Power Supply |
20.0V (Typ.) |
| Environment |
Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
Applications
With its combination of high resolution, accurate colors, and wide viewing angles, the LM201U05-SLL1 is ideally suited for demanding applications, including:
-
Professional Computer Monitors and workstations
-
Medical Imaging and diagnostic displays
-
Radar, Aviation, and Navigation display systems
-
Industrial Control and automation interfaces.
