LM2068E 320 × 240 LCD Panel Display For Industrial

Name: LM2068E 320 × 240 LCD Panel Display For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LM2068E
Price: 95 USD
Availability: InStock

SKU: LM2068E

Model: LM2068E
Diagonal Size: 3.8 inches
Resolution: 320 × 240 pixels (QVGA)
Display Mode: FSTN, Positive, Transflective

0.0 (0 Reviews)

0 Sold

~~$100.00~~ $95.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

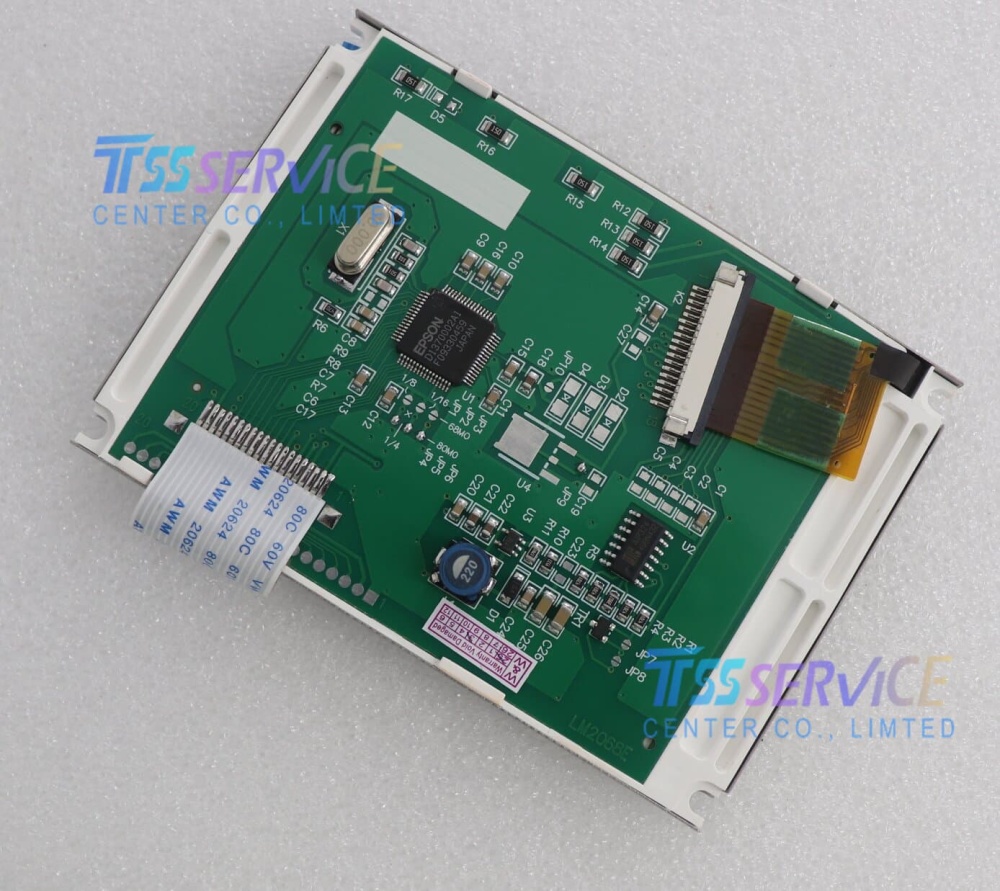

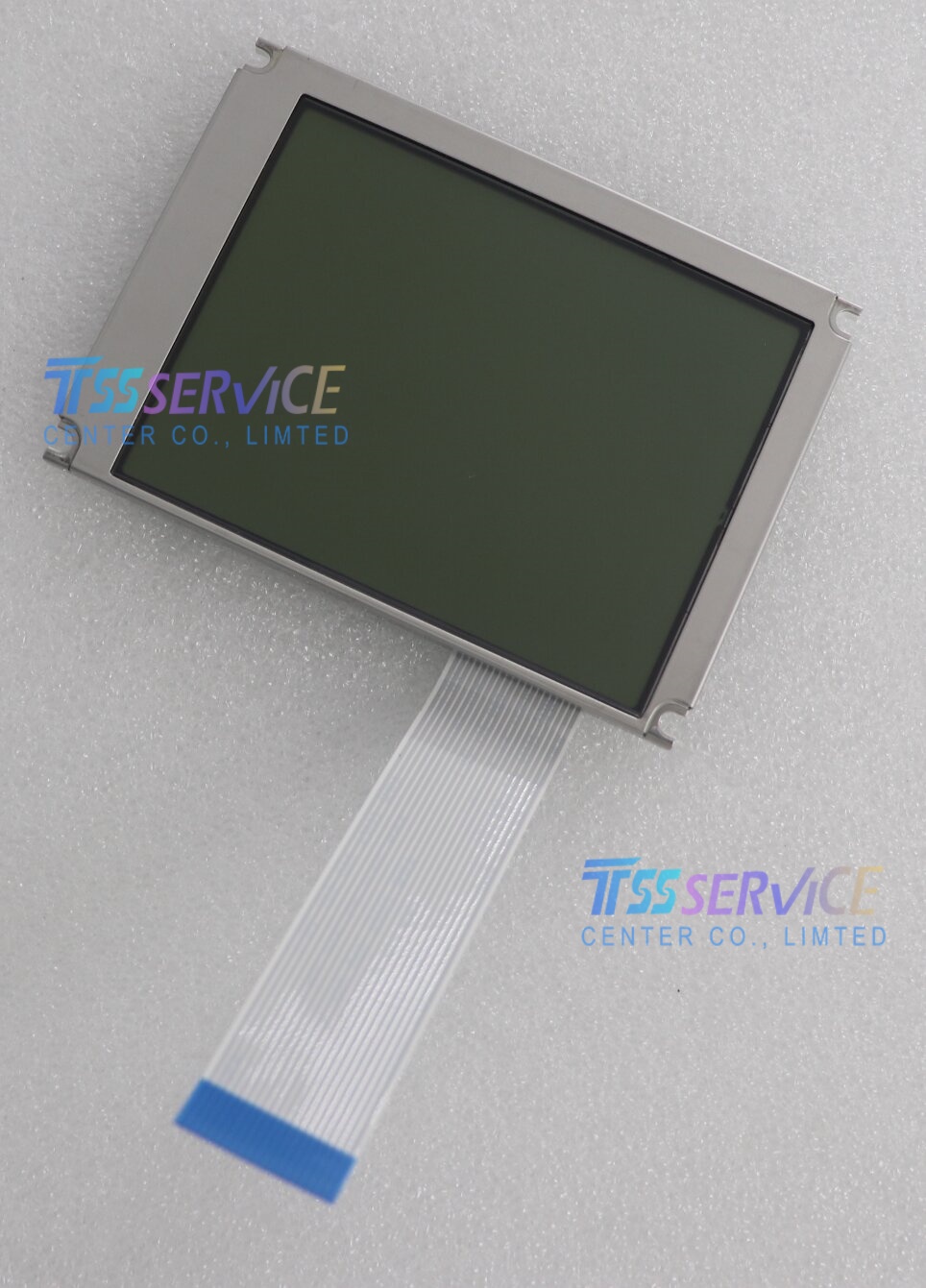

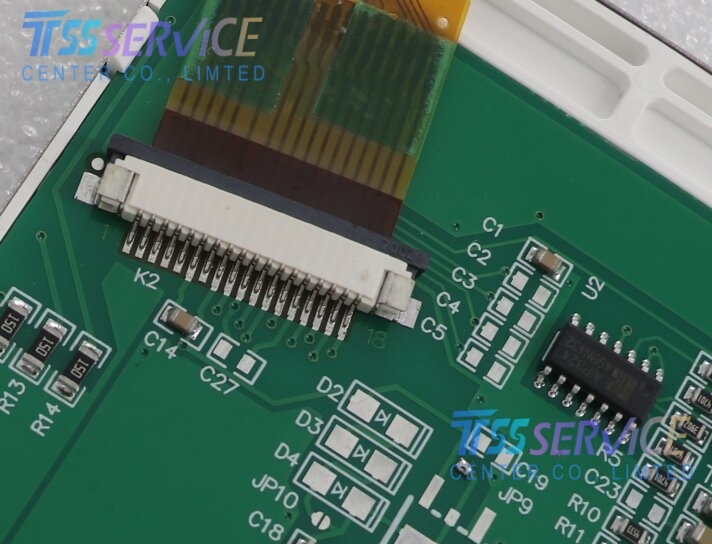

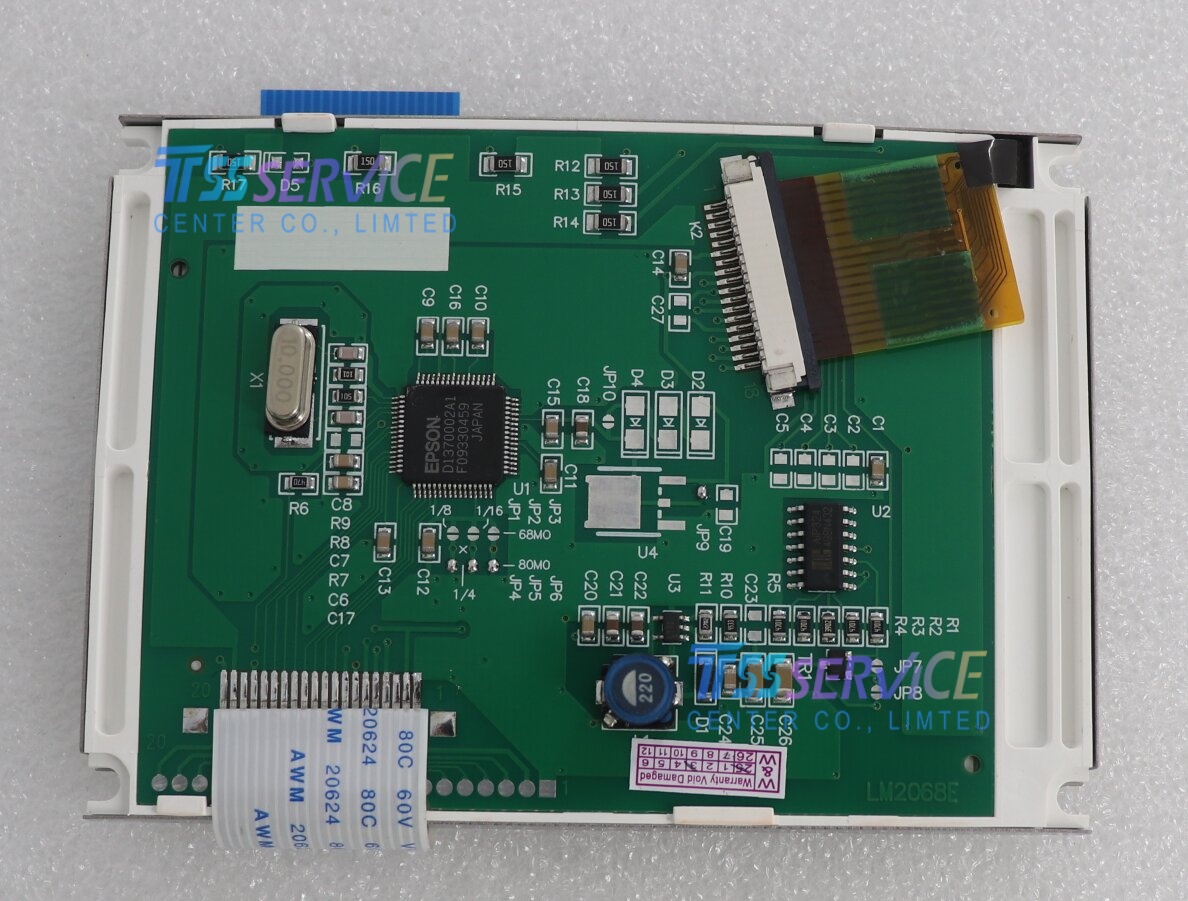

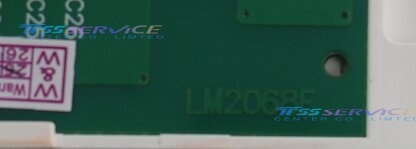

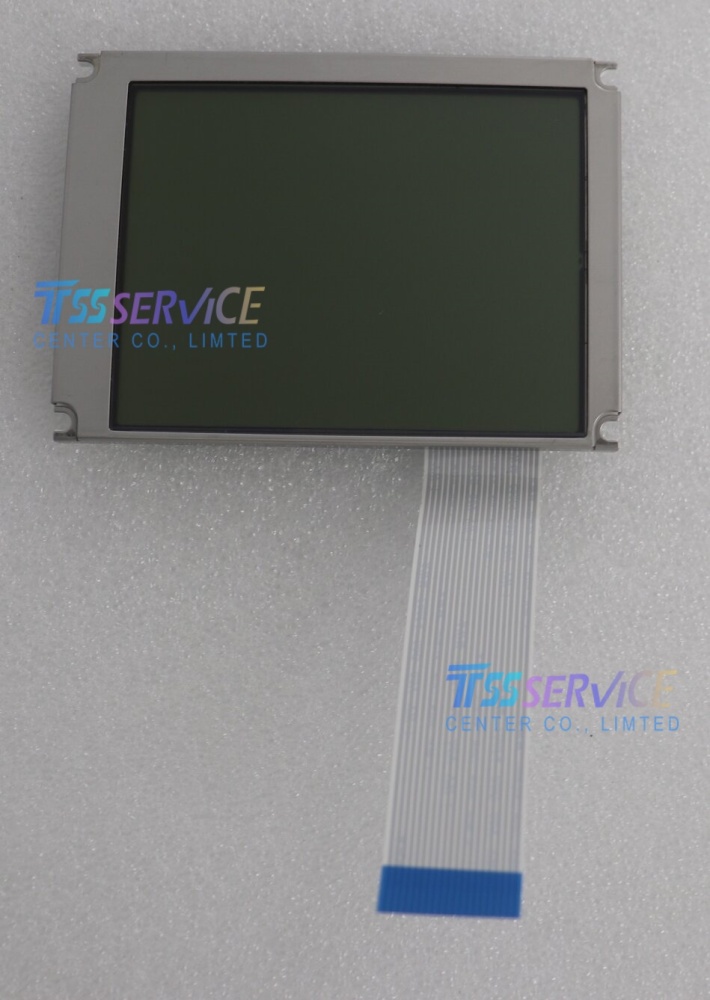

LM2068E 320 × 240 LCD Panel Display For Industrial

Parameter	Specification
Model	LM2068E
Diagonal Size	3.8 inches
Resolution	320 × 240 pixels (QVGA)
Display Mode	FSTN, Positive, Transflective (white background, black text)
Controller	S1D13709
Interface	8-bit parallel (bi‑directional data bus)
Backlight	White LED
Driving Method	1/240 duty, 1/12 bias
Viewing Angle	9H
Supply Voltage	5 V DC
Module Dimensions	99.5 × 71.75 × 10.4 mm
Pixel Pitch	0.225 × 0.225 mm
Touch Panel	Optional (resistive)
Operating Temperature	−20 °C to +70 °C
Storage Temperature	−30 °C to +80 °C
