LG LM238WR2-SPA1 23.8 Inch IPS TFT LCD Screen 3840×2160 Industrial Display Panel

SKU: LM238WR2-SPA1
Model No.: LM238WR2-SPA1
Display Size: 23.8 Inches
Panel Type: a-Si IPS TFT-LCD, LCM
Native Resolution: 3840(RGB) × 2160 UHD 4K, 16:9 Aspect Ratio
Dot Layout: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$165.00 $160.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • LG LM238WR2-SPA1 23.8 Inch IPS TFT LCD Screen 3840×2160 Industrial Display Panel
  • LG LM238WR2-SPA1 23.8 Inch IPS TFT LCD Screen 3840×2160 Industrial Display Panel
  • LG LM238WR2-SPA1 23.8 Inch IPS TFT LCD Screen 3840×2160 Industrial Display Panel
  • LG LM238WR2-SPA1 23.8 Inch IPS TFT LCD Screen 3840×2160 Industrial Display Panel
  • LG LM238WR2-SPA1 23.8 Inch IPS TFT LCD Screen 3840×2160 Industrial Display Panel
  • LG LM238WR2-SPA1 23.8 Inch IPS TFT LCD Screen 3840×2160 Industrial Display Panel
  • LG LM238WR2-SPA1 23.8 Inch IPS TFT LCD Screen 3840×2160 Industrial Display Panel
  • LG LM238WR2-SPA1 23.8 Inch IPS TFT LCD Screen 3840×2160 Industrial Display Panel
1/1
  • LG LM238WR2-SPA1 23.8 Inch IPS TFT LCD Screen 3840×2160 Industrial Display Panel
  • LG LM238WR2-SPA1 23.8 Inch IPS TFT LCD Screen 3840×2160 Industrial Display Panel
  • LG LM238WR2-SPA1 23.8 Inch IPS TFT LCD Screen 3840×2160 Industrial Display Panel
  • LG LM238WR2-SPA1 23.8 Inch IPS TFT LCD Screen 3840×2160 Industrial Display Panel
  • Description

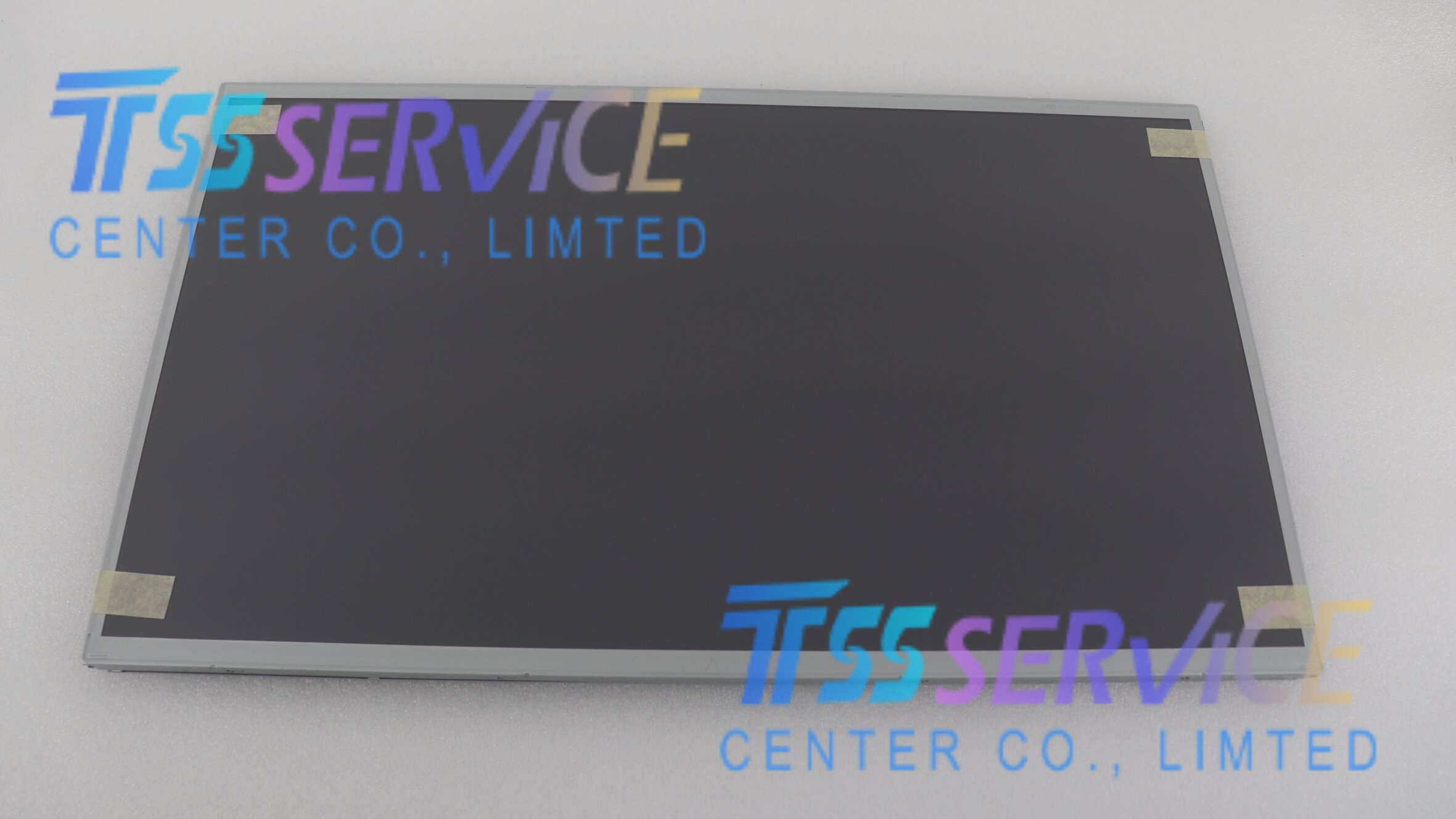

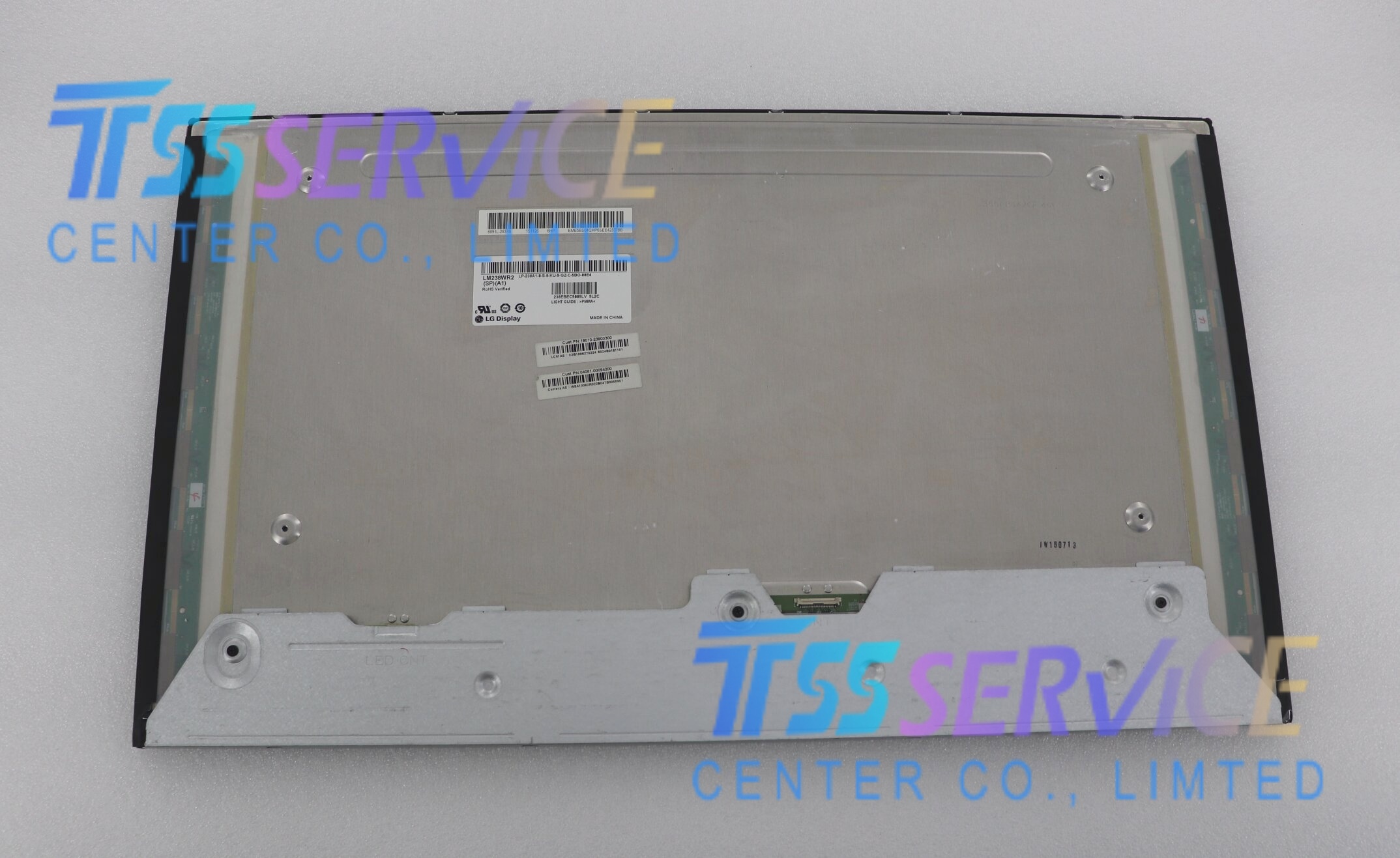

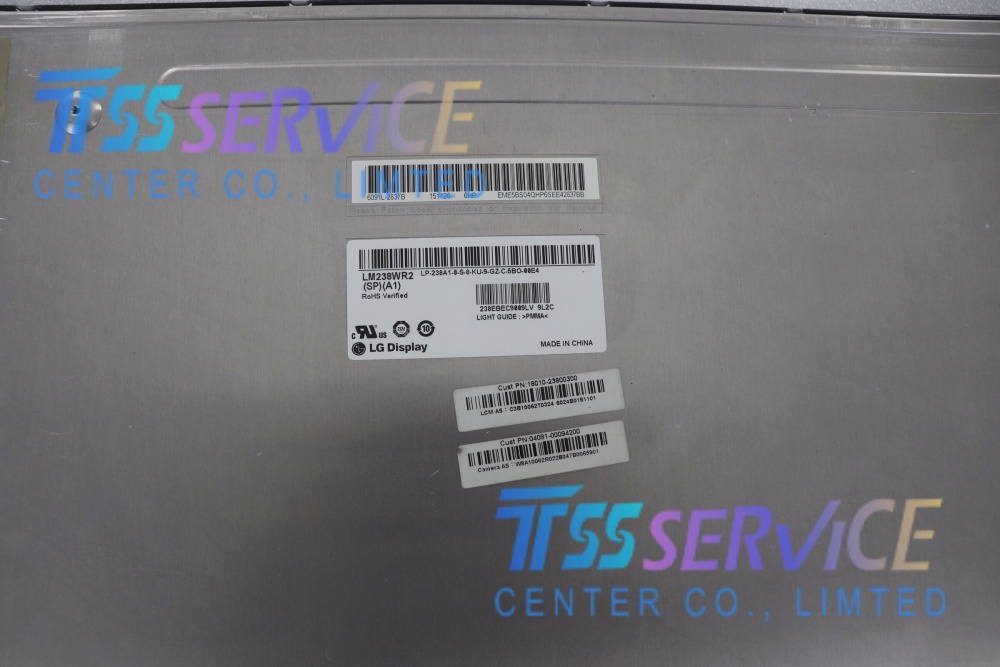

LG LM238WR2-SPA1 23.8 Inch IPS TFT LCD Screen 3840×2160 Industrial Display Panel
Spec Item Detailed Parameter
Manufacturer LG Display
Model No. LM238WR2-SPA1
Display Size 23.8 Inches
Panel Type a-Si IPS TFT-LCD, LCM
Native Resolution 3840(RGB) × 2160 UHD 4K, 16:9 Aspect Ratio
Dot Layout RGB Vertical Stripe
Display Mode IPS, Normally Black, Transmissive
Active Display Area 527.04(W) × 296.46(H) mm
Brightness 300 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ., TM)
Viewing Angle 89°/89°/89°/89° (CR≥10, Full Symmetric Wide View)
Color Performance 1.07 Billion Display Colors, 10-bit Gray Scale, Standard sRGB Gamut
Refresh Frequency 60Hz
Surface Treatment Matte Anti-glare Hard Coating
Backlight Source WLED, External Driver Required, Lifespan 30,000 Hours
Signal Interface 4-Lane eDP, 30 Pins FPC Connector
Input Voltage 10.0V (Typ.)
Touch Screen Without Touch Digitizer
Net Weight 1.73kg (Typ.) / 1.82kg (Max.)
Operating Temperature 0 ℃ ~ +50 ℃
Storage Temperature -20 ℃ ~ +60 ℃

Application Scenarios

  • All-in-one desktop PC replacement display screens
  • Industrial control monitoring workstations & factory visualization terminals
  • Graphic design, video editing & high-precision inspection equipment
  • Medical imaging auxiliary monitoring displays
  • Laboratory test & measurement embedded display equipment
  • Retail self-service information kiosks
  • Office multi-screen workstation secondary monitors
  • Automated optical inspection (AOI) equipment visual panels
