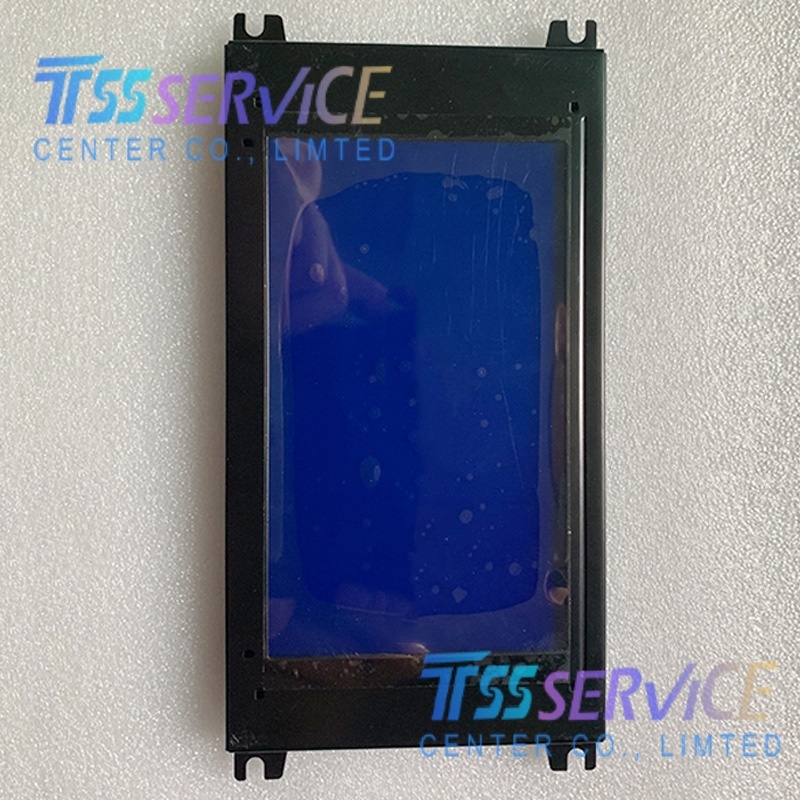

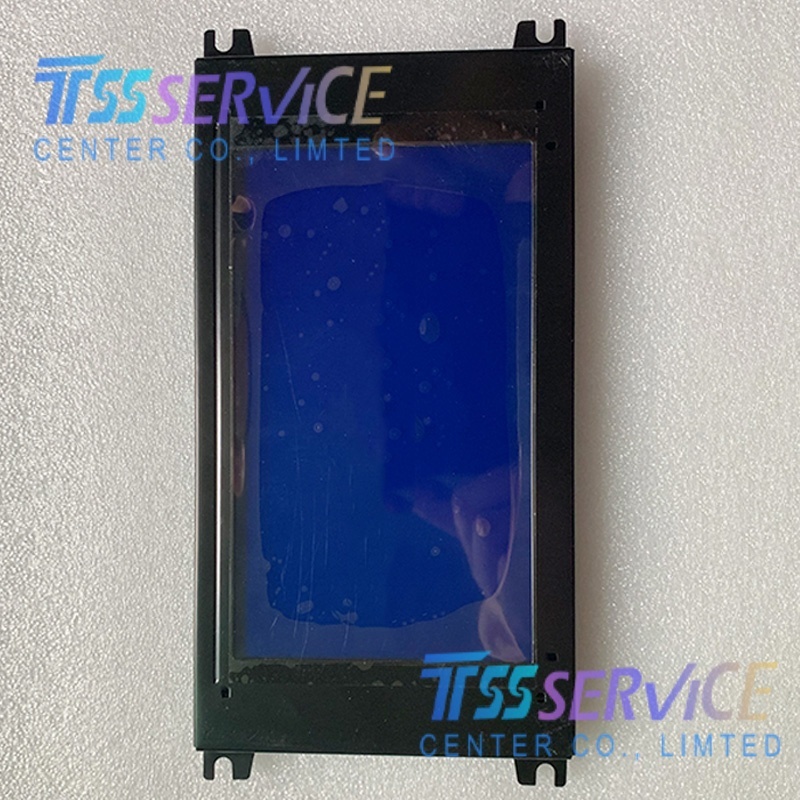

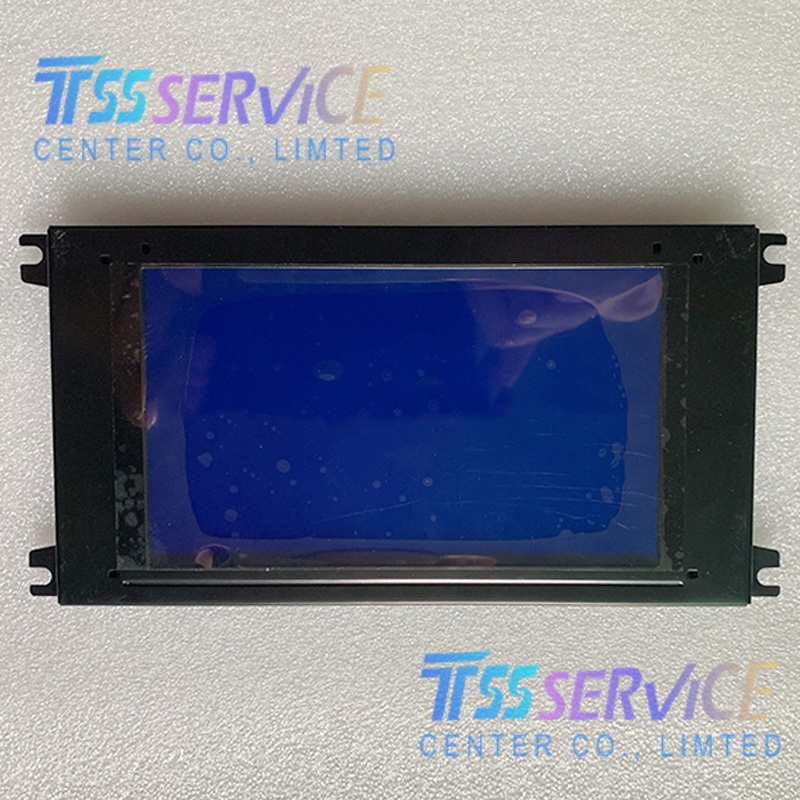

LM240101 5.7-inch compatible LCD screen panel For Industrial

Name: LM240101 5.7-inch compatible LCD screen panel For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LM240101
Price: 175 USD
Availability: InStock

SKU: LM240101

Model: LM240101
Display Type: a-Si TFT-LCD, Color, Transmissive
Screen Size: 5.7 inches (diagonal)
Resolution: 320 × 240 pixels (QVGA)

0.0 (0 Reviews)

0 Sold

~~$180.00~~ $175.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

LM240101 5.7-inch compatible LCD screen panel For Industrial

Item	Description
Model	LM240101
Display Type	a-Si TFT-LCD, Color, Transmissive
Screen Size	5.7 inches (diagonal)
Resolution	320 × 240 pixels (QVGA)
Active Area (AA)	115.2 × 86.4 mm
Module Size	135.0 × 105.0 × 12.0 mm (typ.)
Dot Pitch	0.36 × 0.36 mm
Backlight	CCFL (Cold Cathode Fluorescent Lamp)
Brightness	200 cd/m² (typ.)
Contrast Ratio	400:1 (typ.)
Viewing Angle	60°/60°/40°/50° (L/R/U/D)
Display Colors	262K (6-bit RGB)
Interface	20-pin TTL Parallel
Supply Voltage	+5.0V (logic) / +12V (CCFL inverter)
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
Status	EOL (End of Life), industrial replacement grade

Typical Applications

Industrial Control Panels: CNC machines, PLC workstations, factory automation terminals, and process monitoring systems (stable 24/7 operation for harsh environments).
Injection Molding Machinery: Direct replacement for 5.7-inch QVGA color displays in Haitian, Chen Hsong, and other industrial injection molding equipment.
Medical Equipment: Patient monitors, diagnostic devices, and rehabilitation instruments (reliable brightness/contrast for critical data readability).
Legacy Embedded Systems: Older industrial PCs, HMI terminals, and textile/printing machinery (drop-in upgrade for discontinued 5.7-inch TFT panels).
Automotive & Marine Displays: Vehicle dashboards, navigation systems, and marine instrumentation (wide temperature tolerance and anti-interference capability).
