Condition: New and orignal , Grade A
Warranty : 1 year
Lead time : 1-3 working days
Shipping : DHL , FEDEX , EMS , UPS ..
| Brand | Sharp |

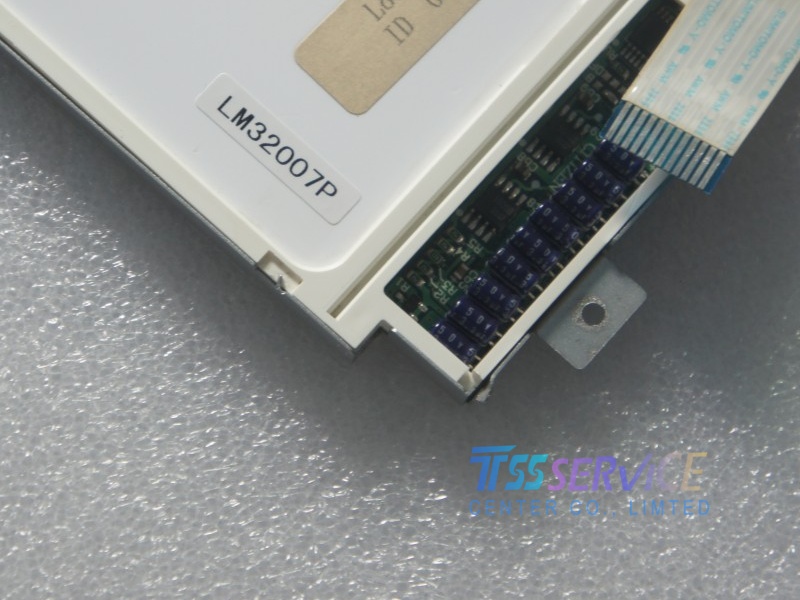

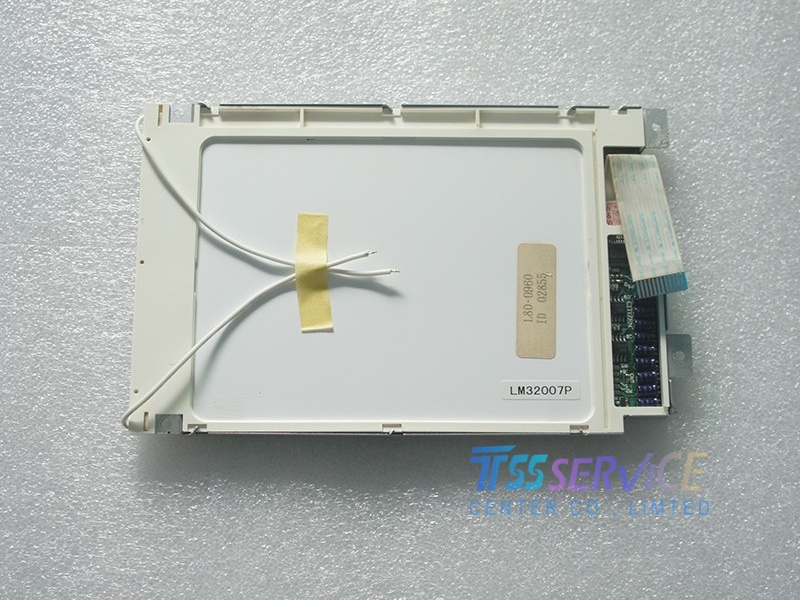

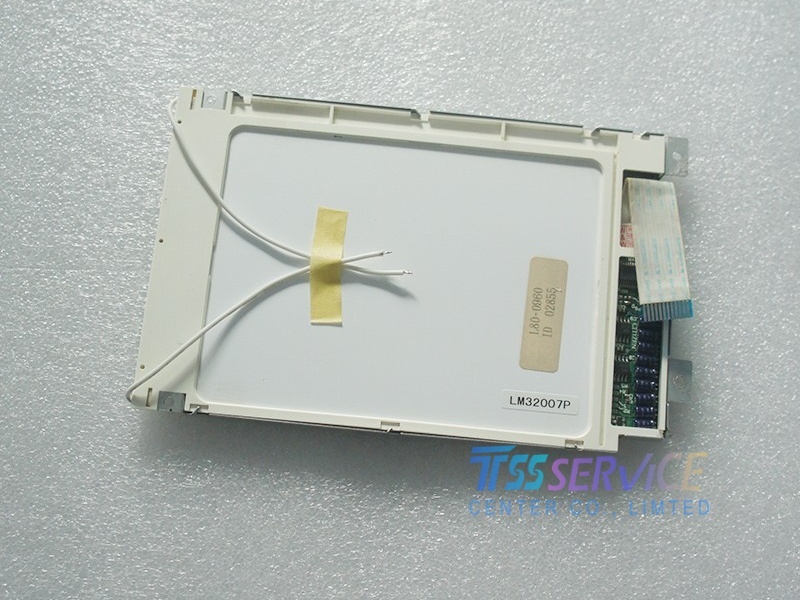

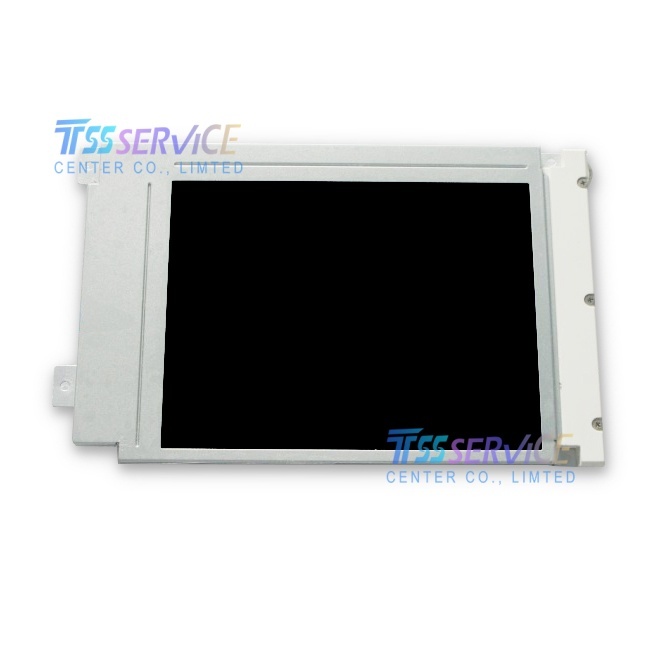

| Model P/N | LM32007P |
| Diagonal Size | 5.7" |
| Panel Type | STN-LCD, LCM |
| Resolution | 320×240, QVGA, 70PPI |
| Pixel Format | Rectangle |
| Active Area | 115.17(W) × 86.37(H) mm |
| Outline Size | 170(W) × 110(H) × 8(D) mm |
| Brightness | 100 cd/m² (Typ.) |
| Contrast Ratio | 10 : 1 (Typ.) (TM) |
| Display Mode | STN, Blue mode (Negative), Transmissive |
| Response Time | 100/100 ms (Typ.)(Tr/Td) |
| Display Colors | Monochrome |
| Lamp Type | 1 pcs CCFL, Without Driver |
| Frequency | 80Hz |
| Touch Screen | Without |
| Panel Weight | 220g |
| Signal Interface | Parallel Data (1ch, 4-bit), 12 pins FPC |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 45 °C; Storage Temp.: -25 ~ 60 °C |
The LM32007P is ideally suited for applications that require a clear, unambiguous display. It is frequently found in:
Industrial Control Panels: For machine operation and process monitoring
Test and Measurement Equipment: Such as oscilloscopes and spectrum analyzers for displaying waveforms
Medical Instrumentation: In patient monitors and diagnostic devices where reliability is paramount
Legacy System Maintenance: As a reliable replacement part for extending the life of existing industrial machinery .
