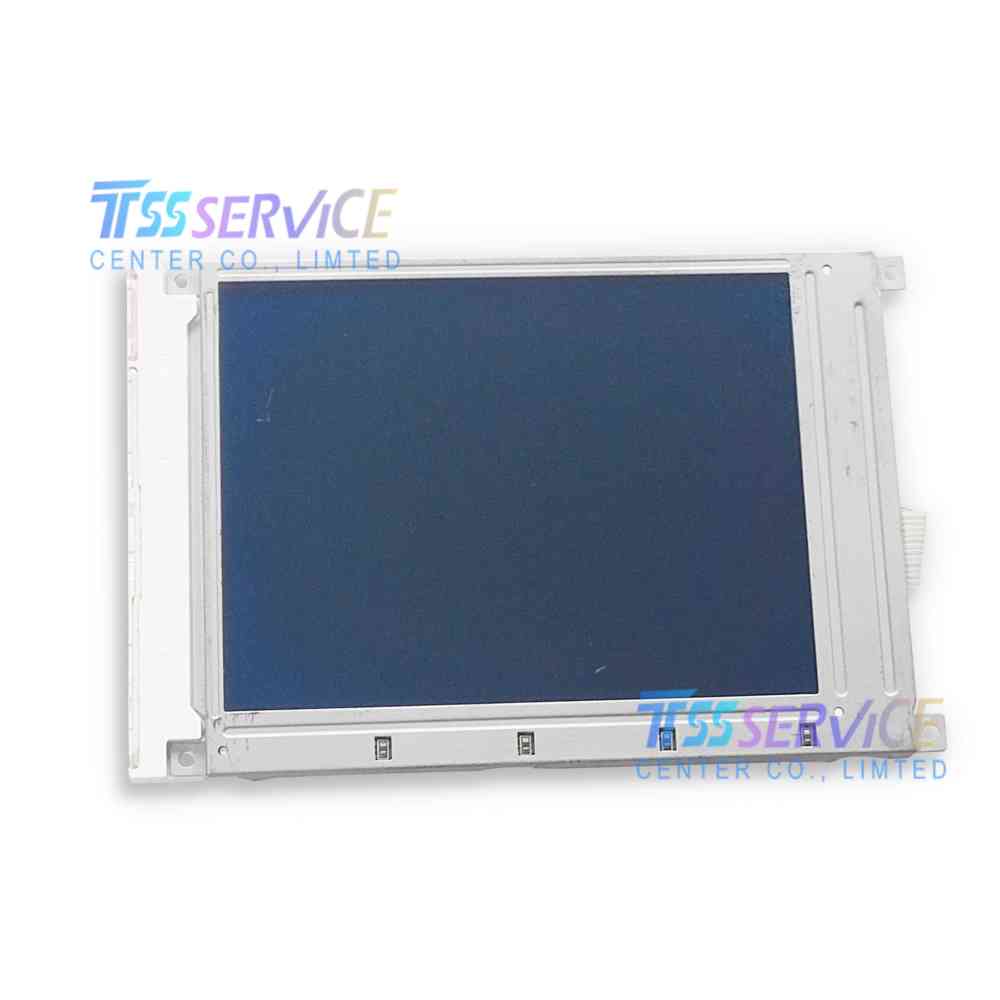

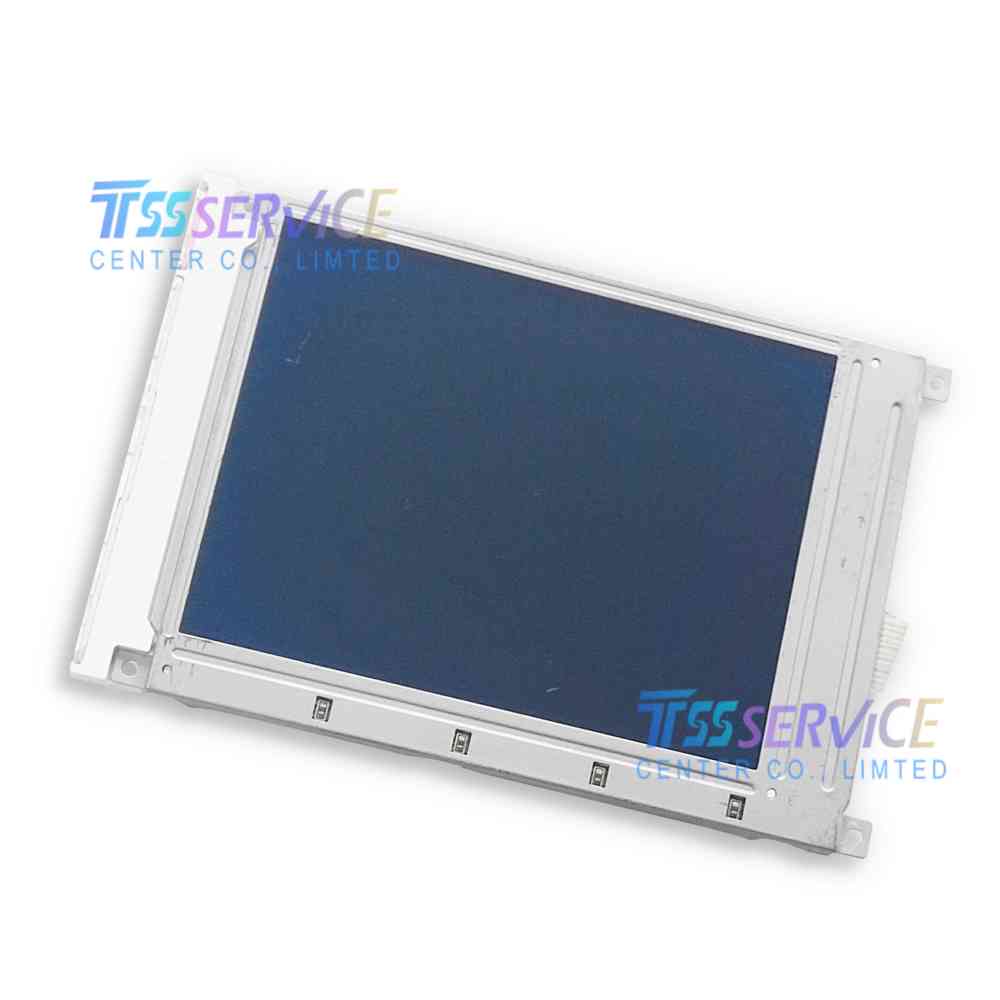

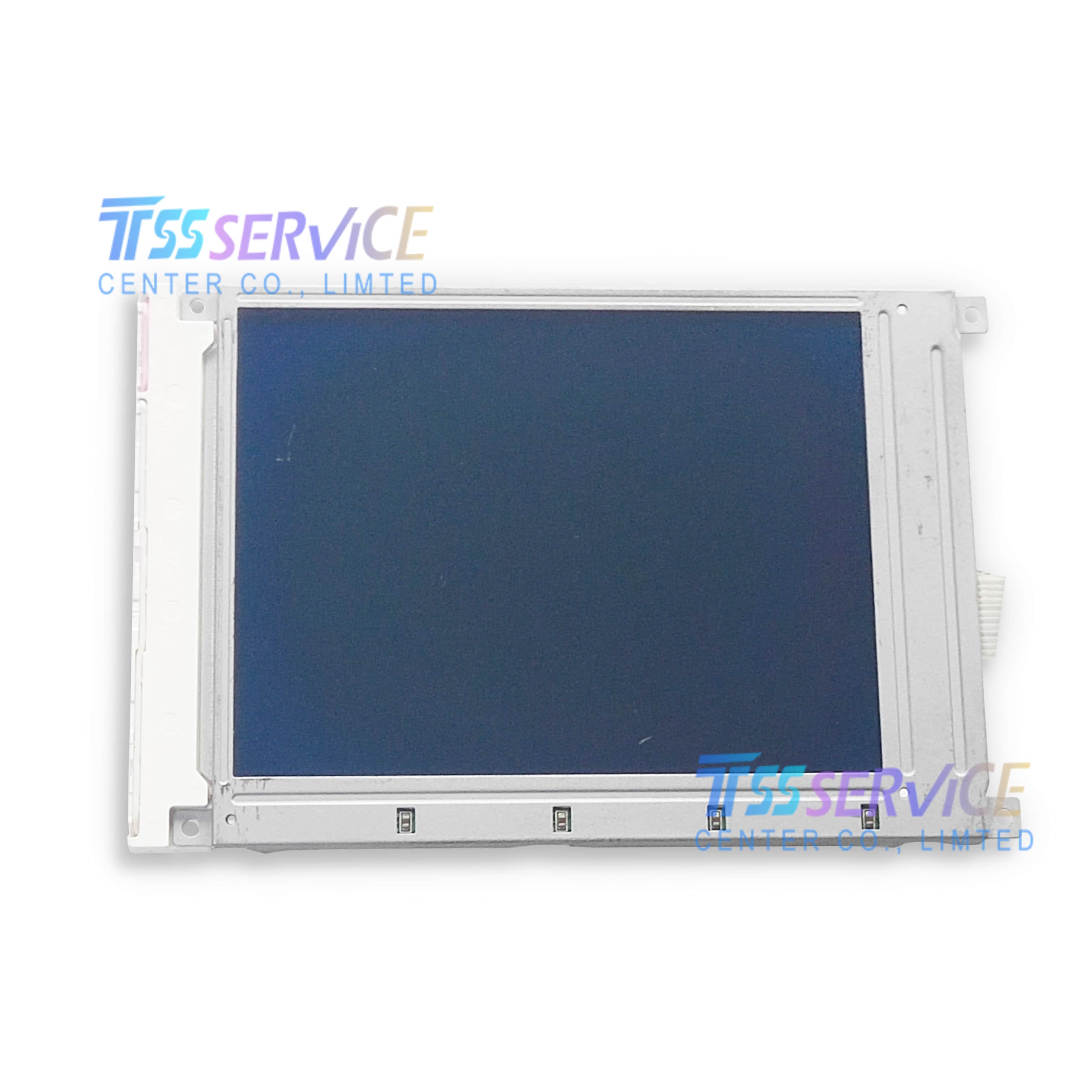

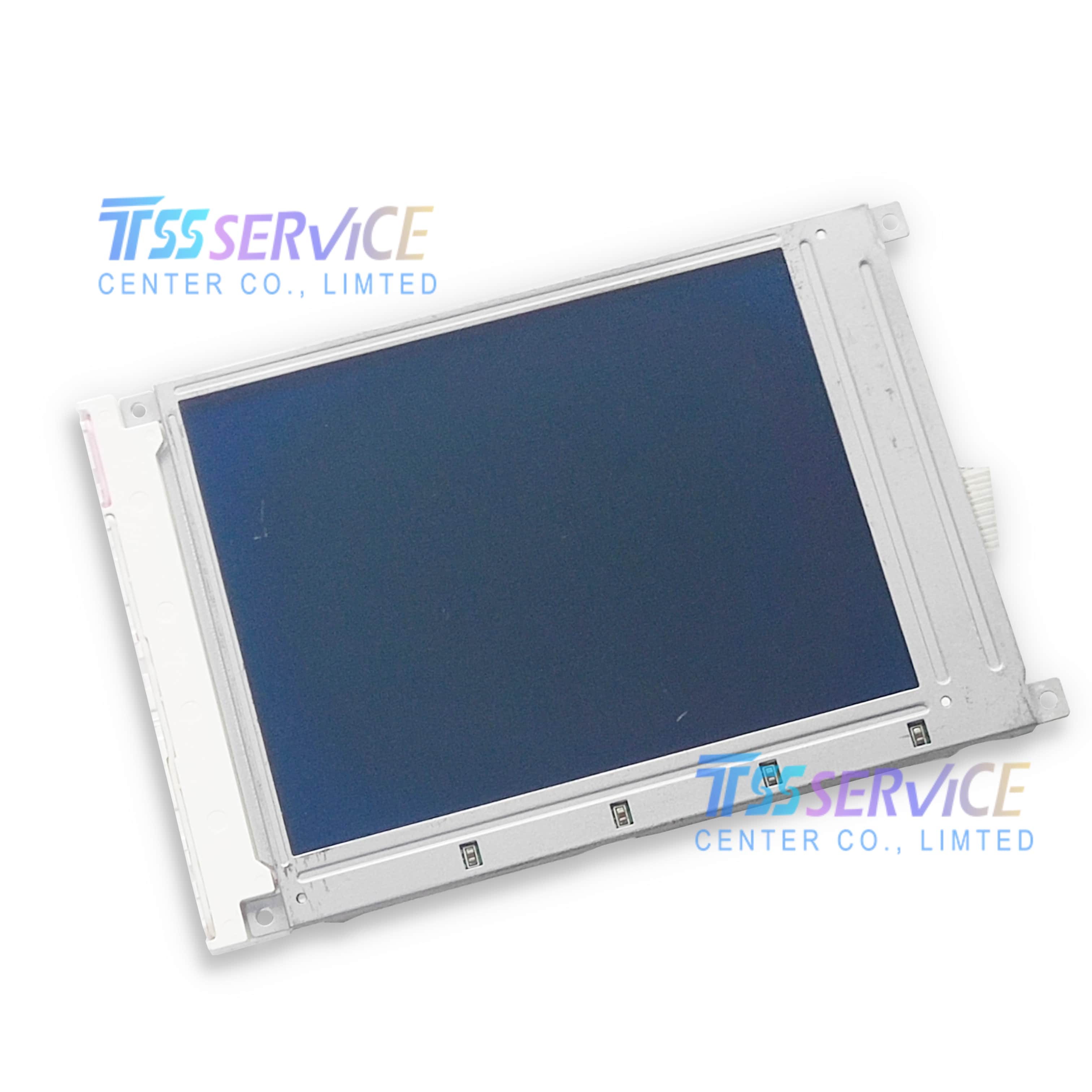

Sharp LM32019T2 5.7 inch LCD Screen Display Panel for Industrial

Name: Sharp LM32019T2 5.7 inch LCD Screen Display Panel for Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LM32019T2
Price: 60 USD
Availability: InStock

SKU: LM32019T2

Model: LM32019T2
Size: 5.7 inches
Resolution: 320 × 240 (QVGA), 70 PPI
Display Type: a-Si TFT-LCD, Transmissive

0.0 (0 Reviews)

0 Sold

~~$61.00~~ $60.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Sharp LM32019T2 5.7 inch LCD Screen Display Panel for Industrial

Parameter	Description
Model	LM32019T2
Brand	Sharp
Size	5.7 inches
Resolution	320 × 240 (QVGA), 70 PPI
Display Type	a-Si TFT-LCD, Transmissive
Active Area	115.17 (W) × 86.37 (H) mm
Brightness	100 cd/m² (typ.)
Contrast Ratio	6:1 (typ.)
Viewing Angle	40°/40°/25°/40° (L/R/U/D)
Interface	Parallel (4-bit), 12-pin FPC
Backlight	CCFL (cold cathode fluorescent lamp)
Operating Temp	0°C ~ 45°C
Storage Temp	-25°C ~ 60°C
Weight	Approx. 0.5 kg
Status	Discontinued (obsolete)

Typical Applications

Industrial HMI & Machinery: Injection molding machines, CNC equipment, factory automation, and process control panels requiring compact, reliable QVGA displays.
Medical Devices: Portable diagnostic equipment, patient monitors, and laboratory instruments needing stable performance in clinical environments.
Automotive & Marine: Vehicle dashboards, navigation systems, and marine instrumentation (indoor use, moderate brightness).
Kiosks & POS: Industrial point-of-sale terminals, self-service kiosks, and public information displays in compact enclosures.
Legacy Embedded Systems: Upgrades or replacements for older 5.7" QVGA TFT displays in industrial and commercial equipment.
