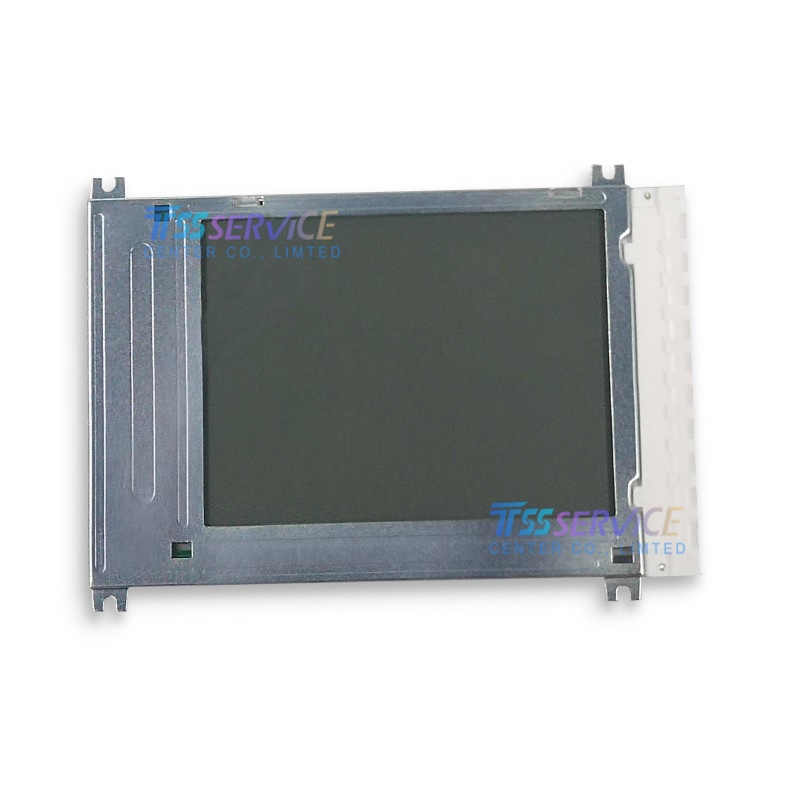

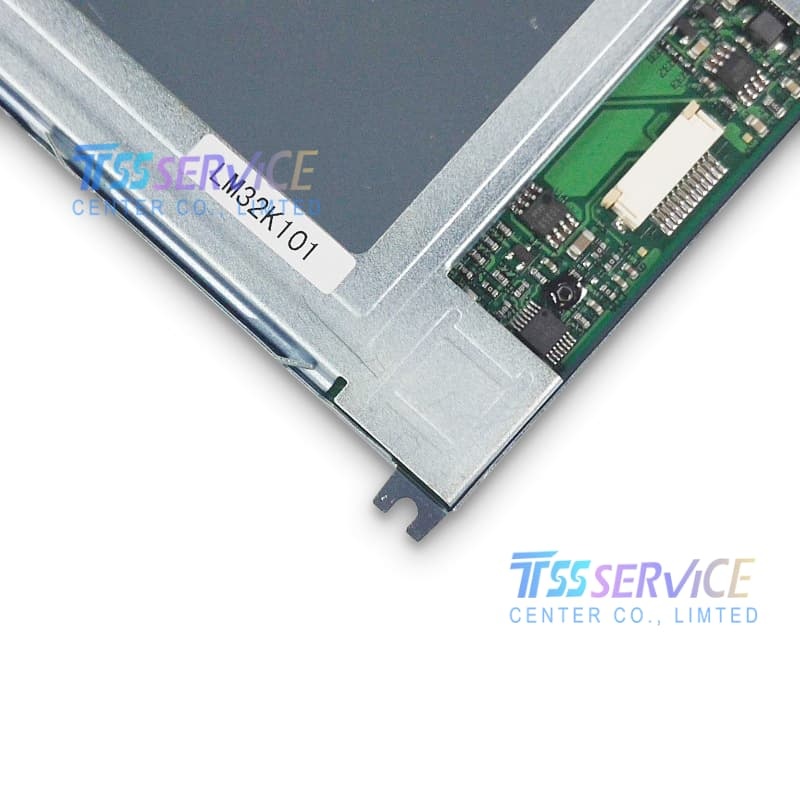

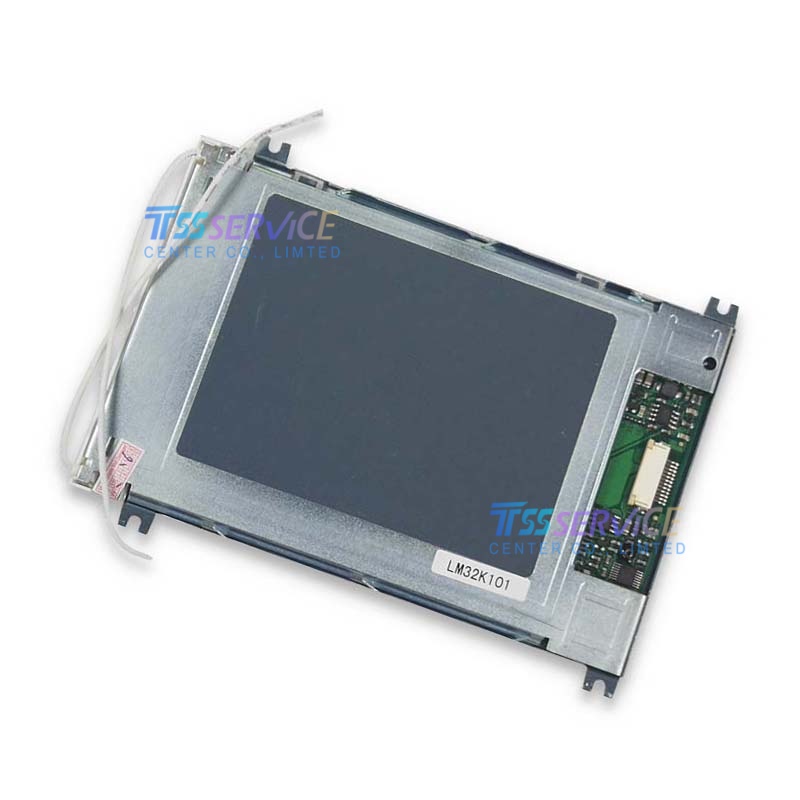

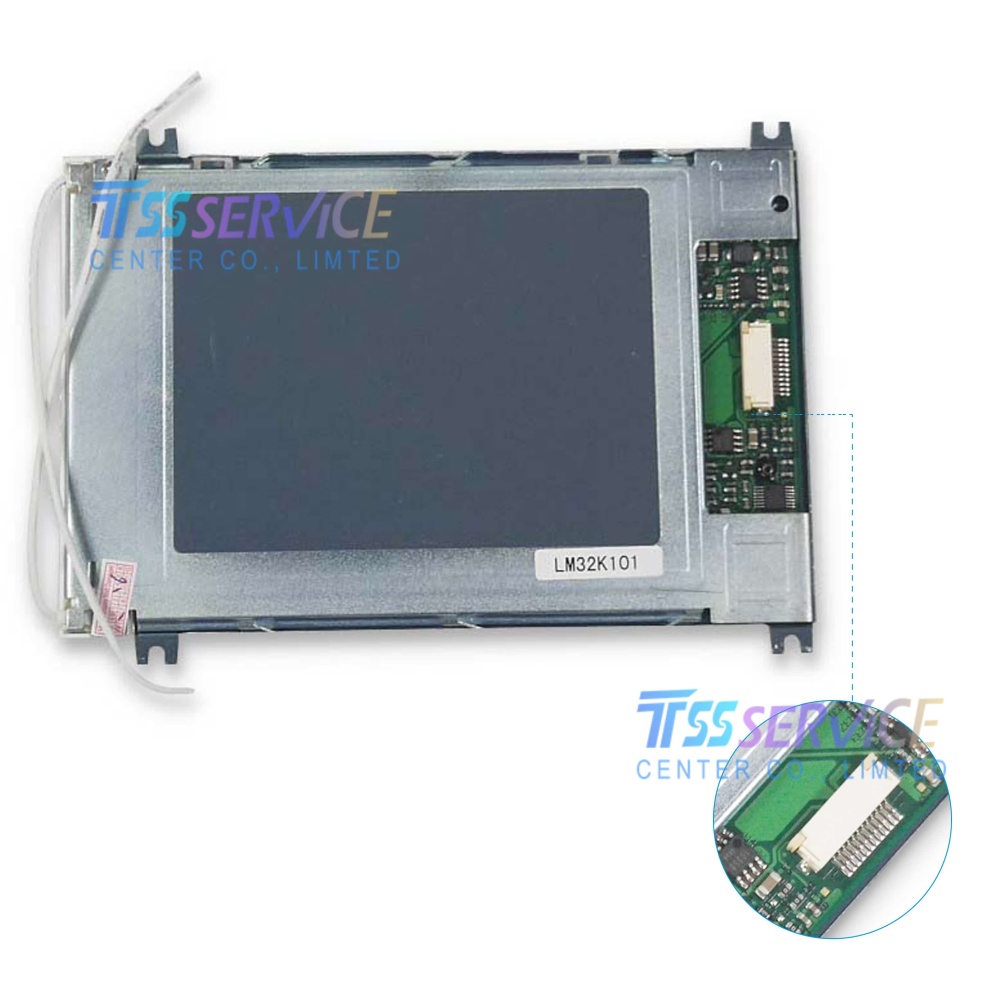

Sharp LM32K101 4.7-inch 320×240 LCD Panel

SKU: LM32K101

1,Condition: New,Grade A

2,Description: LM32K101 4.7inch LCD Display Panel

3,Warranty: 90 Days

4,Lead Time: 1-3 Working days

5,Shipping: DHL ,FedEx, EMS , SF express  or by air.

6,Packaging: Bubble pad+Paper box

7,Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)
0 Sold
$122.00 $120.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • Sharp LM32K101 4.7-inch 320×240 QVGA DSTN-LCD Panel
  • Sharp LM32K101 4.7-inch 320×240 QVGA DSTN-LCD Panel
  • Sharp LM32K101 4.7-inch 320×240 QVGA DSTN-LCD Panel
  • Sharp LM32K101 4.7-inch 320×240 QVGA DSTN-LCD Panel
  • Sharp LM32K101 4.7-inch 320×240 QVGA DSTN-LCD Panel
  • Sharp LM32K101 4.7-inch 320×240 QVGA DSTN-LCD Panel
  • Sharp LM32K101 4.7-inch 320×240 QVGA DSTN-LCD Panel
  • Sharp LM32K101 4.7-inch 320×240 QVGA DSTN-LCD Panel
1/1
  • Sharp LM32K101 4.7-inch 320×240 QVGA DSTN-LCD Panel
  • Sharp LM32K101 4.7-inch 320×240 QVGA DSTN-LCD Panel
  • Sharp LM32K101 4.7-inch 320×240 QVGA DSTN-LCD Panel
  • Sharp LM32K101 4.7-inch 320×240 QVGA DSTN-LCD Panel
  • Description
he Sharp LM32K101 is a 4.7-inch diagonal DSTN-LCD (Double-layer Super-Twisted Nematic Liquid Crystal Display) module designed for industrial applications requiring reliable monochrome display performance . Featuring QVGA (320×240) resolution with a rectangular pixel arrangement, this display utilizes transflective technology, making it suitable for both indoor and outdoor environments where sunlight readability is essential.

Category Details
Brand Sharp
Model P/N LM32K101
Diagonal Size 4.7"
Panel Type DSTN-LCD, LCM
Resolution 320×240, QVGA 84PPI
Pixel Format Rectangle
Active Area 95.97(W)×71.97(H) mm
Bezel Opening 100.0(W)×76.0(H) mm
Outline Dim. 148(H)×107(V)×8(D) mm
Luminance 50 cd/m² (Typ.)
Contrast Ratio 10 : 1 (Typ.) (TM) 10 : 1 (Typ.) (RF)
Response Time 750 (Typ.)(Tr+Td)
Operating Mode STN, Black/White mode, Transflective
Support Color Monochrome
Light Source CCFL [1 pcs], W/O Driver
Weight 140g (Typ.)
Touch Panel Without
Interface Type Parallel Data (1 ch, 4-bit) Connector
Operating Temp. -10 ~ 60 °C
Storage Temp. -25 ~ 70 °C

Typical Applications

  • Industrial control panels and HMI (Human-Machine Interface)

  • CNC machine tool displays (Fanuc, Siemens, Mitsubishi systems)

  • Medical diagnostic equipment

  • Test and measurement instruments

  • Legacy system replacements
