1，Condition: New，Grade A

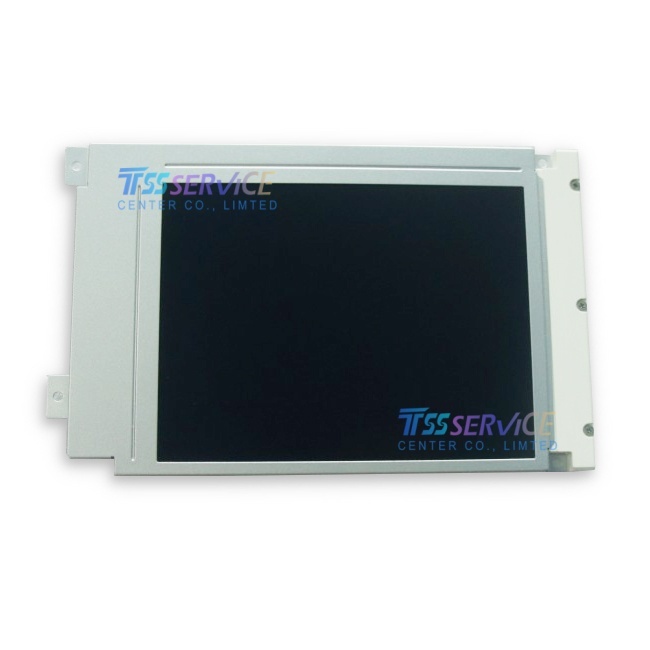

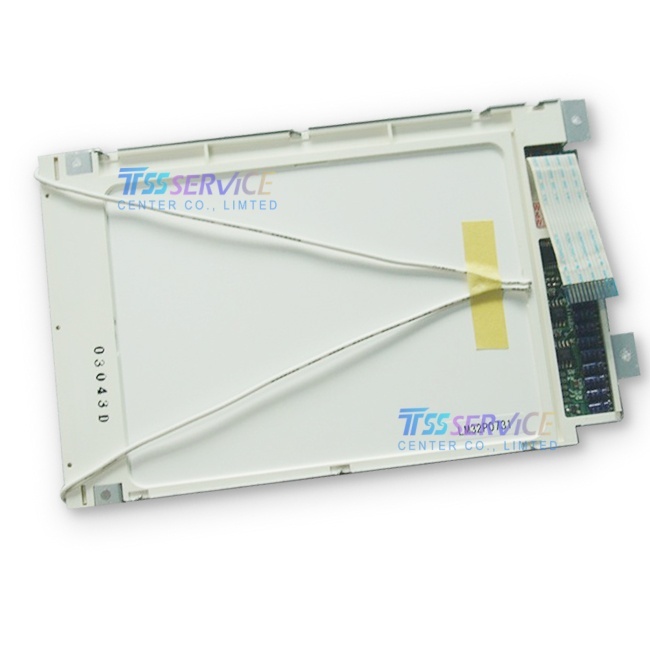

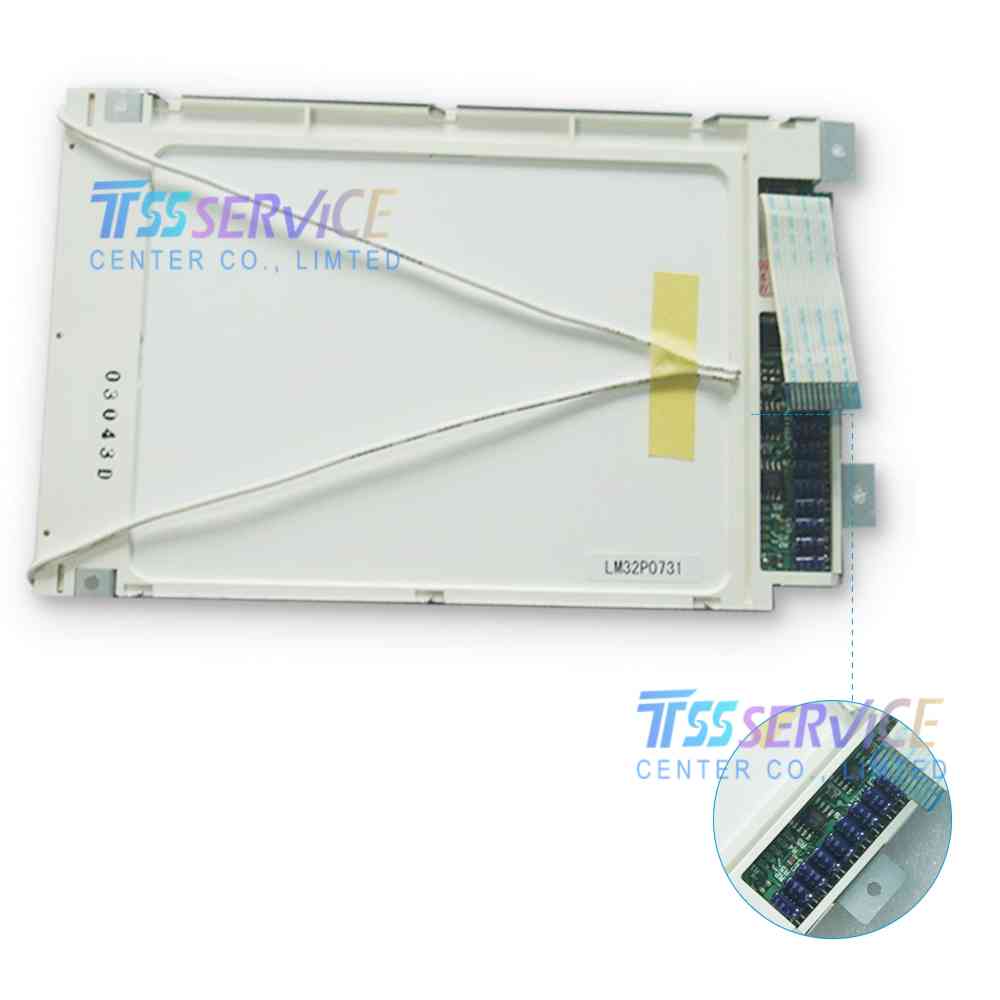

2，Description: LM32P073 5.7inch LCD Display Panel
3，Warranty: 90 Days
4，Lead Time: 1-3 Working days
5，Shipping: DHL ,FedEx, EMS , SF express or by air.
6，Packaging: Bubble pad+Paper box
7，Note: All LCD display panels will be full tested before shipping.
| Parameter | Specification |
|---|---|
| Brand | Sharp |
| Model | LM32P073 |
| Diagonal Size | 5.7 inches |
| Panel Type | FSTN-LCD, LCM |
| Resolution | 320 × 240 (QVGA) |
| Pixel Density | 70 PPI |
| Pixel Format | Rectangle |
| Active Area | 115.17 (W) × 86.37 (H) mm |
| Luminance | 60 cd/m² (Typ.) |
| Contrast Ratio | 50 : 1 (Typ.) |
| Operating Mode | STN, Transmissive, Blue Mode |
| Support Color | Monochrome (Black/White) |
| Backlight | 1 pc CCFL, With Inverter |
| Backlight Life | 40,000 hours |
| Weight | 100g (Typ.) |
| Touchscreen | Without |
| Signal Interface | Parallel Data (4-bit), 14-pin connector |
| Input Voltage | 3.3V (Typ.) |
| Operating Temperature | 0 ~ +50 °C |
| Storage Temperature | -20 ~ +70 °C |
| Vibration Resistance | 1.0G (9.8 m/s²) |
| RoHS Status | Non-RoHS (legacy product) |
| Application Area | Use Case |
|---|---|
| Test & Measurement | Tektronix TDS210/TDS220 oscilloscopes and similar instrumentation |
| Industrial Control | CNC machine control panels, PLC interfaces, HMI systems |
| Medical Equipment | Patient monitoring systems, diagnostic devices |
| Factory Automation | Process controllers, manufacturing equipment displays |
| Embedded Systems | Legacy system replacements and industrial computer interfaces |
