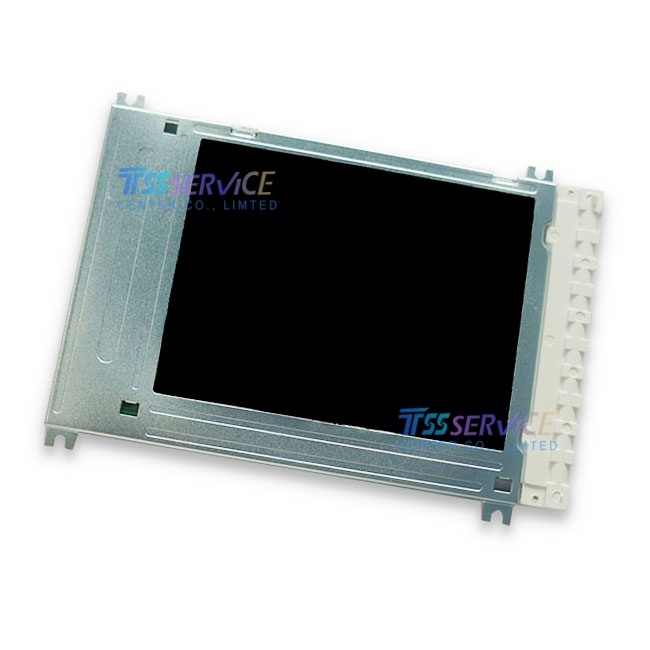

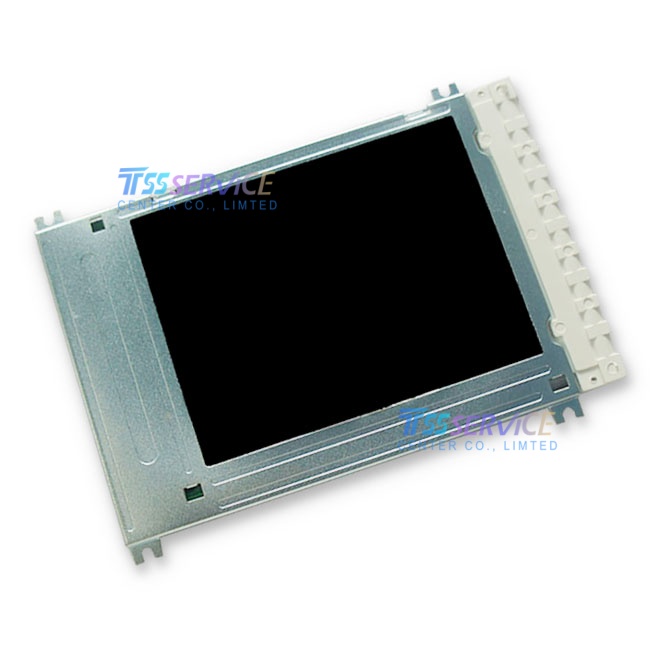

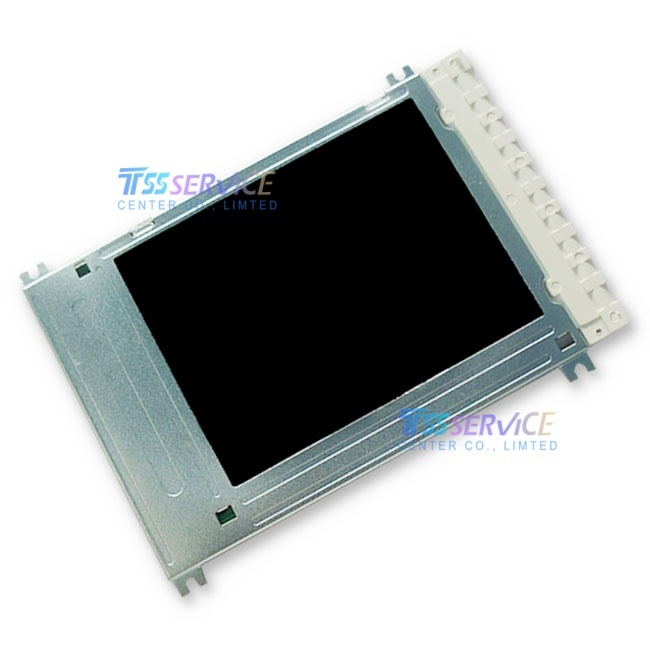

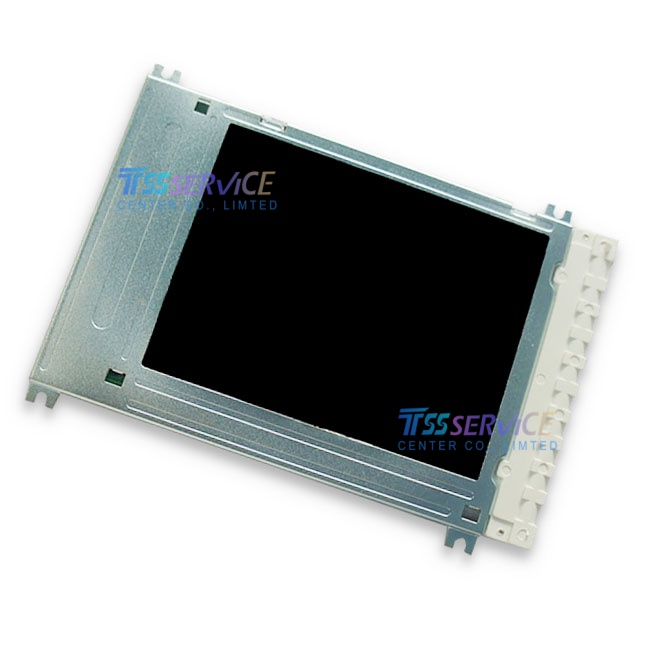

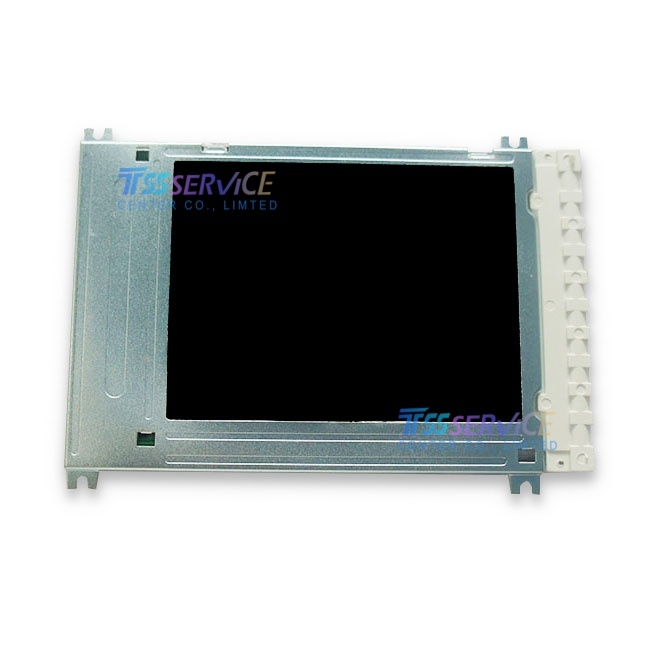

LM32P18 SHARP 4.7" 320×240 Industrial LCD Display

Name: LM32P18 SHARP 4.7" 320×240 Industrial LCD Display
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LM32P18
Price: 198 USD
Availability: InStock

SKU: LM32P18

Model P/N: LM32P18
Diagonal Size: 4.7"
Panel Type: FSTN-LCD, LCM
Pixel Number: 320×240, QVGA, 4:3

0.0 (0 Reviews)

0 Sold

~~$200.00~~ $198.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

LM32P18 SHARP 4.7" 320×240 Industrial LCD Display

Parameter	Specification
Diagonal Size	4.7 inches (12 cm)
Resolution	320 × 240 pixels (QVGA)
Panel Type	FSTN-LCD (Super-Twisted Nematic), Transmissive
Display Mode	Monochrome (Black/White, Negative)
Contrast Ratio	18:1 (Typical)
Luminance (Brightness)	90 cd/m² (Typical)
Response Time	Tr/Td = 320/80 ms (Typical)
Active Area	95.97 mm (W) × 71.97 mm (H)
Outline Dimensions	145 mm (W) × 104 mm (H) × 7 mm (D)
Interface	Parallel Data (4-bit), 12 pins
Backlight	CCFL (Cold Cathode Fluorescent Lamp), 15,000 hours
Operating Voltage	VDD = 5.0 V, VEE = 19.4 V
Operating Temperature	5°C ~ 45°C
Storage Temperature	-25°C ~ 60°C
Weight	115 g (Typical)
Status	Discontinued (End of Life)

LM32P18 – Typical Applications

Industrial Control Panels
- PLC/HMI displays, machine tools, factory automation
- Test/measurement equipment, process monitoring
Medical Devices
- Patient monitors, diagnostic equipment, medical imaging
- Portable clinical devices, lab analyzers
Automotive & Transportation
- Dashboard displays, vehicle control units
- Navigation systems, industrial vehicle displays
Consumer & Portable Electronics
- Handheld instruments, data loggers
- Industrial handheld terminals, POS systems
General Purpose Industrial Displays
- Instrumentation, process control, and embedded systems
- Low-power, cost-effective monochrome graphic displays
