LM5H40TB Sharp 5.5 inch 480×320 LCD Display Screen For Industrial

Name: LM5H40TB Sharp 5.5 inch 480×320 LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LM5H40TB
Price: 88 USD
Availability: InStock

SKU: LM5H40TB

Model: LM5H40TB
Brand: Sharp
Display Type: 5.5-inch DMTN (Dual-scan Super Twisted Nematic), Monochrome
Resolution: 480 × 320 dots (HVGA)

0.0 (0 Reviews)

0 Sold

~~$90.00~~ $88.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

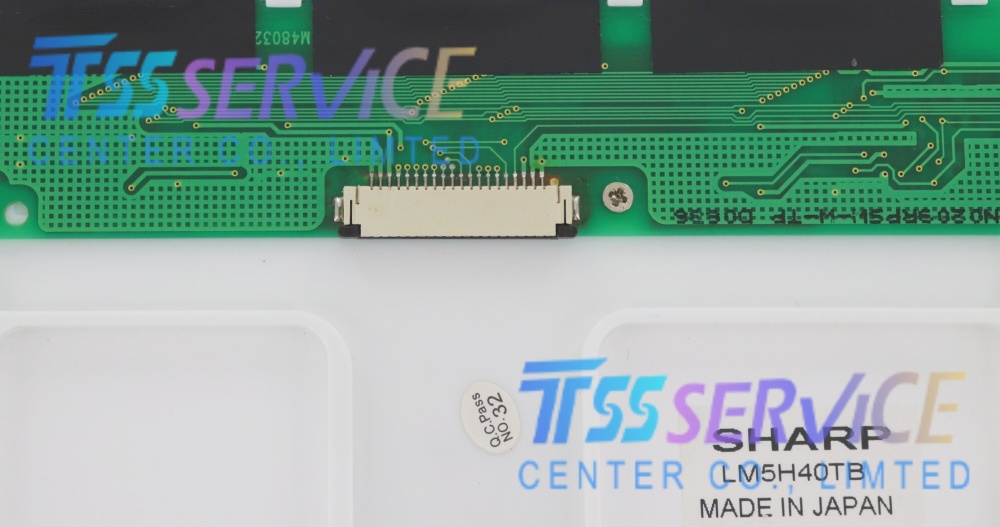

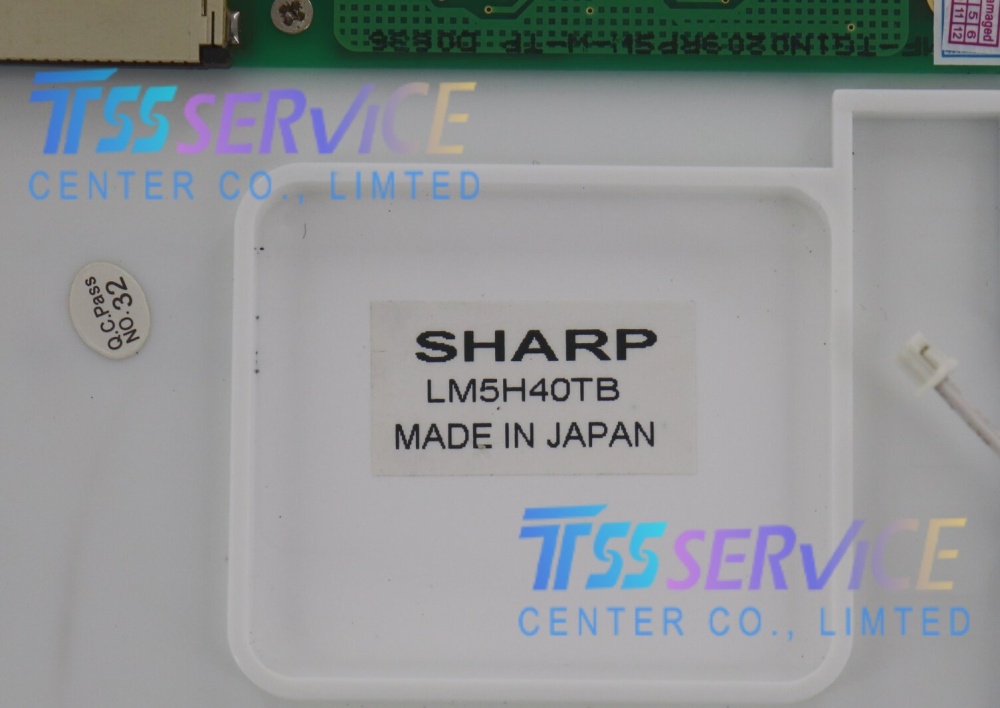

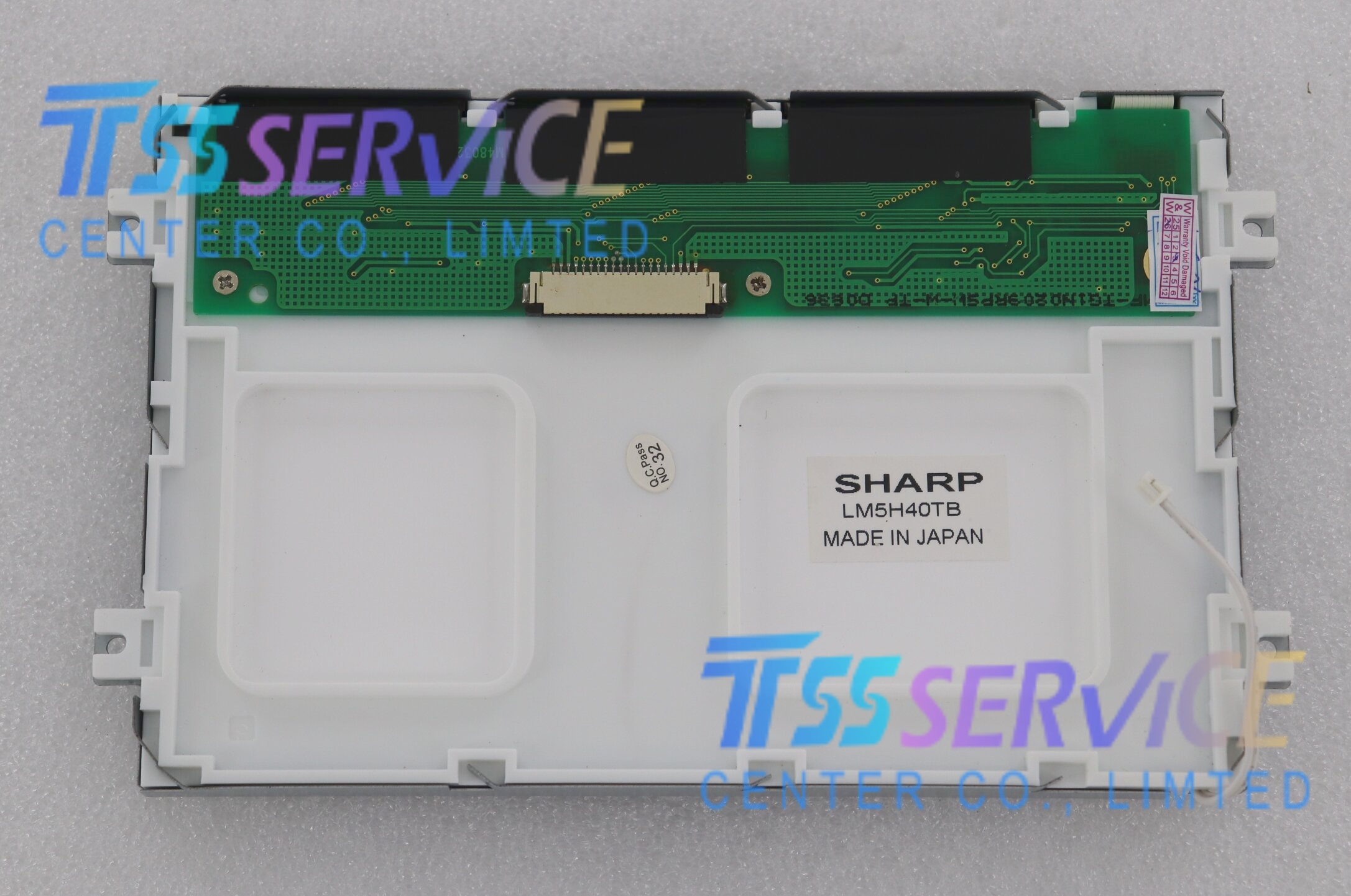

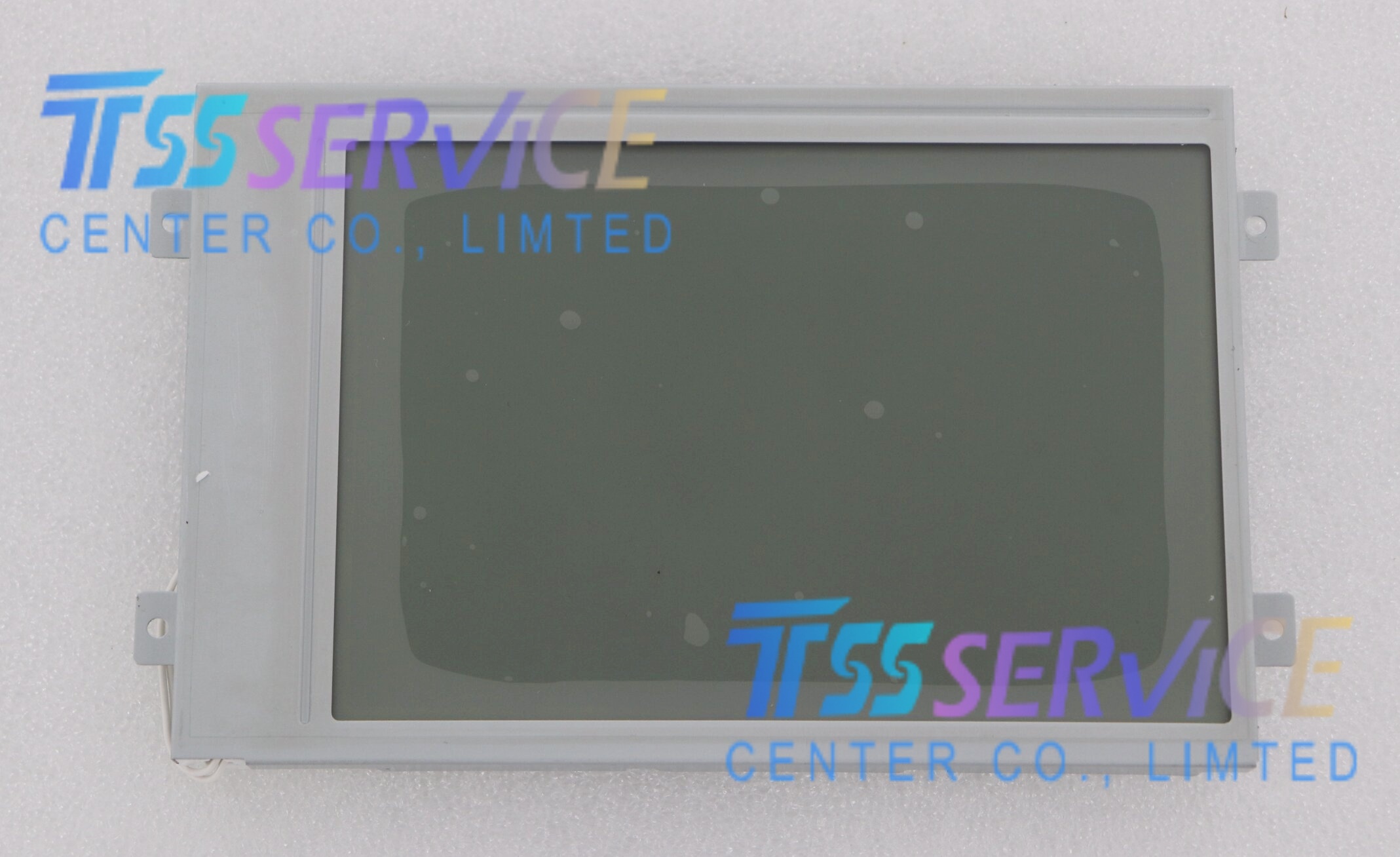

LM5H40TB Sharp 5.5 inch 480×320 LCD Display Screen For Industrial

Item	Description
Model	LM5H40TB
Brand	Sharp
Display Type	5.5-inch DMTN (Dual-scan Super Twisted Nematic), Monochrome
Resolution	480 × 320 dots (HVGA)
Active Area (AA)	115.2 × 76.8 mm
Module Size	144.0 × 94.9 × 10.0 mm (typ.)
Dot Pitch	0.24 × 0.24 mm
Display Mode	Transflective, Normally White
Contrast Ratio	15:1 (typ.)
Response Time	100 ms (typ.)
Viewing Angle	Horizontal 80° / Vertical 120°
Backlight	Built-in LED (white)
Interface	20-pin Parallel (8-bit)
Supply Voltage	3.3V
Operating Temp	-0°C ~ +60°C
Storage Temp	-15°C ~ +75°C
Weight	150g (typ.)
Status	EOL (End of Life), industrial replacement

Typical Applications

Industrial Handheld Devices: Portable data terminals, barcode scanners, industrial PDAs (low power, sunlight readable).
Medical Equipment: Patient monitors, portable diagnostic devices, medical instrumentation (high contrast, stable performance).
Test & Measurement: Field meters, oscilloscopes, spectrum analyzers, data loggers (wide viewing angle, fast response).
Legacy Industrial Control: CNC machinery, injection molding machines, factory automation panels (direct replacement for old Sharp DMTN modules).
Marine & Automotive: Cabin instrumentation, vehicle dashboards, navigation systems (transflective for outdoor/bright environments).
