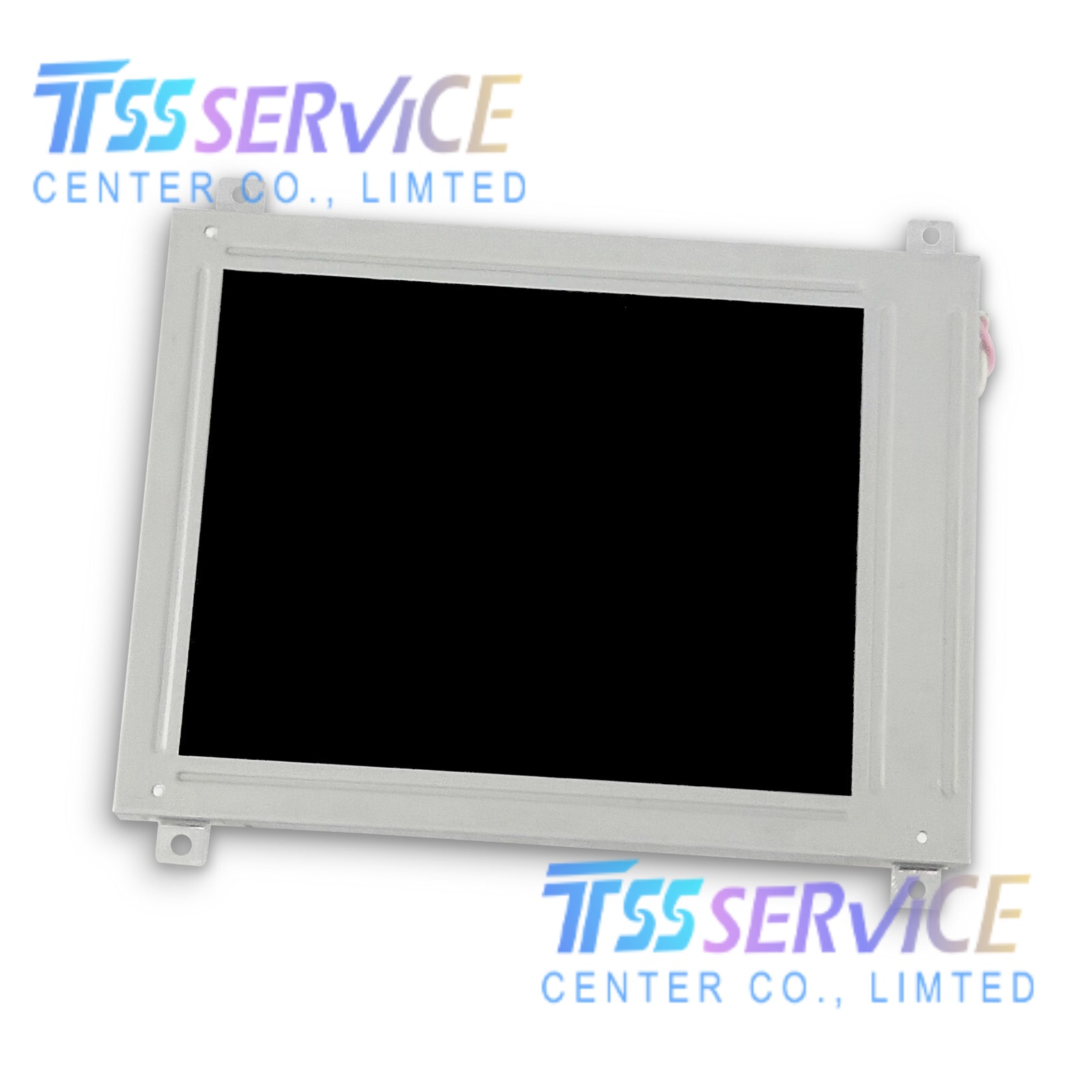

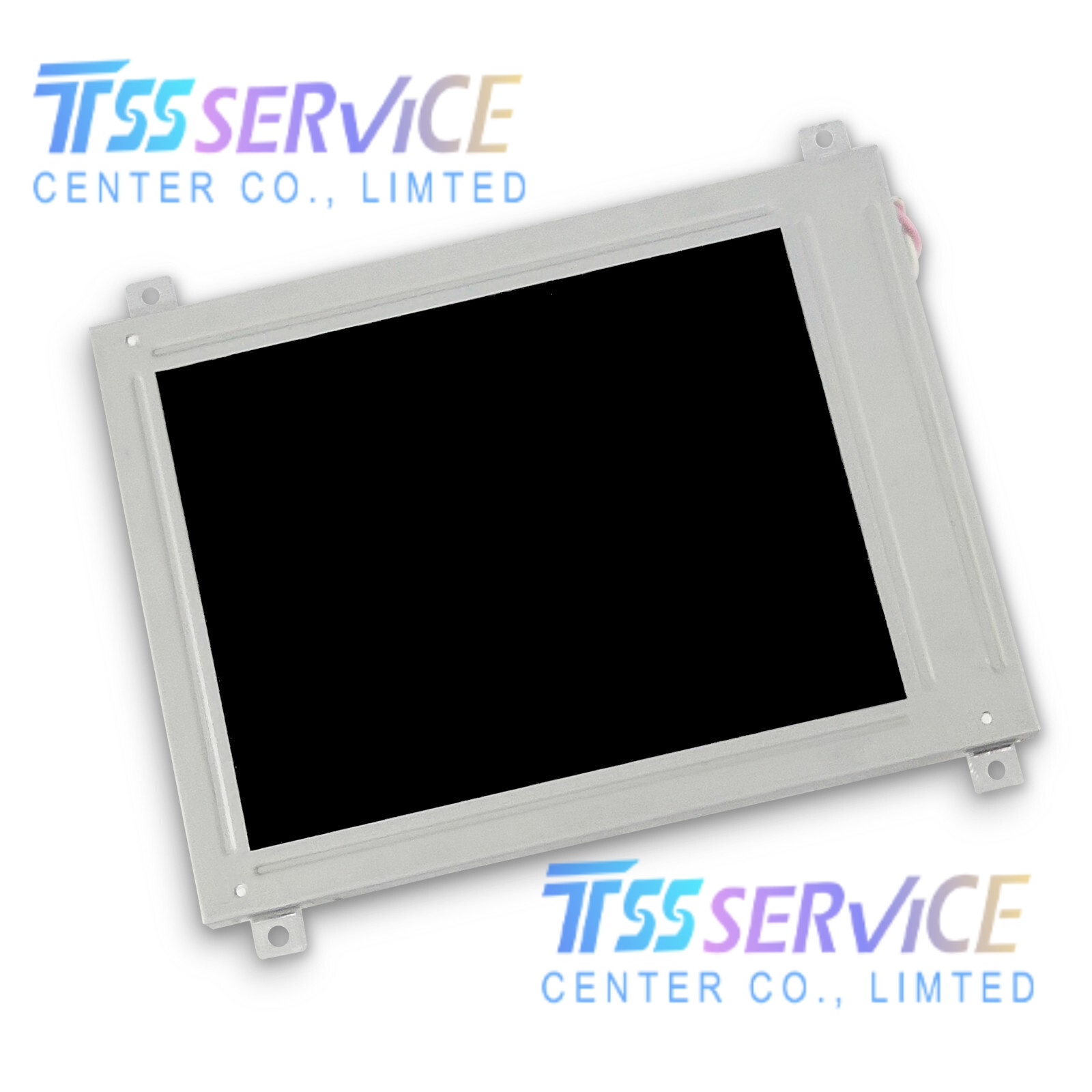

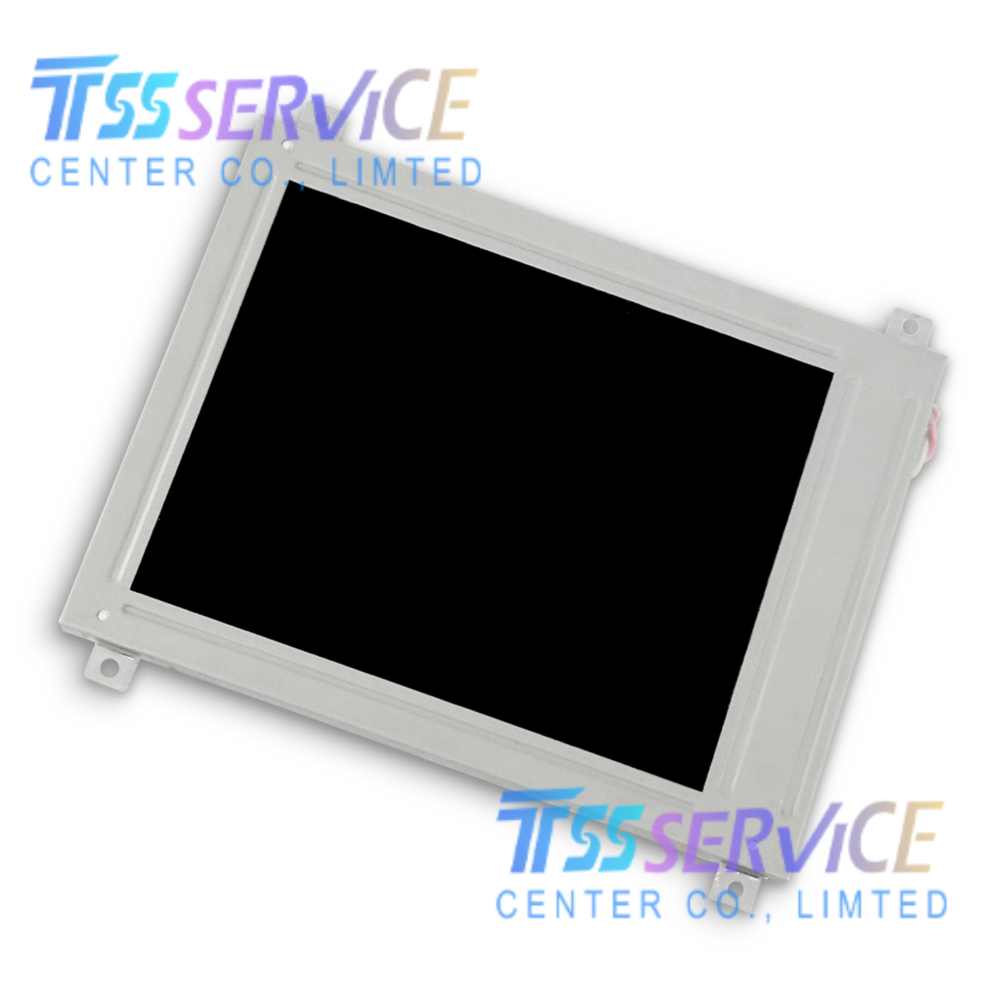

Sharp 5 inch 320×240 LCD Panel LM5Q31 For Industrial

SKU: LM5Q31
Model: LM5Q31
Diagonal Size: 5.0 inch
Type:CSTN-LCD, LCM
Pixel Number: 320(RGB)×240, 4:3, QVGA
Pixel Structure: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$90.00 $70.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • Sharp 5 inch 320×240 LCD Panel LM5Q31 For Industrial
  • Sharp 5 inch 320×240 LCD Panel LM5Q31 For Industrial
  • Sharp 5 inch 320×240 LCD Panel LM5Q31 For Industrial
  • Sharp 5 inch 320×240 LCD Panel LM5Q31 For Industrial
  • Sharp 5 inch 320×240 LCD Panel LM5Q31 For Industrial
  • Sharp 5 inch 320×240 LCD Panel LM5Q31 For Industrial
1/1
  • Sharp 5 inch 320×240 LCD Panel LM5Q31 For Industrial
  • Sharp 5 inch 320×240 LCD Panel LM5Q31 For Industrial
  • Sharp 5 inch 320×240 LCD Panel LM5Q31 For Industrial
  • Description
Sharp 5 inch 320×240 LCD Panel LM5Q31 For Industrial
Parameter Specification
Resolution 320 × 240(QVGA)
Active Area 100.8 × 75.6 mm
Outline 134 × 100 × 15 mm
Brightness 150 cd/m²(典型)
Contrast 30:1
Colors 4096 colors(4-bit)
Response Time 200 ms
Viewing Angle 35°/35°/15°/25°(L/R/U/D)
Backlight CCFL
Interface TTL 24pin
Voltage 5.0V(VDD)/30V(VEE)
Operating Temp 0°C ~ +60°C
Storage Temp -25°C ~ +65°C
Weight 220 g
