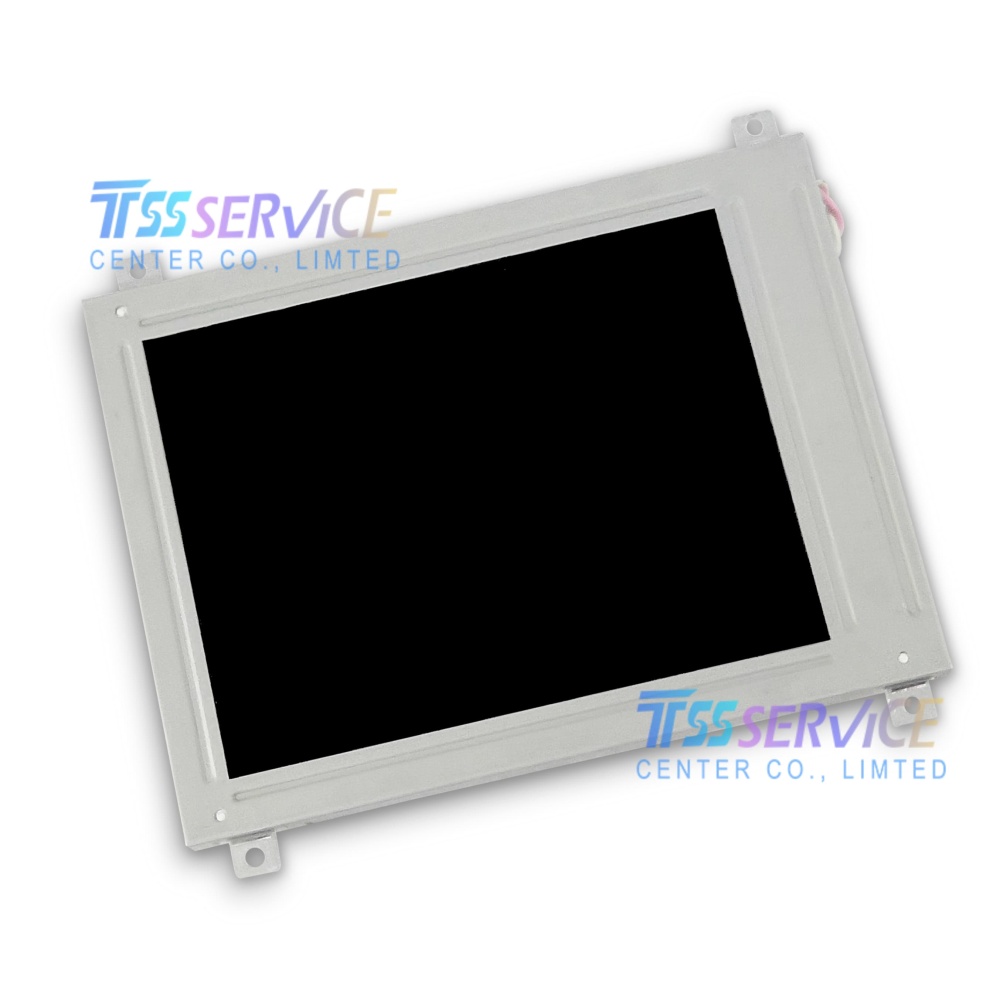

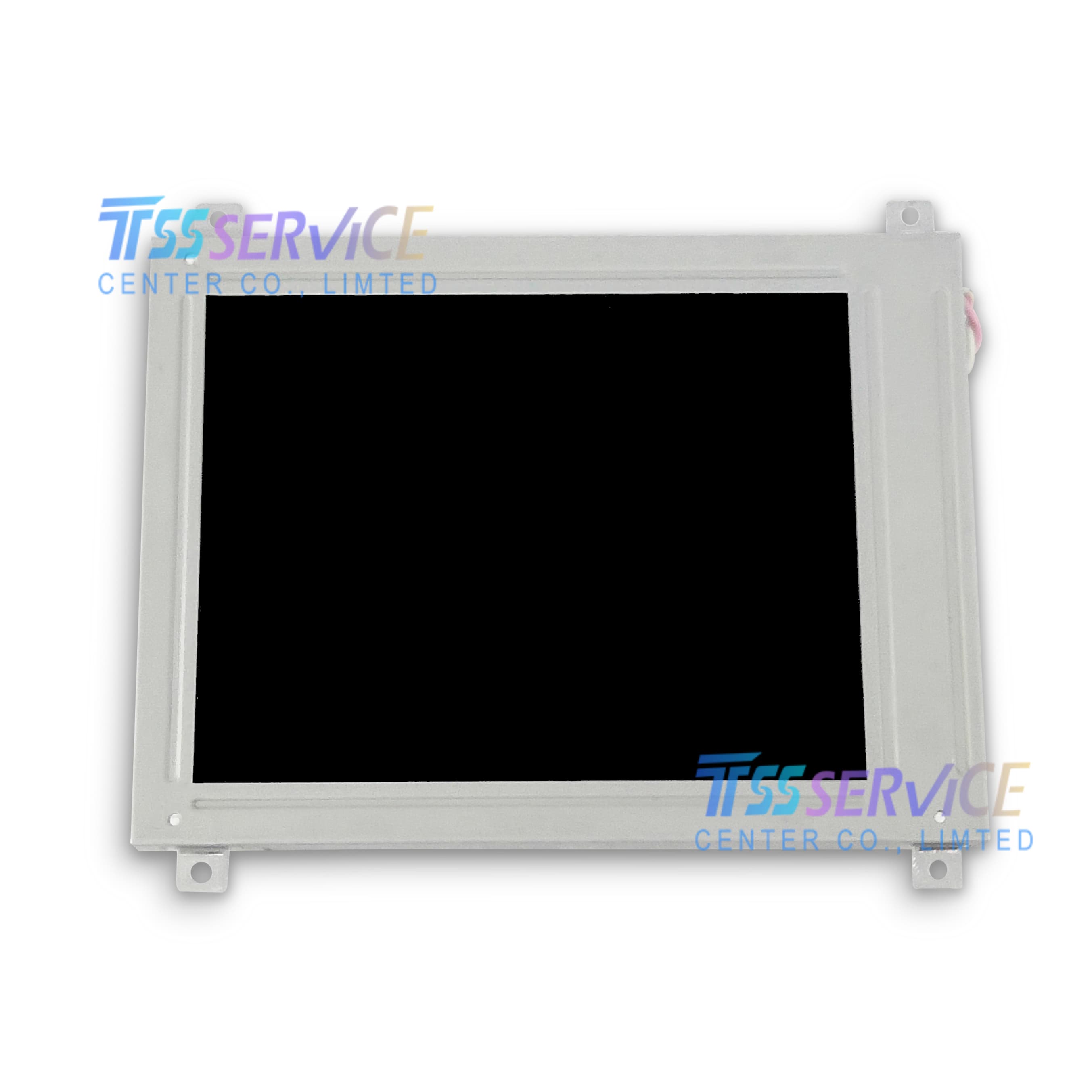

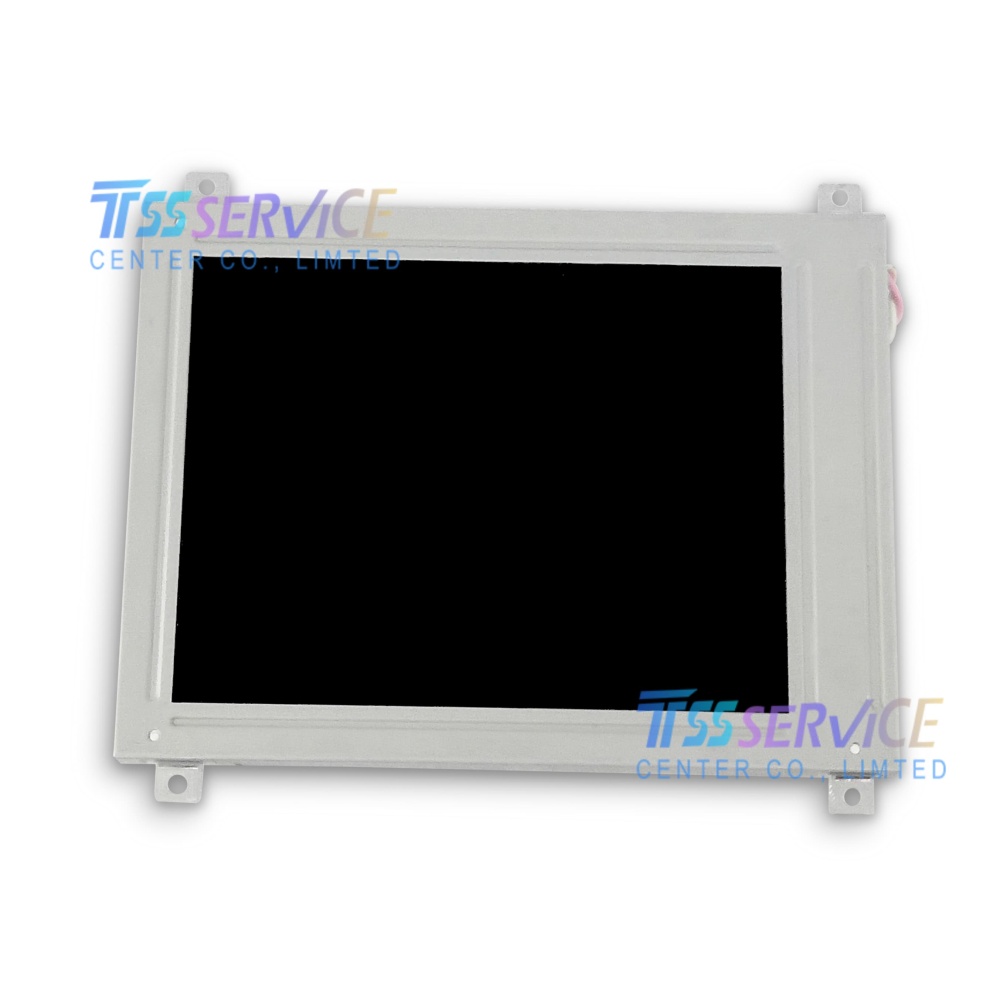

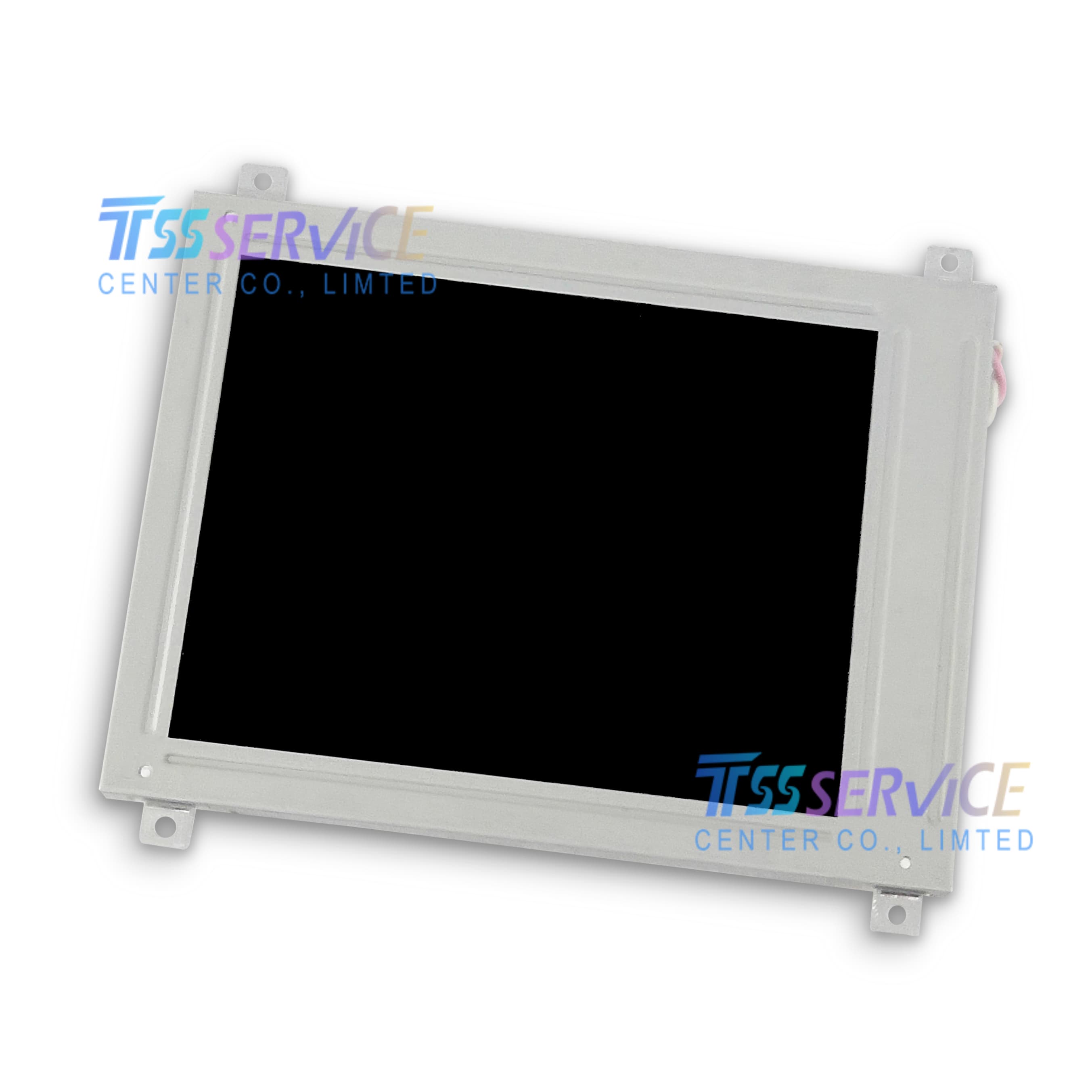

Sharp 5 inch LM5Q320 LCD Display Screen For Industrial

Name: Sharp 5 inch LM5Q320 LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LM5Q320
Price: 95 USD
Availability: InStock

SKU: LM5Q320

Model: LM5Q320
Diagonal Size: 5.0 inches
Panel Type: CSTN‑LCD, Normally Black, Transmissive
Resolution: 320 × 240 (QVGA, RGB), 80 PPI

0.0 (0 Reviews)

0 Sold

~~$98.00~~ $95.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Sharp 5 inch LM5Q320 LCD Display Screen For Industrial

Parameter	Details
Model	LM5Q320
Brand	Sharp
Diagonal Size	5.0 inches
Panel Type	CSTN‑LCD, Normally Black, Transmissive
Resolution	320 × 240 (QVGA, RGB), 80 PPI
Active Area	100.8 (W) × 75.6 (H) mm
Outline Dimensions	134 (W) × 113 (H) × 10.5 (D) mm
Brightness	120 cd/m² (Typ.)
Contrast Ratio	30:1 (Typ.)
Viewing Angle	35°/35°/15°/25° (L/R/U/D, CR ≥ 5)
Color Depth	262K colors (RGB 6‑bit)
Backlight	1 × CCFL, 15,000 hrs lifespan, w/o driver
Interface	20‑pin, 8‑bit parallel data
Operating Temperature	0 °C ~ +50 °C
Storage Temperature	−25 °C ~ +65 °C
Features	Industrial grade, low power, cost‑effective, long lifecycle

Applications

Industrial HMI: Factory automation terminals, PLC control panels, CNC machinery, injection molding machines。
Point of Sale (POS): Retail cash registers, payment terminals, ticketing machines。
Medical Devices: Portable diagnostic equipment, patient monitors, lab instruments。
Test & Measurement: Oscilloscopes, data loggers, industrial meters, weighing systems。
Legacy Industrial Systems: Replacement for older Sharp LM5Q32 series in 24/7 operation environments
