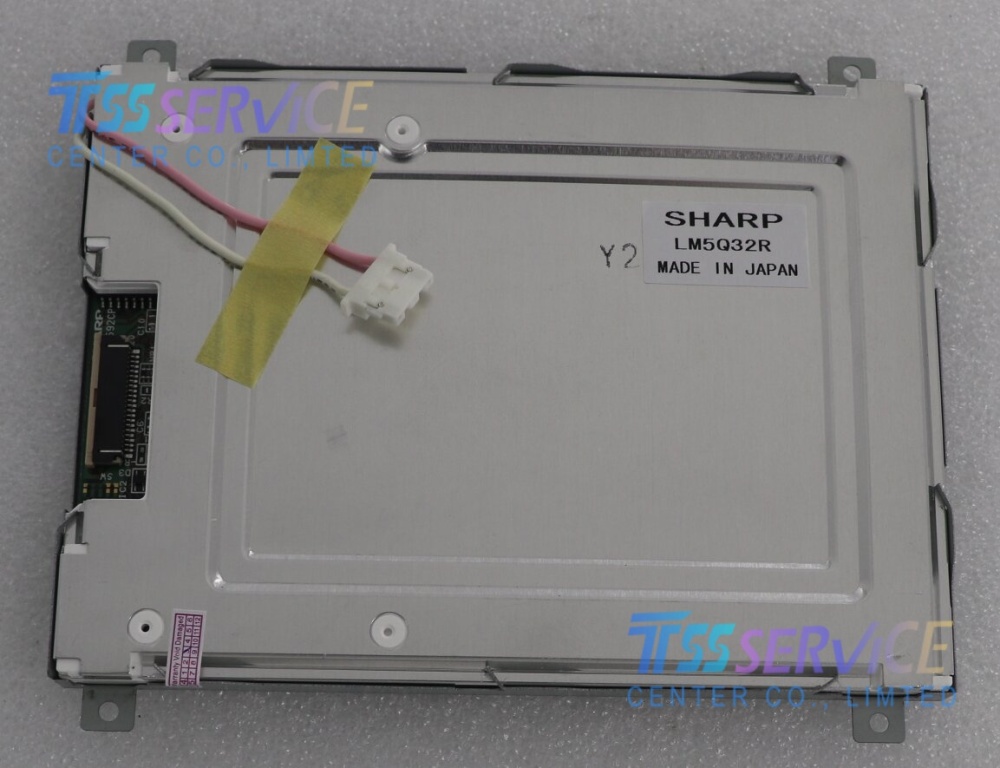

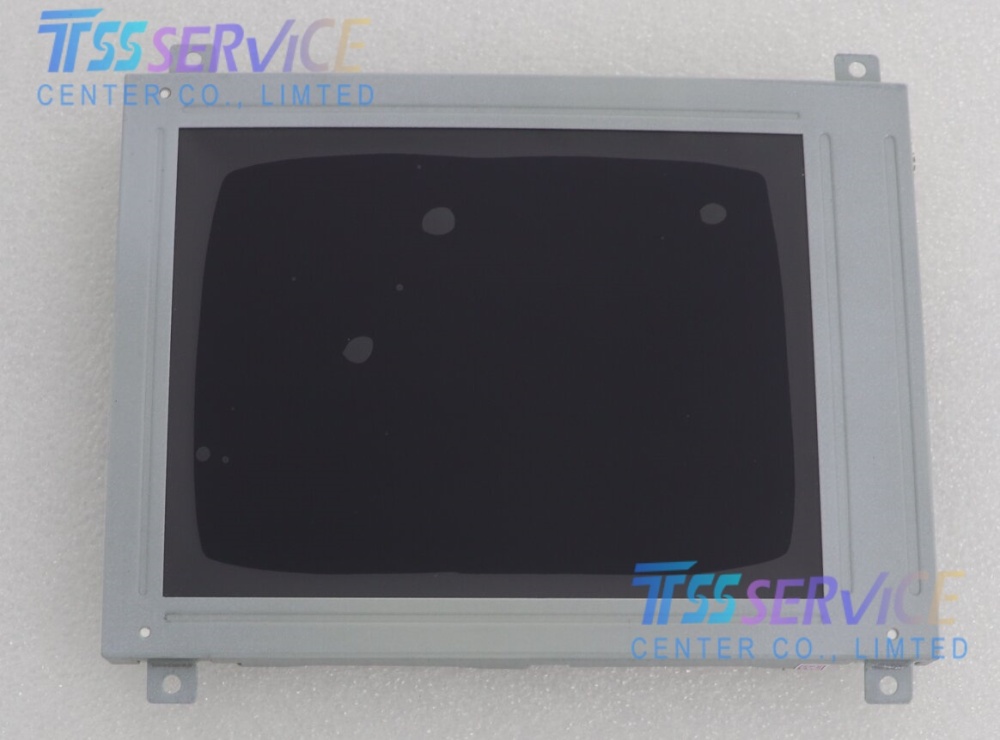

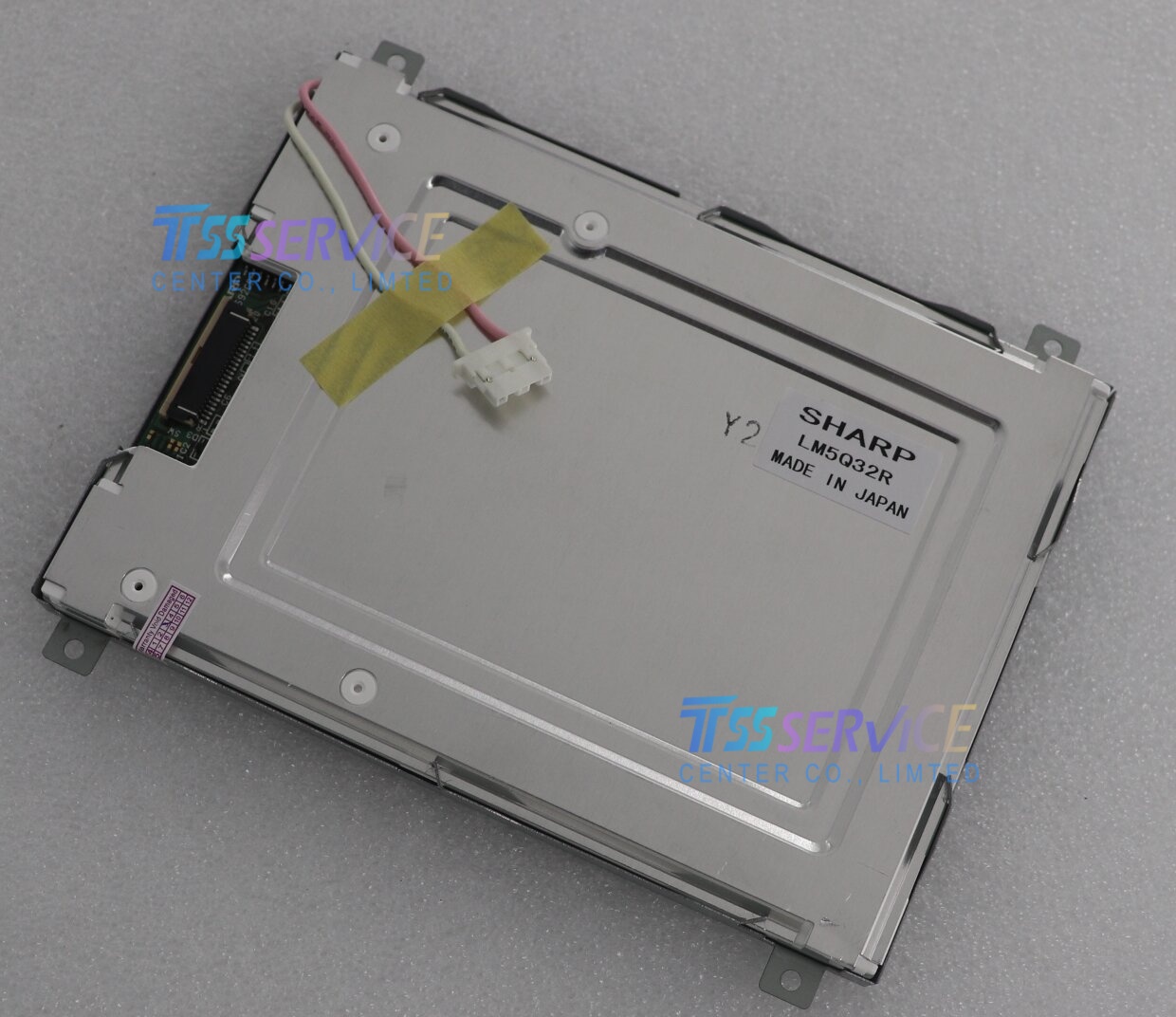

LM5Q32R 5.0inch 320(RGB)×240 industrial lcd screen

Name: LM5Q32R 5.0inch 320(RGB)×240 industrial lcd screen
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LM5Q32R
Price: 78 USD
Availability: InStock

SKU: LM5Q32R

Model P/N: LM5Q32R
Diagonal Size: 5"
Panel Type:CSTN-LCD, LCM
Resolution: 320(RGB)×240, QVGA 80PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$80.00~~ $78.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The LM5Q32R is a 5.0-inch industrial-grade Color Super-Twisted Nematic (CSTN) liquid crystal display module manufactured by Sharp. Utilizing mature passive-matrix technology with a QVGA resolution (320 × RGB × 240 pixels), this screen is engineered as a specialized, cost-optimized solution. It targets applications where extreme power efficiency, high durability, and simplicity are paramount.

Parameter	Specification
Model	LM5Q32R
Manufacturer	Sharp
Display Type	CSTN-LCD
Screen Size	5.0 inches (diagonal)
Resolution	320 × RGB × 240 (QVGA)
Active Area	100.8(W)×75.6(H) mm
Aspect Ratio	4:3
Brightness (Typ.)	120 cd/m² (Typ.)
Viewing Angle	120 cd/m² (Typ.)

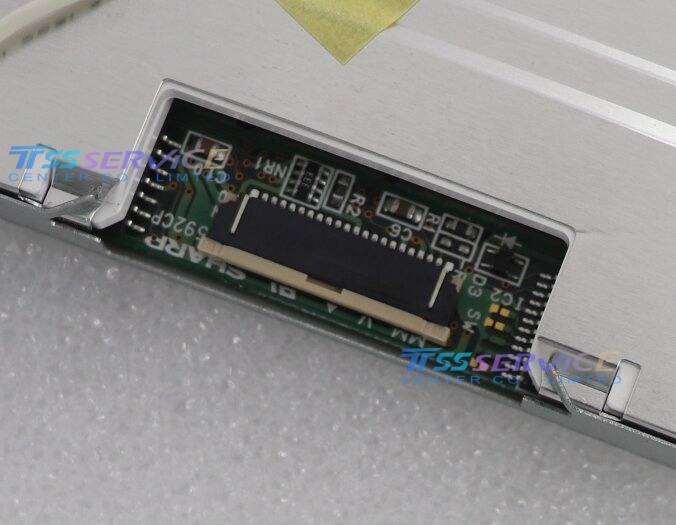

Interface	Parallel Data (1ch, 8-bit) , 20 pins Connector
Backlight Type	CCFL
Operating Temp.	0 ~ 60 °C
Key Feature	Low Power, Cost-Effective, Rugged Design
Typical Applications	Industrial HMIs, Portable Test Equipment, Basic Instrumentation, Legacy System Upgrades
