UMSH-8374MD-1T (URT 5.7" Industrial TFT LCD with Resistive Touch)

Short English Description

UMSH-8374MD-1T is a 5.7-inch 4:3 QVGA industrial TFT display module integrated with analog 4-wire resistive touch, featuring 320×240 resolution, 450 cd/m² high brightness, wide industrial operating temperature (-20℃~+70℃), parallel TTL RGB interface and long-lifespan WLED backlight. Compact outline and stable performance make it widely used for legacy industrial HMI replacement and embedded control devices。

Specification Table

表格

Parameter	Detailed Specification
Part Number	UMSH-8374MD-1T (Alternative:UMSH-8374MD-LT)
Manufacturer	URT Display
Diagonal Size	5.7 inch, 4:3 Aspect Ratio
Native Resolution	320(RGB) × 240 QVGA
Display Mode	TN TFT, Normally White, Transmissive
Active Area(W×H)	115.2 mm × 86.4 mm
Overall Dimension	144.0 × 104.6 × 14.35 mm
Typical Brightness	450 cd/m²
Contrast Ratio	600:1(Typ.)
View Angle(L/R/U/D)	50°/50°/35°/45°(CR≥10)
Color Depth	18bit, 262K Display Colors
Backlight	Side WLED, MTBF ≥50,000 Hours Lifespan
Touch Feature	Built-in 4-Wire Resistive Touch Screen; Operating force:60~120g, single-point touch
Signal Interface	Parallel TTL RGB, 33Pin Connector
Supply Voltage	3.3V /5V DC
Refresh Rate	60Hz
Operating Temp	-20℃ ~ +70℃
Storage Temp	-30℃ ~ +80℃
Compliance	RoHS Standard Certified

English Detailed Applications

1. Plastic Injection & CNC Machinery HMI Panels

Used as replacement control screen for injection molding machines, CNC cutting equipment and extruder operating panels. Resistive touch supports operation with gloves, 450nits high brightness ensures clear viewing under strong factory workshop ambient light.

2. Portable Medical Testing Equipment

Installed on handheld blood analyzers, portable biochemical detectors and clinical monitoring instruments. Wide temperature tolerance guarantees stable running in indoor hospital and mobile inspection environment; accurate color rendering for test waveform and numerical data display.

3. Industrial Automation & PLC Control Terminals

Applied on small-size on-site PLC control box, assembly line auxiliary operation panel and frequency converter parameter setting display. Standard TTL interface is compatible with mainstream ARM/MCU embedded mainboard for quick product development.

4. Industrial Handheld Test & Measuring Instruments

Serves as display unit for environmental tester, pressure detector and portable power quality analyzer. Compact 5.7-inch outline matches miniaturized handheld device structural layout, rugged touch surface resists frequent pressing abrasion.

5. Vehicle-mounted & Agricultural Machinery Cabin Display

Equipped on forklift monitoring terminal, small harvester cabin controller and engineering vehicle auxiliary dashboard. Wide working temperature adapts cold winter and hot summer outdoor field operating conditions.

6. Small Self-service & Access Control Terminal

Used for access control attendance machine, small vending controller and industrial locker operation panel. Mature circuit design realizes long-term stable continuous operation under frequent power on/off status.

N010-0550-T621-T 英文介绍参数，要表格输出 和英文具体应用

N010-0550-T621-T（FUJITSU 10.4” 7-Wire Resistive Touch Screen）

Short English Description

N010-0550-T621-T is original FUJITSU 10.4-inch industrial 7-wire analog resistive touch panel, matching standard 10.4" industrial TFT LCD, supports glove/pen/finger operation, high light transmittance and anti-static design, widely used for old industrial HMI & equipment touch replacement。

N010-0550-T621-T触控屏

Specification Table

表格

Parameter	Specification Details
Part Number	N010-0550-T621-T
Manufacturer	FUJITSU（FCL Components）
Diagonal Size	10.4 inch, 4:3 standard industrial dimension
Touch Type	7-Wire Analog Resistive Touchscreen
Surface Glass	1.1mm thick front cover glass, hard coating
Light Transmittance	Typical 80%
Operation Mode	Finger / Rubber glove / Stylus pen support
X-Axis Resistance	300Ω ~ 900Ω
Y-Axis Resistance	200Ω ~ 800Ω
Isolation Resistance	＞20MΩ @DC25V
Connector	7Pin flexible FPC cable
Anti-Static Performance	Pass 10KV ESD test
Operating Temperature	-10℃ ~ +60℃
Storage Temperature	-20℃ ~ +70℃
Working Humidity	0~90%RH, non-condensing
Certification	RoHS, CE, FCC Approved
Applicable LCD	Universal 10.4 inch 800×600 /640×480 industrial TFT panel

English Detailed Applications

1. Industrial Machinery HMI Replacement Screen

It is the direct replacement touch glass for injection molding machines, CNC machining centers, extruder and blow molding equipment operating panels. 7-wire stable signal can resist workshop dust, oil mist and electromagnetic interference; gloved-touch function fits workshop operators’ daily operation。

2. Medical Diagnostic Equipment Touch Panel

Equipped on clinical biochemical analyzers, ultrasound auxiliary control panel and medical inspection instruments. High light transmittance ensures clear LCD display, strict temperature & humidity tolerance adapts stable long-time running in hospital lab environment.

3. Old-generation Industrial Panel PC & PLC Control Terminal

Used for legacy 10.4-inch industrial all-in-one PC, frequency converter control cabinet and on-site PLC operation screen. Standard outline size realizes drop-in replacement without casing modification, compatible with mainstream industrial control driver boards.

4. Banking & Self-service Kiosk Equipment

Installed on bank self-service queuing machine, small financial auxiliary terminal and industrial locker control screen. Anti-abrasion glass surface withstands frequent daily tapping by different users.

5. Transportation & Agricultural Machinery Cabin Display

Applied on construction machinery monitor, forklift cabin control terminal and large agricultural harvester operating screen. Wide working temperature adapts cold outdoor low temperature and high-temperature summer field working conditions.

6. Laboratory Precision Testing Instruments

Serves as touch input for environmental test chambers, industrial oscilloscopes and chemical analysis equipment. Stable resistance consistency guarantees precise parameter setting and data selection for precision testing devices.

LM64P89NA 英文介绍参数，要表格输出 和英文具体应用

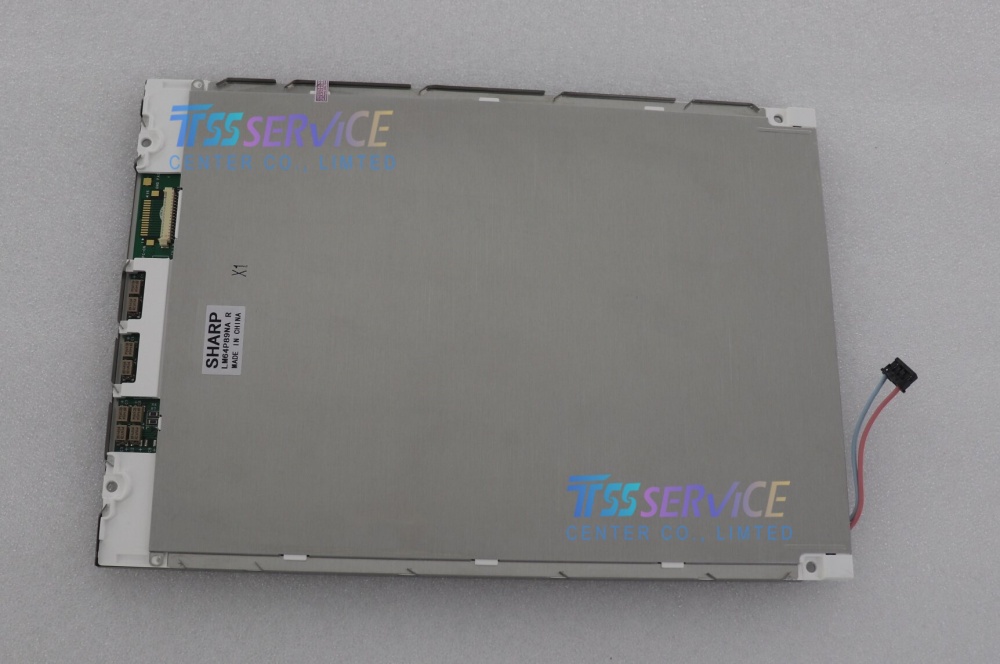

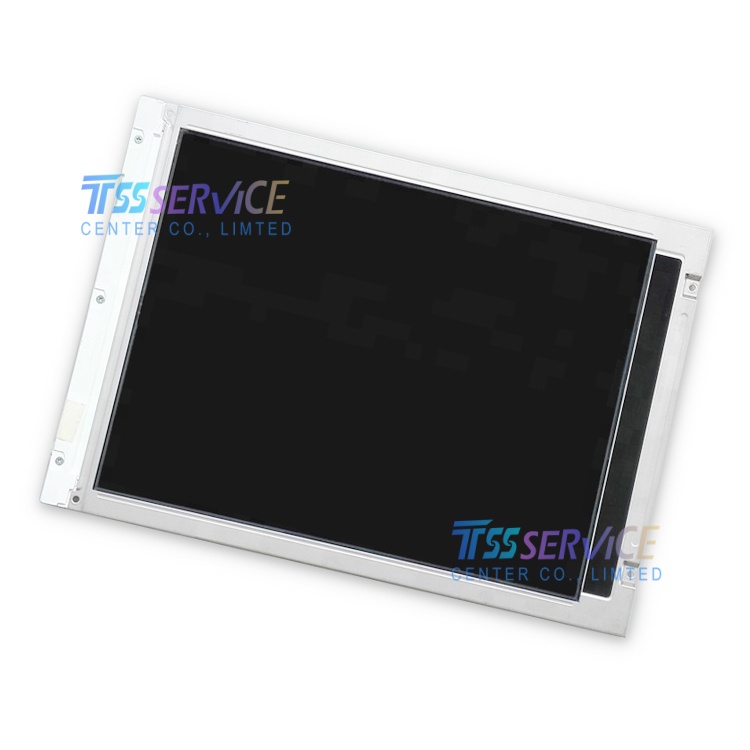

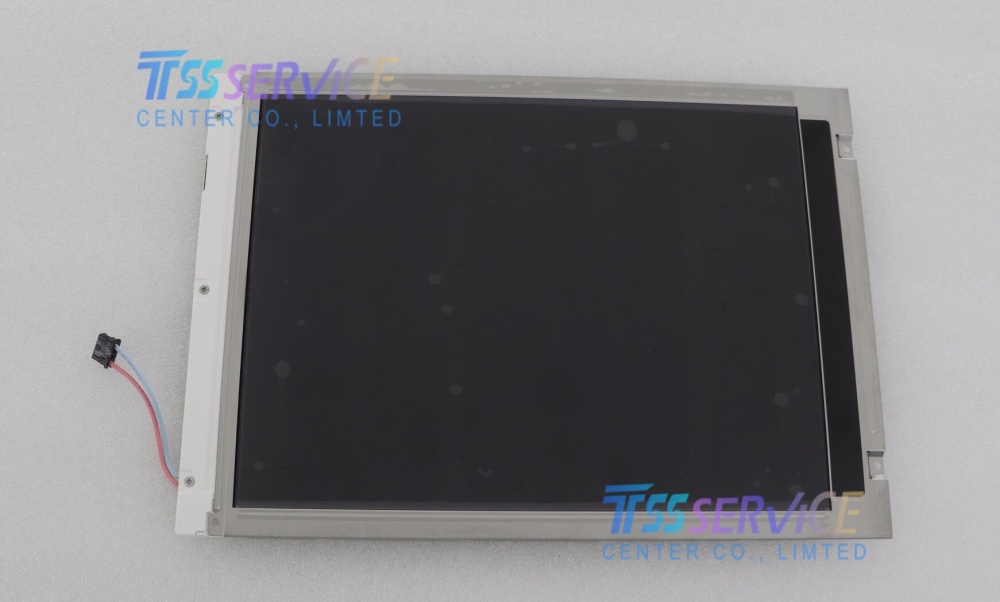

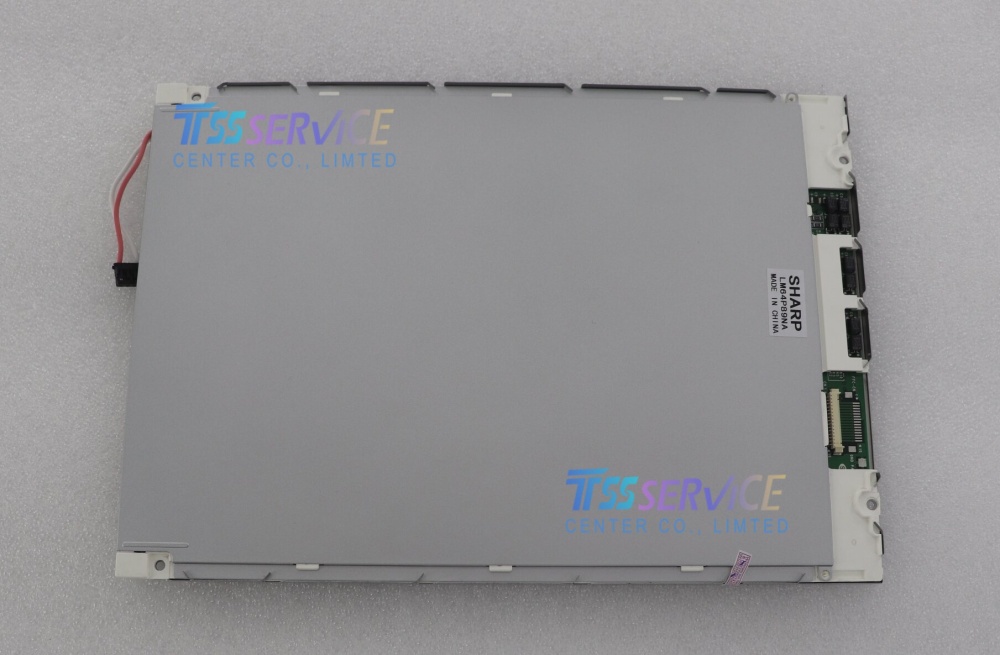

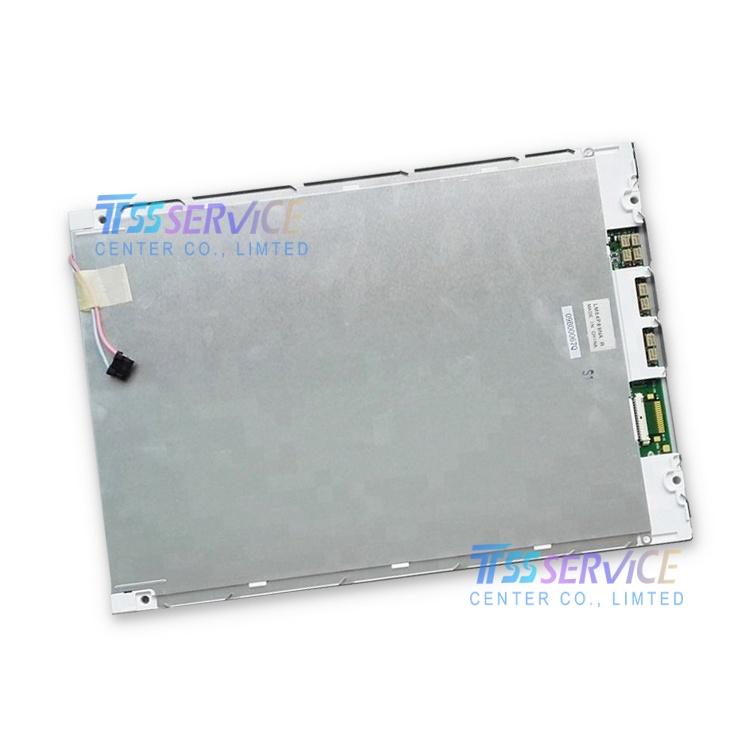

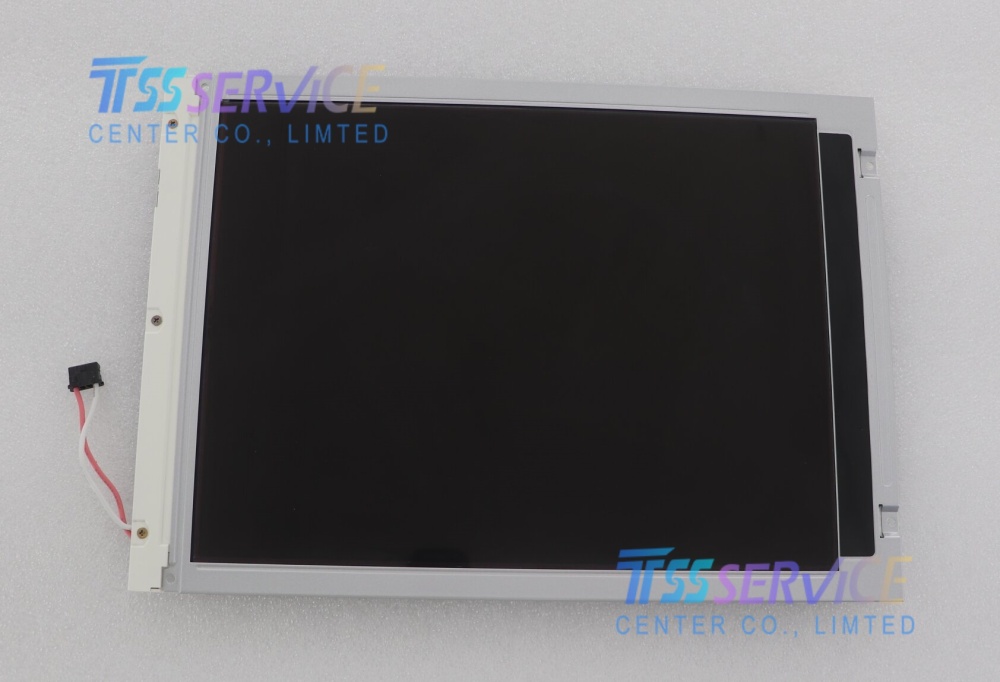

LM64P89NA (SHARP 10.4" Monochrome FSTN Industrial LCD Module)

Short English Description

LM64P89NA is original SHARP 10.4-inch monochrome FSTN transmissive industrial LCD with native VGA 640×480 resolution, built-in single CCFL backlight, 4-bit parallel data interface, outstanding anti-interference and stable long-term operation performance, widely used for legacy industrial equipment screen replacement and dedicated embedded display devices。

LM64P89NA整机

驱动板接口

Specification Table

表格

Parameter	Specification Detail
Part No.	LM64P89NA
Manufacturer	SHARP (Japan)
Screen Size	10.4 inch, 4:3 Aspect Ratio
Native Resolution	640(H) × 480(V), VGA Format
Panel Type	FSTN / STN, Transmissive, Monochrome(B&W)
Dot Pitch	0.33mm × 0.33mm
Active Area	211.2mm × 158.4mm
Typical Brightness	75 cd/m²
Contrast Ratio	18:1 (Typical)
View Angle(L/R/U/D)	20°/25°/20°/10° (CR≥10)
Response Time(Tf/Tr)	70ms / 80ms (Typ.)
Backlight	Built-in Single CCFL Lamp, MTBF ≥25,000Hrs lifespan
Signal Interface	4-bit Parallel Data, 15Pin Connector, 5V supply voltage
Supply Voltage	DC 5.0V (Typ.)
Operating Temperature	0℃ ~ +60℃
Storage Temperature	-20℃ ~ +70℃
Color Display	Black & White Single Color
Certification	RoHS Compliant
