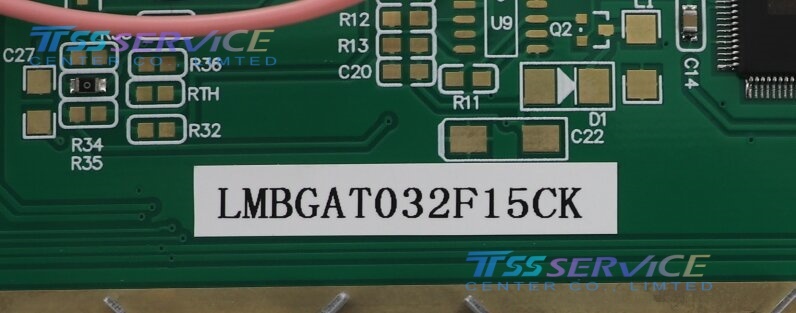

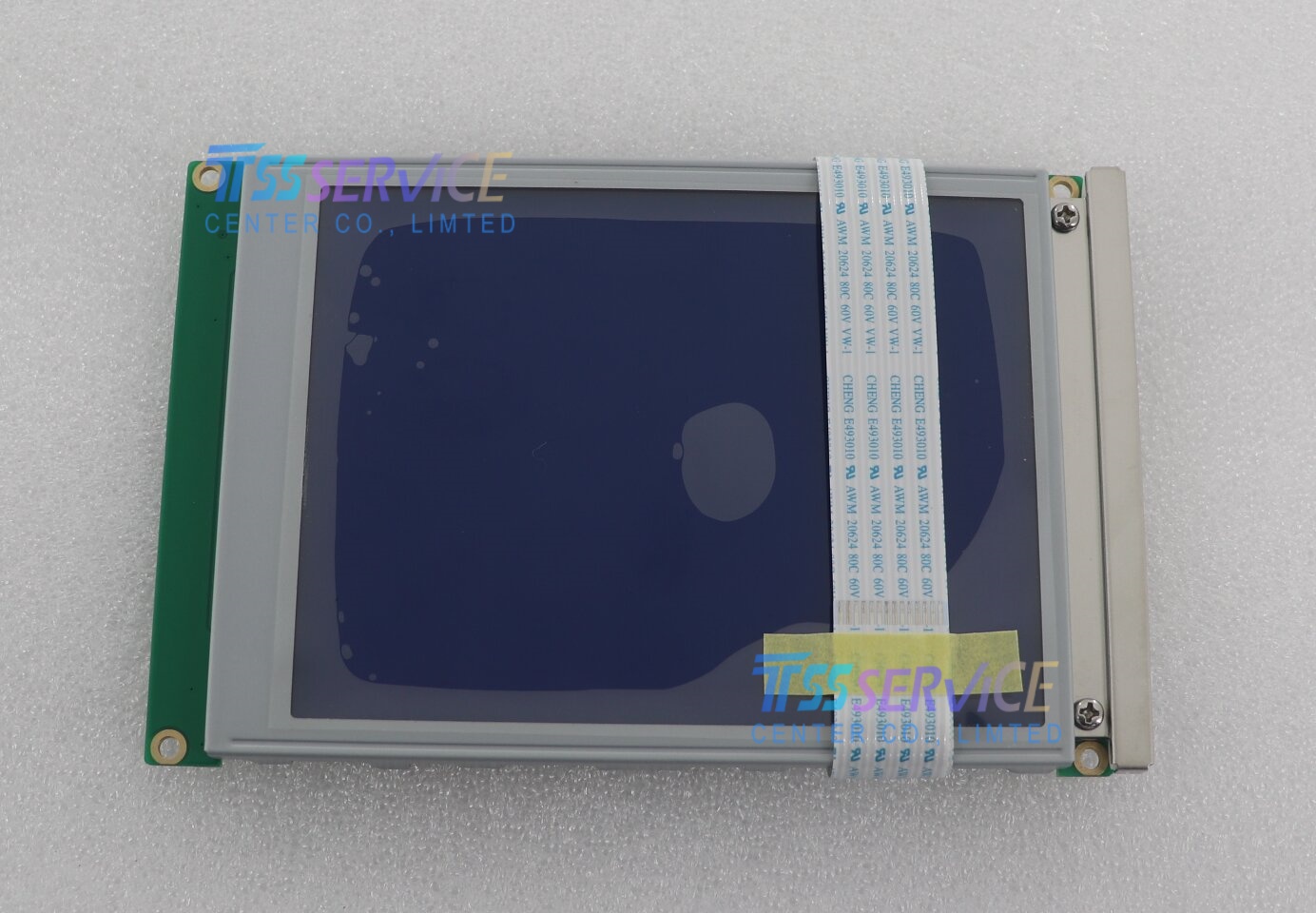

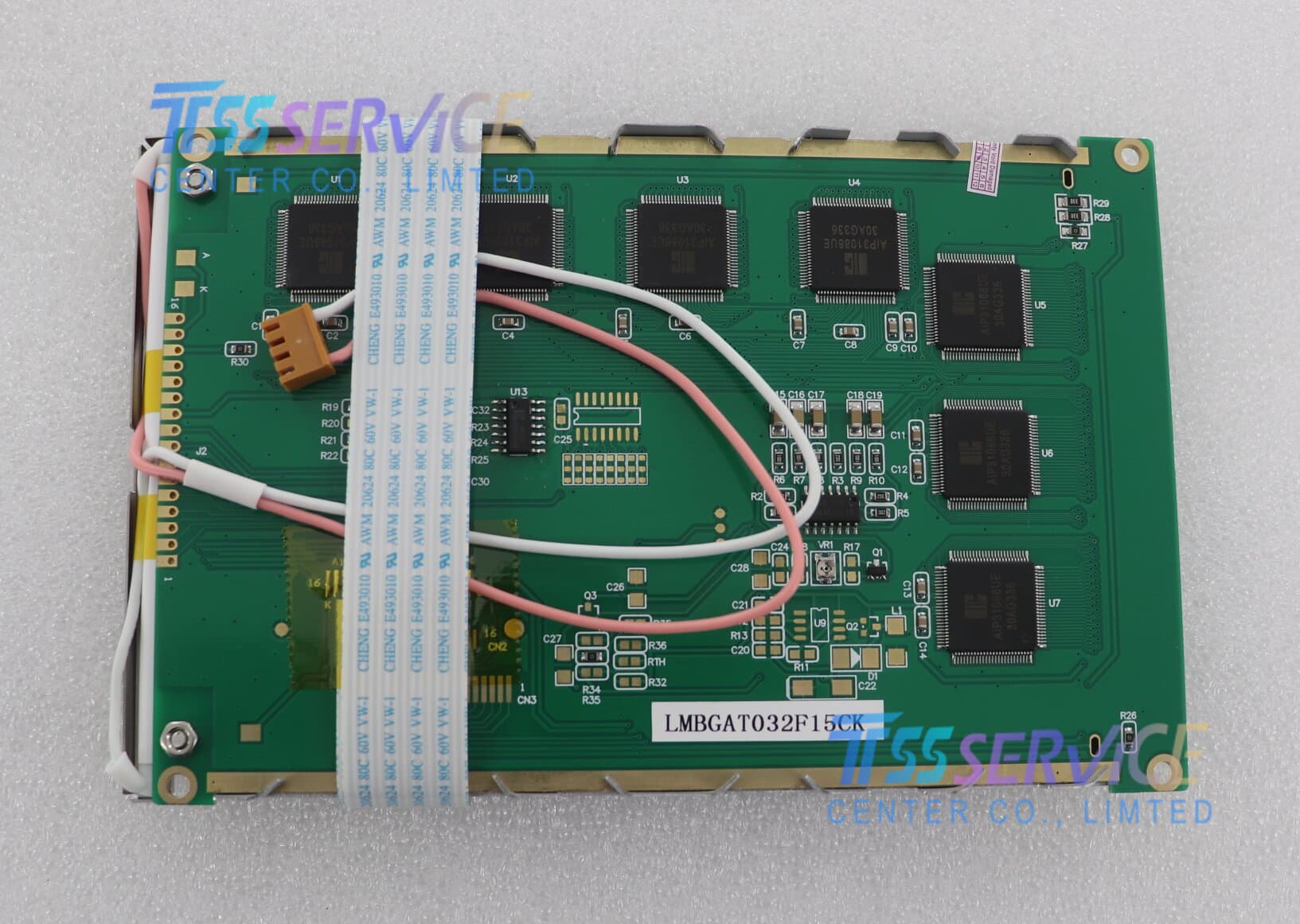

LMBGAT032F15CK 5.7 inch LCD Panel Display For Industrial

Name: LMBGAT032F15CK 5.7 inch LCD Panel Display For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LMBGAT032F15CK
Price: 78 USD
Availability: InStock

SKU: LMBGAT032F15CK

Model: LMBGAT032F15CK
Diagonal Size: 5.7 inch
Display Type: STN Monochrome LCD, FSTN, Negative, Transmissive
Resolution: 320 × 240 pixels (QVGA)

0.0 (0 Reviews)

0 Sold

~~$80.00~~ $78.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

LMBGAT032F15CK 5.7 inch LCD Panel Display For Industrial

Parameter	Specification (English)
Manufacturer	Industrial Display Supplier
Model	LMBGAT032F15CK
Diagonal Size	5.7 inch
Display Type	STN Monochrome LCD, FSTN, Negative, Transmissive
Resolution	320 × 240 pixels (QVGA)
Active Area	115.2 mm (W) × 86.16 mm (H)
Outline Dimension	148 mm (W) × 120 mm (H) × 11 mm (D)
Brightness	250 cd/m² (Typ., LED Backlight)
Contrast Ratio	200:1 (Typ.)
Viewing Angle	45°/45°/30°/30° (U/D/L/R, CR≥5)
Response Time	150 ms (Typ.)
Color Depth	Monochrome (Blue/White)
Backlight	White LED, 50,000 hrs lifespan
Interface	8-bit Parallel (8080/6800), 20-pin connector
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
Touch Panel	Not supported
Surface Treatment	Standard, Anti-Glare optional
Weight	~200 g
Production Status	Active (In production, legacy replacement)

Applications (English)

Industrial HMI & Control Panels: Factory automation, PLC interfaces, and machinery control panels requiring 5.7" monochrome display and reliable parallel connectivity.
Industrial Instrumentation: Test equipment, data loggers, and measurement devices needing stable performance in -20°C to +70°C environments.
Legacy System Replacement: Drop-in replacement for older 5.7" STN LCD modules in existing industrial and embedded systems.
Medical Devices: Portable diagnostic equipment and patient monitors requiring low power consumption and compact design.
Marine & Outdoor Equipment: Navigation systems and outdoor monitoring devices needing anti-glare surface and sunlight readability.
