LMG6380QHGR NEW 4.8 INCH STN LCD Screen Display

Name: LMG6380QHGR NEW 4.8 INCH STN LCD Screen Display
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LMG6380QHGR
Price: 175 USD
Availability: InStock

SKU: LMG6380QHGR

1，Condition: New，Grade A

2，Description: LMG6380QHGR 4.8 inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$180.00~~ $175.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

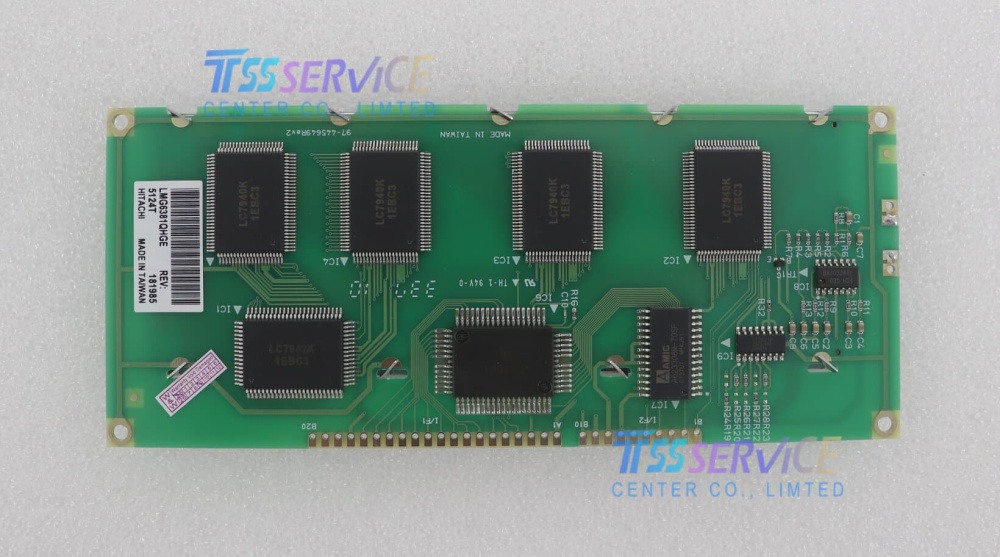

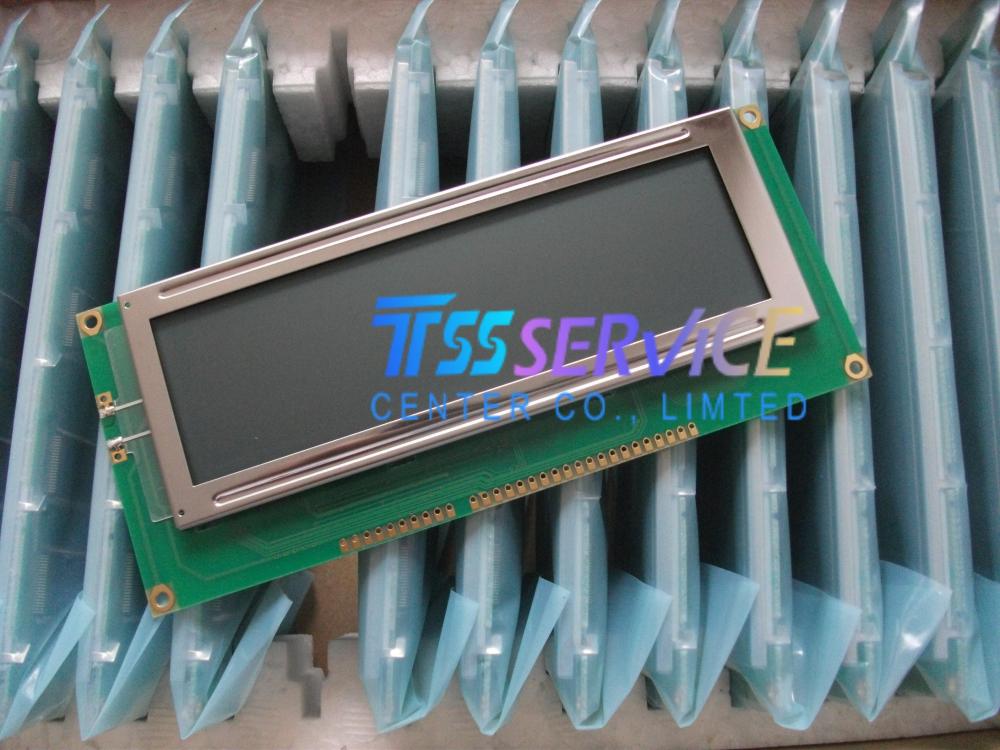

The LMG6380QHGR is a new, in-stock 4.8-inch monochrome STN-LCD display module manufactured by HITACHI. This reflective LCD module is specifically designed for industrial applications requiring excellent sunlight readability and ultra-low power consumption.

Parameter	Value
Manufacturer	HITACHI
Model No.	LMG6380QHGR
Screen Size	4.8 inch
Display Type	STN-LCD, LCM
Resolution	256 × 64 dots
Pixel Format	Rectangle
Display Mode	STN, Reflective
Display Color	Blue on Grey (Monochrome)
Active Area	120.29 (H) × 30.05 (V) mm
Outline Dimensions	160 (H) × 68 (V) × 9.0 (D) mm
Backlight	Without Backlight
Interface	8-bit parallel
Controller	HD61830 (built-in)
Optimal View Direction	6 o'clock
Operating Temperature	0 °C ~ 40 °C
Storage Temperature	-20 °C ~ 60 °C
Vibration Resistance	2.0G (19.6 m/s²)

Key Features

Reflective Display Mode: No backlight required, enabling exceptional readability in direct sunlight and outdoor environments
Ultra-Low Power Consumption: Ideal for battery-powered and portable industrial equipment
Compact & Lightweight: Slim profile at just 9.0mm thickness
Landscape Orientation: Wide aspect ratio (>3:1) suitable for data-rich display applications
Built-in Controller: HD61830 controller for easy microcontroller interface
RoHS Status: Unknown (Please verify with supplier)
