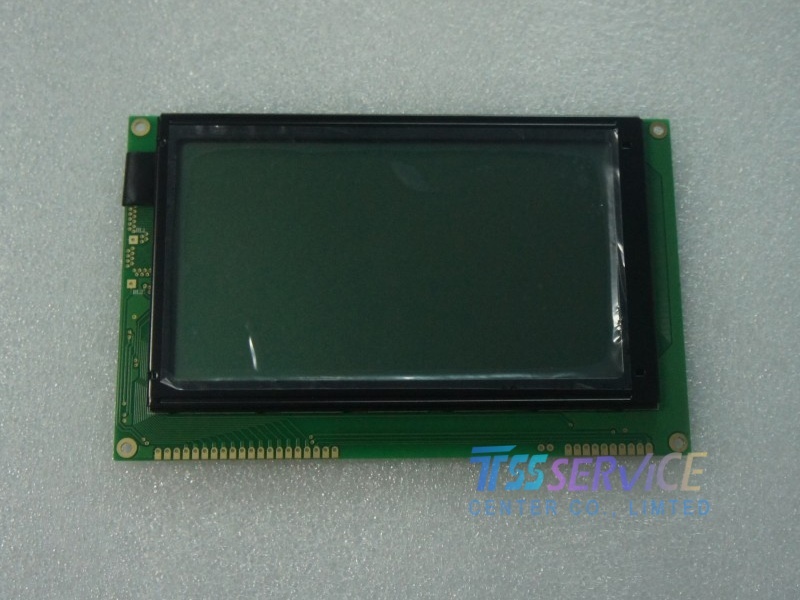

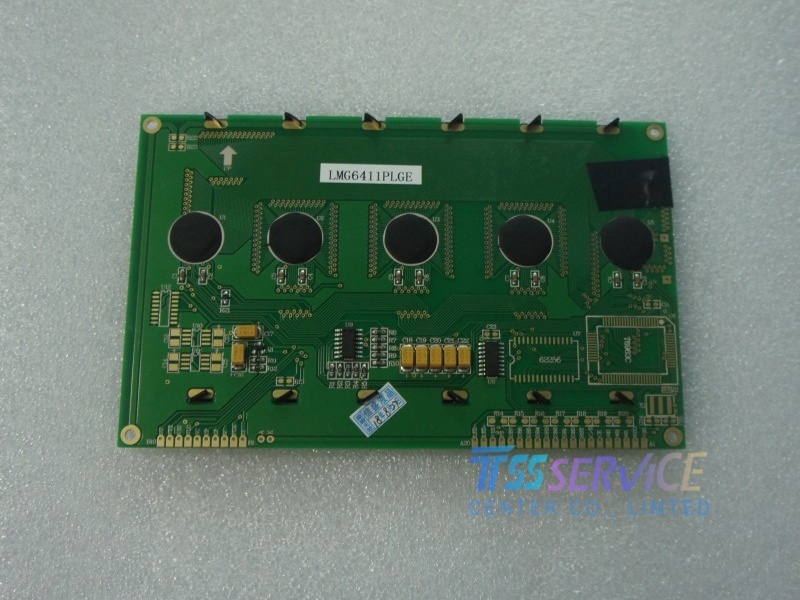

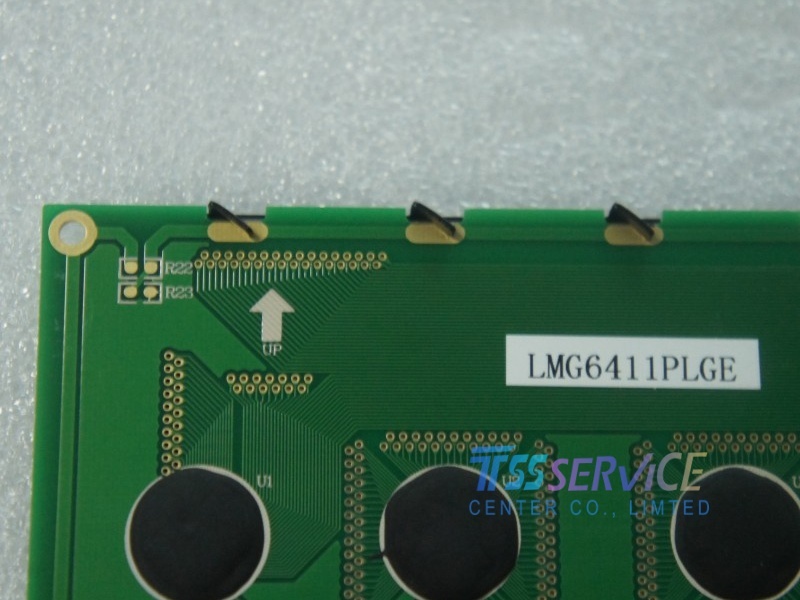

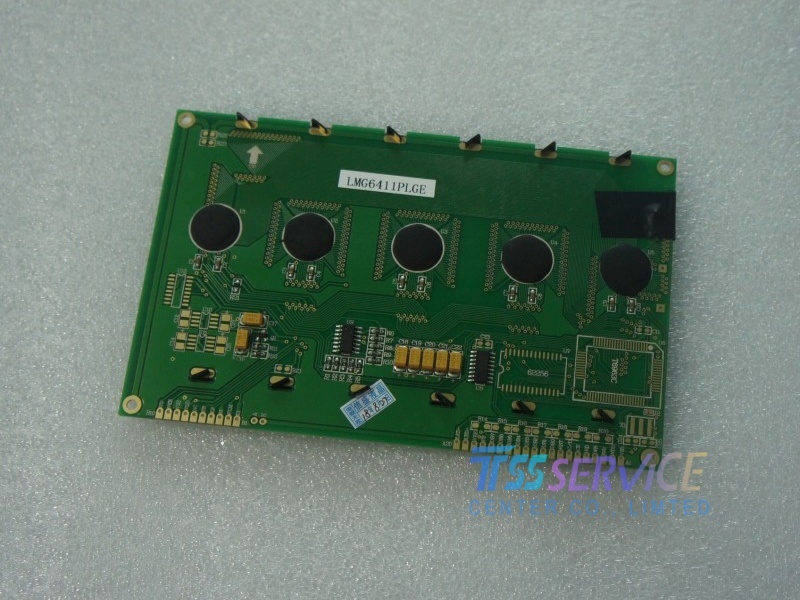

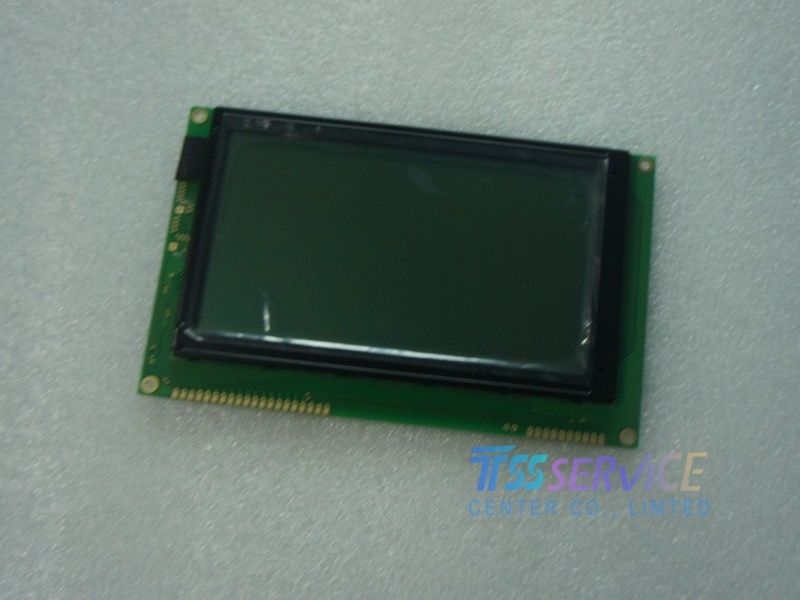

LMG6411PLGE KOE 5.4 inch lcd module 240*128 lcd display panel

Name: LMG6411PLGE KOE 5.4 inch lcd module 240*128 lcd display panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LMG6411PLGE
Price: 150 USD
Availability: InStock

SKU: LMG6411PLGE

Model:LMG6411PLGE
Size:5.4"
Resolution:240*128
Interface:Serial Data , 10 pins Pad
Temperature(℃):0 ~ 40 °C

0.0 (0 Reviews)

0 Sold

~~$160.00~~ $150.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Koe Display LMG6411PLGE General Features
LMG6411PLGE is a 5.4-inch LCD display module manufactured by KOE, featuring a resolution of 240 × 128 pixels. This monochrome graphic display offers high contrast, clear readability, and stable performance for a variety of industrial and commercial applications. It is commonly used in instrumentation panels, handheld data terminals, basic control interfaces, and medical monitoring devices where straightforward alphanumeric or graphical information is required. Engineered for durability and reliable operation in demanding environments, this direct-fit KOE component ensures seamless compatibility and serves as a practical replacement or upgrade, effectively restoring sharp and functional visual output to equipment designed for this specific model.

Brand	KOE
Model	LMG6411PLGE
Panel-type	STN-LCD, LCM
Size	5.4”
Resolution	240×128
Display Area	119.97(H) × 63.97(V)
Bezel Opening	124.0(H) × 70.0(V)
Outline Size	159.4(W)×101(H) ×9(D) mm
Surface	Serial Data , 10 pins Pad
Display Mode	STN, Black/White (Negative), Transmissive
Brightness	10 cd/m² (Typ.)
Contrast Ratio	3:1 (Typ.) (TM)
Response Time	-
Best View on	-
Display Colors	6 o'clock
Frequency	-
Lamp Type	EL , Without Driver
Signal Interface	Serial Data , 10 pins Pad
Touch Screen	Without
Input Voltage	5.0V (Typ.)
Operating Temp	0 ~ 40 °C
Storage Temp	-20 ~ 60 °C
