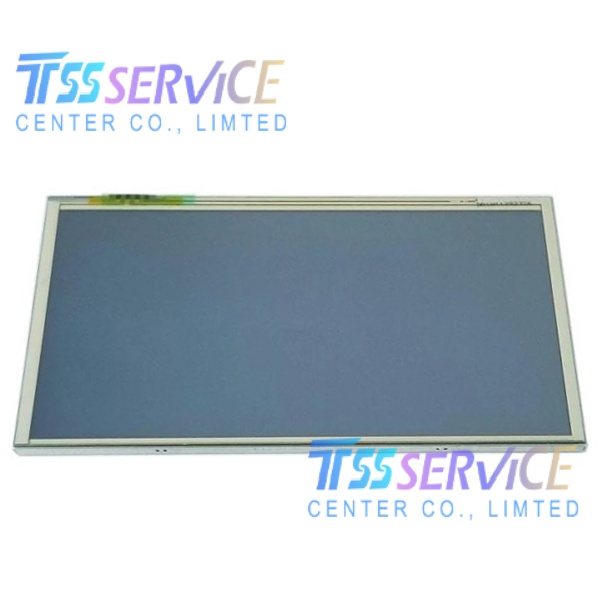

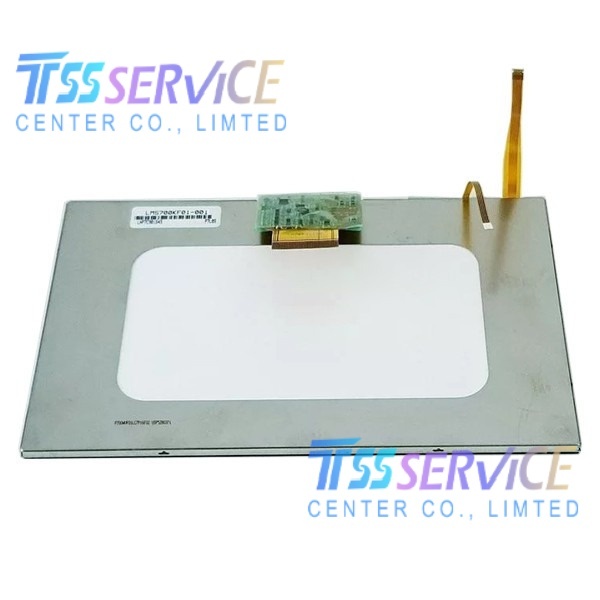

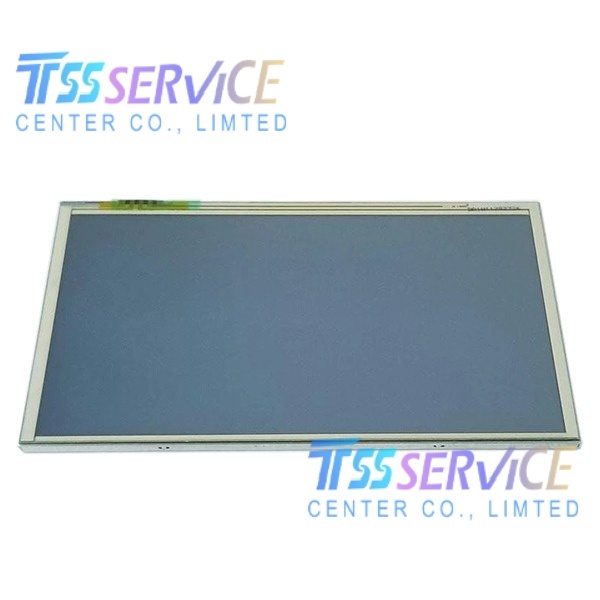

LMS700KF01-001 Samsung 7 inch 800×480 LCD Panel for Industrial Machine

SKU: LMS700KF01-001
Model P/N: LMS700KF01-001
Diagonal Size: 7"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800×480(RGB), WVGA  133PPI
Pixel Format: RGB Horizontal Stripe
0.0 (0 Reviews)
0 Sold
$45.00 $44.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • LMS700KF01-001 Samsung 7 inch 800×480 LCD Panel for Industrial Machine
  • LMS700KF01-001 Samsung 7 inch 800×480 LCD Panel for Industrial Machine
  • LMS700KF01-001 Samsung 7 inch 800×480 LCD Panel for Industrial Machine
  • LMS700KF01-001 Samsung 7 inch 800×480 LCD Panel for Industrial Machine
  • LMS700KF01-001 Samsung 7 inch 800×480 LCD Panel for Industrial Machine
  • LMS700KF01-001 Samsung 7 inch 800×480 LCD Panel for Industrial Machine
1/1
  • LMS700KF01-001 Samsung 7 inch 800×480 LCD Panel for Industrial Machine
  • LMS700KF01-001 Samsung 7 inch 800×480 LCD Panel for Industrial Machine
  • LMS700KF01-001 Samsung 7 inch 800×480 LCD Panel for Industrial Machine
  • Description
LMS700KF01-001 Samsung 7 inch 800×480 LCD Panel for Industrial Machine
Parameter Details
Manufacturer Samsung (Samsung Display)
Part Number LMS700KF01-001
Module Type a-Si TFT-LCD Module
Diagonal Size 7.0 inches
Resolution 800 (H) × 480 (V) pixels (WVGA)
Display Mode TN, Normally White, Transmissive (TMR)
Active Area 152.4 × 91.44 mm
Outline Dimensions 163.2 × 104 × 4.7 mm
Pixel Format RGB Horizontal Stripe
Brightness 280 cd/m² (Typical)
Contrast Ratio 300:1 (Typical)
Response Time 22.7 ms (Tr+Td, Typical)
Viewing Angle (CR≥10) 65° (L) / 65° (R) / 50° (U) / 60° (D)
Display Colors 16.7M (8-bit)
Backlight WLED, 8S3P, No Driver
Signal Interface Parallel RGB (1 ch, 8-bit), 40-pin FPC
Supply Voltage 3.3V (Typical)
Panel Weight 115 g (Typical)
Operating Temperature -20°C to +60°C
Storage Temperature -30°C to +70°C
Surface Treatment Hard coating (3H)
RoHS Compliance RoHS Compliant

Typical Applications

  • Portable Multimedia Players (PMPs) & Mobile DVD Players
  • Automotive GPS & Car Navigation Displays
  • Industrial Handheld Terminals & Data Collectors
  • Small HMI Panels & Equipment Control Interfaces
  • Portable Medical Devices & Health Monitors
  • VoIP Phones & Ultra-Mobile PCs (UMPCs)
  • Digital Photo Frames & Consumer Electronics
  • Test & Measurement Instruments
