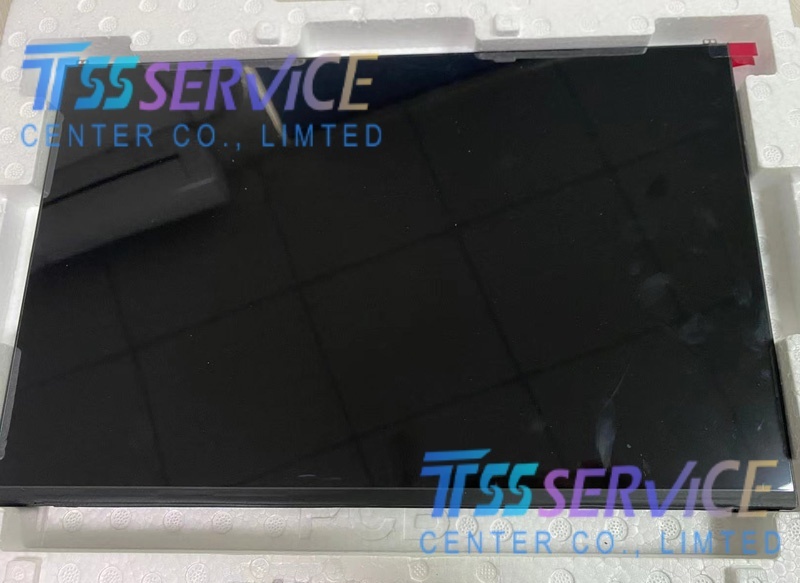

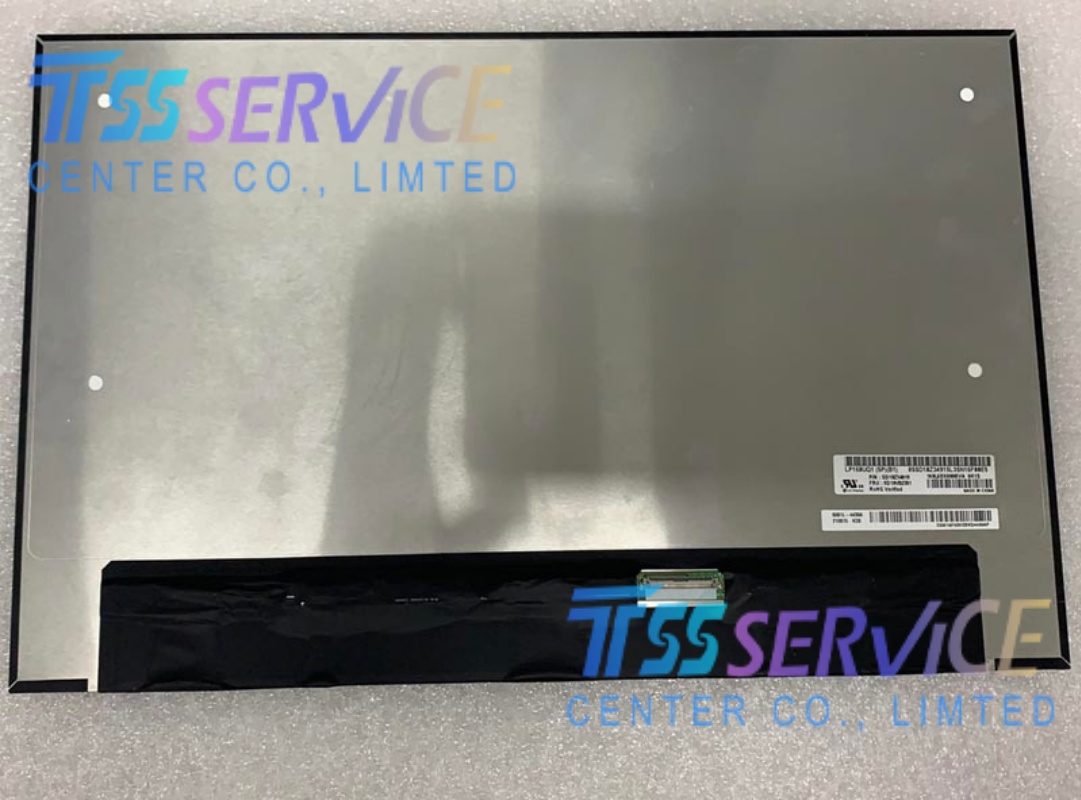

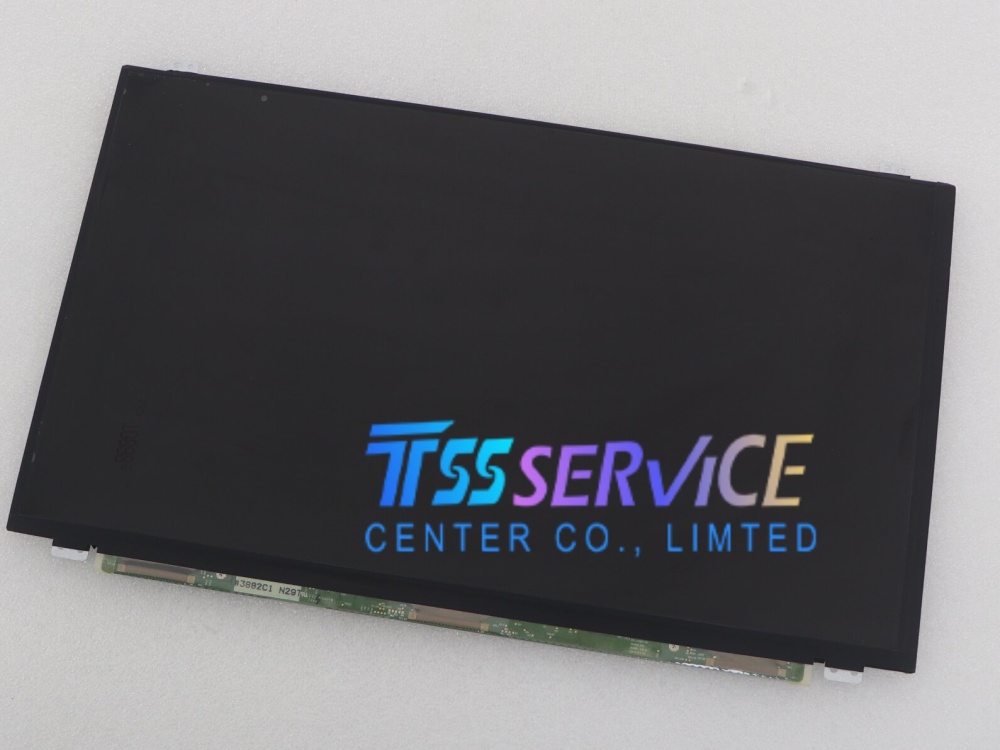

LG Display 16 inch 3840×2400 LCD Panel LP160UQ1-SPB1 For Industrial

SKU: LP160UQ1-SPB1
Model: LP160UQ1-SPB1 (Alias: LP160UQ1(SP)(B1))
Diagonal Size: 16.0 inch
Display Type: a-Si TFT-LCD, LCM
Resolution & Format    3840(RGB)×2400 (WQUXGA, 16:10 aspect ratio), RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$130.00 $128.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • LG Display 16 inch 3840×2400 LCD Panel LP160UQ1-SPB1 For Industrial
  • LG Display 16 inch 3840×2400 LCD Panel LP160UQ1-SPB1 For Industrial
  • LG Display 16 inch 3840×2400 LCD Panel LP160UQ1-SPB1 For Industrial
  • LG Display 16 inch 3840×2400 LCD Panel LP160UQ1-SPB1 For Industrial
  • LG Display 16 inch 3840×2400 LCD Panel LP160UQ1-SPB1 For Industrial
  • LG Display 16 inch 3840×2400 LCD Panel LP160UQ1-SPB1 For Industrial
1/1
  • LG Display 16 inch 3840×2400 LCD Panel LP160UQ1-SPB1 For Industrial
  • LG Display 16 inch 3840×2400 LCD Panel LP160UQ1-SPB1 For Industrial
  • LG Display 16 inch 3840×2400 LCD Panel LP160UQ1-SPB1 For Industrial
  • Description
LG Display 16 inch 3840×2400 LCD Panel LP160UQ1-SPB1 For Industrial
Parameter Value (English)
Brand LG Display
Model LP160UQ1-SPB1 (Alias: LP160UQ1(SP)(B1))
Diagonal Size 16.0 inch
Display Type a-Si TFT-LCD, LCM
Resolution & Format 3840(RGB)×2400 (WQUXGA, 16:10 aspect ratio), RGB Vertical Stripe
Active Area 343.99(H) × 214.99(V) mm (≈13.54 × 8.47 inches)
Physical Dimensions 350.49(H) × 226.65(V) × 4.6(D) mm (≈13.80 × 8.92 × 0.18 inches)
Mass Max. 330g (≈0.73 lbs)
Surface Treatment Antiglare with Hard Coating (3H)
Luminance 600 cd/m² (Typ.), HDR600 certified
Contrast Ratio 1500:1 (Typ., TM)
Viewing Angle 85/85/85/85 (Typ., CR≥10), Symmetric
Operating Mode IPS, Normally Black, Transmissive
Color Performance 1.07 Billion Colors (10-bit), 100% Adobe RGB
Response Time 30 ms (Typ., Tr+Td)
Frame Rate 60Hz, with AMD FreeSync support
Light Source WLED, 15,000 hrs lifespan, with integrated LED Driver (DC dimming)
Touch Panel Without touch functionality
Interface eDP 1.4 (4 Lanes, HBR3 @ 8.1Gbps/lane), 40-pin connector
Power Supply 3.3V (Typ.)
Environmental Specs Operating Temp: 0 ~ 50°C; Storage Temp: -20 ~ 60°C
Form Style Slim profile (PCBA Bent, T≤3.0mm)

Key Applications

  1. High-End Professional Laptops
    • Primary use in premium 16-inch mobile workstations (e.g., Lenovo ThinkPad P16 Gen 1)
    • Optimized for CAD/CAE engineering, 3D modeling, and simulation workflows
  2. Color-Critical Content Creation
    • Photography & Print Design: 100% Adobe RGB coverage ensures accurate print-to-screen color matching
    • Video Editing & Color Grading: HDR600 brightness and 10-bit color depth support professional post-production
    • Digital Art & Illustration: High 283 PPI resolution delivers sharp, detailed visuals for fine work
  3. Industrial & Rugged Systems
    • Wide operating temperature range (0–50°C) and vibration-resistant design make it suitable for industrial control panels, medical equipment, and ruggedized kiosks
  4. Custom DIY & Portable Monitors
    • eDP 1.4 interface is compatible with driver boards for building custom 16-inch 4K portable monitors, leveraging its slim profile and low power consumption
  5. Business & Enterprise Workstations
    • 16:10 aspect ratio and high resolution enhance productivity for multi-window workflows, financial modeling, and large spreadsheets
