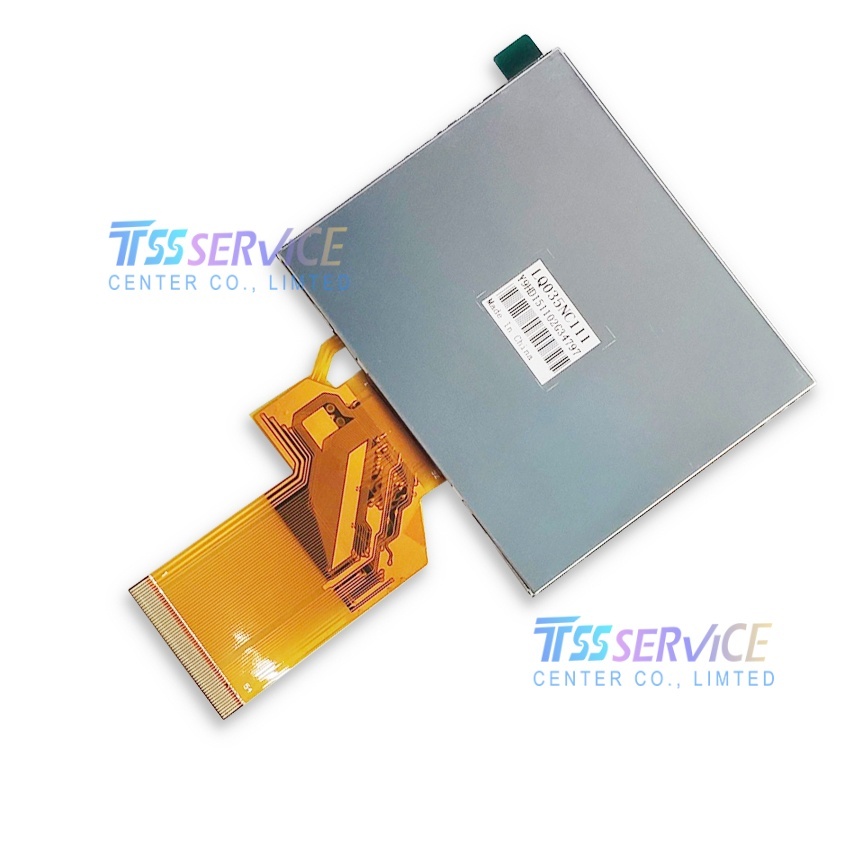

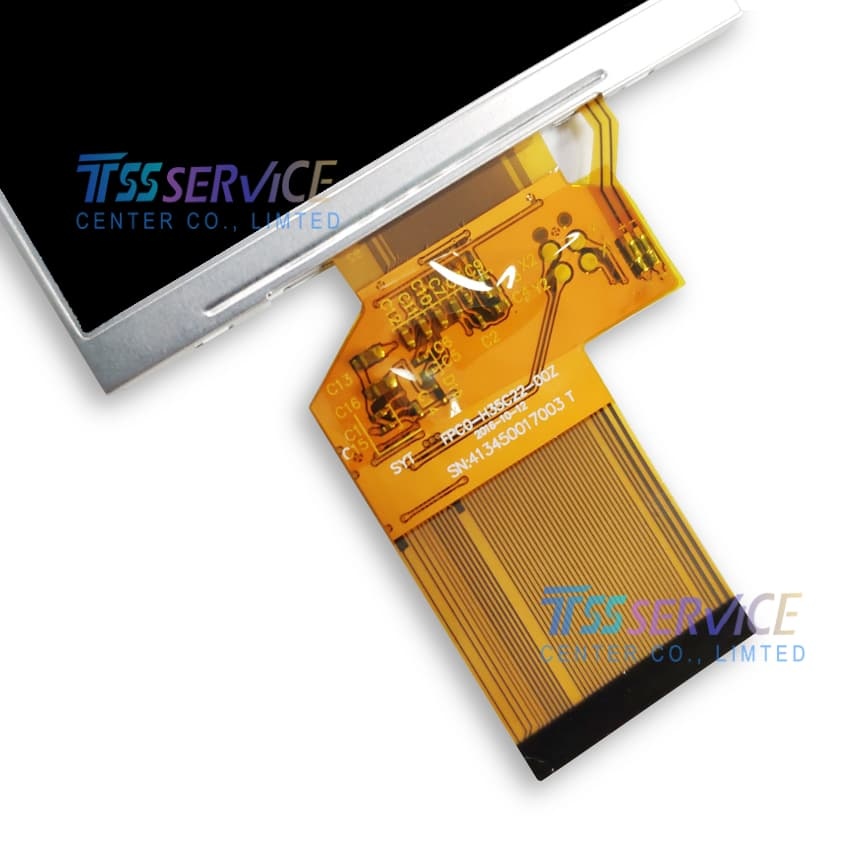

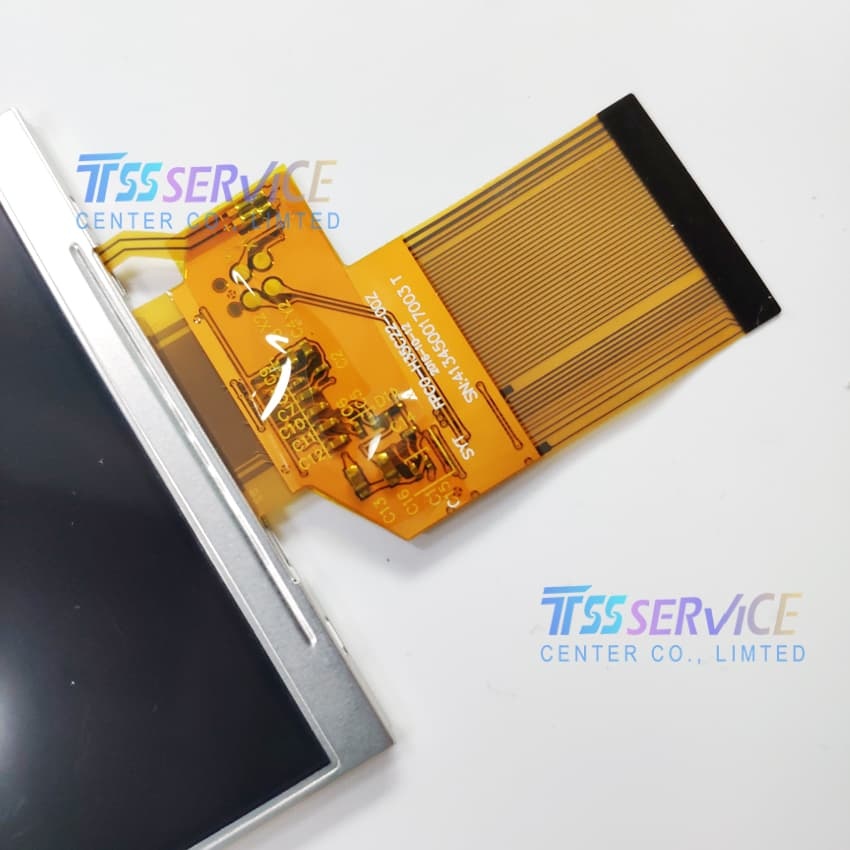

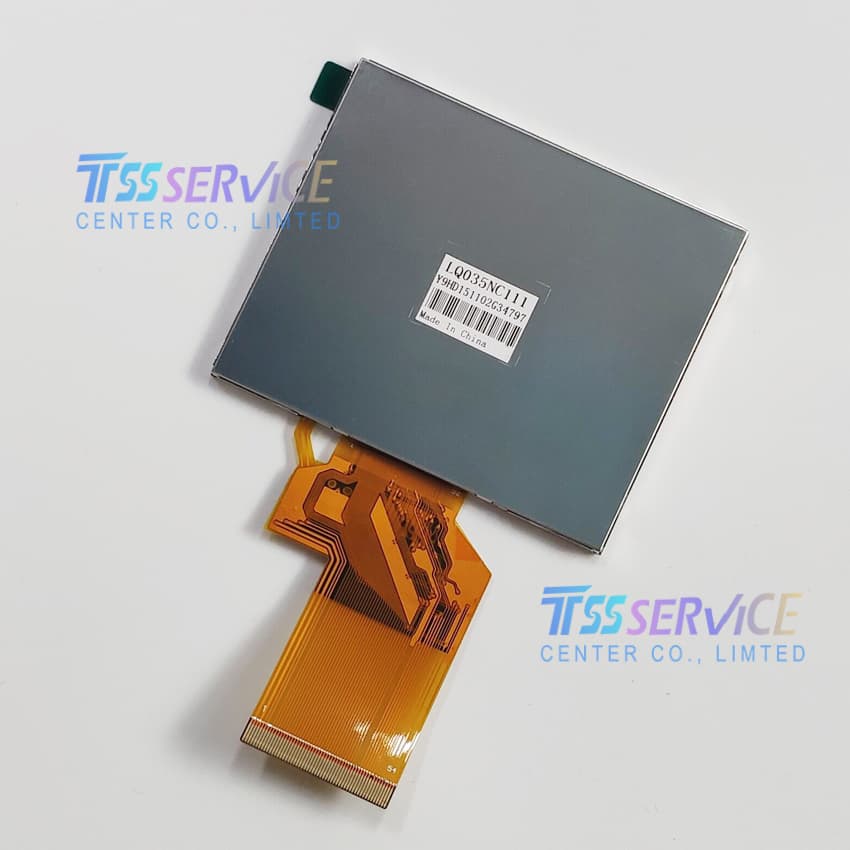

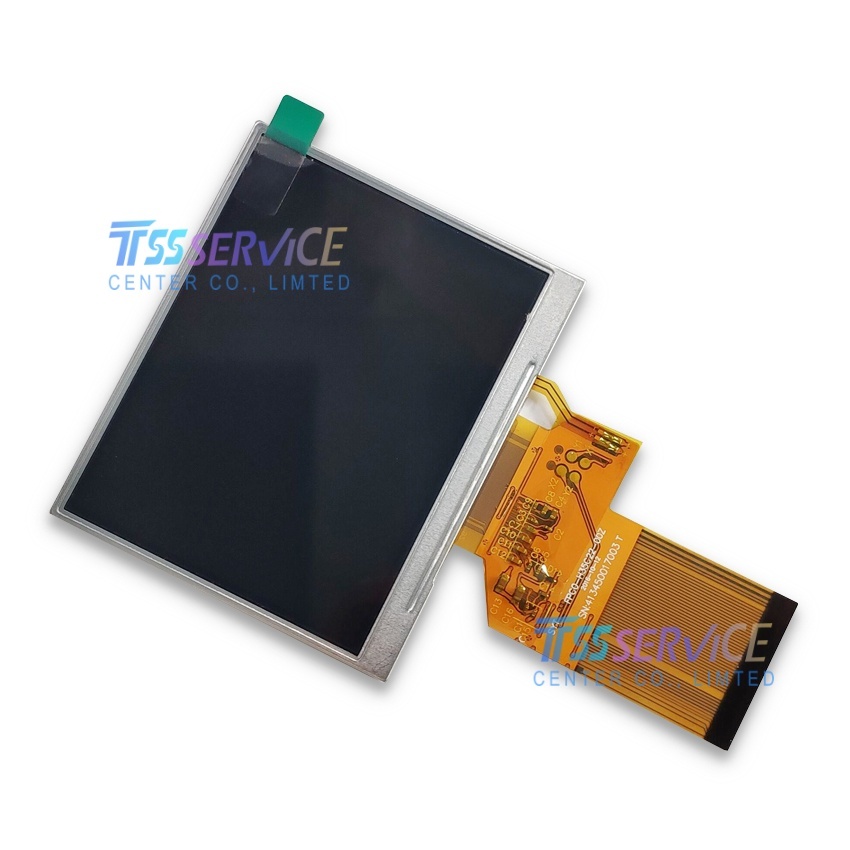

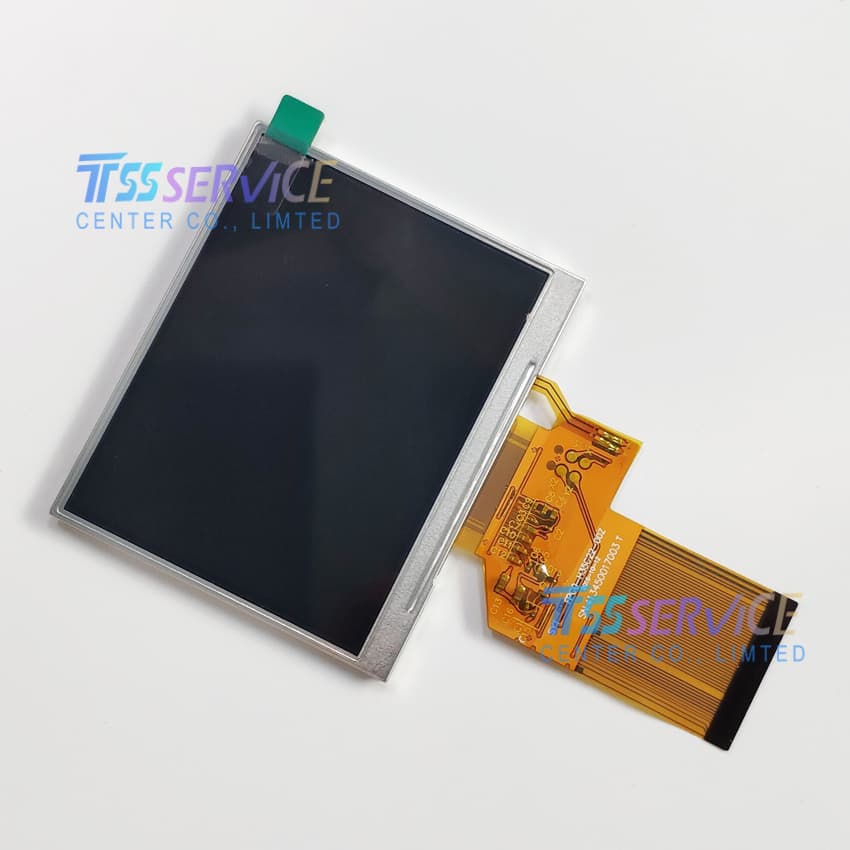

The LQ035NC111 is a 3.5-inch a-Si TFT-LCD module manufactured by Innolux Corporation . Released in early 2008, this model was specifically designed for applications requiring a compact display with versatile interface options . It features a QVGA resolution of 320×240 pixels with an RGB vertical stripe pixel arrangement and utilizes advanced driver IC technology.
| Brand |
Innolux |
| Model P/N |
LQ035NC1111 |
| Diagonal Size |
3.5" |
| Resolution |
320(RGB)×240, QVGA, 115 PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
70.08(W)×52.56(H) mm |
| Bezel Opening |
73.03(W)×55.50(H) mm |
| Outline Size |
76.9(W)×63.9(H)×3.46(D) mm |
| Surface |
Antiglare (Haze 20%) |
| Brightness |
300 cd/m² (Typ.) |
| Contrast Ratio |
400:1 (Typ.) (TM) |
| Viewing Angle |
60/60/50/55 (Typ.)(CR≥10) |
| Display Mode |
TN, Normally White, Transmissive |
| Best View on |
6 o'clock |
| Response Time |
10/15 (Typ.)(Tr/Td) ms |
| Display Colors |
16.7M, 60% NTSC |
| Lamp Type |
6S1P WLED, 10K hours, Without Driver |
| Frequency |
60Hz |
| Touch Screen |
Without |
| Panel Weight |
30.0g (Typ.) |
| Signal Interface |
Digital RGB (8/24-bit) + SPI, CCIR601/656, 54 pins FPC |
| Input Voltage |
3.3V (Typ.) |
| Operating Temp. |
-20 ~ 70 °C |
| Storage Temp. |
-30 ~ 80 °C |
Application Scenarios
The LQ035NC111 is engineered for various consumer and industrial applications requiring a compact, reliable display :
-
Portable Consumer Electronics: Digital still cameras, digital video cameras, and portable multimedia devices
-
Handheld Terminals: Portable data collection devices and handheld instrumentation
-
Medical Instruments: Compact medical devices and diagnostic equipment
-
Automotive Displays: Vehicle display systems requiring standard temperature operation
-
Industrial Applications: Electronic instruments, GPS devices, and 3D printers
