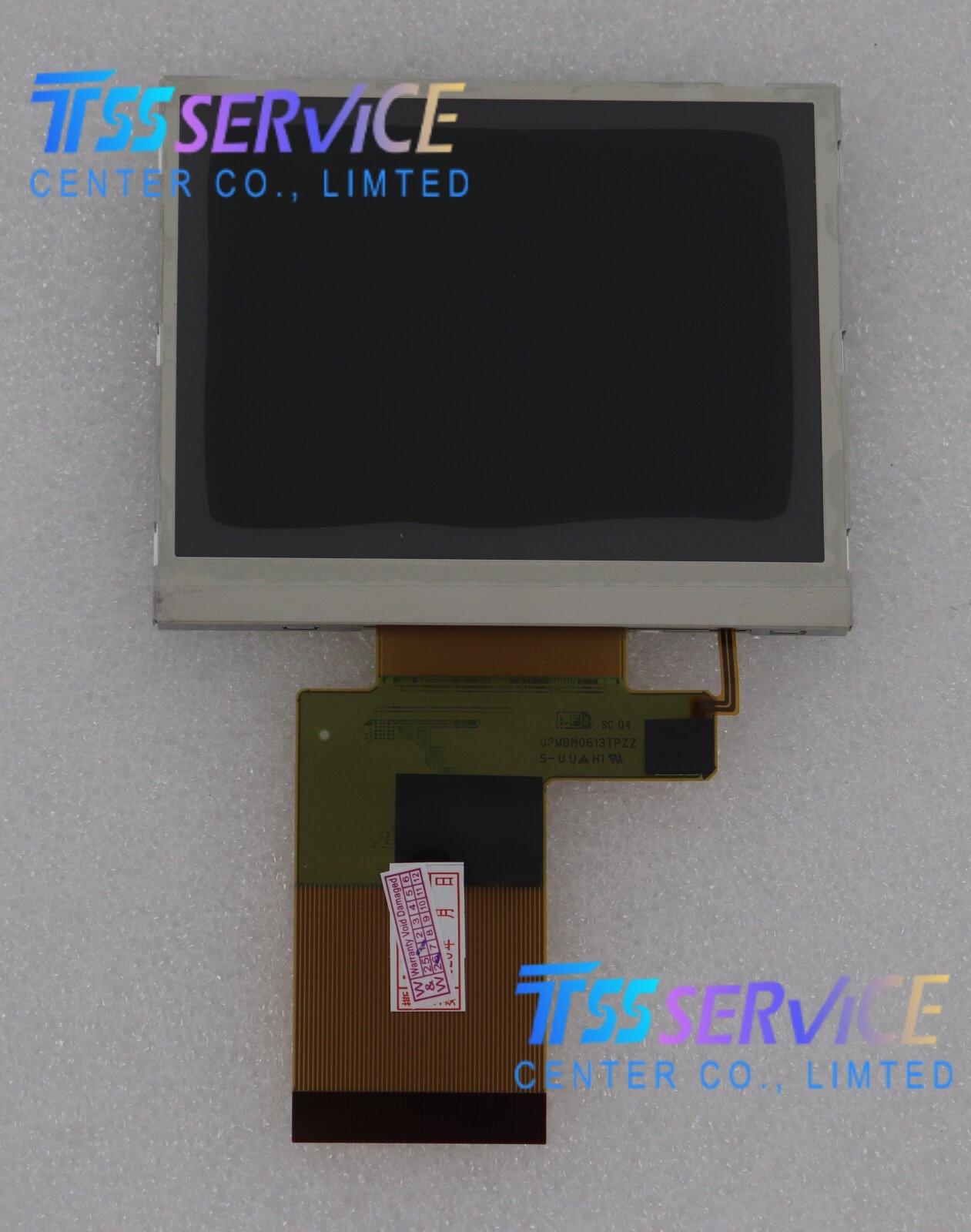

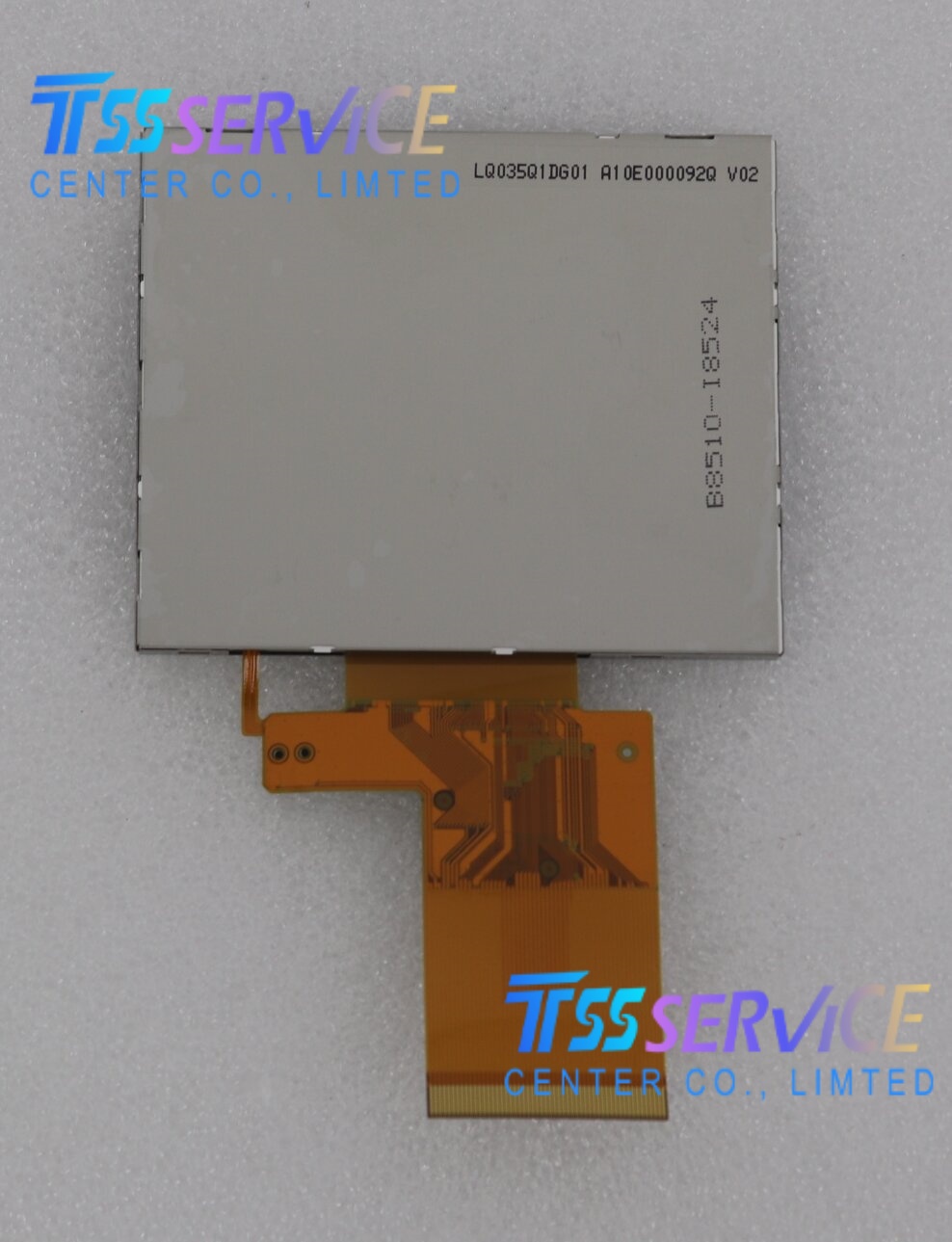

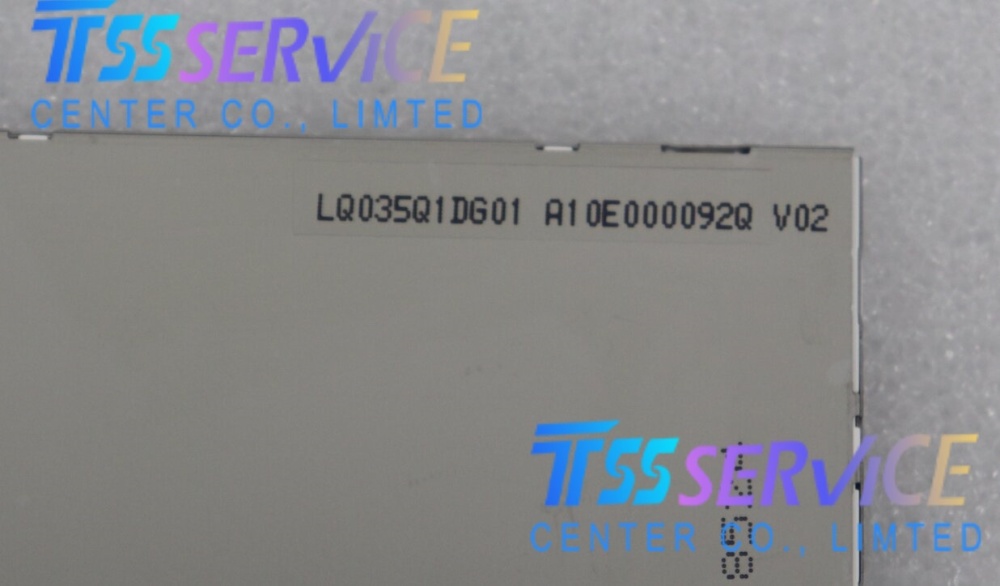

Sharp LQ035Q1DG01 3.5 inch 320×240 LCD Panel Display Screen For Industrial
| Parameter |
Specification |
| Model Number |
LQ035Q1DG01 |
| Manufacturer |
Sharp |
| Screen Size |
3.5 inches |
| Display Type |
TFT-LCD (Thin Film Transistor Liquid Crystal Display) |
| Resolution |
320 × 240 pixels |
| Aspect Ratio |
4:3 |
| Pixel Arrangement |
RGB Vertical Stripe |
| Color Depth |
262K colors (typically) / 18-bit or 24-bit interface support |
| Interface Type |
TTL (Transistor-Transistor Logic) / Parallel RGB |
| Backlight |
LED (Light Emitting Diode), typically White |
| Brightness |
Approx. 300 - 450 cd/m² (varies by specific revision/batch) |
| Contrast Ratio |
Typically 100:1 to 150:1 (some sources cite up to 400:1 for similar models) |
| Viewing Angle |
Typically 40/40/50/50 (Left/Right/Up/Down) or similar wide view |
| Operating Temperature |
-20°C to +70°C (Standard Industrial Range) |
| Storage Temperature |
-30°C to +80°C |
The LQ035Q1DG01 is designed for compact, low-power, and reliable visual interfaces in various sectors. Its robust operating temperature range makes it suitable for environments where consumer screens might fail.
-
Industrial Control Systems (HMI):
- Used in Human-Machine Interfaces for PLCs (Programmable Logic Controllers).
- Display panels for CNC machines, injection molding machines, and textile machinery.
- Portable industrial testers and measurement devices.
-
Medical Equipment:
- Patient monitoring devices (vital signs monitors).
- Portable diagnostic tools and handheld medical scanners.
- Infusion pumps and ventilator control panels.
-
Automotive & Transportation:
- Dashboard displays for specialized vehicles (forklifts, agricultural machinery).
- Rear-view monitor systems in commercial trucks.
- In-vehicle navigation units for older or specialized fleet vehicles.
-
Consumer Electronics & Appliances:
- High-end home appliances (smart refrigerators, washing machine control panels).
- Digital photo frames (legacy models).
- Handheld gaming devices or educational toys requiring durable screens.
-
Security & Surveillance:
- Small form-factor monitors for CCTV camera viewing.
- Access control terminal displays.
-
Point of Sale (POS) & Banking:
- Portable credit card terminals.
- Handheld inventory management scanners.
