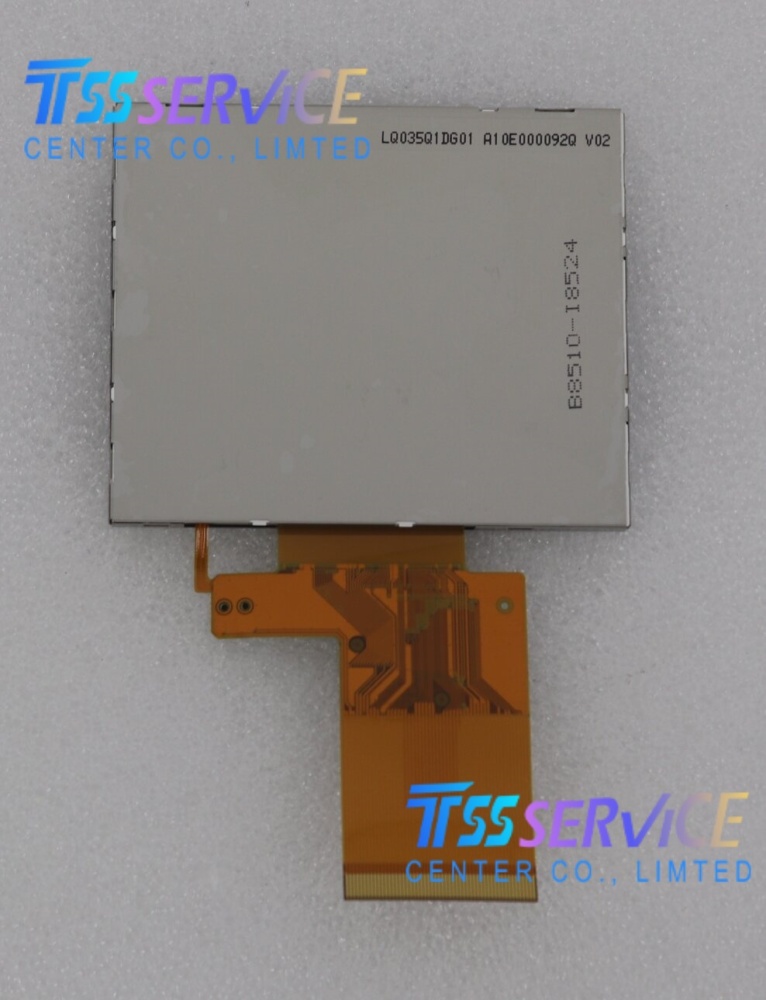

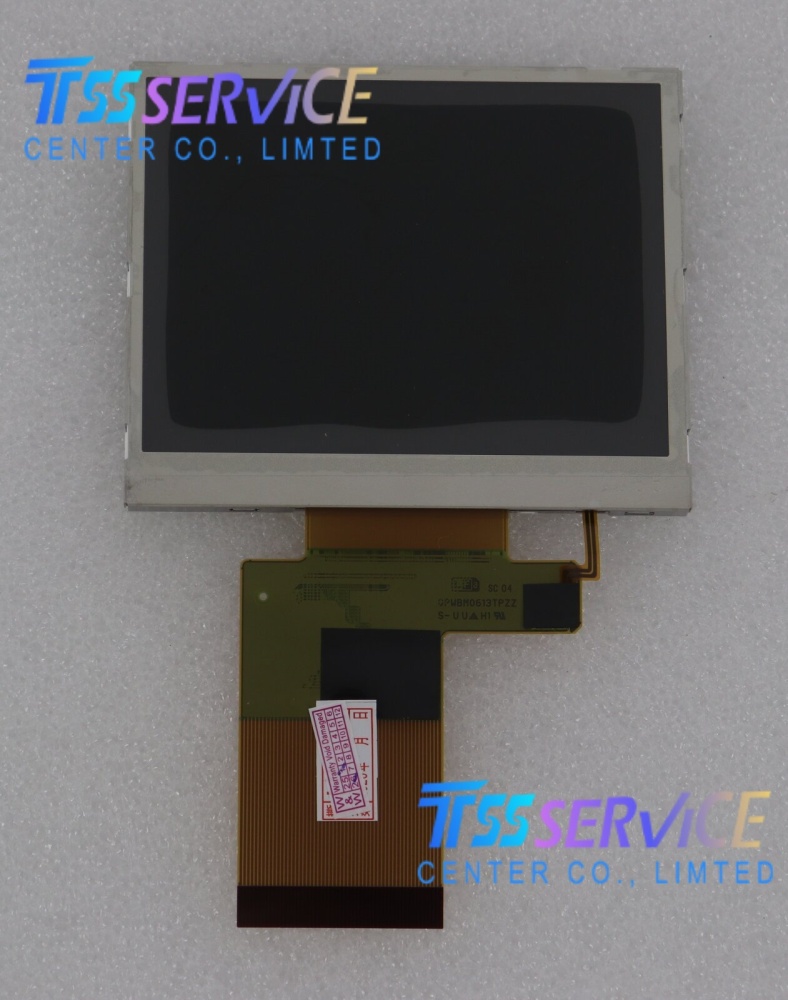

LQ035Q1DG01 3.5-inch 320(RGB)×240 LCD Display Panel for Sharp
| Parameter |
Value |
Unit |
| Manufacturer |
Sharp |
- |
| Model |
LQ035Q1DG01 |
- |
| Panel Type |
a‑Si TFT‑LCD, TN, Normally White, Transmissive |
- |
| Diagonal Size |
3.5 |
inch |
| Resolution |
320(RGB) × 240 (QVGA) |
Pixels |
| Pixel Density |
115 |
PPI |
| Pixel Arrangement |
RGB Vertical Stripe |
- |
| Pixel Pitch |
0.2205 × 0.2205 |
mm |
| Active Area |
70.56 (H) × 52.92 (V) |
mm |
| Outline Dimension |
76.9 × 63.9 × 3.65 (H×V×D) |
mm |
| Brightness (Typ.) |
340 |
cd/m² |
| Contrast Ratio (Typ.) |
300:1 |
- |
| Viewing Angle (Typ., CR≥10) |
60/60/40/60 (Left/Right/Up/Down) |
Degree |
| Response Time (Typ.) |
30 (Tr) / 30 (Td) |
ms |
| Display Colors |
262K (6‑bit) |
- |
| Surface Treatment |
- |
- |
| Backlight |
WLED (7S1P), Side‑entry, No Driver |
- |
| Interface |
Parallel RGB (1‑channel, 6‑bit) + SPI, 54‑pin FPC |
- |
| Input Voltage (Typ.) |
3.3 / 3.3 (VDD / AVDD) |
V |
| Refresh Rate |
60 |
Hz |
| Weight (Typ.) |
36.1 |
g |
| Operating Temperature |
-0~ +60 |
°C |
| Storage Temperature |
-20 ~ +70 |
°C |
| Compliance |
RoHS |
- |
LQ035Q1DG01 is a compact 3.5‑inch QVGA TFT‑LCD module, widely used in portable, embedded, and industrial devices:
Consumer Electronics
- Digital cameras, camcorders, and portable media players
- Handheld gaming consoles and portable DVD players
- PDA (Personal Digital Assistant) and early smartphone displays
Industrial & Embedded
- Industrial handheld terminals, data collectors, and barcode scanners
- Factory automation HMI (Human‑Machine Interface) panels
- Portable measurement instruments and test equipment
- CNC machine tool auxiliary displays and control panels
Medical & Healthcare
- Portable medical diagnostic devices (e.g., ECG monitors, blood pressure meters)
- Patient monitoring system small screens
- Medical handheld scanners and auxiliary displays
Automotive & Transportation
- Car infotainment auxiliary displays and dashboard monitors
- Vehicle navigation system small screens
- Public transport passenger information terminals
Other Professional
- Military/defense portable communication devices
- Outdoor weather monitoring and data acquisition terminals
- Smart home control panels and thermostat displays
