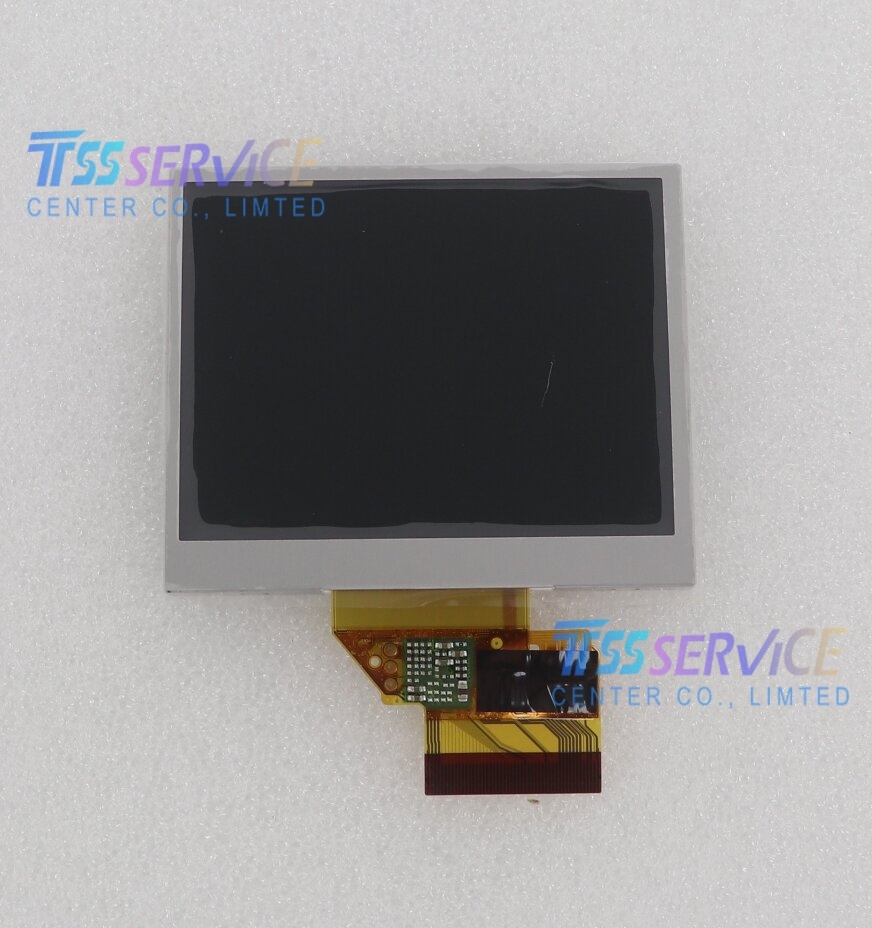

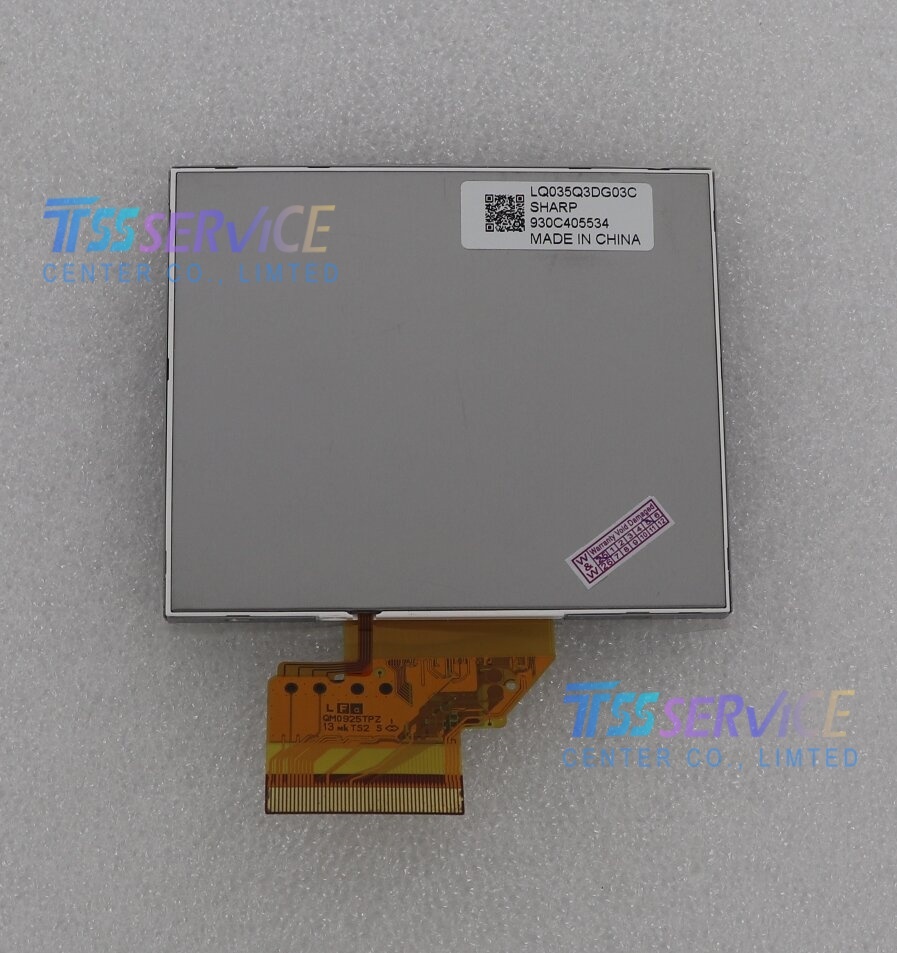

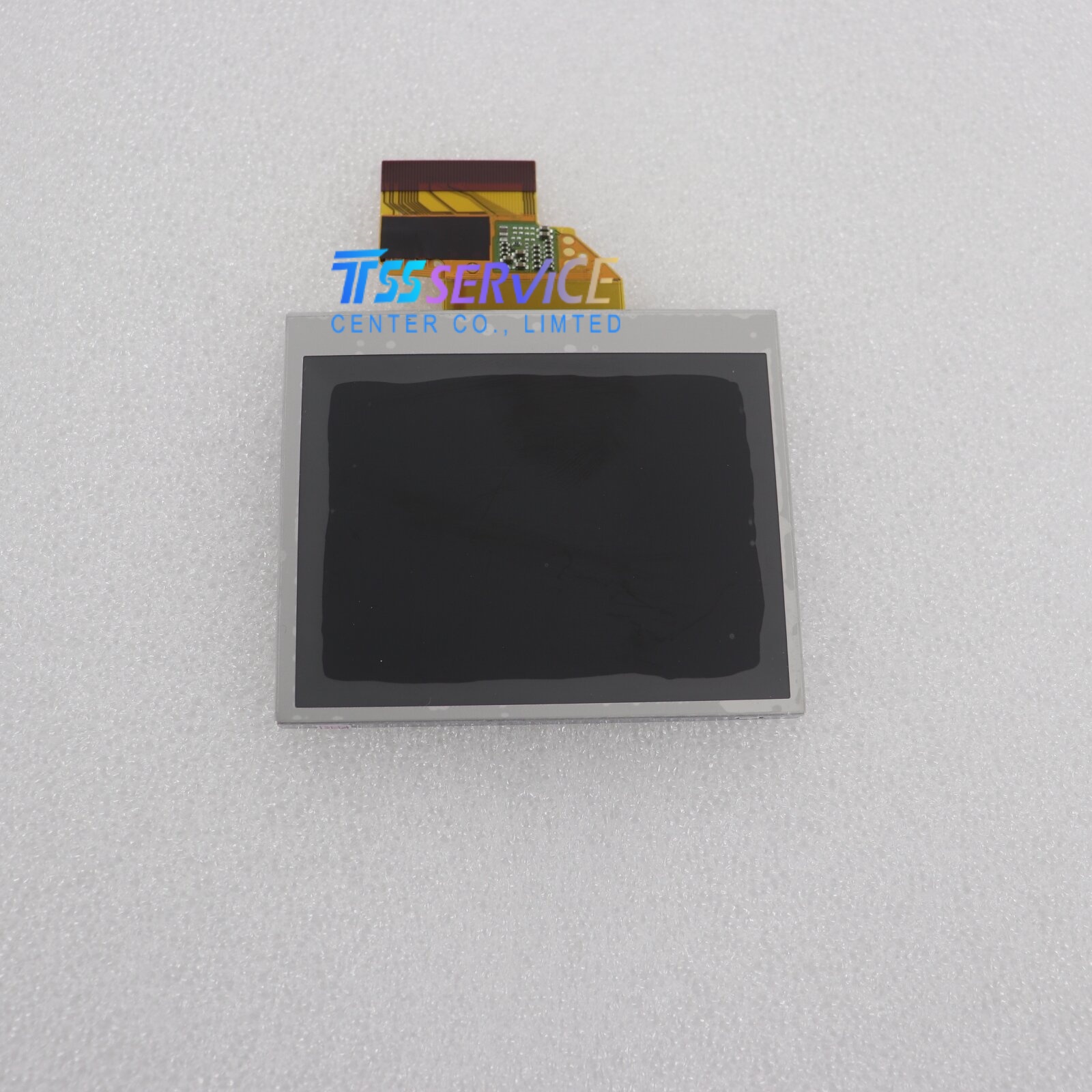

LQ035Q3DG03B | Sharp 3.5" QVGA TN Industrial TFT-LCD Module
LQ035Q3DG03B is a 3.5-inch QVGA industrial TFT LCD module manufactured by Sharp Electronics, belonging to classic LQ035Q3DG03 series. It adopts transmissive TN normally white technology, 450 cd/m² high-brightness edge WLED backlight, 18-bit parallel CMOS TTL 50-pin FPC interface, slim 4.7mm thickness and stable industrial optical performance. It supports rich 16.7M true colors, low power consumption and compact metal frame, widely used for portable handheld industrial terminals, injection molding machine auxiliary displays, portable medical testing instruments, field measuring meters and legacy small equipment screen replacement.
| Parameter Item |
Specification Details |
| Full Part Number |
LQ035Q3DG03B |
| Manufacturer |
Sharp Corporation (Japan) |
| Diagonal Size |
3.5 inch, landscape, 4:3 aspect ratio |
| Native Resolution |
320(RGB) × 240 pixels (QVGA, 115 PPI) |
| Display Technology |
a-Si TFT-LCD, TN mode, Normally White, Transmissive |
| Pixel Arrangement |
RGB vertical stripe |
| Pixel Pitch |
0.2205 mm (H) × 0.2205 mm (V) |
| Active Area (AA) |
70.56 mm (W) × 52.92 mm (H) |
| Overall Outline Dimension |
76.9 mm (W) × 63.9 mm (H) × 4.7 mm (Thickness) |
| Typical Brightness |
450 cd/m² (high brightness for bright workshop & outdoor field use) |
| Typical Contrast Ratio |
300:1 |
| Viewing Angle (L/R/U/D, CR≥10) |
60° / 60° / 40° / 60°, optimal viewing direction: 6 o'clock |
| Response Time (Tr / Td) |
18 ms / 32 ms (Typical) |
| Display Color Depth |
16.7M true colors (8-bit RGB) |
| Backlight System |
Edge-lit WLED, service life ≥ 50,000 hours, external driver circuit required |
| Signal Interface |
18-bit parallel CMOS TTL, 50-pin FPC connector |
| Logic Supply Voltage |
3.3 VDC (typical, 3.0~3.6V allowable) |
| Typical Power Consumption |
0.8 W (logic + backlight) |
| Refresh Rate |
60 Hz standard |
| Operating Temperature |
0°C ~ +50°C |
| Storage & Transport Temp |
-20°C ~ +60°C |
| Touch Function |
Without integrated touch panel (4-wire resistive touch overlay customizable) |
| Surface Treatment |
Glossy polarizer, 3H scratch-resistant hard coating |
| Housing Structure |
Mini metal shielding frame, anti-electromagnetic interference |
| Net Weight |
Approx. 42 g ultra-lightweight |
| Compliance Standard |
RoHS compliant |
| Production Status |
Discontinued legacy industrial module, sufficient stock for equipment maintenance replacement |
