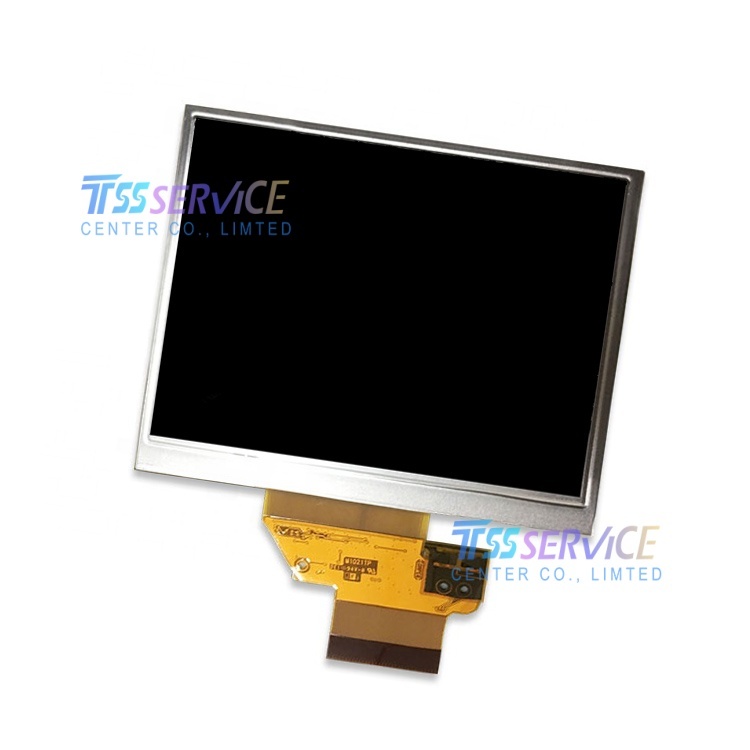

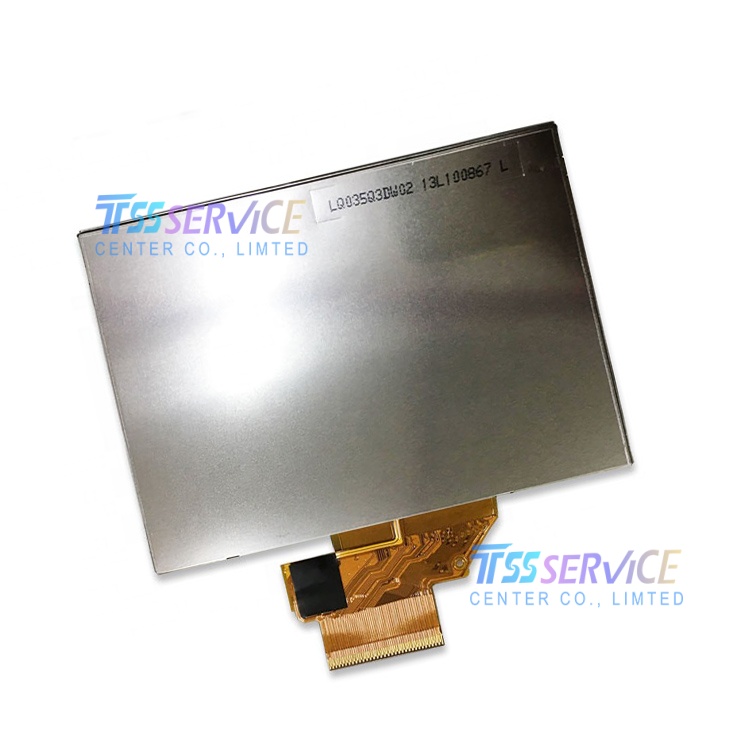

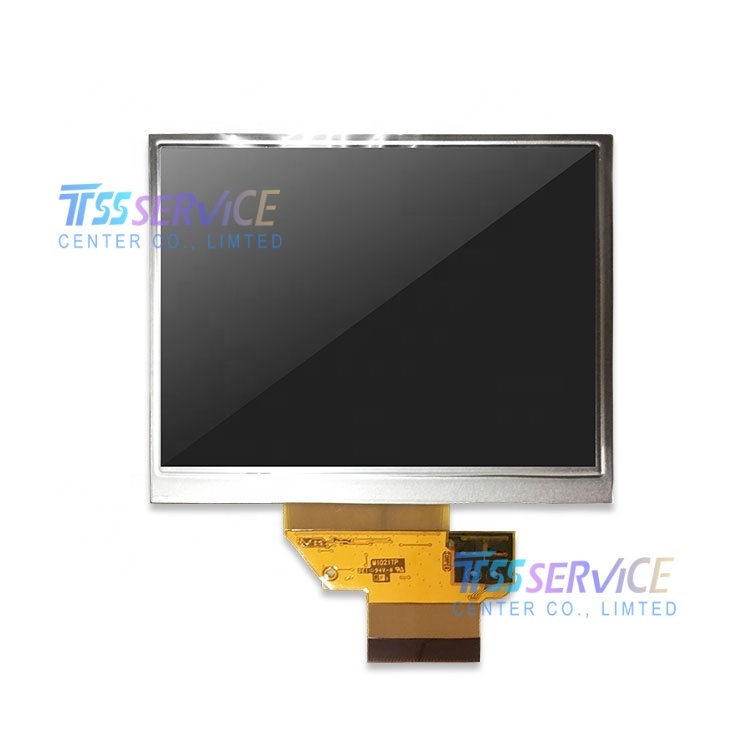

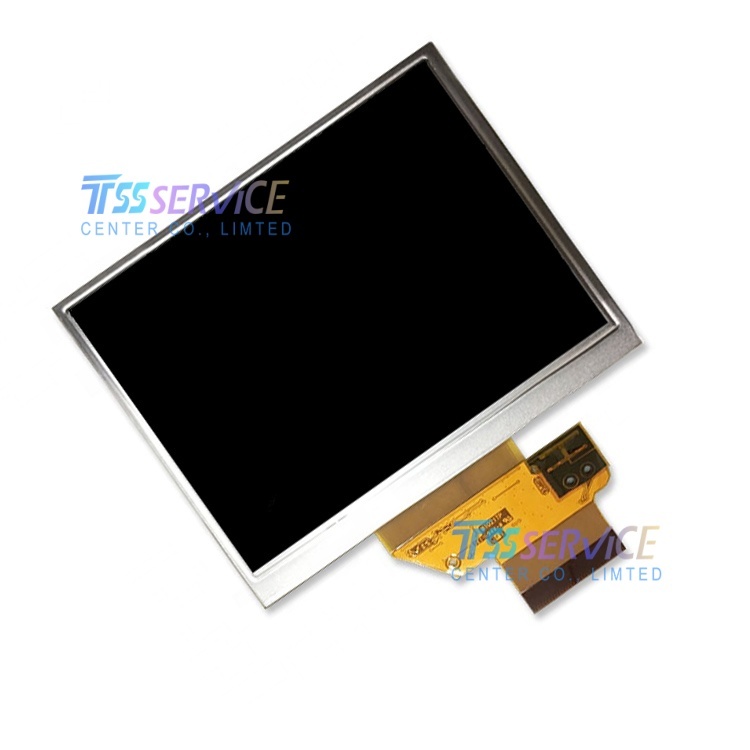

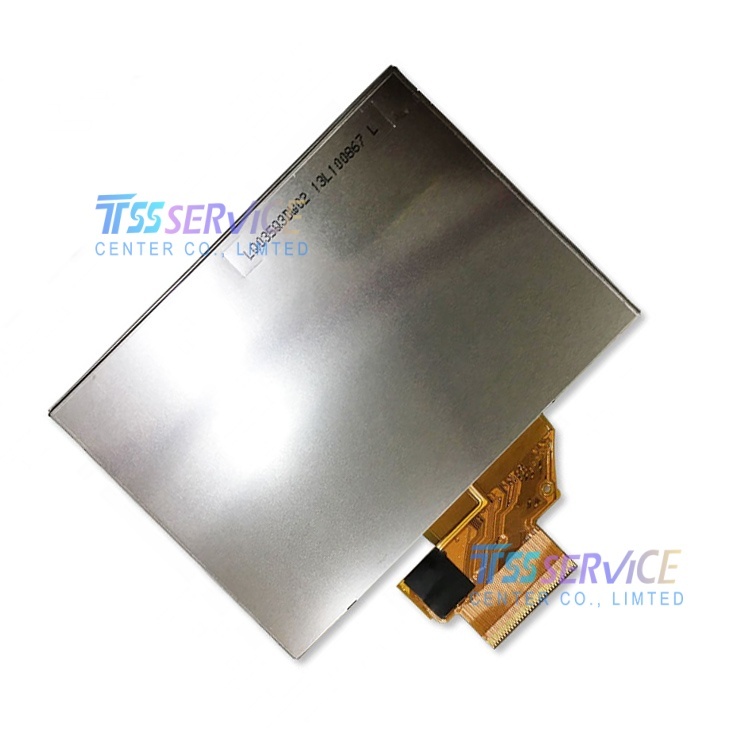

Sharp LQ035Q3DW02 3.5 Inch QVGA TFT LCD 320×240 Industrial Display Module

Name: Sharp LQ035Q3DW02 3.5 Inch QVGA TFT LCD 320×240 Industrial Display Module
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LQ035Q3DW02
Price: 62 USD
Availability: InStock

SKU: LQ035Q3DW02

Model: LQ035Q3DW02
Brand: Sharp
Screen Size: 3.5 inch (Diagonal)
Display Type: a-Si TFT-LCD Module
Resolution: 320×240, QVGA

0.0 (0 Reviews)

0 Sold

~~$64.00~~ $62.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Sharp LQ035Q3DW02 3.5 Inch QVGA TFT LCD 320×240 Industrial Display Module
80/80/80/80 (Typ.)(CR≥10)

Item	Specification
Model	LQ035Q3DW02
Brand	Sharp
Screen Size	3.5 inch (Diagonal)
Display Type	a-Si TFT-LCD Module
Resolution	320×240, QVGA
Brightness	450 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Display Colors	262K Colors
Backlight	WLED, Long Lifespan
Interface	Parallel RGB, 50-pin FPC
Operating Temperature	-10℃ ~ +70℃
Storage Temperature	-25℃ ~ +70℃
Compliance	RoHS
Outline Dimension	76.5(W) × 54.5(H) × 3.1(D) mm
Weight	Approx. 82g

Applications

Industrial human-machine interfaces, automation control panels and PLC equipment
Industrial handheld terminals, portable data collectors and measuring instruments
Portable medical devices and analytical equipment
Small vehicle-mounted displays and engineering machinery control screens
Portable electronic devices, test instruments and smart control terminals
