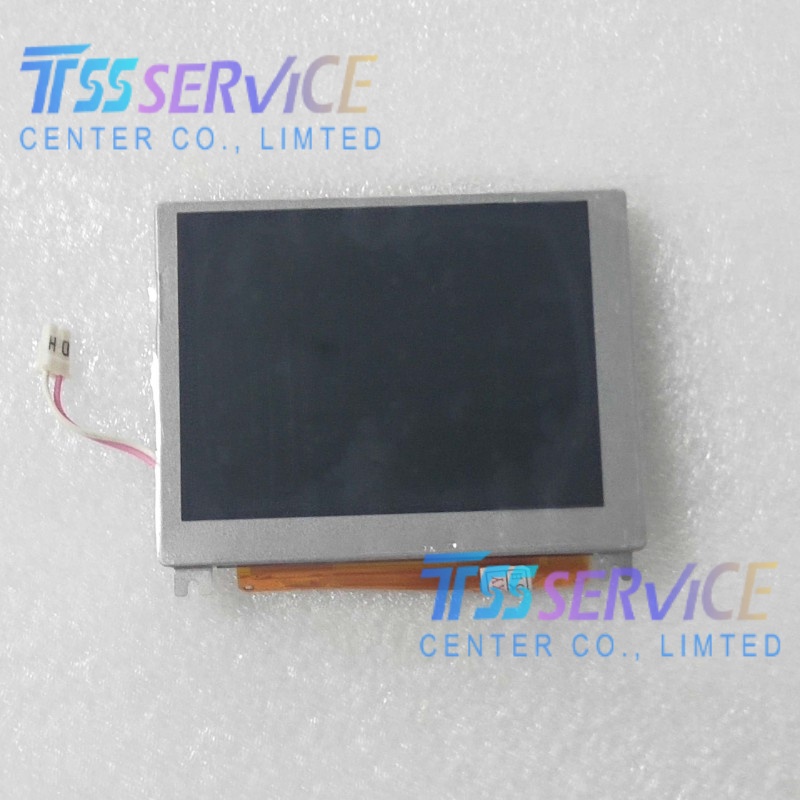

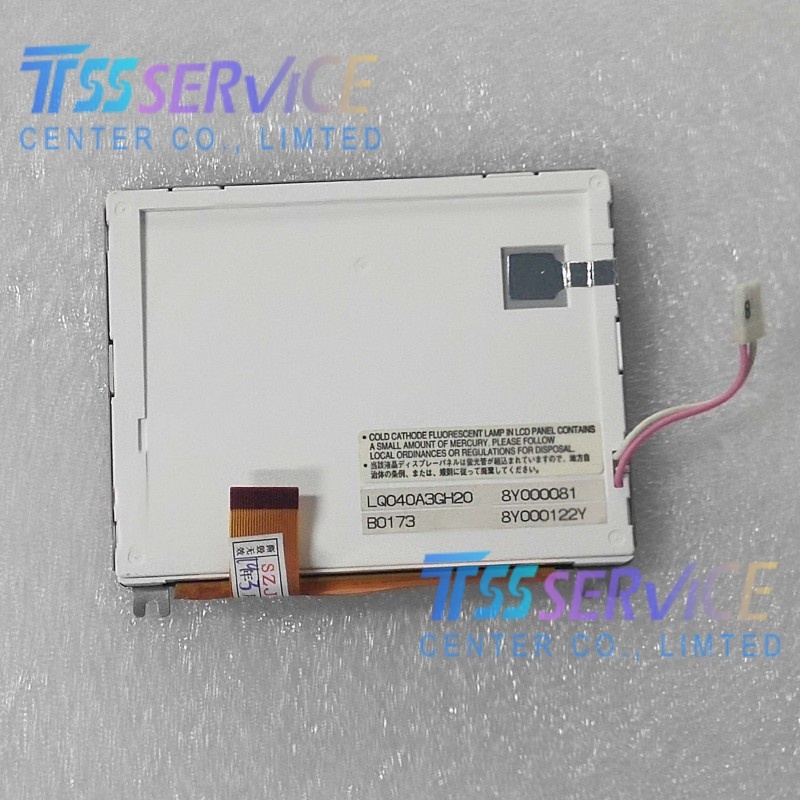

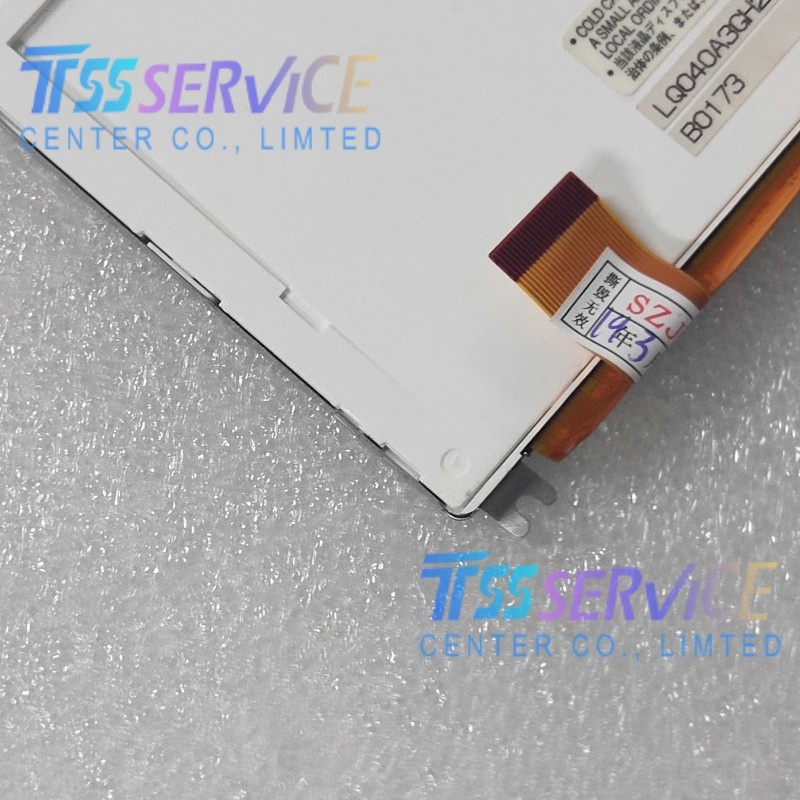

Sharp LQ040A3GH20 4.0 Inch 560×220 TFT LCD Panel Industrial Display Screen

Name: Sharp LQ040A3GH20 4.0 Inch 560×220 TFT LCD Panel Industrial Display Screen
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LQ040A3GH20
Price: 80 USD
Availability: InStock

SKU: LQ040A3GH20

Model Number: LQ040A3GH20
Manufacturer Sharp Corporation
Diagonal Size 4.0 inch
Native Resolution 560 (H) × 220 (V), Full Color
Pixel Pitch 0.144 mm × 0.276 mm, RGB Delta Arrangement
Display Technology a-Si TFT-LCD

0.0 (0 Reviews)

0 Sold

~~$90.00~~ $80.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Sharp LQ040A3GH20 4.0 Inch 560×220 TFT LCD Panel Industrial Display Screen

Item	Parameter Details
Model Number	LQ040A3GH20
Manufacturer	Sharp Corporation
Diagonal Size	4.0 inch
Native Resolution	560 (H) × 220 (V), Full Color
Pixel Pitch	0.144 mm × 0.276 mm, RGB Delta Arrangement
Display Technology	a-Si TFT-LCD, TN Mode, Normally White, Transmissive
Active Display Area	80.6 mm (W) × 60.6 mm (H)
Overall Outline Dimension	96.1 (W) × 75 (H) × 8.1 (D) mm
Typical Brightness	300 cd/m²
Contrast Ratio	100:1 (Minimum)
Viewing Angle (CR≥10)	Left 45° / Right 45° / Up 10° / Down 30°; Optimal viewing at 6 o’clock
Response Time	Tr=30ms / Td=50ms (Typical)
Backlight System	Single CCFL Lamp, 10,000 Hours Lifespan, No Built-in Driver Board
Signal Interface	TFT Specific Analog RGB, 24Pin FPC Connector
Supply Voltage	VSHD=3.0V, VSHA=5.0V (Typical)
Surface Treatment	Matte Anti-Glare & Anti-Reflective Coating
Touch Configuration	LCD Only, Without Touch Glass
Operating Temperature	-10°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
Net Weight	Approx 300g
