Home > All Products > LCD Display > SHARP > 3.5"-5.7" > LQ040Y3DX80B
  • LQ040Y3DX80B 4.0inch 480×800 a-Si TFT-LCD Display
  • LQ040Y3DX80B 4.0inch 480×800 a-Si TFT-LCD Display
  • LQ040Y3DX80B 4.0inch 480×800 a-Si TFT-LCD Display
1/1
  • LQ040Y3DX80B 4.0inch 480×800 a-Si TFT-LCD Display
  • LQ040Y3DX80B 4.0inch 480×800 a-Si TFT-LCD Display
  • LQ040Y3DX80B 4.0inch 480×800 a-Si TFT-LCD Display

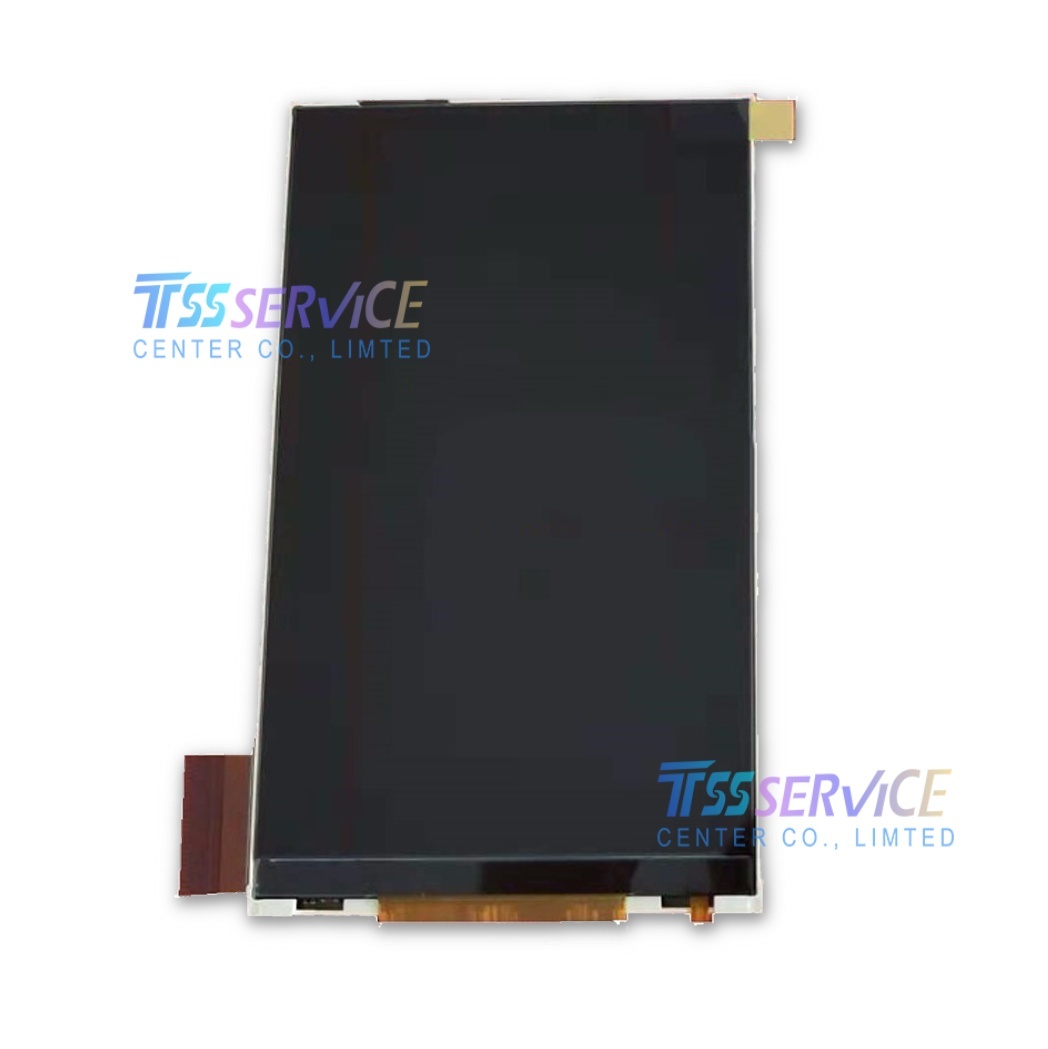

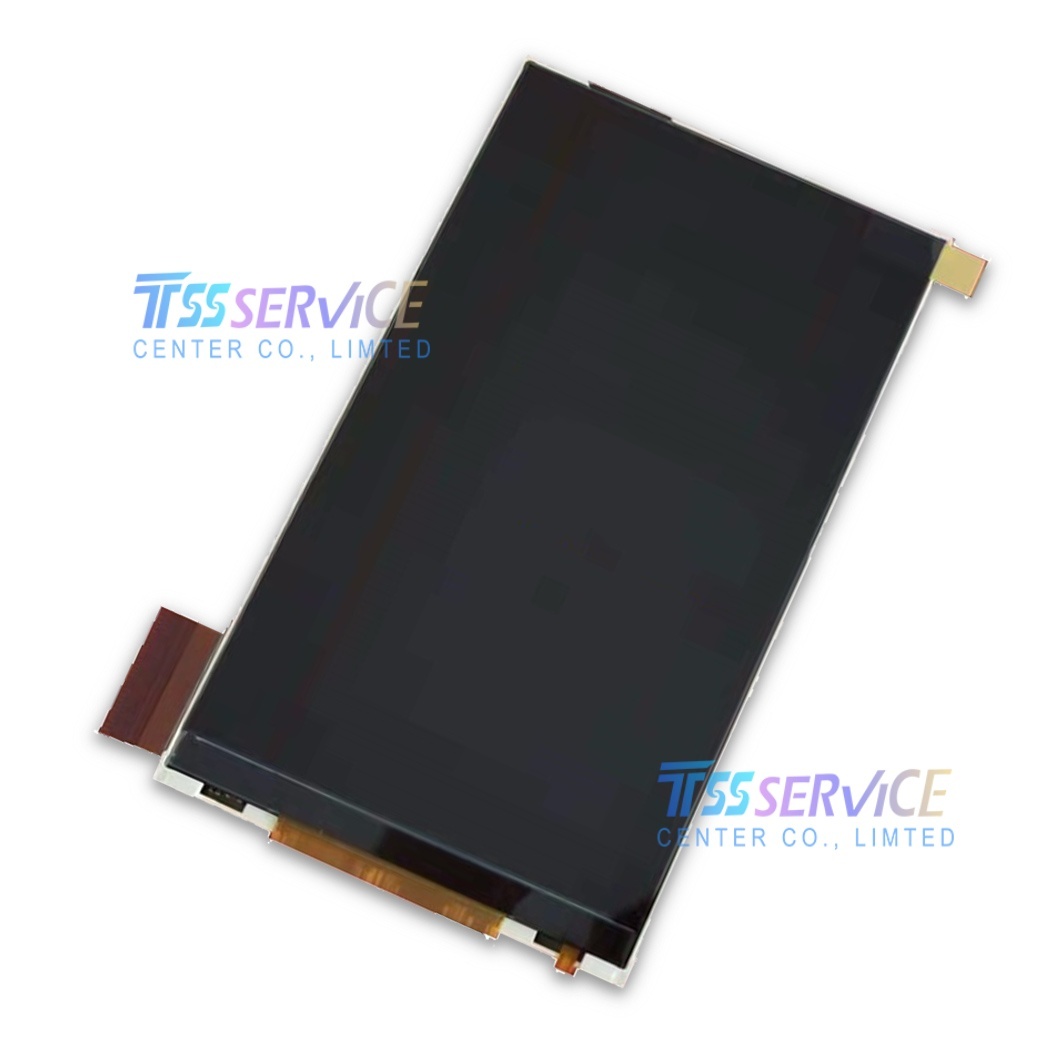

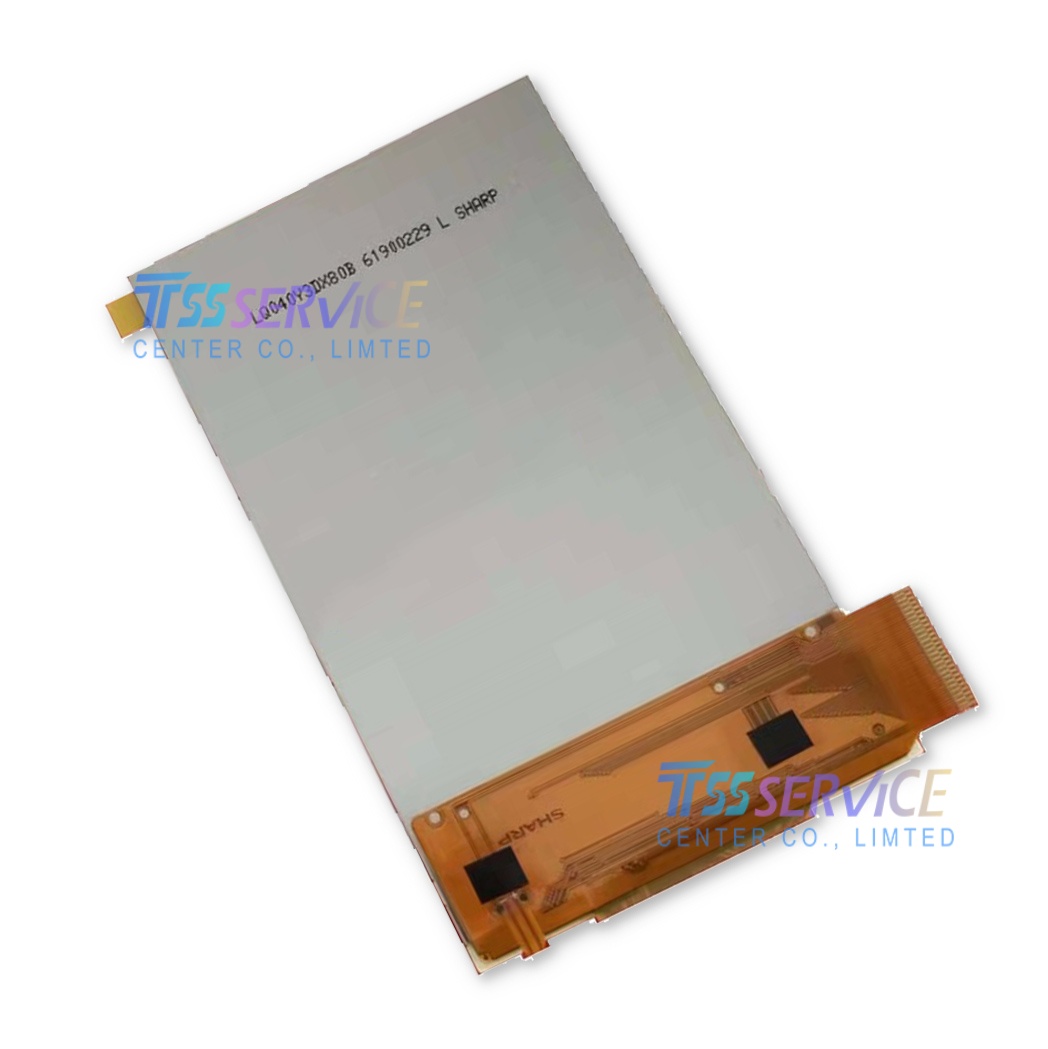

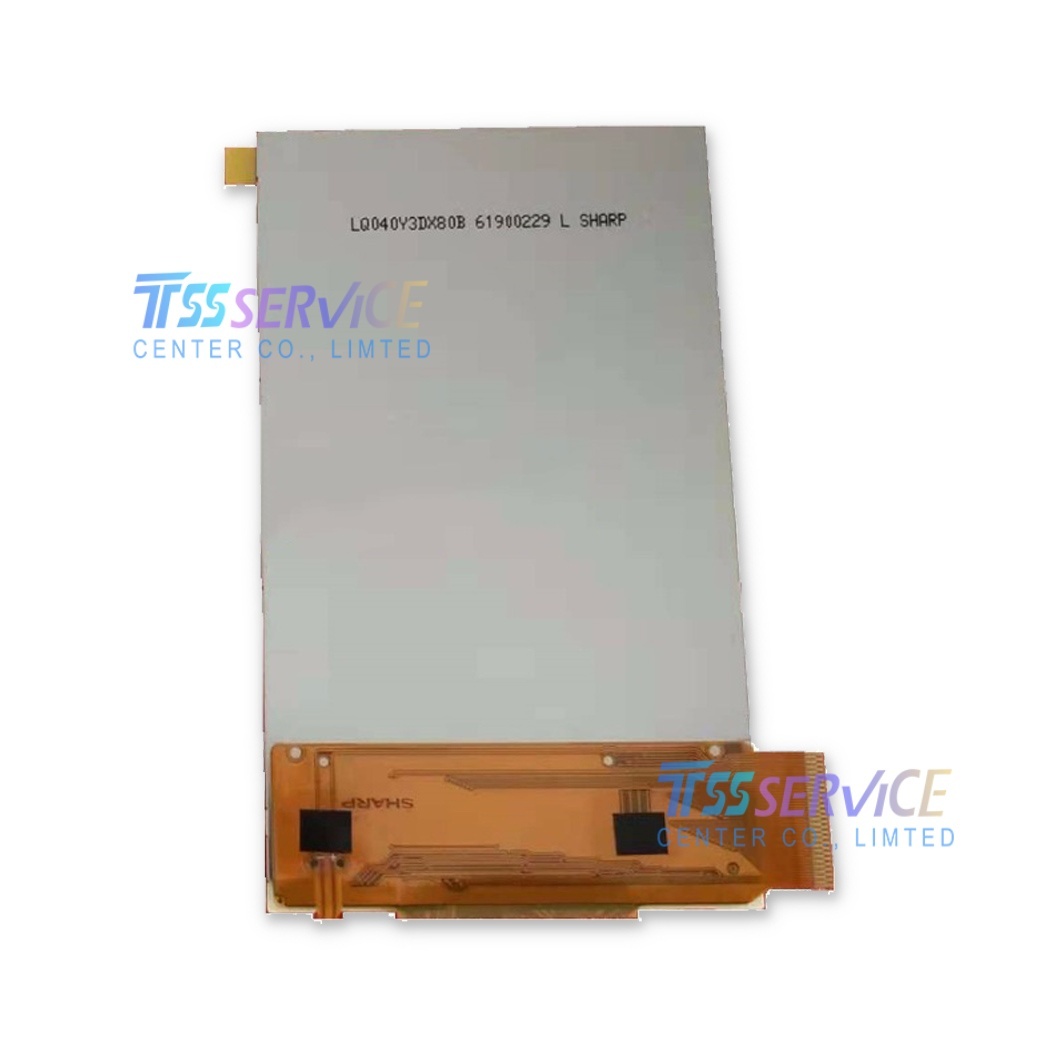

LQ040Y3DX80B 4.0inch 480×800 a-Si TFT-LCD Display

SKU: LQ040Y3DX80B

1，Condition: New，Grade A

2，Description: LQ040Y3DX80B 4.0inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express  or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)
0 Sold
$35.00 $33.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
Add to Favorites (0)
  • LQ040Y3DX80B 4.0inch 480×800 a-Si TFT-LCD Display
  • LQ040Y3DX80B 4.0inch 480×800 a-Si TFT-LCD Display
  • LQ040Y3DX80B 4.0inch 480×800 a-Si TFT-LCD Display
  • LQ040Y3DX80B 4.0inch 480×800 a-Si TFT-LCD Display
  • LQ040Y3DX80B 4.0inch 480×800 a-Si TFT-LCD Display
  • LQ040Y3DX80B 4.0inch 480×800 a-Si TFT-LCD Display
1/1
  • LQ040Y3DX80B 4.0inch 480×800 a-Si TFT-LCD Display
  • LQ040Y3DX80B 4.0inch 480×800 a-Si TFT-LCD Display
  • LQ040Y3DX80B 4.0inch 480×800 a-Si TFT-LCD Display
  • Description
The Sharp LQ040Y3DX80B is a 4.0-inch a-Si TFT-LCD (amorphous silicon thin-film transistor liquid crystal display) module featuring a resolution of 480 × 800 pixels (WVGA) with a pixel density of 235 PPI. This compact display delivers sharp image quality and detailed visuals suitable for portable and handheld applications.

Parameter Specification
Brand Sharp
Model P/N LQ040Y3DX80B
Diagonal Size 4.0"
Panel Type a-Si TFT-LCD, LCM
Resolution 480(RGB)×800, WVGA 235PPI
Pixel Format RGB Vertical Stripe
Active Area 51.84(W)×86.4(H) mm
Outline Dim. 57.14(H)×96.85(V)×2(D) mm
Treatment -
Luminance 600 cd/m² (Typ.)
Contrast Ratio 650:1 (Typ.) (TM)
View Direction Symmetry
Response Time 35 (Typ.)(Tr+Td)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)
Operating Mode New Mode2, Normally Black, Transmissive
Support Color 16.7M 70% NTSC
Light Source WLED, W/O Driver
Weight 20.0g (Typ.)
Frame Rate 60Hz
Touch Panel Without
Interface Type Parallel RGB (1 ch, 8-bit) + SPI, 51 pins FPC
Power Supply 2.8/1.8V (Typ.)(VCI/IOVCC)
Operating Temperature -20 ~ 70 °C
Storage Temperature -30 ~ 80 °C

Typical Applications

  • Smart Home Devices – Ideal for smart displays, thermostats, and home automation control panels.

  • Portable Multimedia Players – Suitable for handheld media players and portable gaming devices.

  • Automotive Displays – Used in rear-seat entertainment systems, instrument clusters, or auxiliary displays.

  • Industrial Handheld Terminals – Reliable for rugged handheld scanners, data collection devices, and field instruments.

  • Medical Devices – Compact size and high brightness make it suitable for portable diagnostic and monitoring equipment.
