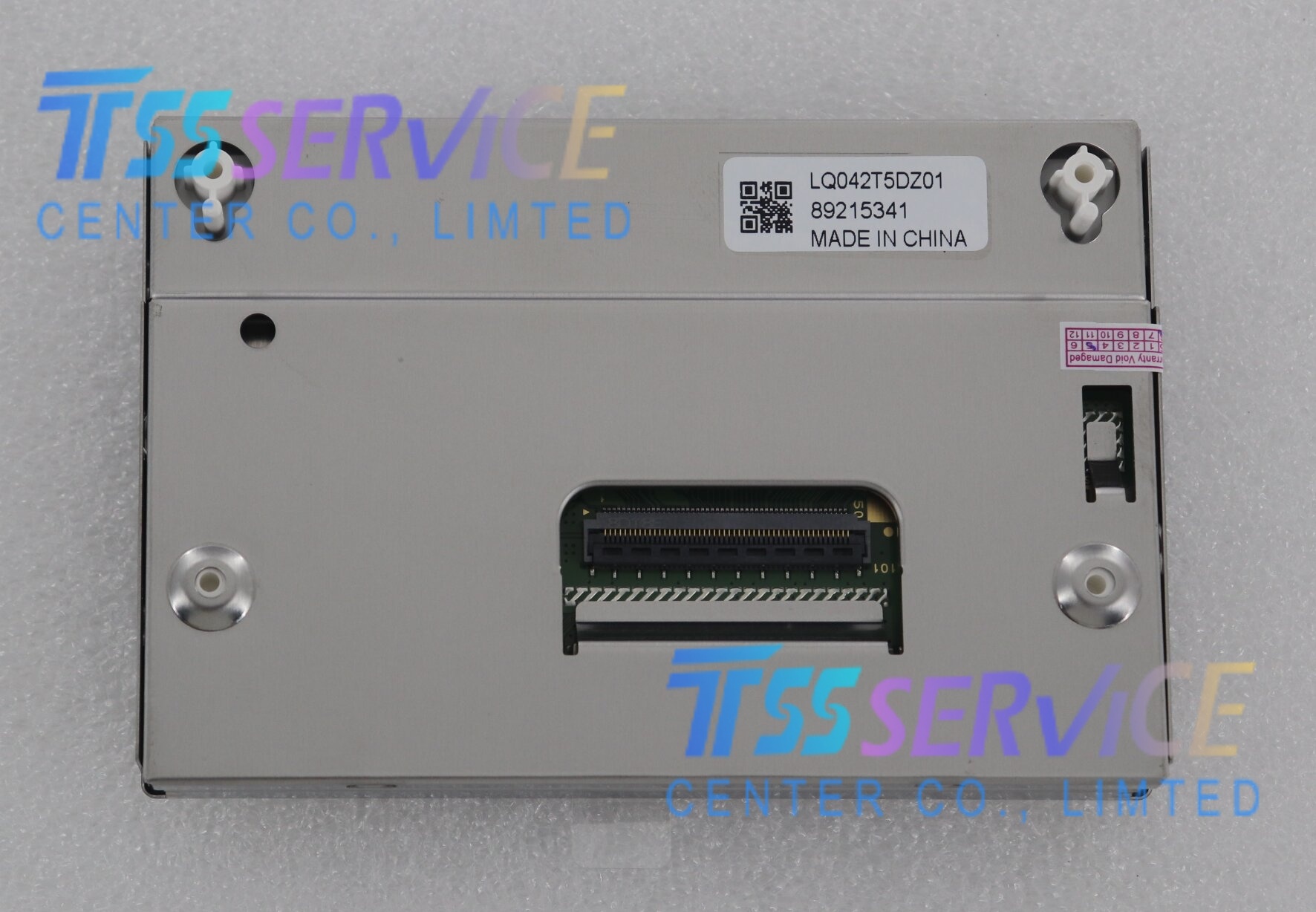

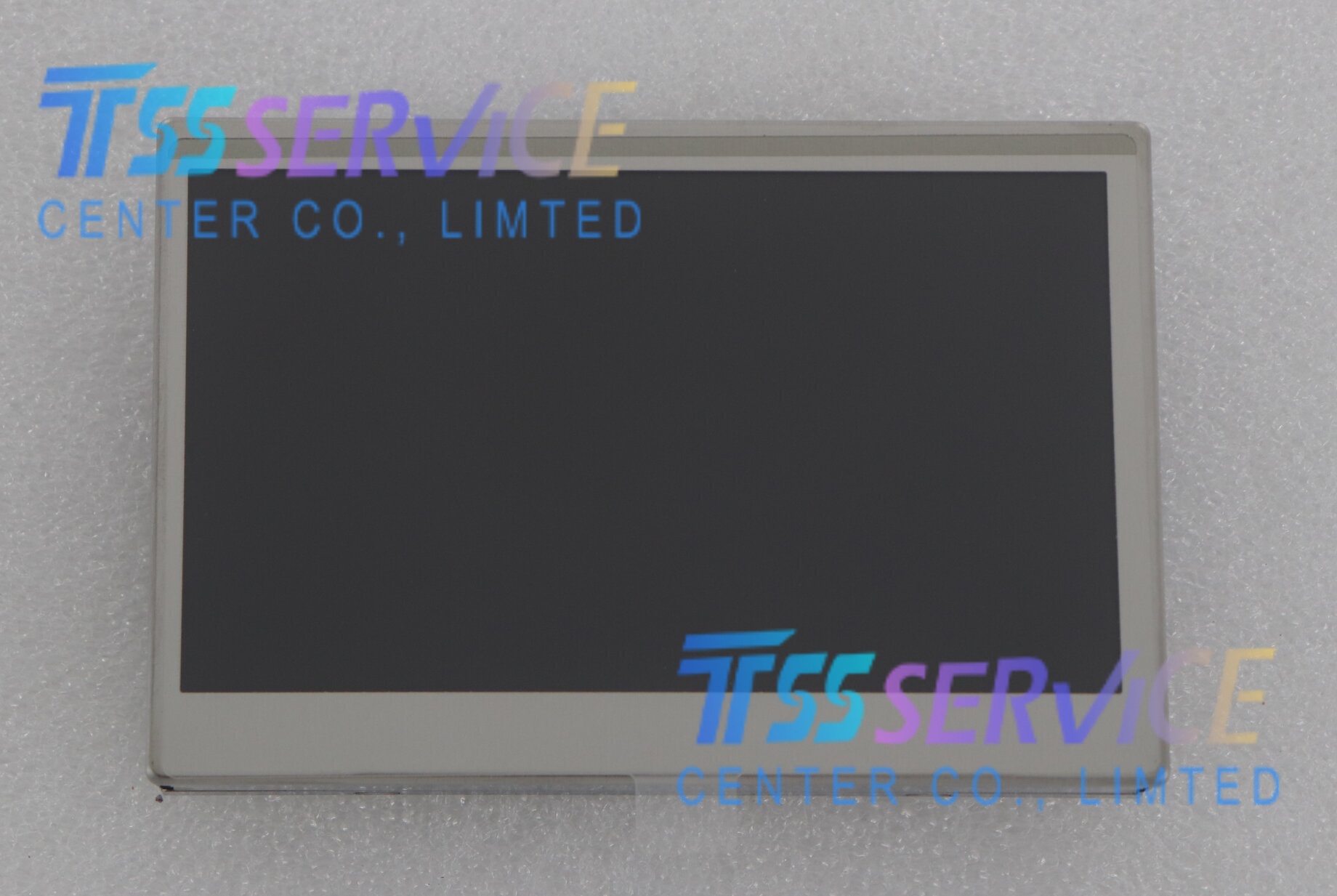

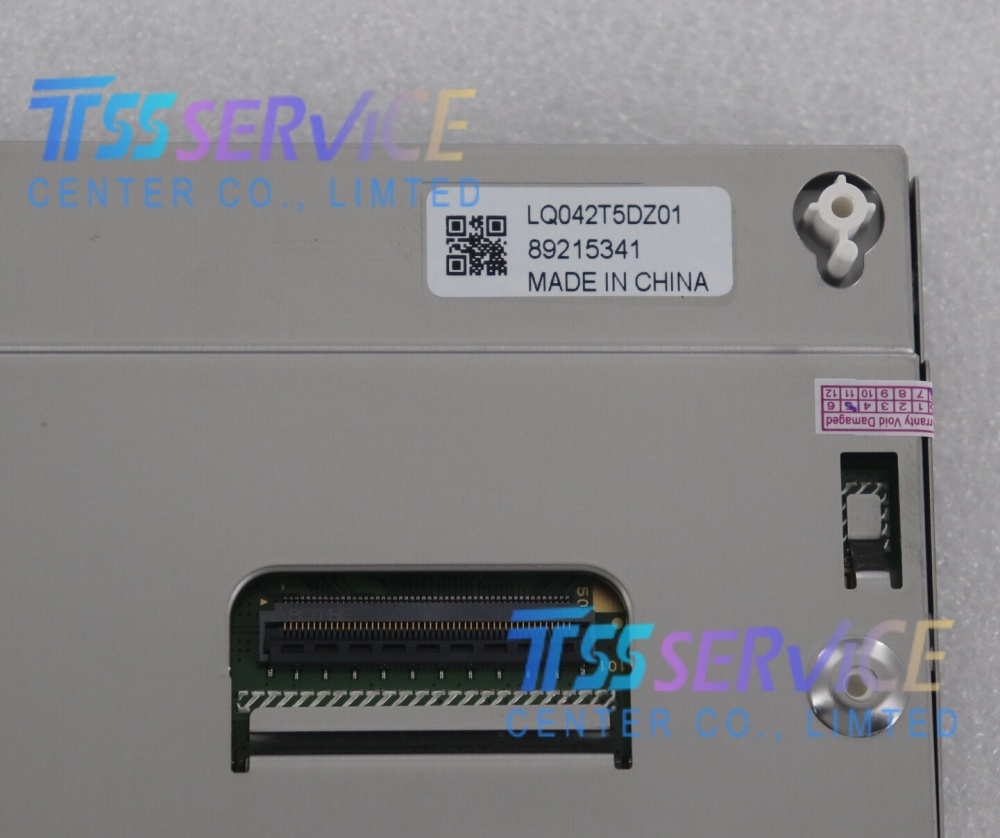

Sharp LQ042T5DZ01 4.2 inch 480x272 WQVGA Industrial TFT LCD Display

Name: Sharp LQ042T5DZ01 4.2 inch 480x272 WQVGA Industrial TFT LCD Display
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LQ042T5DZ01
Price: 35 USD
Availability: InStock

SKU: LQ042T5DZ01

Model: LQ042T5DZ01
Diagonal Size: 4.2 inch
Type: a-Si TFT-LCD, LCM
Resolution: 480(RGB)×272 (WQVGA, 16:9)
Dot Layout: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$36.00~~ $35.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Sharp LQ042T5DZ01 4.2 inch 480x272 WQVGA Industrial TFT LCD Display

Parameter	Details
Brand	Sharp
Model	LQ042T5DZ01
Diagonal Size	4.2 inch
Type	a-Si TFT-LCD, LCM
Resolution	480(RGB)×272 (WQVGA, 16:9)
Dot Layout	RGB Vertical Stripe
Active Area	92.88(H) × 52.632(V) mm / 3.66" × 2.07"
Physical Size	102.5(H) × 69(V) × 13.5(D) mm / 4.04" × 2.72" × 0.53"
Mass	120g (Typ.) / 0.26 lb
Luminance	500 cd/m² (Typ.)
Contrast Ratio	2000:1 (Typ.) (TM)
Response Time	15/5 ms (Typ.) (Tr/Td)
View Direction	Symmetry
Viewing Angle	85°/85°/85°/85° (Typ., CR≥10)
Operating Mode	ASV, Normally Black, Transmissive
Display Colors	262K, 65% NTSC
Light Source	WLED, 10,000 hrs lifespan, With LED Driver
Frame Rate	60Hz
Touch Panel	Without Touch Panel
Interface	CMOS (1 ch, 6-bit), 50-pin Connector
Power Supply	3.3V (Typ.)
Power Usage	2.252W (Typ.)
Operating Temperature	-30 ~ +85 °C
Storage Temperature	-40 ~ +85 °C
Surface Coating	Anti-Glare

Applications

Automotive Displays: Car infotainment systems, dashboard displays, rear-seat entertainment, and driver information panels.
Industrial Control Panels: Compact HMI, factory automation, and embedded control systems.
Marine & Outdoor Equipment: Marine navigation displays, outdoor monitoring terminals, and rugged portable devices.
Consumer & Commercial Devices: Portable GPS, handheld terminals, and compact kiosk displays.
