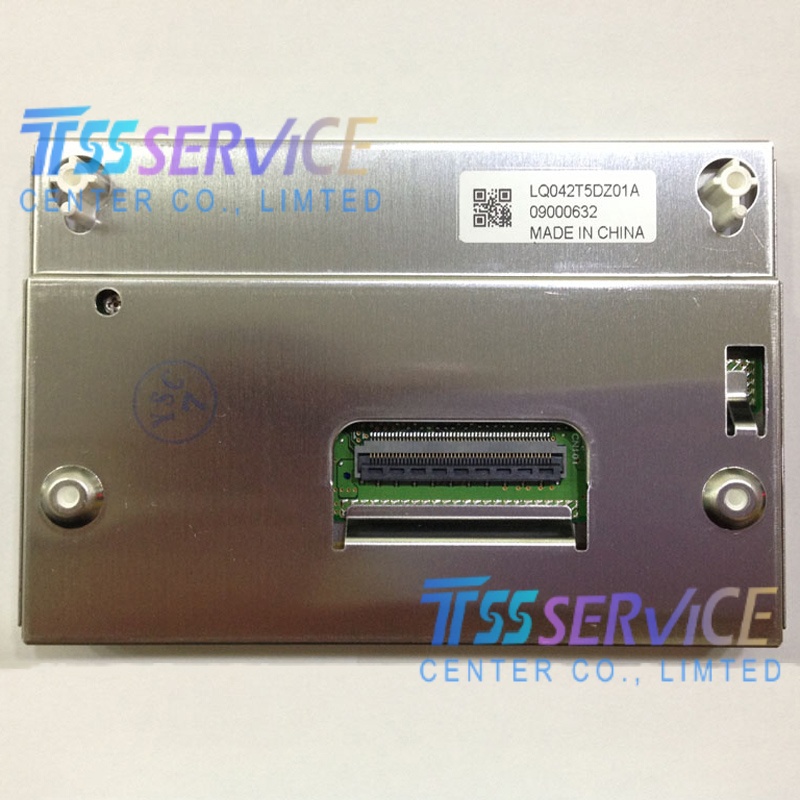

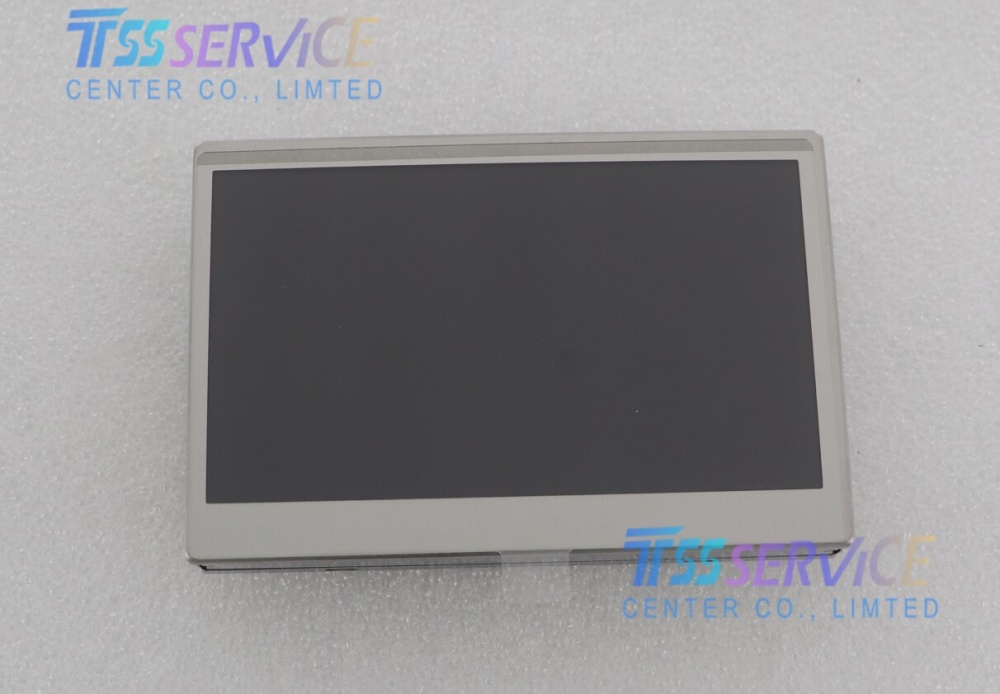

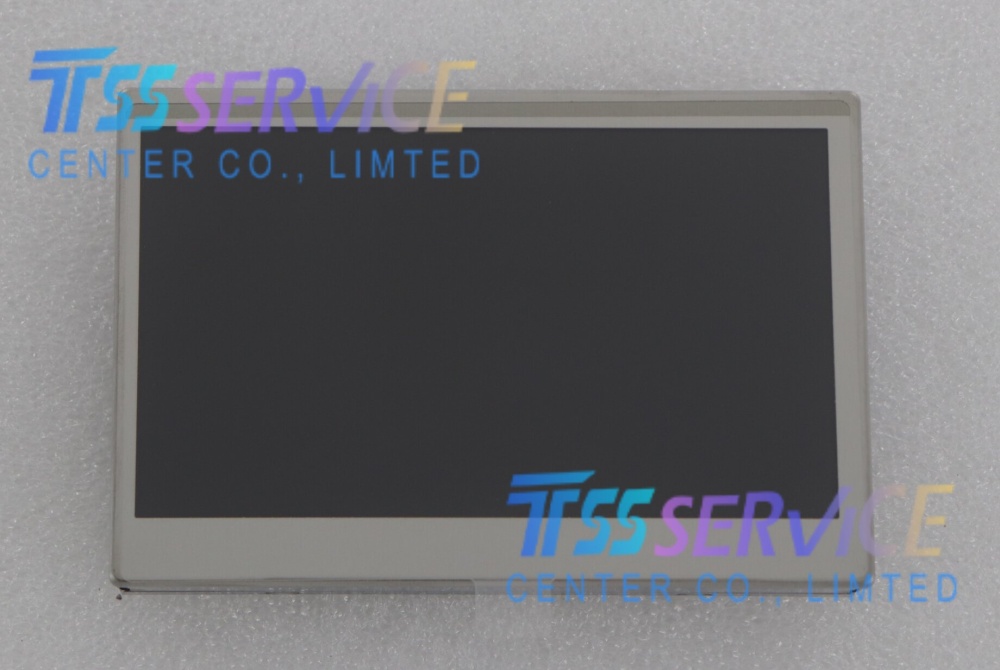

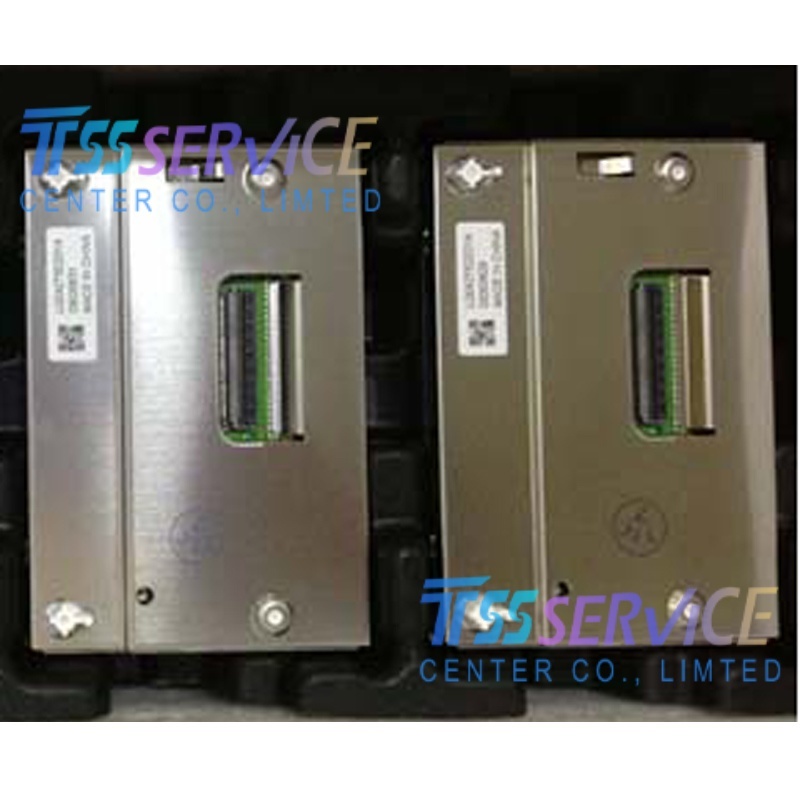

Sharp LQ042T5DZ01A 4.2" WQVGA TFT LCD 480×272 Industrial/Automotive Display

Name: Sharp LQ042T5DZ01A 4.2" WQVGA TFT LCD 480×272 Industrial/Automotive Display
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LQ042T5DZ01A
Price: 45 USD
Availability: InStock

SKU: LQ042T5DZ01A

Model: LQ042T5DZ01A
Brand: Sharp
Size: 4.2 inch (Diagonal)
Display Type: a-Si TFT-LCD, ASV (Advanced Super View), Normally Black, Transmissive
Resolution: 480(RGB)×272, WQVGA, 131 PPI, 16:9

0.0 (0 Reviews)

0 Sold

~~$48.00~~ $45.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Sharp LQ042T5DZ01A 4.2" WQVGA TFT LCD 480×272 Industrial/Automotive Display

Item	Specification
Model	LQ042T5DZ01A
Brand	Sharp
Size	4.2 inch (Diagonal)
Display Type	a-Si TFT-LCD, ASV (Advanced Super View), Normally Black, Transmissive
Resolution	480(RGB)×272, WQVGA, 131 PPI, 16:9
Brightness	500 cd/m² (Typ.)
Contrast Ratio	2000:1 (Typ.)
Viewing Angle	L/R/U/D: 85°/85°/85°/85° (CR≥10)
Display Colors	262K Colors (6-bit RGB)
Backlight	Edge-lit WLED, Lifespan: 70,000 Hours
Interface	TTL (Parallel RGB), 50-pin FPC
Operating Temperature	-30℃ ~ +85℃
Storage Temperature	-40℃ ~ +85℃
Compliance	RoHS
Active Area	92.88(W) × 52.632(H) mm
Outline Dimension	102.5(W) × 69(H) × 12(D) mm
Weight	Approx. 120g
Surface Treatment	Hard coating, Anti-glare (AG)
Special Feature	Automotive grade, wide temperature, high contrast

Applications

Automotive Displays: Instrument clusters, infotainment systems, rear-seat entertainment (wide temp & high contrast).
Industrial HMI & Control Panels: Factory automation, PLC terminals, CNC machinery (ASV full viewing angle).
Vehicle & Marine: Construction machinery, forklifts, ship instrument panels (500cd/m² bright & rugged).
Portable Industrial Devices: Handheld terminals, data collectors, portable test equipment (compact & light).
Medical Equipment: Portable diagnostic devices, patient monitors (stable performance & long lifespan).
Outdoor Kiosks: Self-service terminals, access control (anti-glare & wide operating temp).
