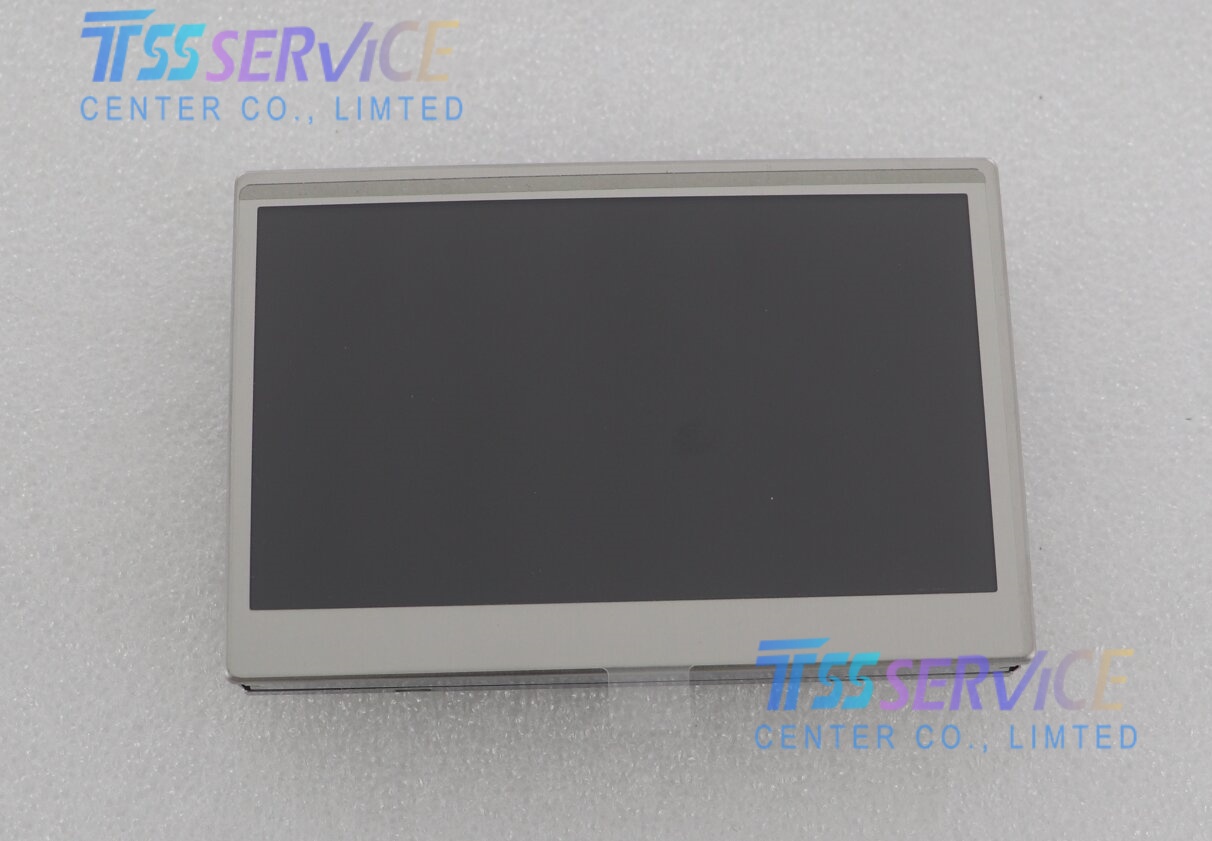

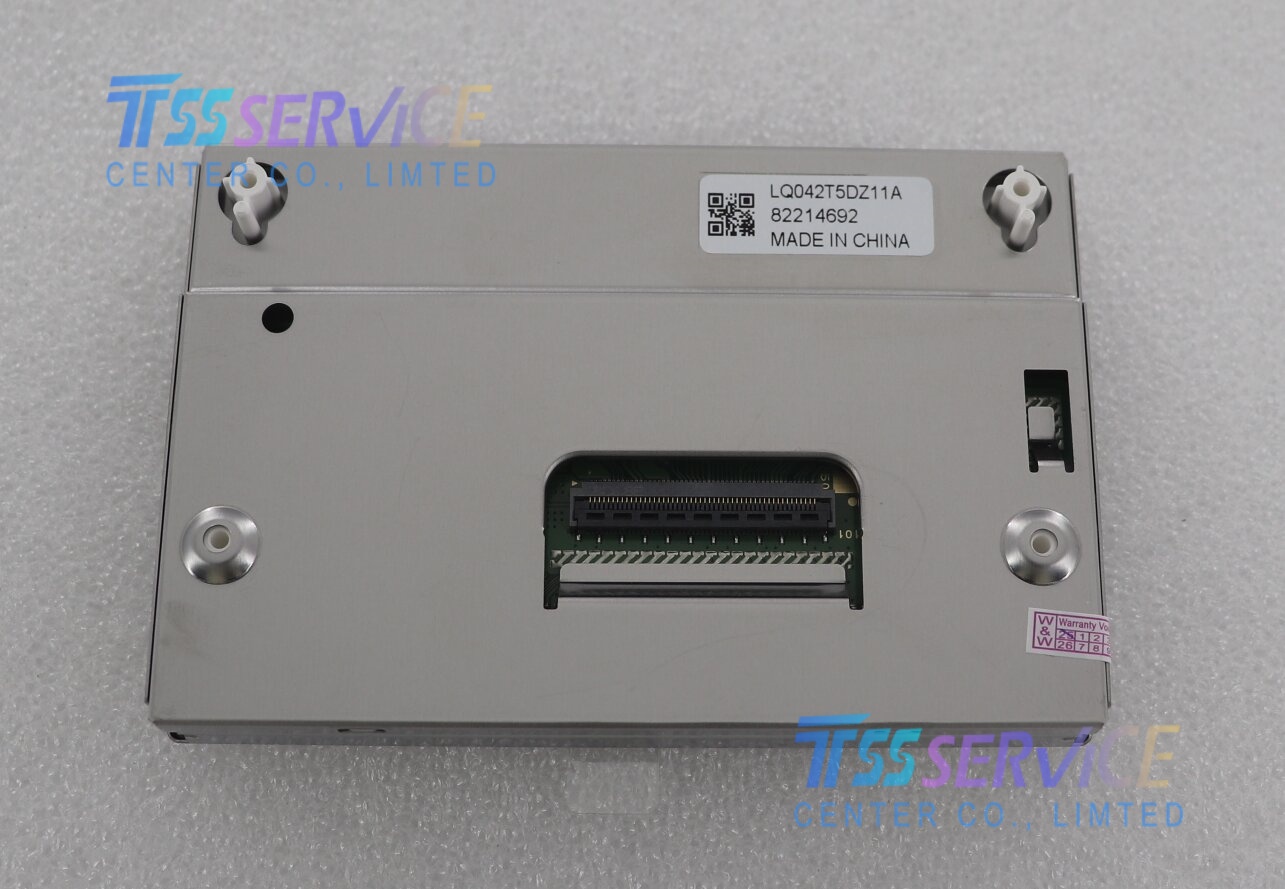

LQ042T5DZ11A 4.2inch 480×272 a-Si TFT-LCD Display for Sharp

Name: LQ042T5DZ11A 4.2inch 480×272 a-Si TFT-LCD Display for Sharp
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LQ042T5DZ11A
Price: 35 USD
Availability: InStock

SKU: LQ042T5DZ11A

1，Condition: New，Grade A

2，Description: LQ042T5DZ11A 4.2inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$36.00~~ $35.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The Sharp LQ042T5DZ11A is a 4.2-inch a-Si TFT-LCD (amorphous silicon thin-film transistor liquid crystal display) module featuring a resolution of 480 × 272 pixels (WQVGA) with a pixel density of 131 PPI. This compact display utilizes an RGB horizontal stripe pixel arrangement, delivering clear and detailed visuals suitable for a variety of embedded and industrial applications.

Parameter	Specification
Brand	Sharp
Model P/N	LQ042T5DZ11A
Diagonal Size	4.2"
Panel Type	a-Si TFT-LCD, LCM
Resolution	480×272(RGB), WQVGA 131PPI
Pixel Format	RGB Horizontal Stripe
Active Area	92.88(W)×52.632(H) mm
Outline Dim.	102.5(H)×69(V) mm
Luminance	500 cd/m² (Typ.)
View Direction	Symmetry
Operating Mode	ASV, Normally Black, Transmissive
Support Color	262K
Light Source	WLED
Weight	120g (Typ.)
Touch Panel	Without
Interface Type	CMOS (1 ch, 6-bit)
Operating Temperature	-30 ~ 85 °C
Storage Temperature	-30 ~ 85 °C

Typical Applications

Automotive Displays – Ideal for instrument clusters, infotainment systems, and rear-seat entertainment due to its wide operating temperature range.
Industrial Control Panels – Suitable for factory automation HMIs, control terminals, and rugged industrial equipment.
Marine & Outdoor Equipment – Reliable performance in outdoor environments with its robust temperature tolerance.
Medical Devices – Suitable for portable diagnostic equipment and patient monitoring systems.
Consumer Electronics – Can be used in portable multimedia players, gaming devices, and smart home control panels.
