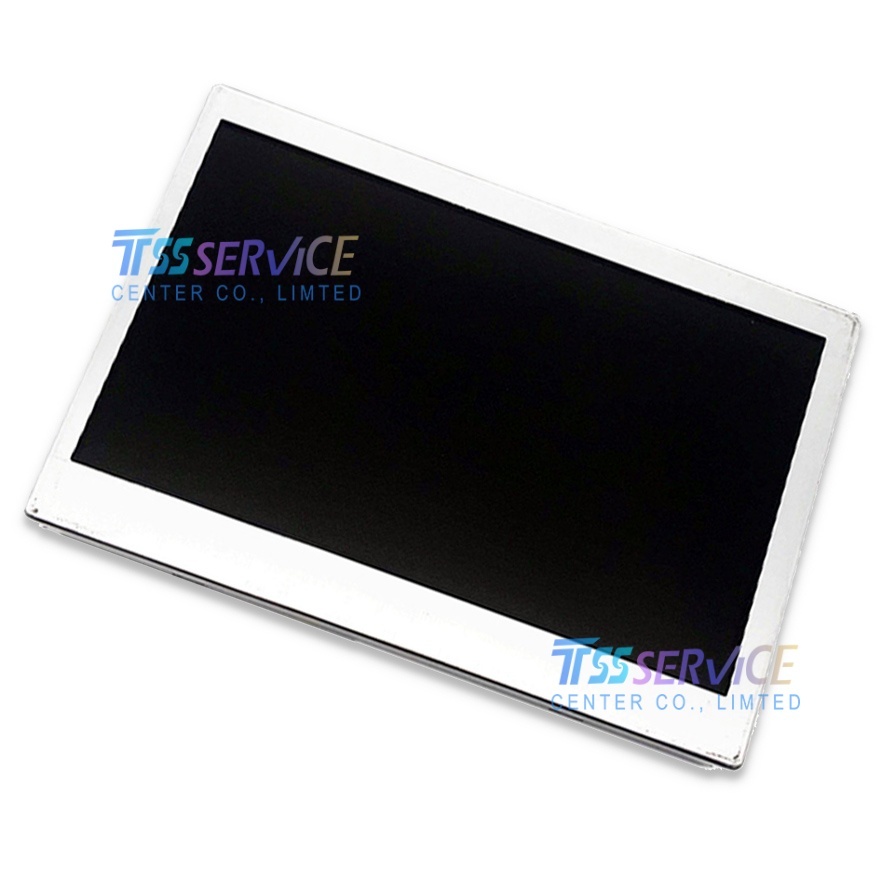

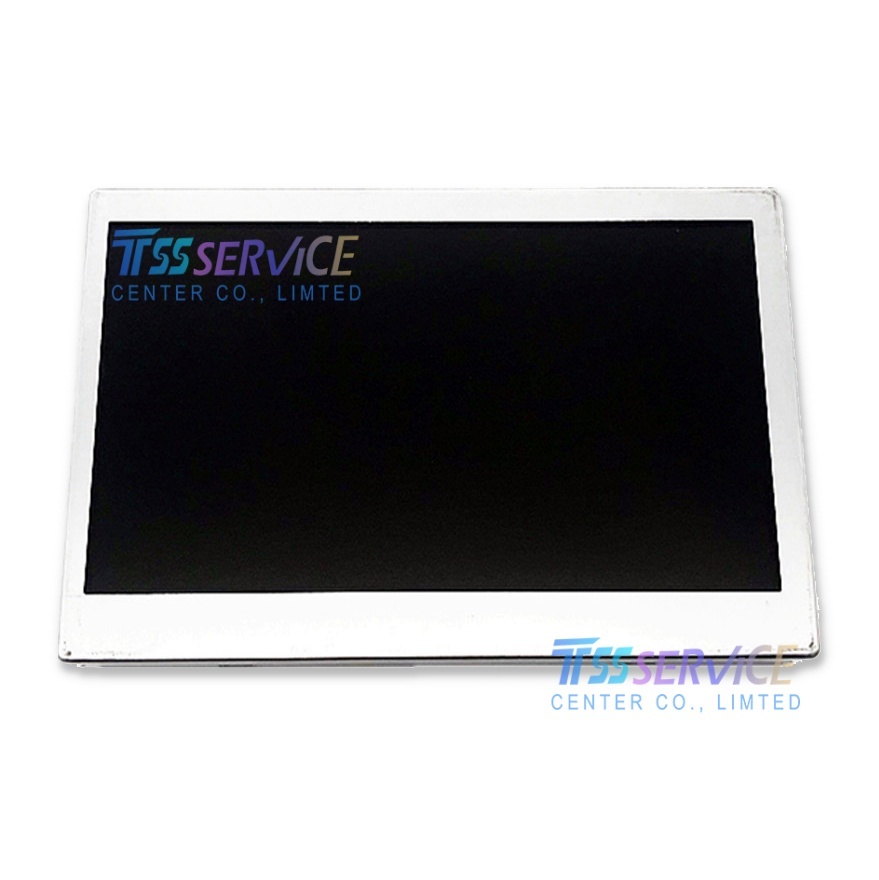

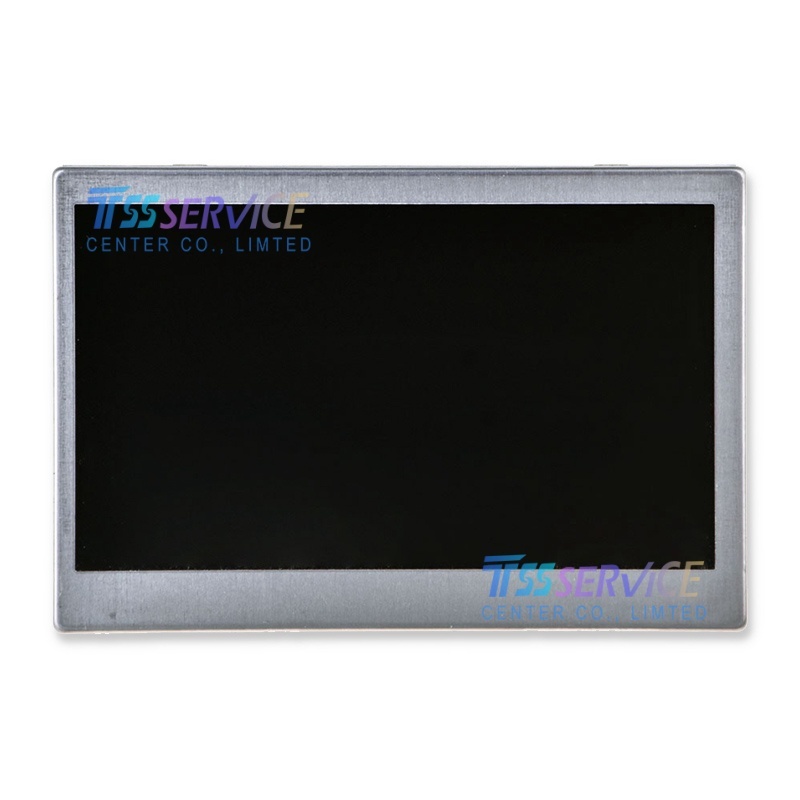

LQ042T5DZ14B Sharp 4.2 inch 480×272 Industrial LCD Display Panel Screen

Name: LQ042T5DZ14B Sharp 4.2 inch 480×272 Industrial LCD Display Panel Screen
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LQ042T5DZ14B
Price: 40 USD
Availability: InStock

SKU: LQ042T5DZ14B

Model P/N: LQ042T5DZ14B
Diagonal Size: 4.2"
Panel Type: a-Si TFT-LCD, LCM
Pixel Number: 480×272(RGB), WQVGA, 16:9
Pixel Format: RGB Horizontal Stripe

0.0 (0 Reviews)

0 Sold

~~$41.00~~ $40.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

LQ042T5DZ14B Sharp 4.2 inch 480×272 Industrial LCD Display Panel Screen

Parameter	Specification
Model	LQ042T5DZ14B
Manufacturer	Sharp
Panel Type	a-Si TFT-LCD, LCM; VA (ASV), Normally Black, Transmissive
Size	4.2-inch (16:9 Aspect Ratio)
Resolution	480 × 272 (WQVGA), 131 PPI
Colors	262K (6-bit per channel)
Pixel Arrangement	RGB Horizontal Stripe
Active Area	92.88 (W) × 52.632 (H) mm
Pixel Pitch	0.1935 × 0.1935 mm
Brightness	500 cd/m² (Typ.)
Backlight	WLED, Edge-lit
Interface	TTL (CMOS 1-ch, 6-bit)
Viewing Angle	85/85/85/85 (Typ.)
Operating Temp.	-30 ~ +85 °C
Storage Temp.	-30 ~ +85 °C
RoHS	Yes
Outline	Flat Rectangle, Landscape Orientation

Applications

Automotive Displays
Ideal for car infotainment systems, dashboard panels, and rear-seat entertainment due to its wide temperature range and robust design.
Industrial Control Terminals
Used in PLCs, HMIs, and automation equipment for clear status monitoring and menu navigation in industrial settings.
Medical Devices
Integrated into portable diagnostic instruments and patient monitors requiring high reliability and clear visual output.
Public Information Systems
Applied in ticket vending machines, ATMs, and access control terminals for durable, low-maintenance display solutions.
Embedded Systems
Suitable for battery-powered IoT devices and compact embedded displays where space and power efficiency are critical.
