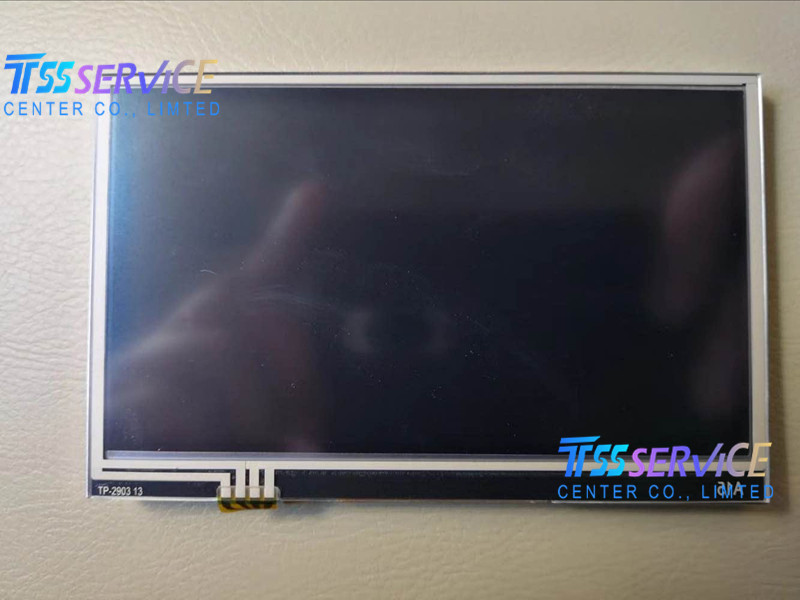

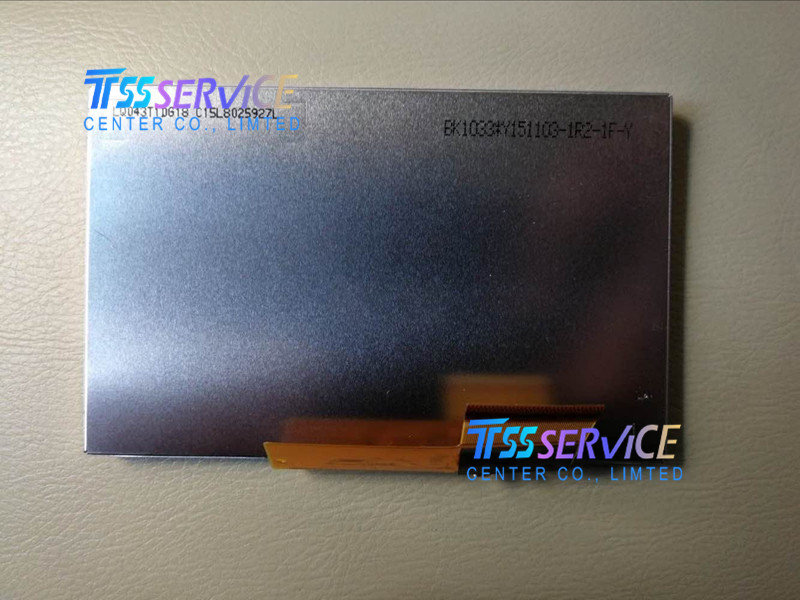

The Sharp LQ043T1DG38 is a high-quality 4.3-inch industrial TFT-LCD module designed for reliable performance in embedded and industrial applications. Featuring a WQVGA resolution (480×RGB×272) and an advanced a-Si TFT-LCD technology, this display delivers crisp, full-color visuals with 16.7 million colors.
| Parameter |
Value |
| Manufacturer |
Sharp |
| Model No. |
LQ043T1DG38 |
| Screen Size |
4.3 inch |
| Screen Type |
a-Si TFT-LCD, LCM |
| Number of Dots |
480(RGB)×272, 16:9, WQVGA |
| Pixel Structure |
RGB Vertical Stripe |
| Active Area (H×V) |
95.04×53.856 mm |
| Outline Area (H×V) |
105.5×67.2 mm |
| Weight |
61.0g (Typ.) |
| Surface Feature |
Antiglare, Hard coating (2H) |
| Luminance |
300 cd/m² (Typ.) |
| Contrast Ratio |
500:1 (Typ.) (TM) |
| Viewing Angle (CR≥10) |
80/80/55/80 (Typ.) |
| Response (ms) (Tr/Td) |
22/8 (Typ.) |
| Good View at |
6 o'clock |
| Display Type |
TN, Normally White, Transmissive |
| Display Colors |
16.7M |
| Backlight |
9S1P WLED, 15K hrs, No Driver |
| Refresh Rate |
60Hz |
| Touchscreen |
Embedded Touch |
| Signal Type |
Parallel RGB (1 ch, 8-bit), 45 pins FPC |
| Voltage Supply |
3.3V (Typ.) |
| Storage Temp. |
-30 ~ 85 °C |
| Operating Temp. |
-10 ~ 70 °C |
