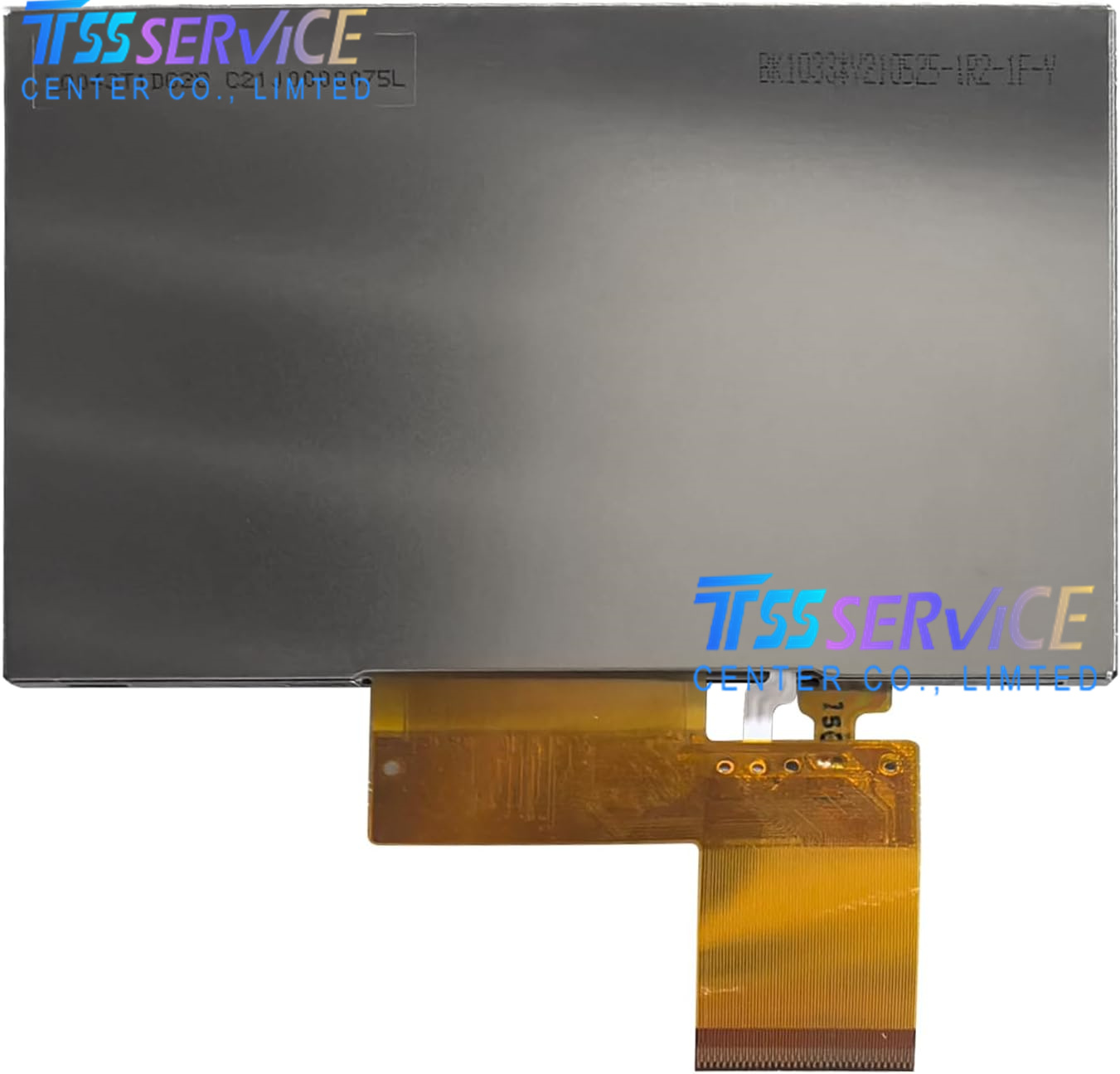

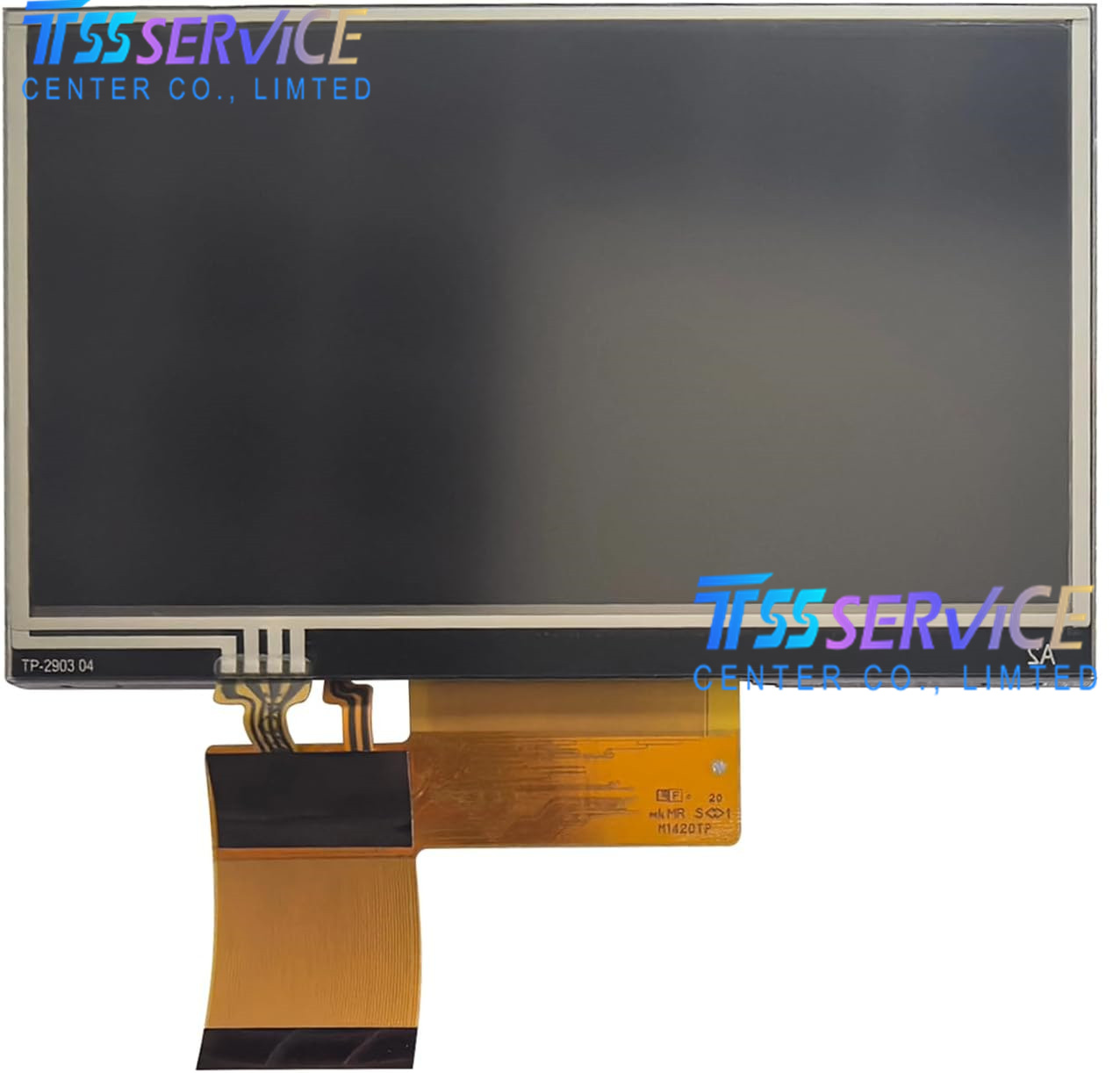

LQ043T1DG28 Sharp 4.3" 480×272 a-Si TFT-LCD Display Panel Screen
Description:
The LQ043T1DG28 is a compact and high-performance 4.3-inch a-Si TFT-LCD module manufactured by Sharp, designed for applications requiring clear visibility in a small form factor. Featuring a WQVGA resolution of 480x272 pixels and a 16:9 aspect ratio, this display delivers sharp images with a typical brightness of 300 cd/m² and a wide viewing angle, making it suitable for both indoor and outdoor use. The module utilizes a transmissive mode with WLED backlighting for energy efficiency and uniform illumination. Equipped with a robust interface and durable construction, it is an ideal choice for portable medical devices, industrial handheld terminals, and automotive infotainment systems.
| Parameter |
Specification |
| Model Number |
LQ043T1DG28 |
| Manufacturer |
Sharp |
| Panel Type |
a-Si TFT-LCD |
| Display Mode |
Transmissive, Normally White (Typical) |
| Screen Size |
4.3 inches |
| Resolution |
480 (RGB) × 272 pixels (WQVGA) |
| Aspect Ratio |
16:9 |
| Active Area |
95.04(W)×53.856(H) mm |
| Outline Dimensions |
105.5(W)×67.2(H) ×4.45(D) mm |
| Brightness |
300 cd/m² (Typ.) |
| Contrast Ratio |
500:1 (Typ.) |
| Viewing Angle |
80/80/55/80 (Typ.)(CR≥10) |
| Color Depth |
262K |
| Backlight Type |
WLED (White LED) |
| Touch Panel |
4-wire Resistive Touch |
| Interface |
Parallel RGB (1 ch, 6-bit) + SPI , 67 pins FPC |
| Operating Temperature |
-10 ~ 70 °C |
| Storage Temperature |
-30 ~ 85 °C |
Sharp
Specific Applications:
The LQ043T1DG28 is widely deployed in sectors requiring reliable, compact, and bright visual interfaces:
- Medical Instrumentation: Perfect for portable patient monitors, handheld diagnostic scanners, and infusion pumps where clear data visualization on a compact screen is critical for healthcare professionals.
- Industrial Handhelds & Control: Used in rugged handheld data loggers, barcode scanners, and portable HMI (Human-Machine Interface) panels for factory maintenance and logistics, benefiting from its wide temperature range and durability.
- Automotive & Transportation: Integrated into aftermarket navigation units, dashboard displays, and fleet management terminals where the 16:9 aspect ratio and high brightness ensure readability under varying lighting conditions.
- Consumer Electronics & IoT: Suitable for smart home control panels, portable gaming devices, and specialized measurement equipment requiring a cost-effective yet high-quality 4.3-inch display solution.
Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
