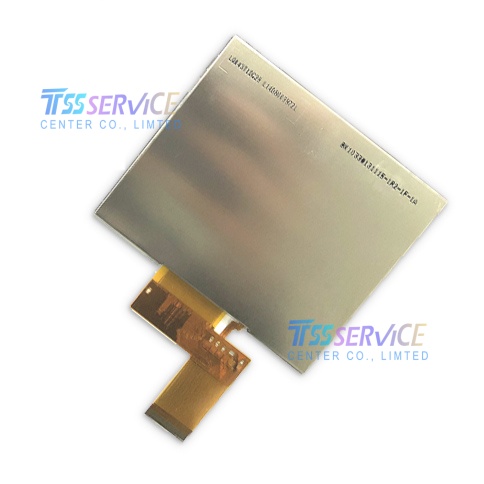

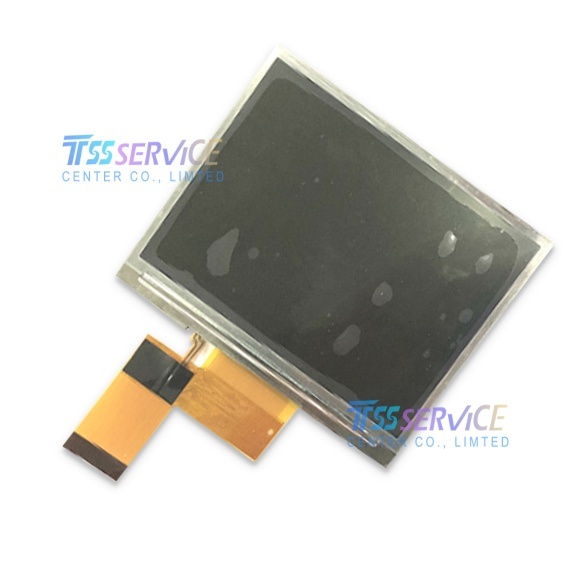

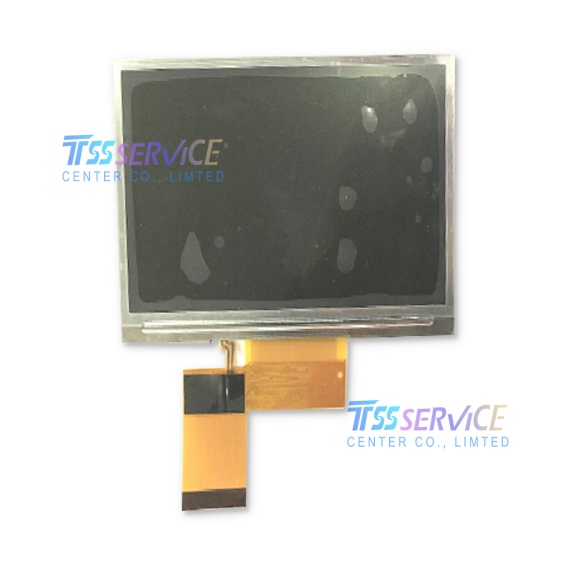

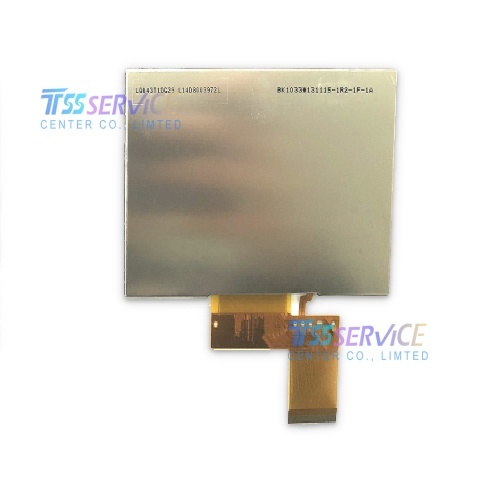

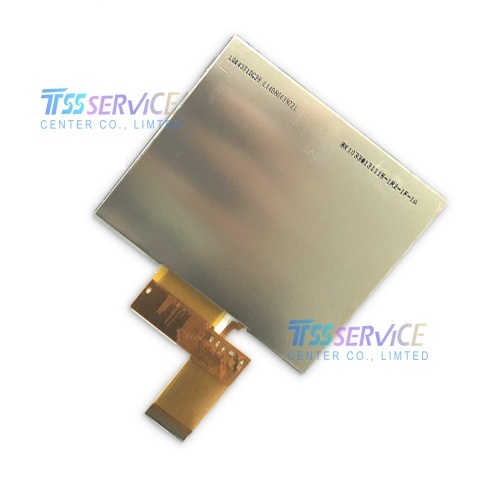

The Sharp LQ043T1DG29 is a 4.3-inch industrial-grade TFT-LCD display module designed for embedded systems, human-machine interfaces (HMI), industrial control equipment, and portable terminals. This model offers a balanced combination of optical performance, compact mechanical design, and wide temperature operation.
| Parameter |
Value |
| Mfr |
Sharp |
| Model Name |
LQ043T1DG29 |
| Display Size |
4.3" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
480×272(RGB), 16:9, WQVGA |
| Pixel Structure |
RGB Horizontal Stripe |
| Display Area (W×H) |
95.04×53.856 mm |
| Panel Weight |
36.0g (Typ.) |
| Outline Size (W×H×D) |
105.5×67.2×3.3 mm |
| Surface |
Antiglare, Hard coating (2H) |
| Brightness |
360 cd/m² (Typ.) |
| Contrast Ratio |
500:1 (Typ.) (TM) |
| Viewing Angle (CR≥10) |
80/80/55/80 (Typ.) |
| Display Mode |
TN, Normally White, Transmissive |
| View Direction |
6 o'clock |
| Response Time (Tr/Td) |
22/8 ms (Typ.) |
| Display Colors |
262K |
| Frequency |
60Hz |
| Touch Screen |
Without |
| Light Source |
9S1P WLED, 10K hrs, Without Driver |
| Interface |
Parallel RGB (1 ch, 6-bit) + SPI, 67 pins FPC |
| Input Voltage |
3.3/3.3V (Typ.) (IOVCC/VCC) |
| Operating Temperature |
-10 ~ 70 °C |
| Storage Temperature |
-30 ~ 85 °C |
Applications
This display is ideal for industrial control panels, medical equipment interfaces, handheld terminals, portable navigation devices, test and measurement instruments, and other embedded systems requiring a bright, compact, and durable LCD module with wide operating temperature range .
