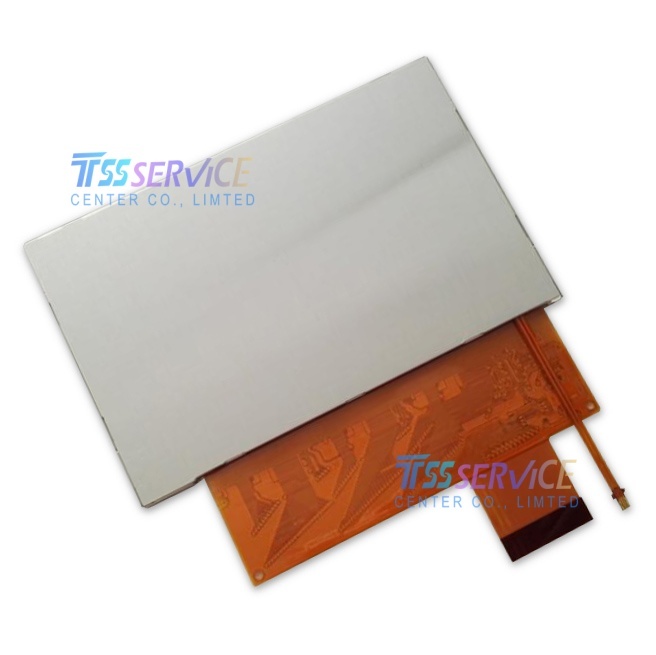

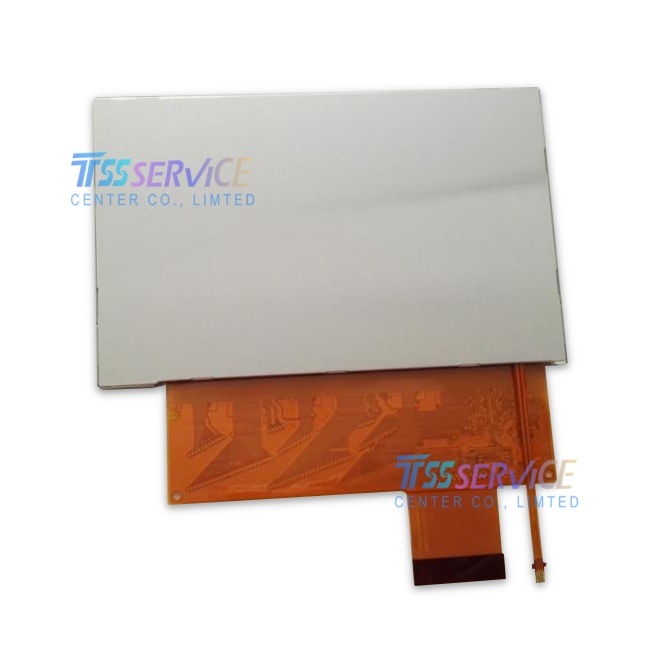

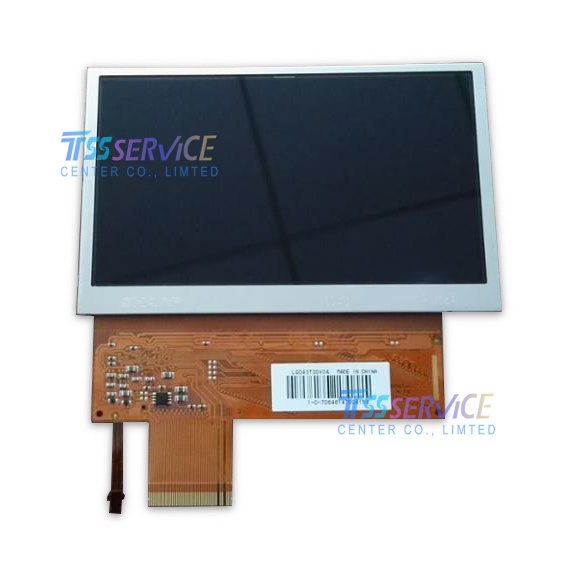

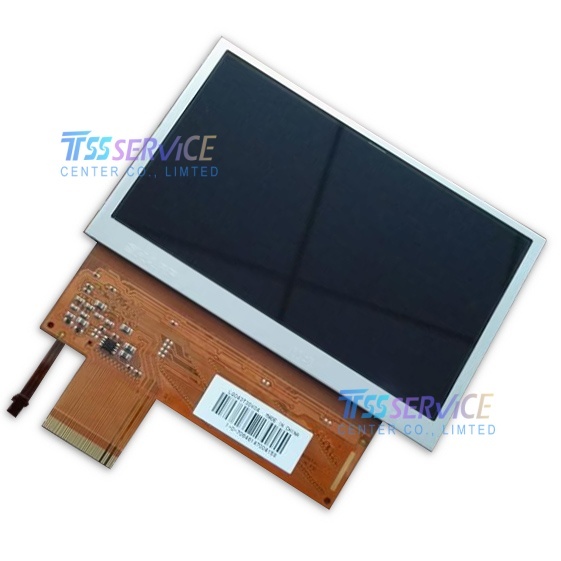

LQ043T3DX04 Sharp 4.3 Inch 480×272 Industrial LCD Display Screen

Name: LQ043T3DX04 Sharp 4.3 Inch 480×272 Industrial LCD Display Screen
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LQ043T3DX04
Price: 32 USD
Availability: InStock

SKU: LQ043T3DX04

Model No.: LQ043T3DX04
Display Size: 4.3 Inches
Panel Type: a-Si TFT-LCD, LCM
Native Resolution: 480(RGB)×272, WQVGA, 16:9 Aspect Ratio
Dot Layout: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$33.00~~ $32.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

LQ043T3DX04 Sharp 4.3 Inch 480×272 Industrial LCD Display Screen

Spec Item	Detailed Parameter
Manufacturer	Sharp
Model No.	LQ043T3DX04
Display Size	4.3 Inches
Panel Type	a-Si TFT-LCD, LCM
Native Resolution	480(RGB)×272, WQVGA, 16:9 Aspect Ratio
Dot Layout	RGB Vertical Stripe
Display Area	95.04(W) × 53.856(H) mm
Overall Outline Size	105.5(W) × 67.2(H) × 4.25(D) mm
Net Weight	50.0g (Typical)
Surface Treatment	Clear, Hard Coating
Brightness	230 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ., TM)
Viewing Angle	80/80/80/80 (Typ., CR≥10)
View Direction	Symmetry
Display Mode	ASV, Normally Black, Transmissive
Response Time	30/30 ms (Tr/Td Typical)
Display Color Depth	16.7M Colors
Touch Screen	Without Touch Digitizer
Backlight Source	7S1P WLED, No Built-in Driver
Refresh Frequency	60Hz
Interface Type	Parallel RGB (1 channel, 8-bit), 40 pins FPC Connector
Input Supply Voltage	2.5V / 5.0V (Typ., VCC / AVDD)
Operating Temperature	-20 ℃ ~ +60 ℃
Storage Temperature	-30 ℃ ~ +70 ℃
