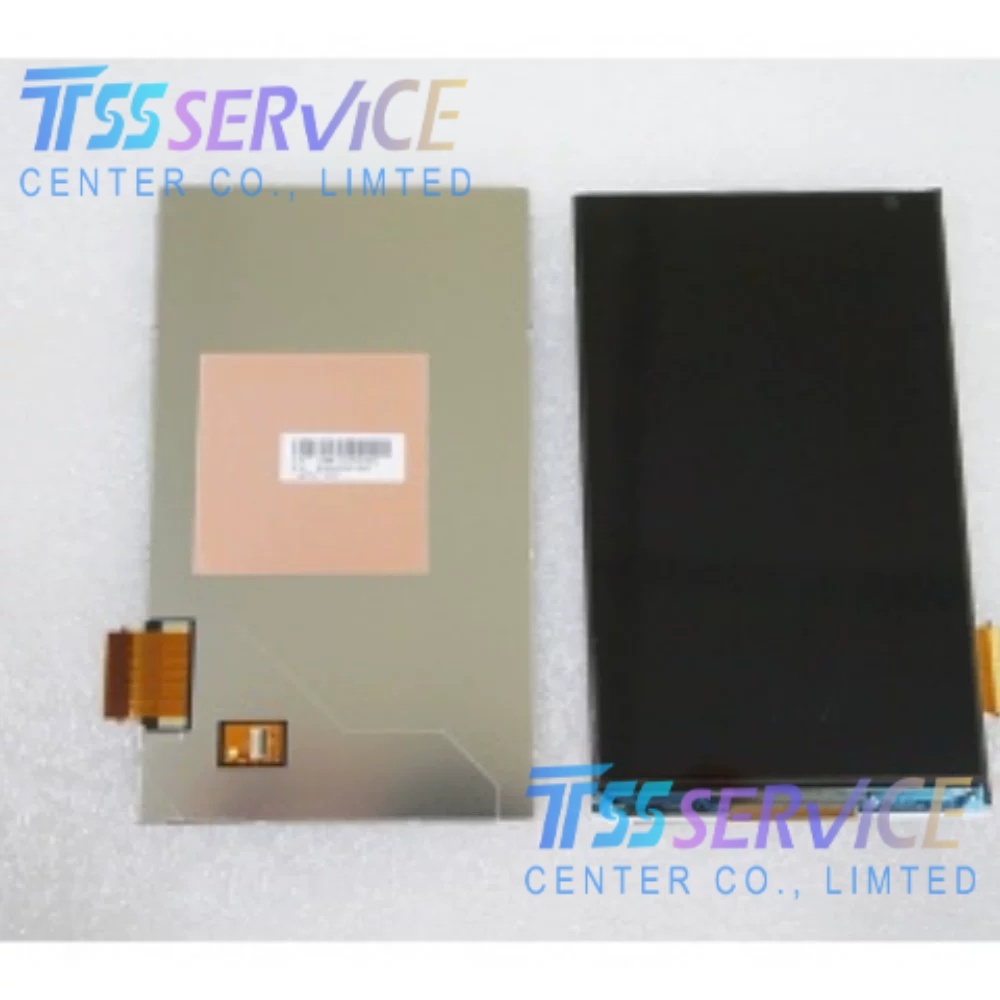

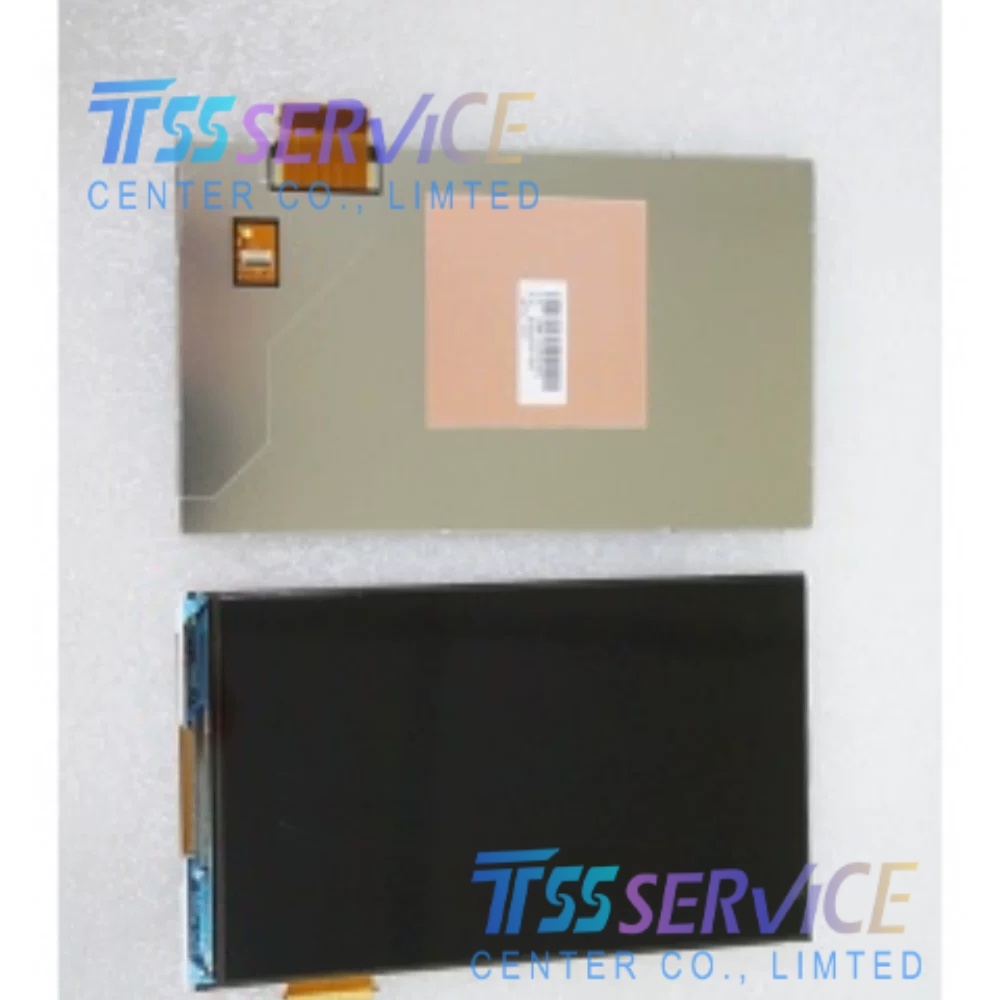

LQ043Y1DX01 Sharp 4.3 inch LCD Panel Display For Industrial
| Parameter |
Details |
| Manufacturer |
Sharp Corporation |
| Part Number |
LQ043Y1DX01 |
| Panel Type |
a-Si TFT-LCD, ASV (Advanced Super View) |
| Diagonal Size |
4.3 inches (10.9 cm) |
| Resolution |
480 (RGB) × 800 pixels (WVGA, Portrait mode) |
| Pixel Format |
RGB Vertical Stripe |
| Display Mode |
Normally Black, Transmissive |
| Active Area |
93.6 mm (H) × 56.16 mm (V) |
| Outline Dimensions |
105.9 mm (H) × 62.46 mm (V) |
| Surface Treatment |
Hard coating (3H) |
| Brightness |
350 cd/m² (Typical) |
| Contrast Ratio |
900:1 (Typical, Transmissive) |
| Color Depth |
65K colors (16-bit) |
| Color Gamut |
72% (NTSC) |
| Response Time |
35 ms (Typical) (Tr+Td) |
| Viewing Angle |
80° (L) / 80° (R) / 80° (U) / 80° (D) (Typical, CR≥10) |
| Refresh Rate |
60 Hz |
| Backlight |
WLED (White LED), Edge type, 8S1P configuration, No Driver IC |
| Driver IC |
HX8363-A (Integrated on FPC) |
| Signal Interface |
Parallel RGB (24-bit), 45-pin FPC connector |
| Supply Voltage |
VCI=3.0V (Typ.), VDDIO=2.6V (Typ.) |
| Operating Temperature |
-20°C to +60°C |
| Storage Temperature |
-30°C to +70°C |
| Touch Screen |
No |
| Status |
Obsolete (Discontinued) |
The LQ043Y1DX01 is a 4.3-inch portrait-mode LCD module, originally designed for high-end mobile phones and portable handheld devices. Its key applications include:
- Smartphones / Mobile Phones:
- Specifically designed as the main display for early-generation smartphones.
- Confirmed OEM application: HTC HD2 (Desire HD9191).
- Portable Media Players (PMPs):
- For video playback and user interface on compact MP4/MP5 players.
- GPS Navigation Devices:
- Handheld car GPS units requiring a compact, high-contrast screen.
- Handheld Industrial Scanners / PDAs:
- Data collection terminals, warehouse barcode scanners, and logistics devices.
- Medical & Healthcare Devices:
- Portable patient monitors, small diagnostic equipment, and handheld medical testers.
- Test & Measurement Instruments:
- Handheld multimeters, digital oscilloscopes, and portable signal analyzers.
- Automotive Displays:
- After-market head-unit displays and car information centers.
