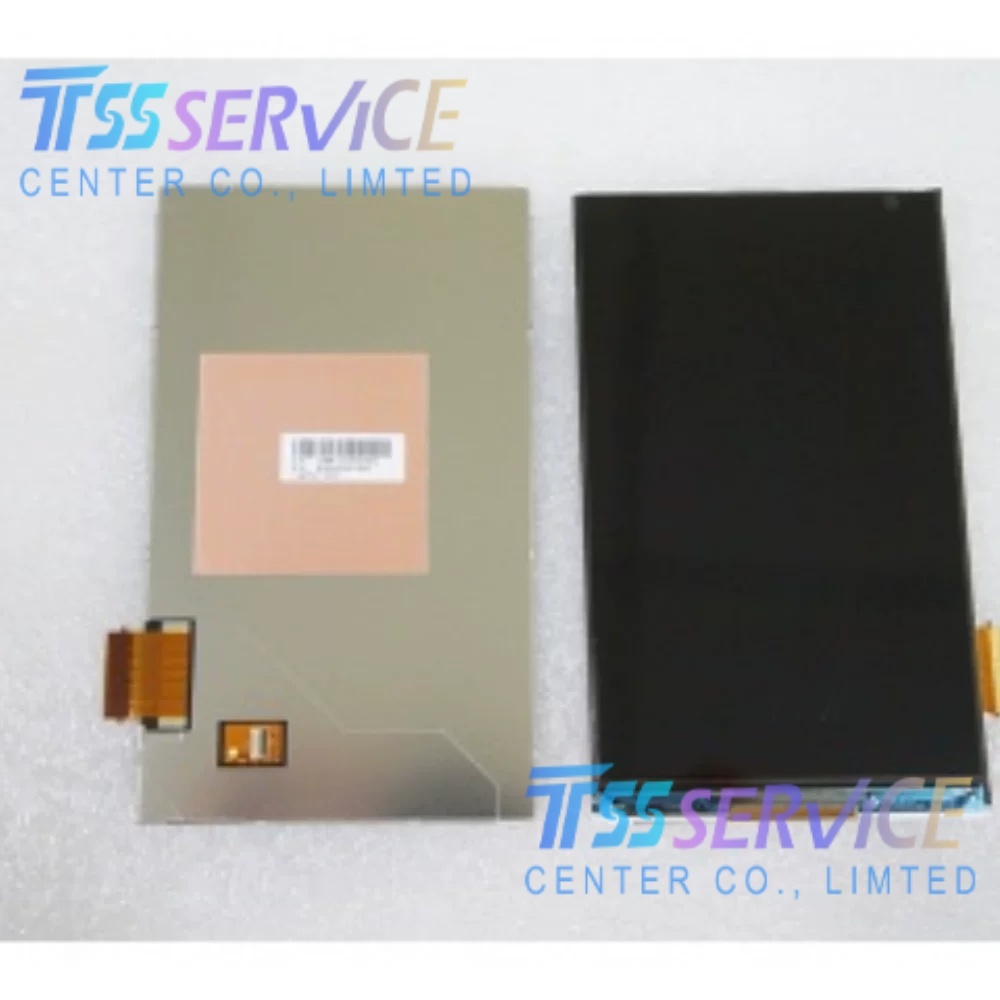

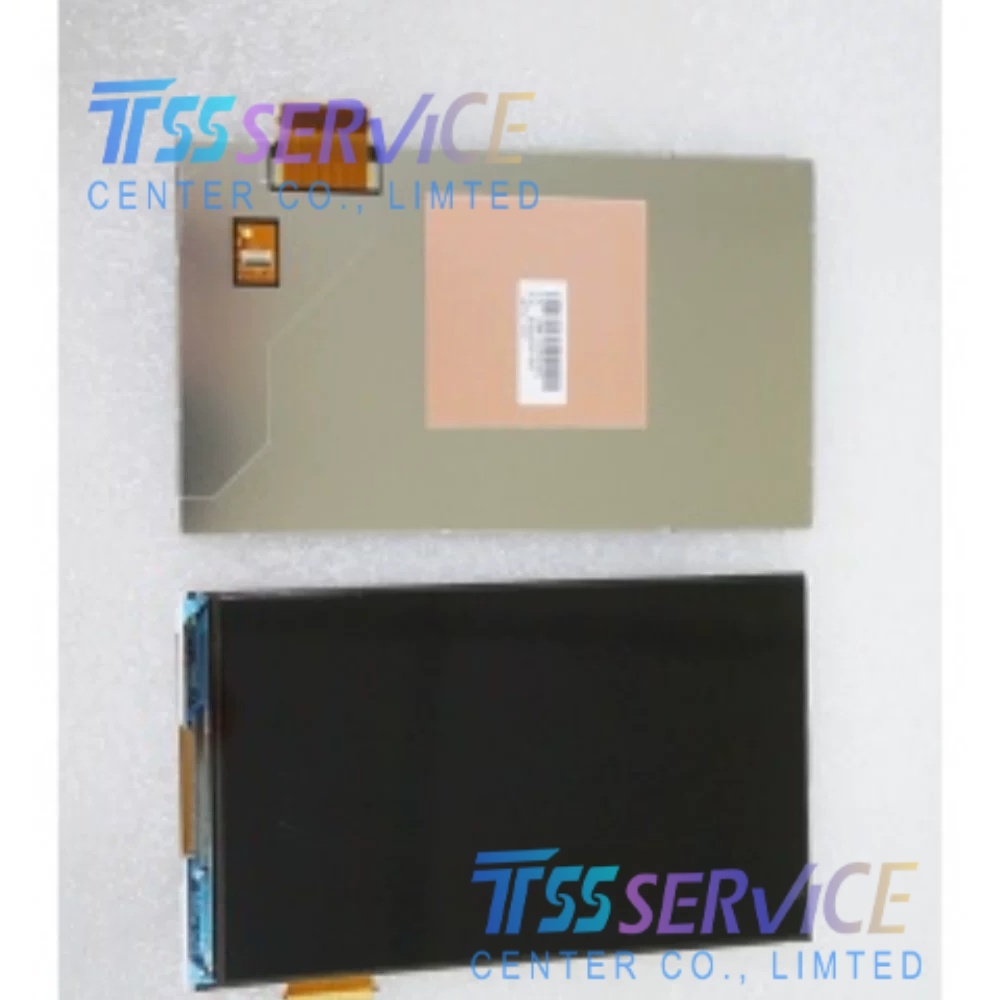

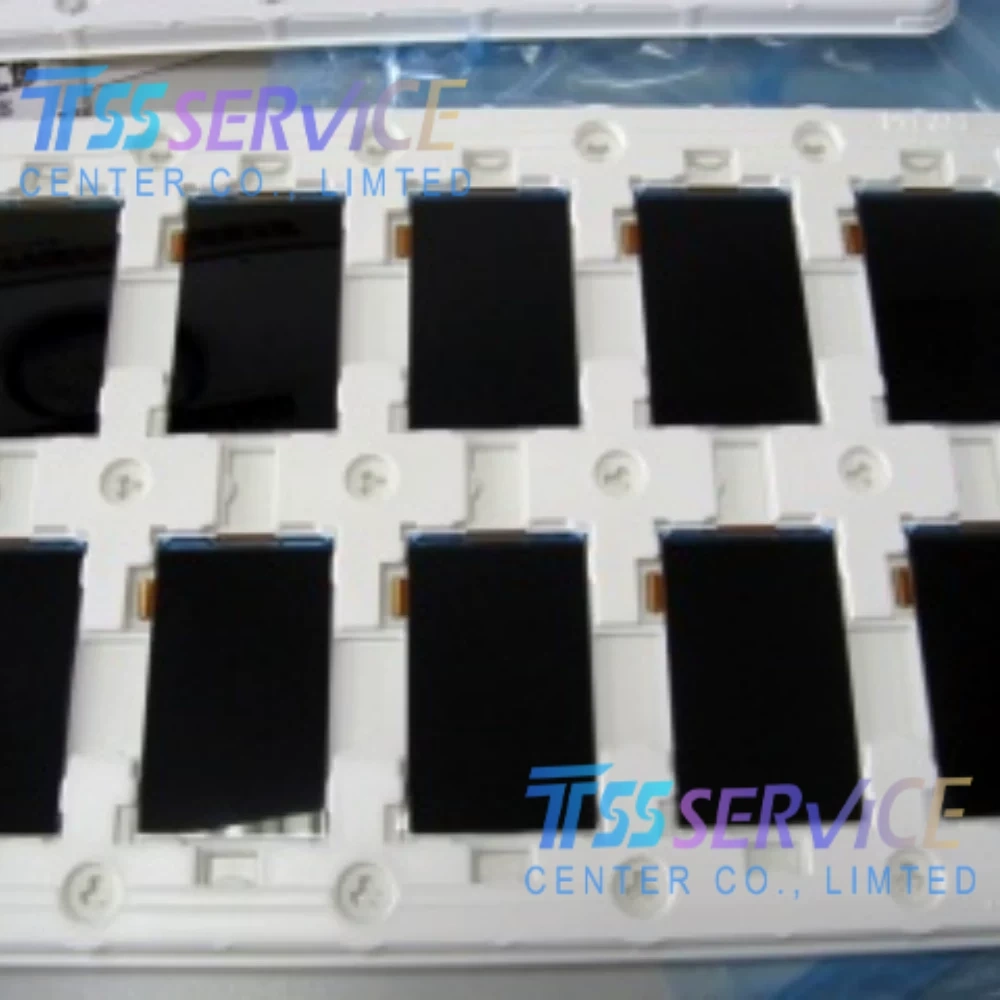

Sharp LQ043Y1DX01B 4.3 Inch 480×800 LCD Panel Display For Industrial
| Parameter |
Value |
Unit |
Notes |
| Part Number |
LQ043Y1DX01B |
- |
Sharp 4.3-inch TFT-LCD Module |
| Display Type |
Transmissive Color TFT-LCD, Active Matrix, Normally Black (ASV) |
- |
a-Si TFT-LCD, LCM |
| Diagonal Size |
4.3 |
inch |
- |
| Resolution |
480(RGB) × 800 |
dots |
WVGA, Portrait Orientation |
| Pixel Arrangement |
RGB Vertical Stripe |
- |
- |
| Color Depth |
65K (16-bit) |
colors |
- |
| Brightness |
350 (Typ.) |
cd/m² |
- |
| Contrast Ratio |
900:1 (Typ.) |
- |
- |
| Response Time |
35 (Typ.) |
ms |
Tr+Td |
| Viewing Angle |
80/80/80/80 (Typ.) |
deg |
CR≥10 (Left/Right/Up/Down) |
| Surface Treatment |
Clear (No Anti-Glare) |
- |
- |
| Backlight |
White LED (WLED, Edge-lit) |
- |
No built-in driver |
| Interface |
TTL (Parallel RGB + SPI), 3-in-1 FPC |
- |
Compatible with mobile MCUs |
| Driver IC |
HX8363-A |
- |
- |
| Operating Temp. |
-20 ~ +60 |
°C |
Industrial/Handheld Grade |
| Storage Temp. |
-30 ~ +70 |
°C |
- |
| Supply Voltage |
VCC = 3.3 (Typ.) |
V |
Logic & Backlight |
| Touch Panel |
None |
- |
- |
| Production Status |
Discontinued (EOL) |
- |
- |
LQ043Y1DX01B is a compact, high-contrast 4.3-inch WVGA TFT-LCD optimized for portable, handheld, and embedded display systems requiring portrait layout and reliable performance in mobile environments.
Key Application Scenarios
- Mobile Phones & Smart Devices: Feature phones, early smartphones (e.g., HTC HD2/Desire HD9191), portable media players
- Handheld Terminals: Industrial PDAs, barcode scanners, portable data collectors, rugged handhelds
- GPS & Navigation: Car navigation systems, portable GPS devices, marine/aviation portable navigators
- Industrial HMI & Control: Compact operator panels, portable industrial monitors, field test instruments
- Consumer Electronics: Digital cameras, camcorders, portable game consoles, e-book readers
- Medical & Healthcare: Portable diagnostic devices, patient monitors, handheld medical scanners
Design Advantages for Applications
- Portrait WVGA Layout: Ideal for mobile UI, text reading, and vertical information display
- ASV Technology: Wide 160° viewing angle for clear visibility from all directions
- High Contrast: 900:1 ratio delivers sharp images in low-light mobile environments
- Compact Form Factor: 4.3-inch size fits space-constrained handheld/portable designs
- TTL Interface: Easy integration with mobile/embedded MCUs (Parallel RGB + SPI)
- Wide Temp Range: -20°C to +70°C operation for reliable outdoor/industrial use
- WLED Backlight: Long lifespan (>50,000 hours) for low-maintenance portable devices
